Product Description
| Panel Size | 0.96inch |
| Model Number | FB009DVS407-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 1:2 |
| Resolution | 80X160 |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 10.8(W)X21.7 (H) mm |
| Bezel Opening | 155.3（W) X94.3 (H) mm |
| Outline Dimension | 13.54(H)X27.95(V)X1.5(D)mm |
| Treatment | Antigare |
| View Angel | 80/80/80/80 |
| Support Color | 16.7M |
| Luminance | 400 cd/㎡ |
| Interface Type | SPI |
| Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 2.8V |
| Current for LED Backlight | 15~20mA |
| Application | Smart wearable, handheld&PDA, Industrial, Healthcare |
| Sample Leadtime | 7-10days |

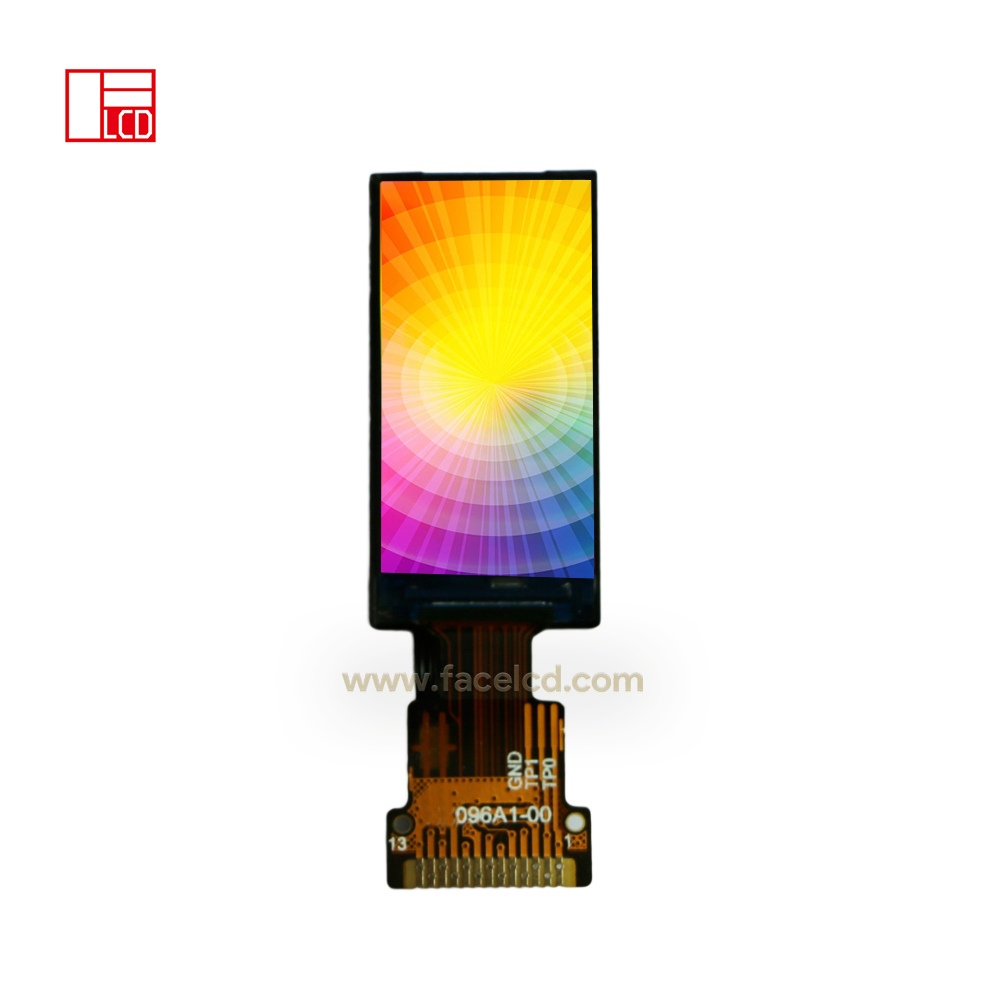

Ultra-Compact IPS TFT LCD For Wearable Devices
0.96 inch IPS TFT LCD modules are designed for products where every millimeter of front-panel space matters. This display uses 80 × 160 resolution, SPI interface support, 400 nits brightness, and 16.7M color capability. It can show short status data, icons, alerts, battery levels, and simple UI pages in smart wearables and compact handheld devices.
80x160 Resolution For Micro UI Content
The slim display area works best for focused information rather than full interface pages. Wearables can show time, steps, battery status, and alert icons. Handheld devices can use it for connection state, mode labels, and short prompts.
Key product points include:
- 0.96-inch IPS TFT LCD
- 80 × 160 resolution
- SPI interface support
- 400 nits brightness
- 16.7M color display
- Fit for smart wearables and handheld devices
IPS Viewing In A Very Small Screen
IPS technology helps keep small text and icons visible from different viewing angles. This is useful for wearable products where the screen may be viewed from the wrist, tilted positions, or close viewing distance.
Sampling Support For Mini Display Assemblies
FaceLCD can help review SPI timing, connector type, FPC direction, backlight power, cover lens, and housing layout. The 0.96 inch IPS TFT LCD can also be checked with battery-powered device requirements and small front shell designs.
Download Document：
0.96inch 80x160 IPS TFT LCD Display with SPI
FAQ
What Resolution Does This 0.96-Inch LCD Use?
It uses 80 × 160 resolution.
What Interface Does It Support?
It supports SPI interface connection.
Does It Use IPS Technology?
Yes. It uses IPS TFT LCD technology.
How Bright Is The Display?
The reference brightness is 400 nits.
Can FaceLCD Help With Wearable Device Fit?
Yes. FaceLCD can review screen size, FPC route, cover lens, power needs, and housing design.
Which Products Can Use This LCD?
It can fit smart wearables, handheld devices, small IoT screens, compact status displays, and mini electronics.
