0.96“~4“Bar LCD

You are here: Home > Products > TFT-LCD Display > 0.96“~4“ > 0.96inch 80×160 IPS TFT LCD Display with SPI

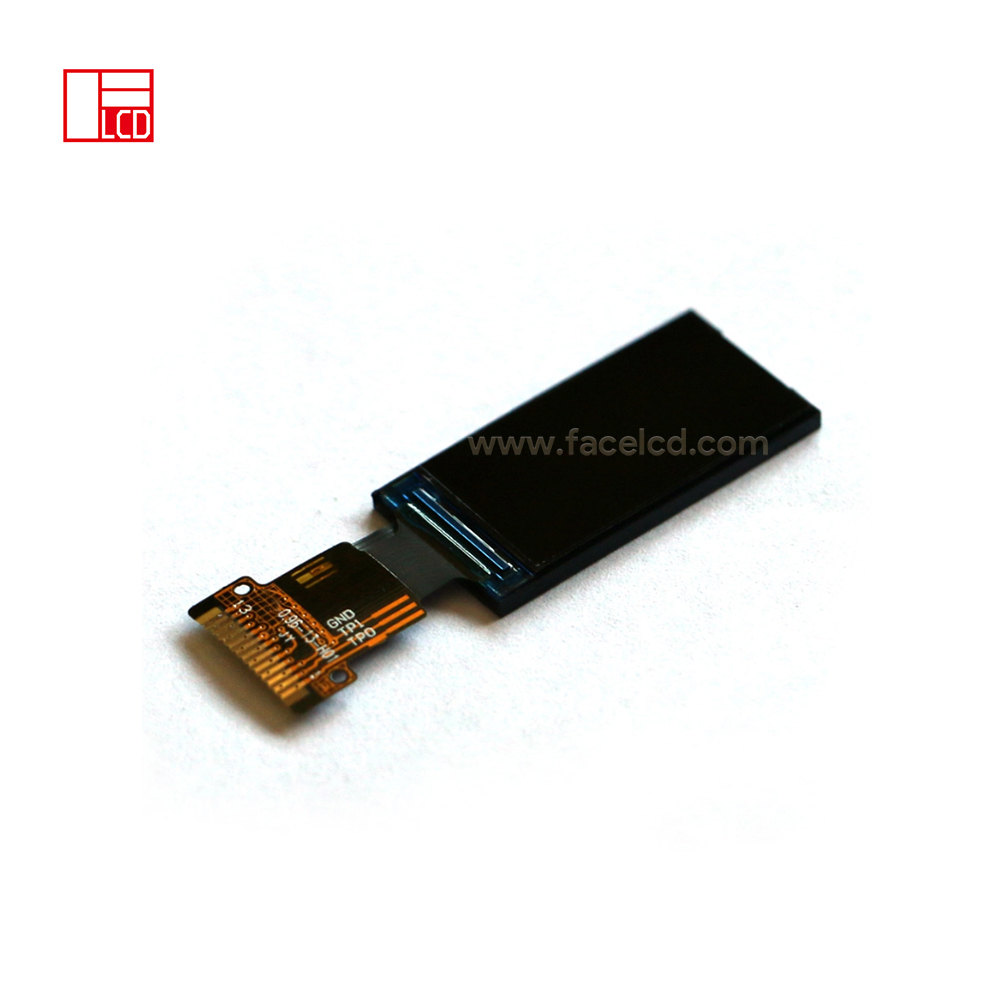

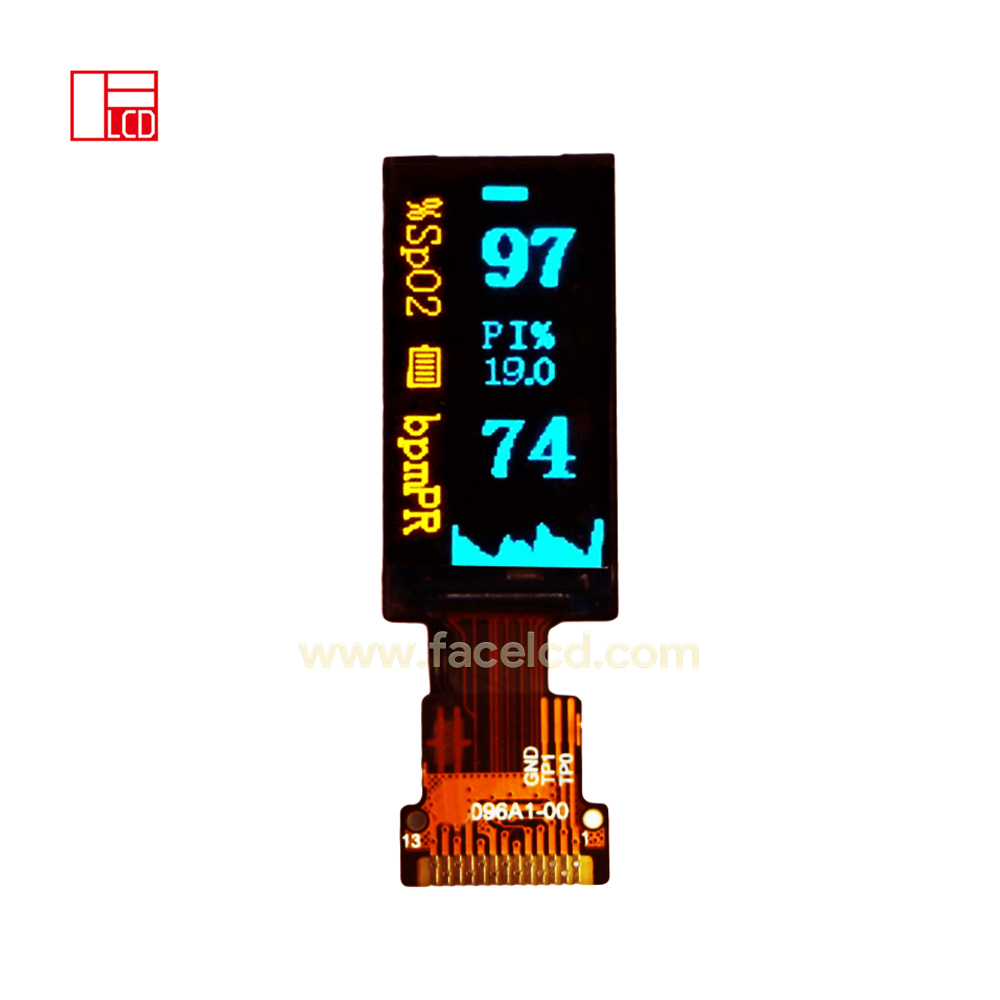

0.96inch 80×160 IPS TFT LCD Display with SPI
0.96inch 80×160 IPS TFT LCD Display with SPI
0.96inch 80×160 IPS TFT LCD Display with SPI
0.96inch 80×160 IPS TFT LCD Display with SPI

0.96inch 80×160 IPS TFT LCD Display with SPI

Quick info

  • Model Number:FB009DVS407-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:1:2
  • Resolution:80X160
Quote Now
DetailsAdditional Information

Product Description

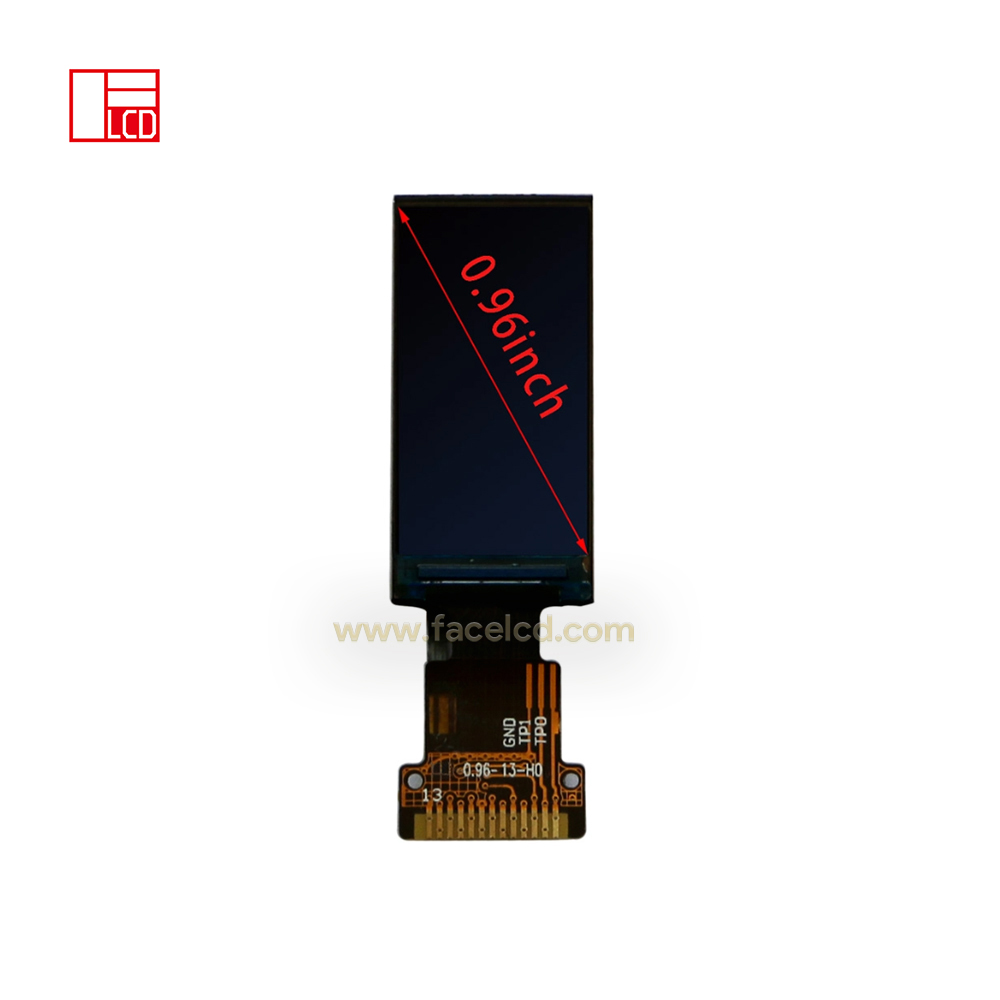

 Panel Size 0.96inch
 Model Number FB009DVS407-A
 Panel Type TFT-LCD
 Aspect Ratio 1:2
 Resolution 80X160
 Pixel Format RGB Vertical Stripe
 Active Area 10.8(W)X21.7 (H) mm
 Bezel Opening 155.3（W) X94.3 (H) mm
 Outline Dimension 13.54(H)X27.95(V)X1.5(D)mm
 Treatment Antigare
 View Angel 80/80/80/80
 Support Color 16.7M
 Luminance 400 cd/㎡
 Interface Type SPI
 Operation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 2.8V
 Current for LED Backlight 15~20mA
 Application Smart wearable, handheld&PDA, Industrial, Healthcare
 Sample Leadtime 7-10days
