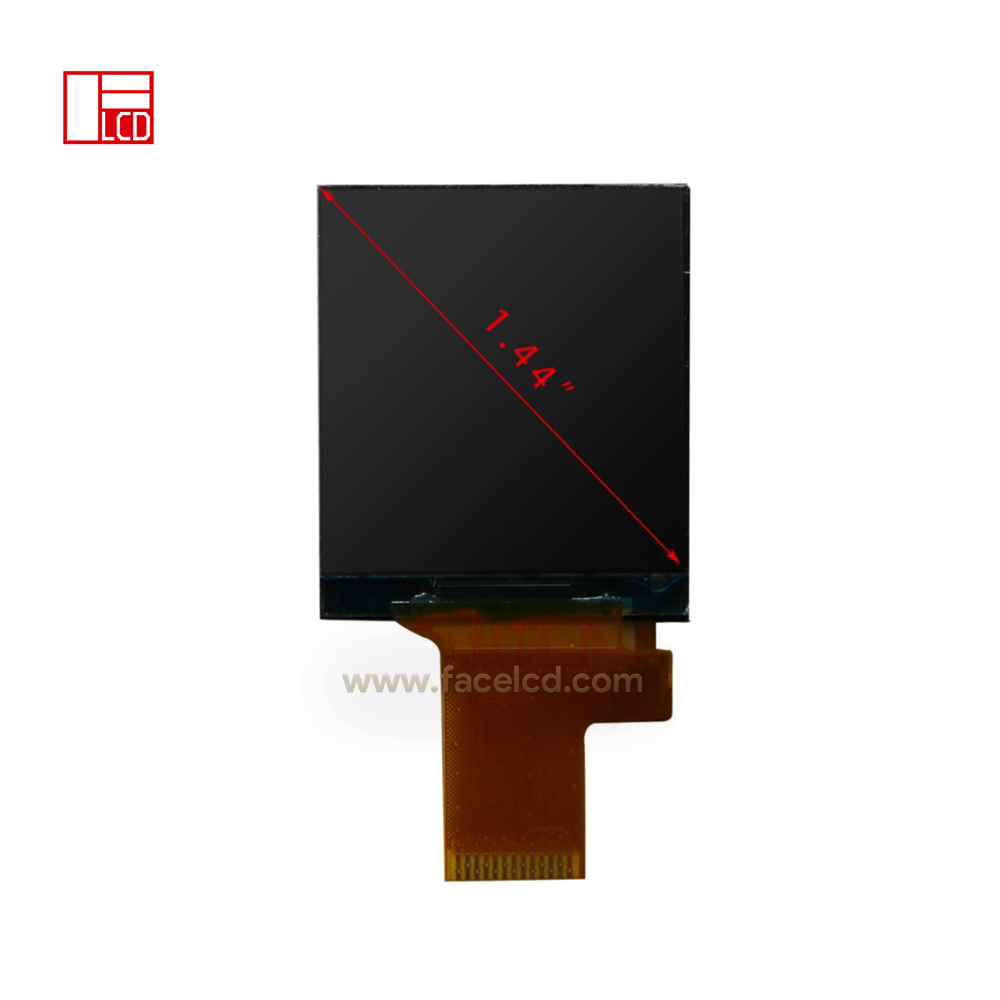

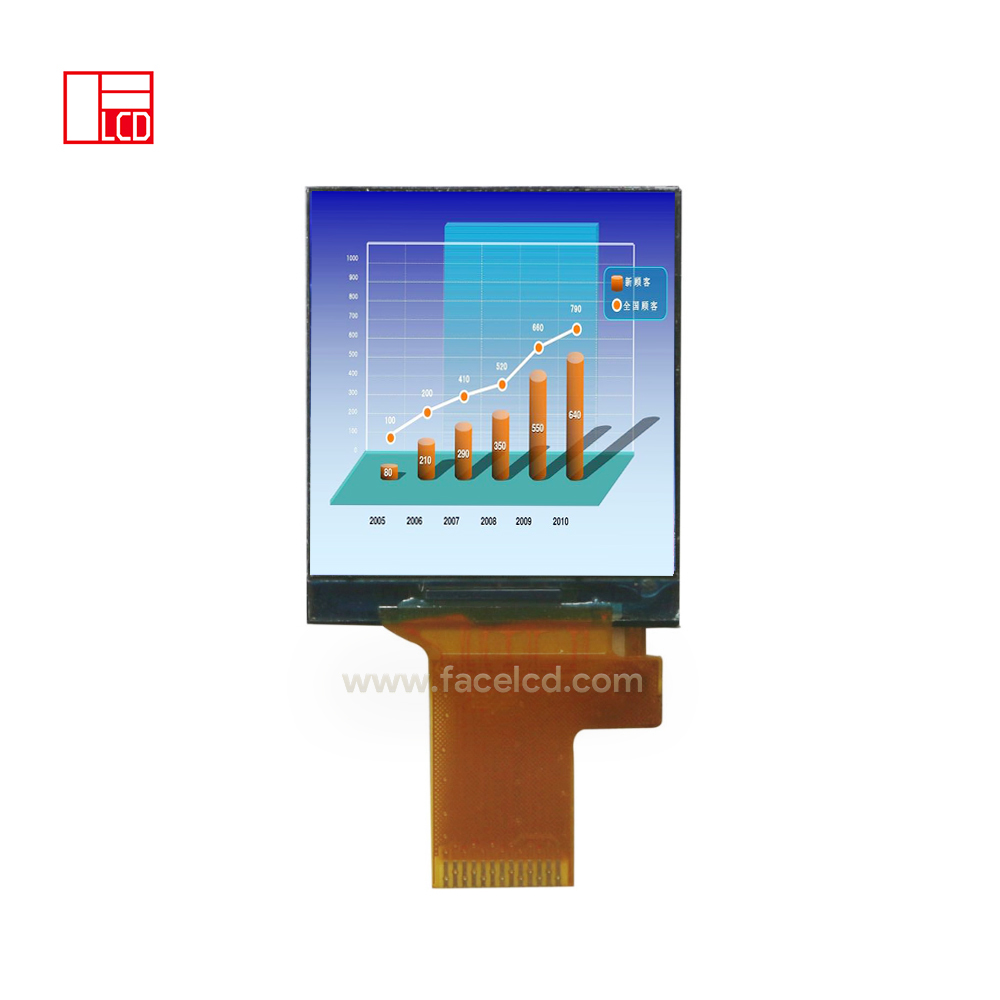

1.44inch 128×128 TN TFT LCD Display with SPI
1.44inch 128×128 TN TFT LCD Display with SPI
1.44inch 128×128 TN TFT LCD Display with SPI

1.44inch 128×128 TN TFT LCD Display with SPI

Quick info

  • Model Number:FB014DSS307-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:1:2
  • Resolution:128X128
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 1.44inch
 Model Number FB014DSS307-A
 Panel Type TFT-LCD
 Aspect Ratio 1:1
 Resolution 128X128
 Pixel Format RGB Vertical Stripe
 Active Area 25.5(W)X26.5 (H) mm
 Bezel Opening 26.1（W) X27.2 (H) mm
 Outline Dimension 29.0(H)X34.41(V)X2.25(D)mm
 Treatment Antigare
 View Angel 60/60/70/60
 Support Color 16.7M
 Luminance 350 cd/㎡
 Interface Type SPI
 Operation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 3.2V
 Current for LED Backlight 40mA
 Application Smart wearable, handheld&PDA, Industrial, Healthcare
 Sample Leadtime 7-10days
