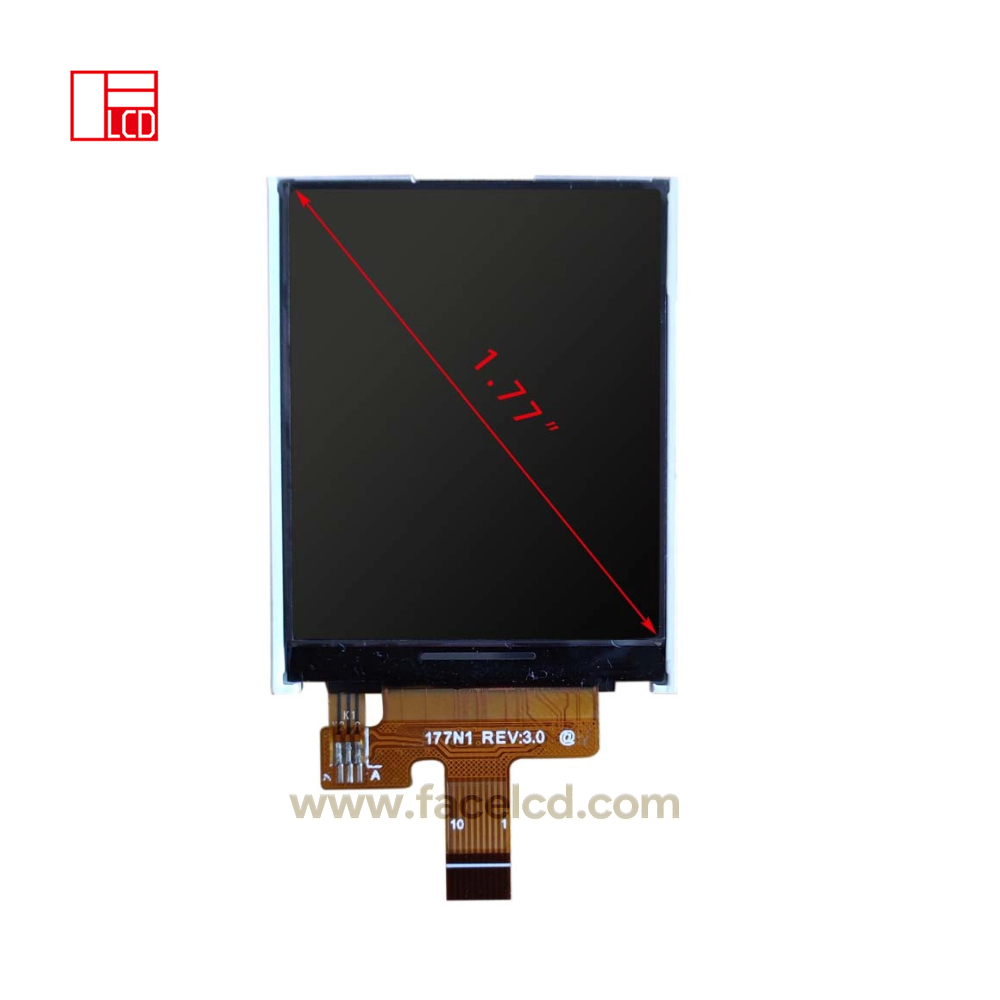

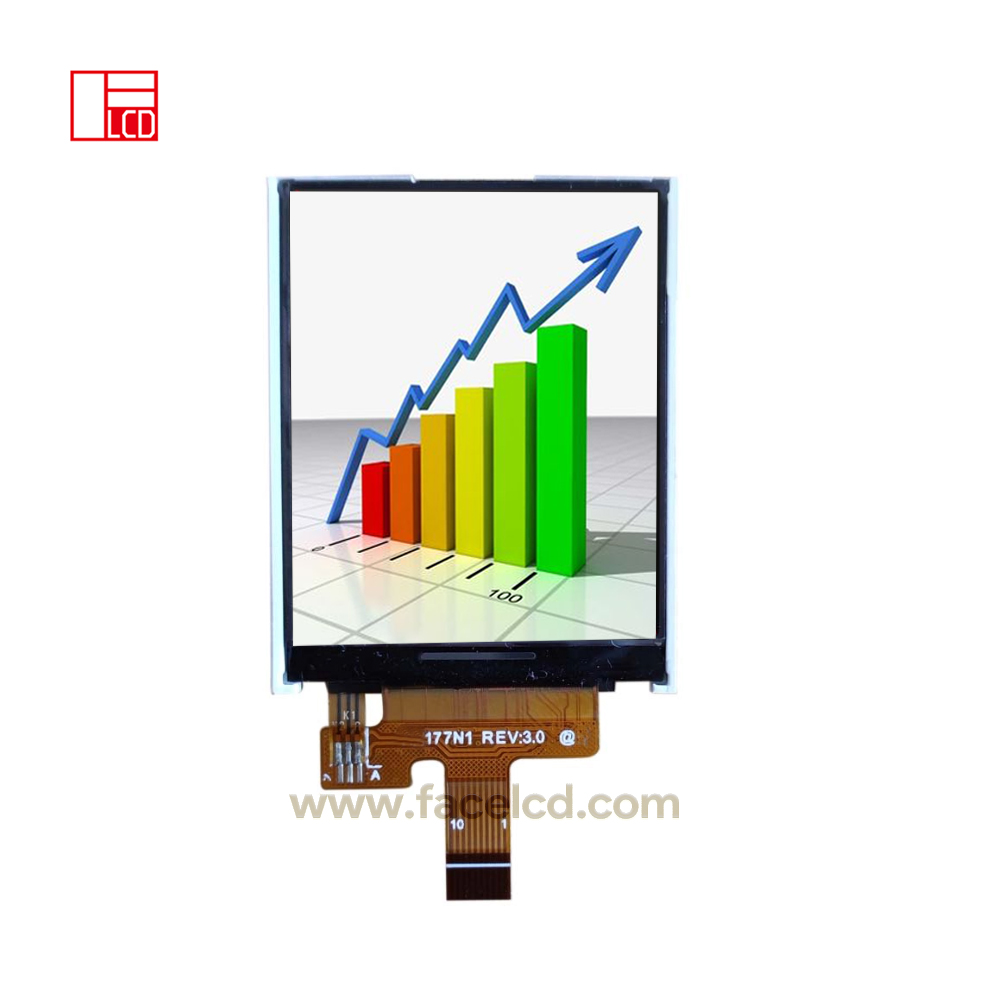

1.77inch 128×160 TN TFT LCD Display with SPI (MCU)

Quote Now

DetailsAdditional Information

Product Description

Panel Size	1.77inch
Model Number	FB018DFS302-A
Panel Type	TFT-LCD
Aspect Ratio	8:10
Resolution	128X160
Pixel Format	RGB Vertical Stripe
Active Area	28.03(W)X35.04 (H) mm
Bezel Opening	31.83（W) X41.42 (H) mm
Outline Dimension	33.3(H)X42.94(V)X2.3(D)mm
Treatment	Antigare
View Angel	45/45/45/20
Support Color	262K
Luminance	300 cd/㎡
Interface Type	SPI/MCU
Operation Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Power Supply Votage	3.2V
Current for LED Backlight	40mA
Application	Smart wearable, handheld&PDA, Industrial, Healthcare
Sample Leadtime	7-10days
