You are here: Home > Products > TFT-LCD Display > 7"~10.1" > 10.1inch 800X1280 IPS TFT LCD Display with MIPI

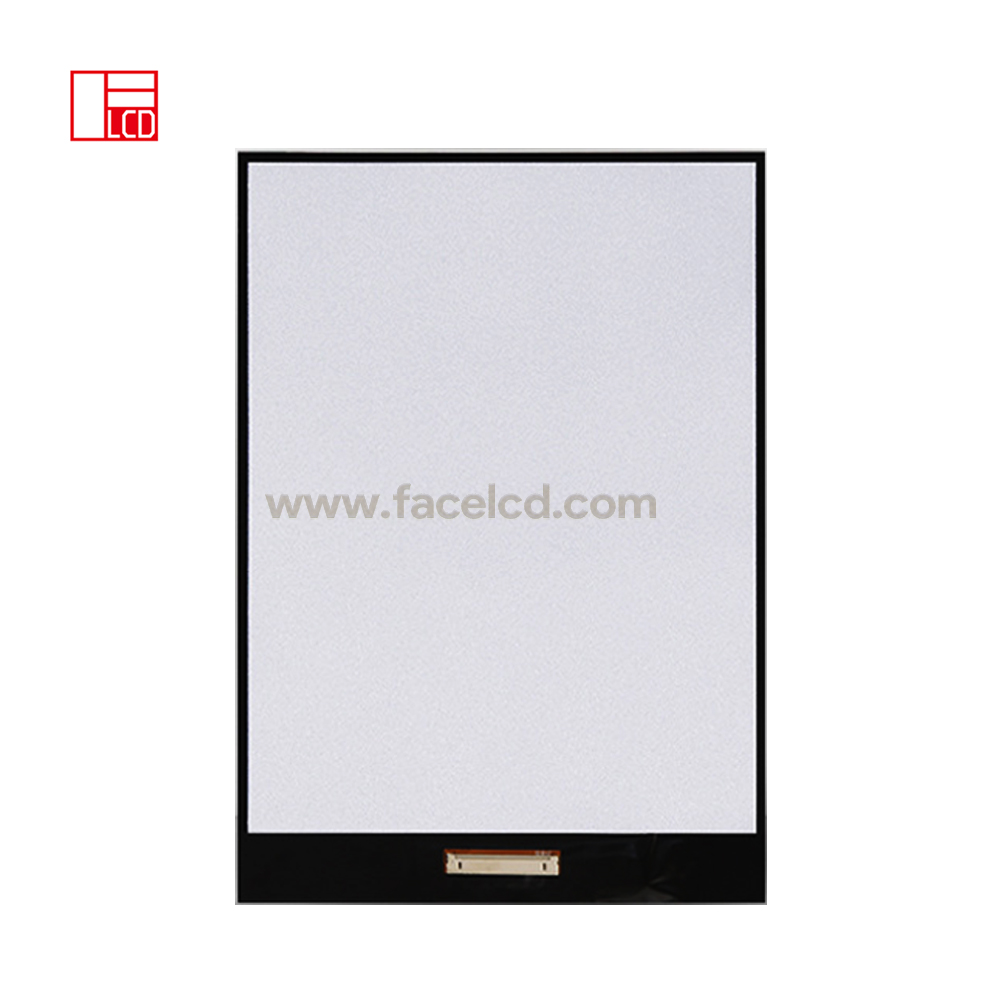

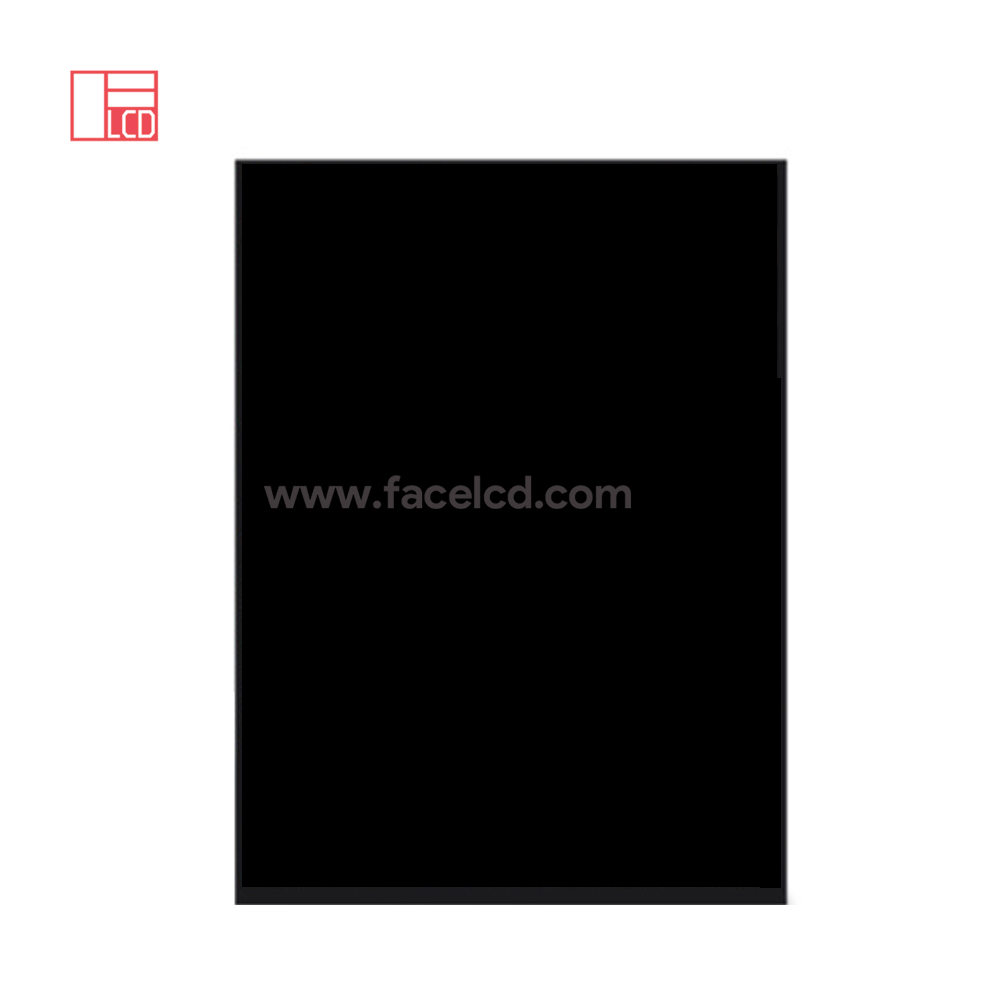

10.1inch 800X1280 IPS TFT LCD Display with MIPI
10.1inch 800X1280 IPS TFT LCD Display with MIPI
10.1inch 800X1280 IPS TFT LCD Display with MIPI

10.1inch 800X1280 IPS TFT LCD Display with MIPI

Quick info

  • Model Number:FB101EFP312-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:10:16
  • Resolution:800 x 1280
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 10.1inch
 Model Number FB101EFP312-A
 Panel Type TFT-LCD
 Aspect Ratio 10:16
 Resolution 800 x 1280
 Pixel Format RGB vertical stripe
 Active Area 135.360(W)x216.576(H)
 Bezel Opening 137.36(W)  ×218.57(H) mm
 Outline Dimension 143( W) x 228.6(H) x2.6(D) mm
 Treatment Anti-glare
 View Angel 85/85/85/85
 Support Color 16.7M
 Luminance 300 cd/㎡
 Interface Type MIPI
 Operatation Temperature -10℃ ~ 50℃
 Storage Temperature -20℃ ~ 60℃
 Power Supply Votage 9V
 Current for LED Backlight 160mA
 Application Comerical, Security, Smart Home, POS, Pad Terminal, Euipment, etc
 Sample Leadtime 5-7days
