Product Features

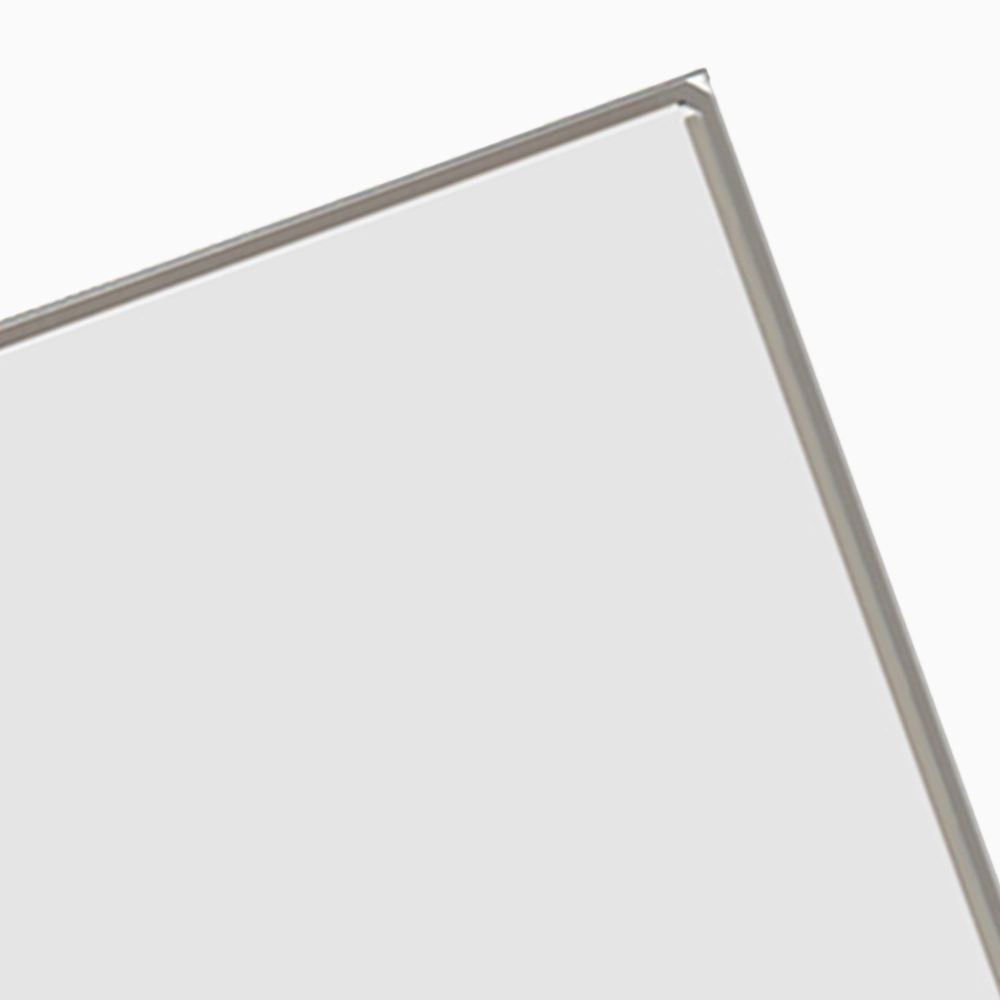

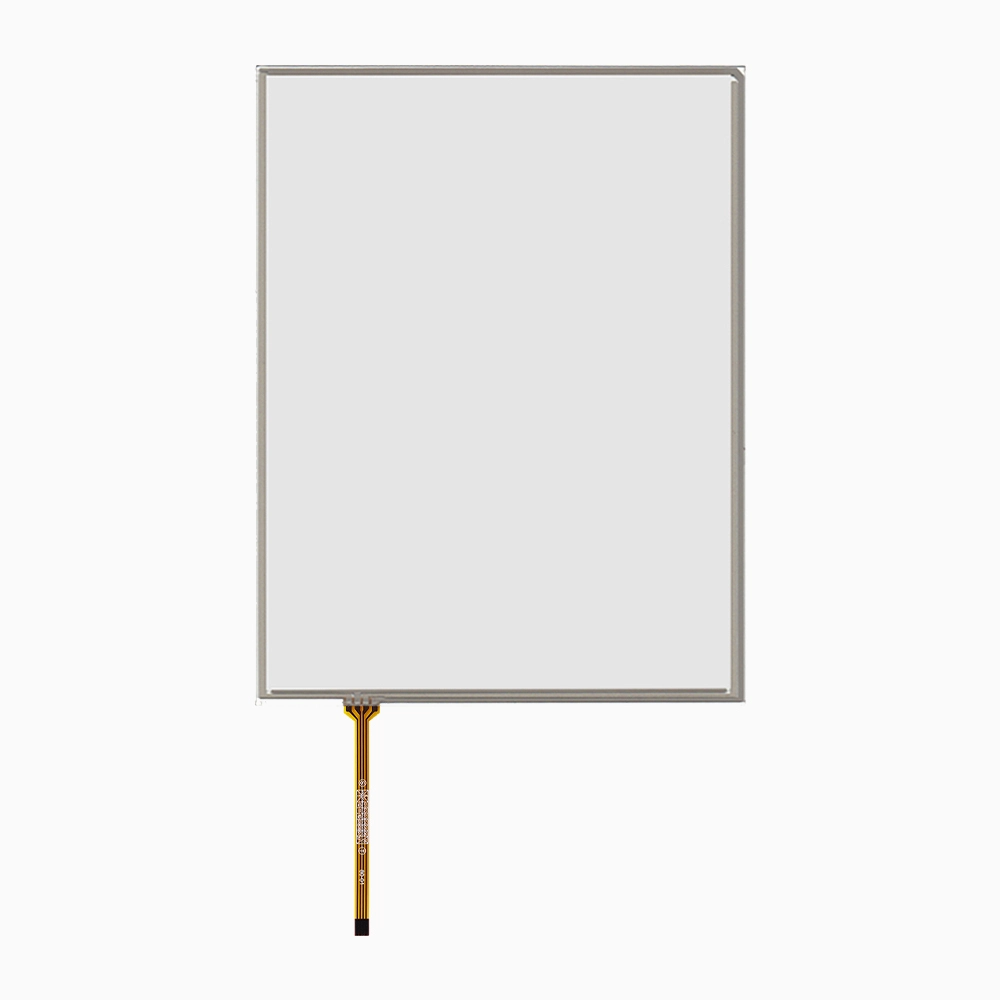

〖10.4″ Resistive Touch Screen〗
This 10.4 inch resistive touch screen uses industrial-grade touch materials. Pressing the screen causes the ITO film and ITO glass to create a short circuit, generating the coordinates. It can eliminate almost all interference and has anti-interference capabilities that capacitive touch screens cannot achieve. In industrial environments and complex electromagnetic interference settings, it remains the optimal choice.
〖Parameters of Touchscreen〗

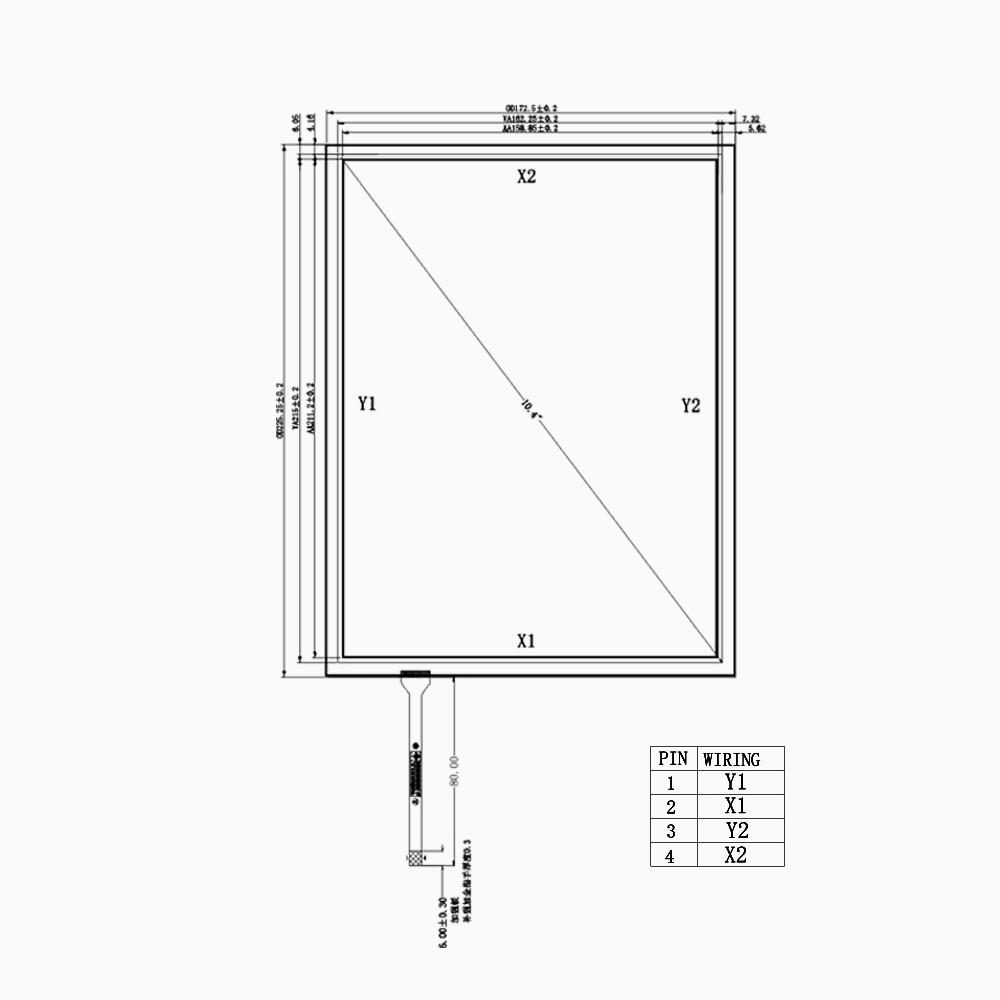

- Touch Model：ST-104002
- Outline Dim：172.5mm * 225.25mm
- View Area：162.25mm * 215mm
- Touch Function Dim：158.85mm * 211.2mm
- Glass Thickness：1.1mm
- Total thickness: 1.45mm
- Product Structure：GLASS+FILM
- Interface：1mm * 4Pin

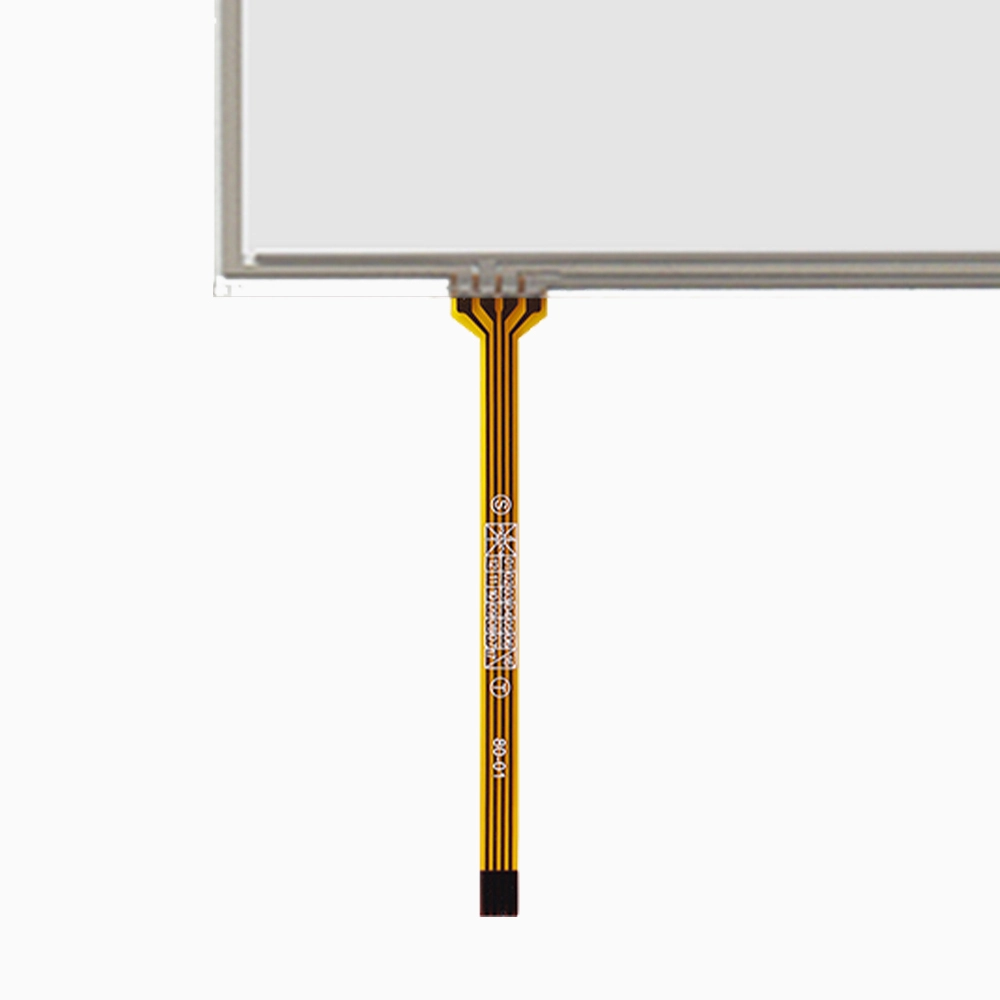

- FPC Model：80-01
〖Touch Performance〗
- Waterproof Function: Supported
- Glove Function: Supported
- Anti-interference Ability: Excellent
- Touch Screen Transmittance: 80%±3
- Click Life: 1,000,000 hours
- Marking Test: 100,000 times
- Surface Hardness: 3H±0.5
- Touch Force: 20-80g
〖Environment & Application〗
- Operating temperature: -20~70 ℃
- Storage temperature: -30~80 ℃
- Application: Medical industry and industrial control

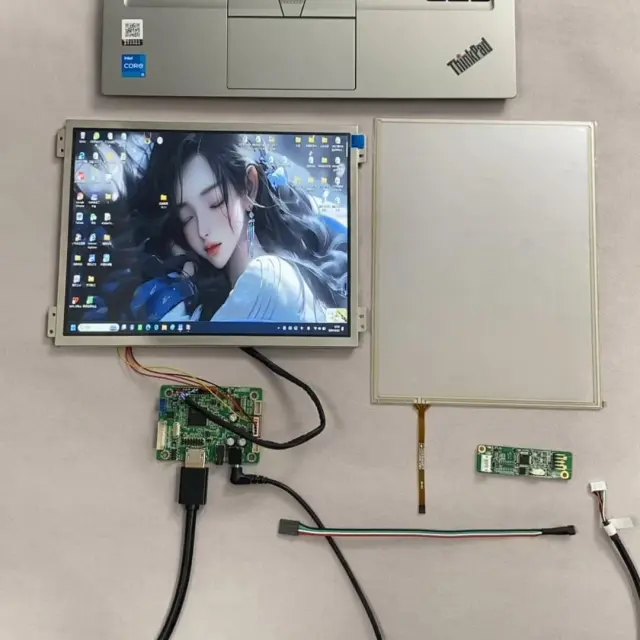

- Suitable for LCD Models:
G104XVN01.0
G104STN01.0
G104S1-L01
G104SN03 V5
G104AGE-L02
G104VN01 V1
A104SN03 V1
M104GNX1 R1
G104XCE-L01
LQ104V1DG81
LQ104V1DG81
BA104S01-200
TM104SDH01-00
G104V1-T03
LQ104S1LG81
G104X1-L03
G104XCE-LM1
GV104X0M-N10
〖Technical Support〗
We provide relevant CAD drawings and product specifications, as well as corresponding drivers for Android, Linux, and Windows systems. Additionally, we offer product structure design support and assist with debugging and optimizing touch screens.
