Product Description
| Panel Size | 10.4inch |
| Model Number | FB104PXV504-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 4:3 |
| Resolution | 800*600 |
| Pixel Format | RGB stripe |
| Active Area | 211.2 (W) x 158.4 (H) mm |
| Bezel Opening | 215.0 (W) x 162.0(H) mm |
| Outline Dimension | 236.0(W)×176.9(H) ×5.6(D) mm |
| Treatment | AG25 |
| View Angel | 80/80/65/75 |
| Support Color | 16.7M |
| Luminance | 350 cd/㎡ |
| Interface Type | LVDS |
| Operatation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 18.6V |
| Current for LED Backlight | 120mA |
| Application | Industrial, Medical, Security, Smart Home, Euipment, etc |
| Sample Leadtime | 7-10days |

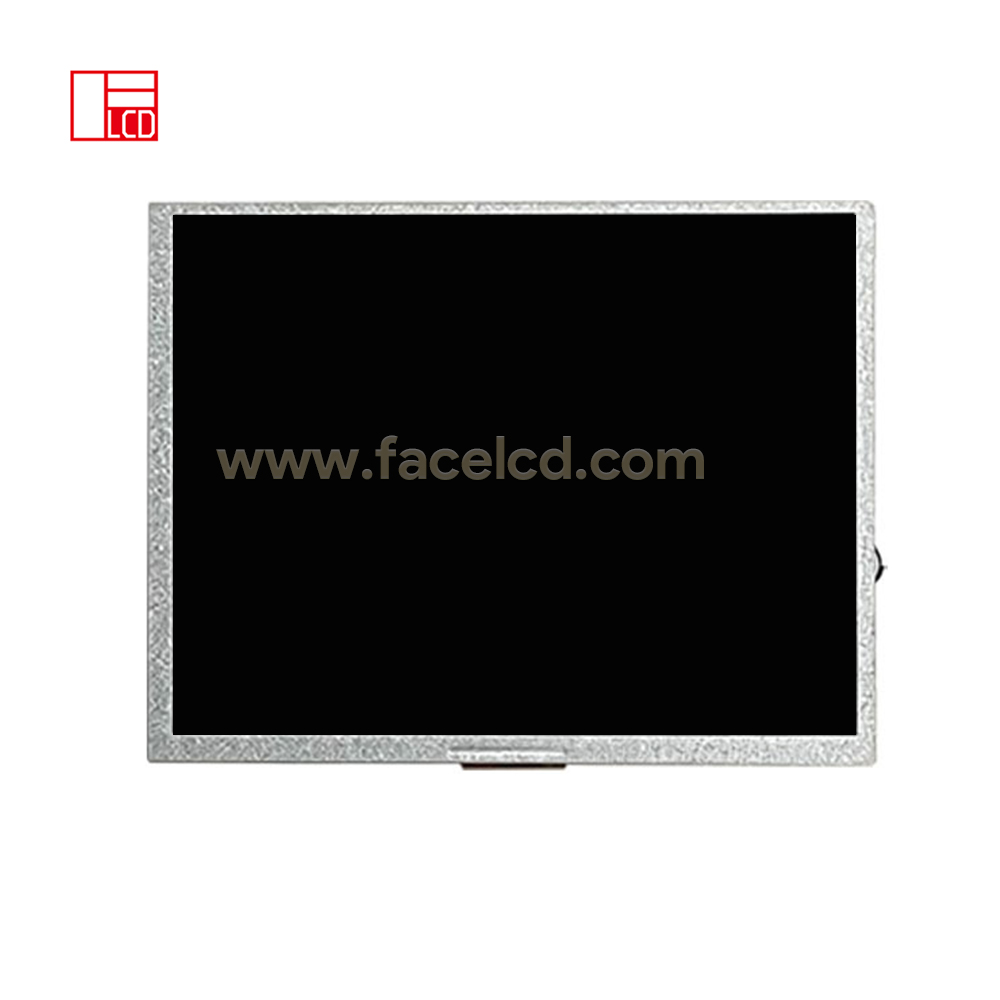

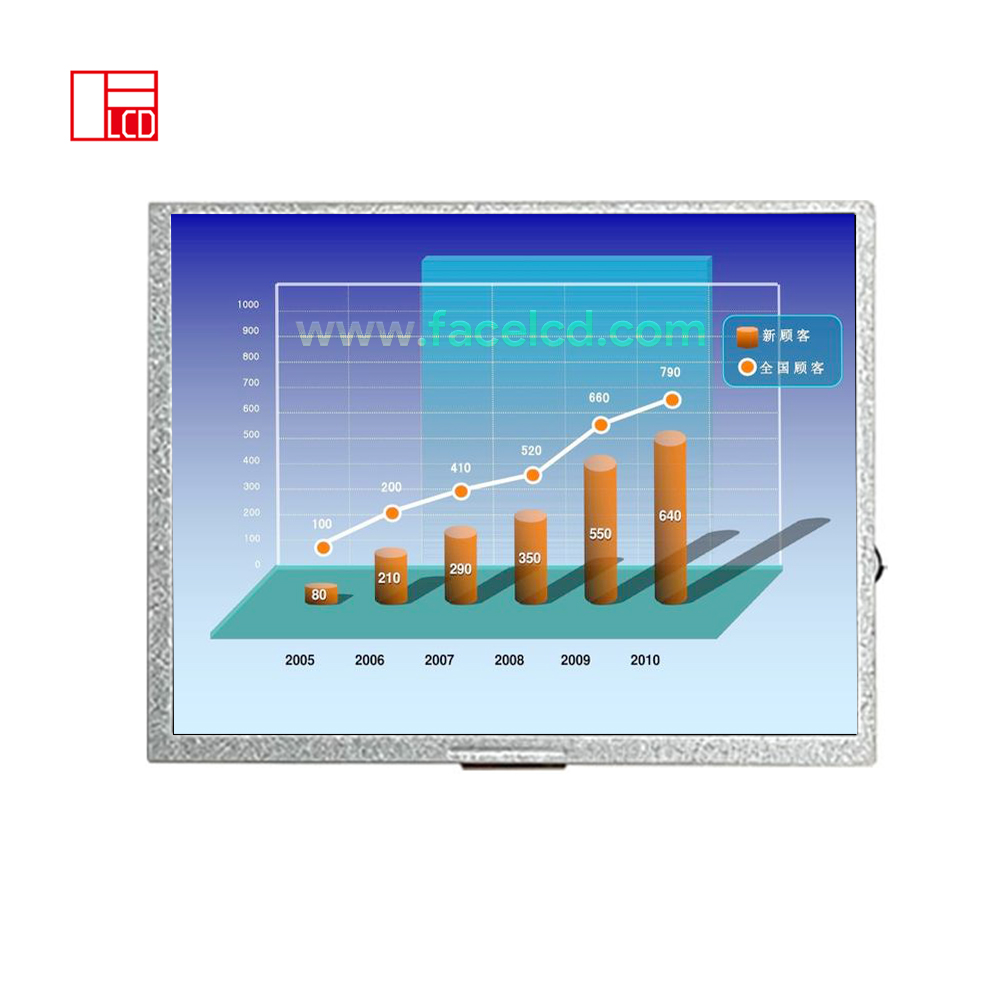

SVGA TN LCD Panel For Stable Equipment Replacement
10.4 inch TN LCD products are often selected for equipment that needs a familiar 4:3 display format, stable supply matching, and practical cost control. This panel uses 800 × 600 SVGA resolution, LVDS interface support, 350 cd/m² brightness, and a wide temperature design for industrial use. It can serve replacement screens, embedded displays, control terminals, and older equipment upgrades.
800x600 Resolution For Legacy Interface Layouts
Many industrial devices still use SVGA interface layouts with fixed UI proportions. The 800 × 600 format helps maintain existing screen designs without forcing major software or housing changes. This is useful when a project needs a replacement panel or a stable display for proven equipment platforms.
Key product points include:
- 10.4-inch TN TFT LCD panel
- 800 × 600 SVGA resolution
- LVDS interface support
- 350 cd/m² brightness
- 4:3 aspect ratio
- Wide temperature industrial design
TN Display Structure For Practical System Builds
TN LCD panels can be a practical choice when the project prioritizes stable display output, compatible resolution, and cost-sensitive product planning. The 350 cd/m² brightness suits many indoor industrial panels and equipment-mounted displays.

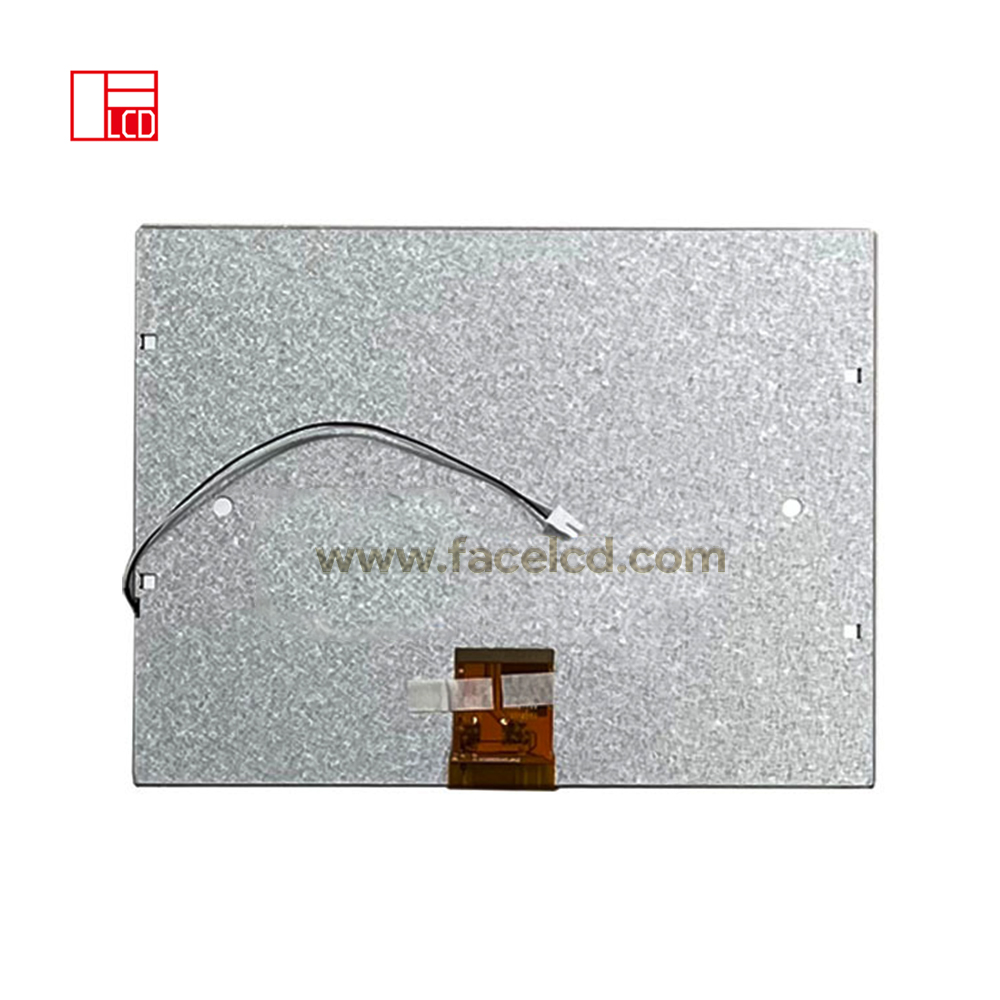

Replacement And Drawing Review
Before selecting a 10.4 inch TN LCD, product teams should confirm outline size, active area, LVDS pin data, connector side, backlight power, and mounting position. FaceLCD can help compare the panel with existing equipment drawings, especially for repair, replacement, or long-running industrial product lines.
Download Document：
10.4inch 800X600 TN TFT LCD Display with LVDS
FAQ
What Resolution Does This TN LCD Use?
It uses 800 × 600 SVGA resolution.
What Interface Does It Support?
It supports LVDS interface connection.
Is This Panel Suitable For Equipment Replacement?
Yes. Its 10.4-inch size and SVGA format can suit many older industrial and embedded devices.
What Brightness Does It Offer?
The reference brightness is 350 cd/m².
Can FaceLCD Help Compare Drawings?
Yes. FaceLCD can review active area, outline size, mounting data, connector position, and cable needs.
Which Products Can Use This LCD?
It can fit industrial control panels, embedded terminals, replacement screens, medical equipment, and automation devices.
