Product Description
| Panel Size | 11.6inch |
| Model Number | FB116EXD505-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 16:10 |
| Resolution | 1920× 1080 |
| Pixel Format | RGB Vertical stripe |
| Active Area | 256.320 (W) × 144.180(H) mm |
| Bezel Opening | 257.92 (W) x 145.78(H) mm |
| Outline Dimension | 262.41(W)×163.48(H) ×2.75(D) mm |
| Treatment | Haze 25%，3H |
| View Angel | 85/85/85/85 |
| Support Color | 16.7M |
| Luminance | 200 cd/㎡ |
| Interface Type | EDP |
| Operatation Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Power Supply Votage | 24.8V |
| Current for LED Backlight | 100mA |
| Application | Medical, Comerical, Security, Smart Home, Euipment, etc |
| Sample Leadtime | 7-10 days |

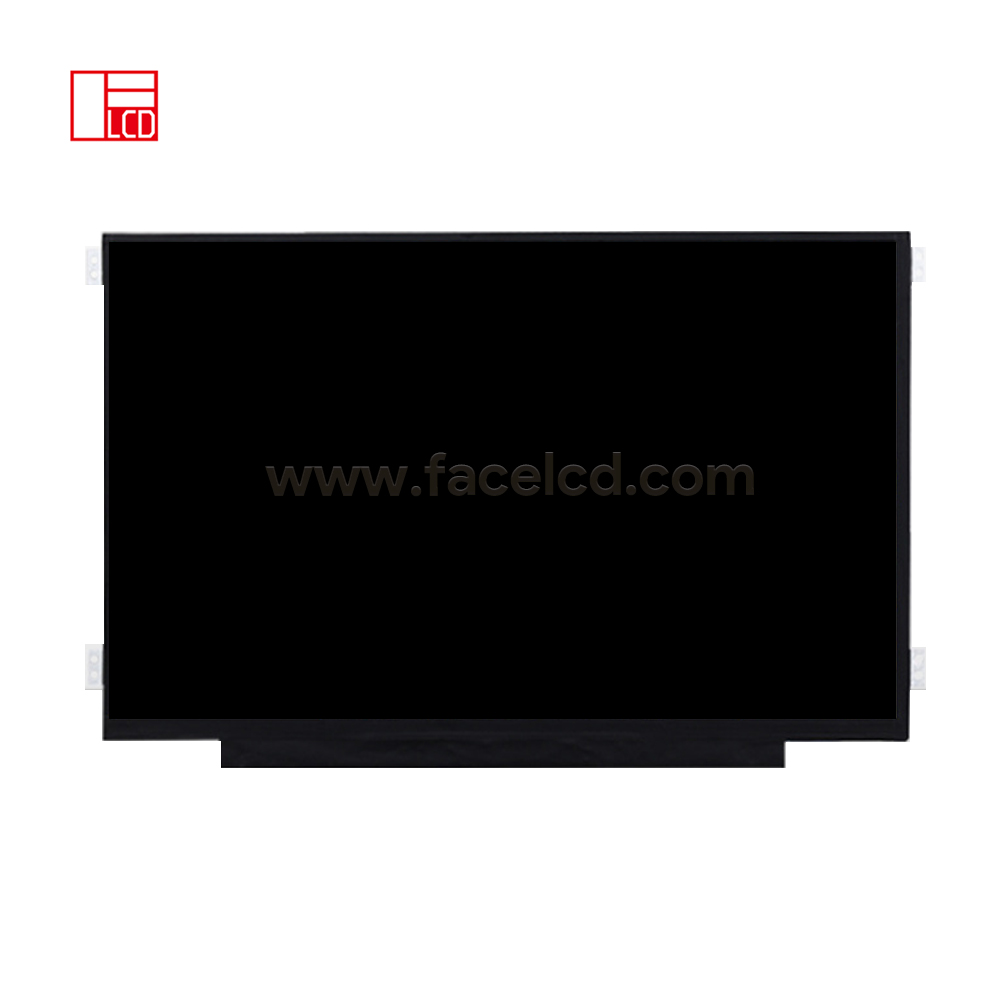

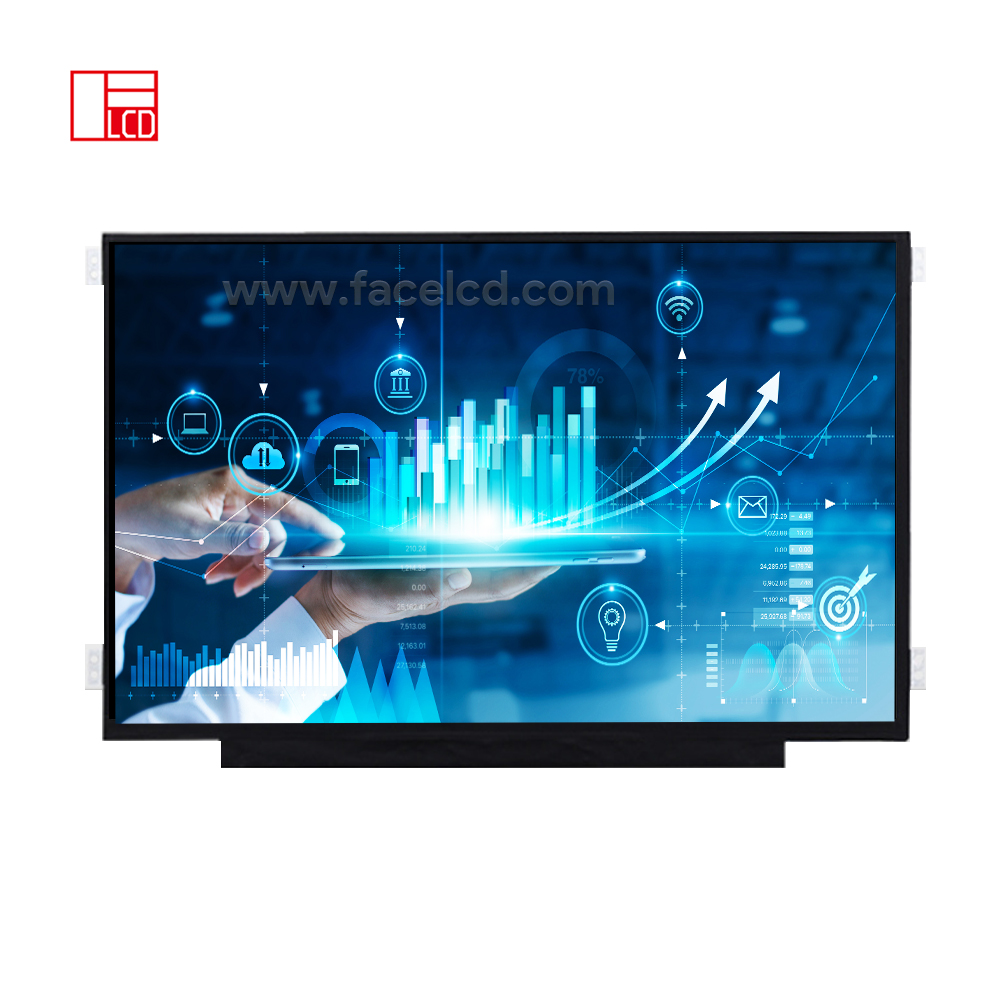

Full HD IPS LCD For Compact Widescreen Products
11.6 inch IPS LCD panels are useful when a product needs Full HD detail but cannot use a larger 13.3-inch or 15.6-inch display. This model combines 1920 × 1080 resolution, IPS viewing performance, eDP interface support, and 200 nits brightness. It can fit smart home displays, compact commercial terminals, medical equipment screens, and embedded indoor devices.
1920x1080 Detail In A Smaller Screen Size
The Full HD resolution gives the screen enough detail for icons, menus, images, setting pages, and multi-window layouts. Since the 11.6-inch format keeps the product smaller, it works well for slim devices that need a sharp widescreen interface without adding too much front-panel space.
Key product points include:
- 11.6-inch IPS LCD panel
- 1920 × 1080 Full HD resolution
- eDP interface support
- 200 nits brightness
- Wide viewing angle performance
- Fit for compact indoor display products
eDP Interface For Thin Display Architecture
eDP interface support helps product teams design thinner assemblies with cleaner internal cabling. This is useful for wall-mounted smart panels, compact medical screens, indoor commercial devices, and embedded monitor products where housing thickness and cable routing matter.
Indoor Brightness And Project Review
The 200 nits brightness is better suited for indoor environments with controlled lighting. Before sampling, FaceLCD can help check eDP lane data, connector direction, cable type, backlight power, and panel thickness. The 11.6 inch IPS LCD can also be reviewed with cover glass or touch requirements when the device needs an interactive screen.
Download Document：
11.6inch 1920X1080 IPS TFT LCD Display with EDP
FAQ
What Resolution Does This 11.6-Inch IPS LCD Use?
It uses 1920 × 1080 Full HD resolution.
What Interface Does The Panel Support?
It supports eDP interface.
Is 200 Nits Brightness Suitable For Outdoor Use?
200 nits is more suitable for indoor display environments.
Can FaceLCD Help Check eDP Compatibility?
Yes. FaceLCD can review eDP lane data, connector type, cable route, and board support.
Can This Panel Be Used With Touch?
Yes. FaceLCD can review capacitive touch, cover glass, bonding, and structure fit.
Which Products Can Use This LCD?
It can fit smart home panels, compact medical devices, commercial terminals, embedded displays, and indoor monitor products.
