Product Features
〖12.1″ Resistive Touch Screen〗
This 12.1 inch resistive touch screen uses industrial-grade touch materials. Pressing the screen causes the ITO film and ITO glass to create a short circuit, generating the coordinates. It can eliminate almost all interference and has anti-interference capabilities that capacitive touch screens cannot achieve. In industrial environments and complex electromagnetic interference settings, it remains the optimal choice.

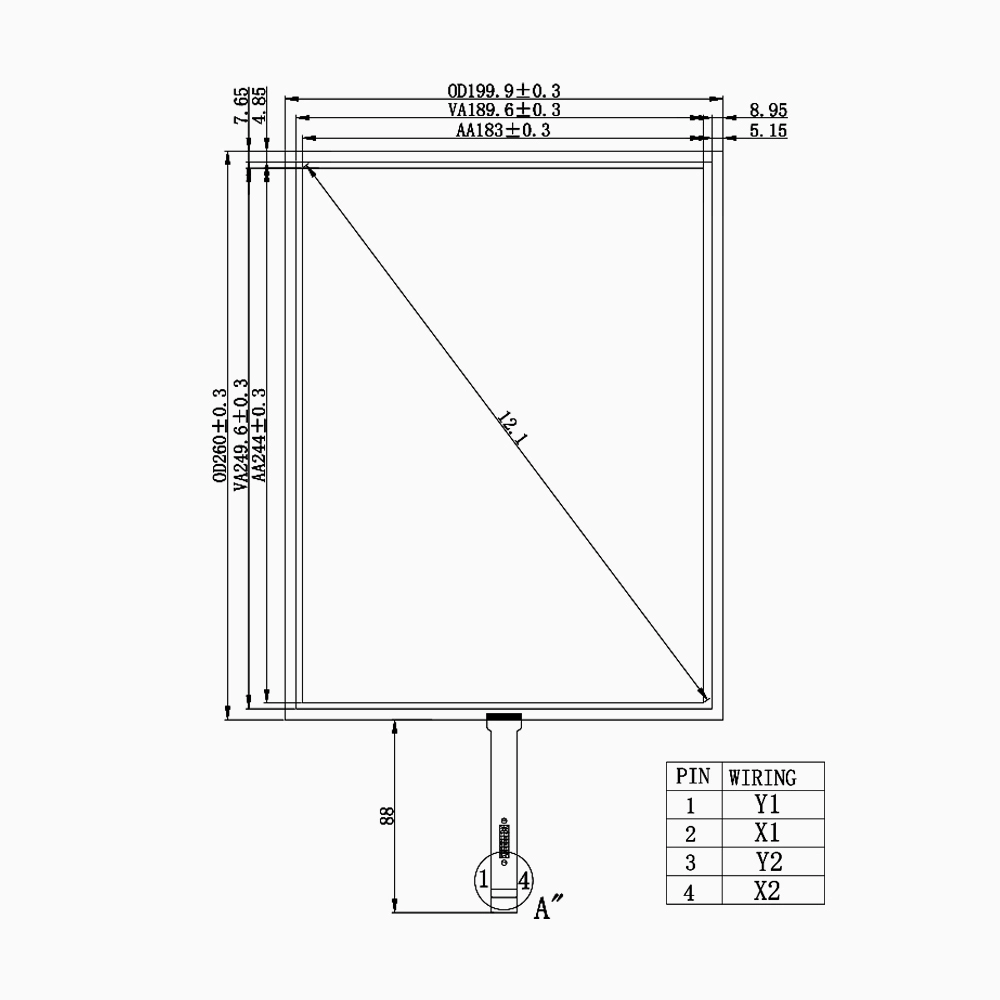

〖Parameters of Touchscreen〗
- Touch Model：ST-121001
- Outline Dim：199.9mm *260mm
- View Area：189.6mm * 249.6mm
- Touch Function Dim：1838mm * 244mm
- Glass Thickness：1.8mm
- Total thickness: 2.15mm
- Product Structure：GLASS+FILM
- Interface：2.54mm * 4Pin
- FPC Model：008
〖Touch Performance〗
- Waterproof Function: Supported
- Glove Function: Supported
- Anti-interference Ability: Excellent
- Touch Screen Transmittance: 80%±3
- Click Life: 1,000,000 hours
- Marking Test: 100,000 times
- Surface Hardness: 3H±0.5
- Touch Force: 20-80g
〖Environment & Application〗
- Operating temperature: -20~70 ℃
- Storage temperature: -30~80 ℃
- Application: Medical industry and industrial control
- Suitable for LCD Models:
G121XCE-L02
G121XCE-L01
G121XN01 V0
G121XN01 V001
G121XCE-LM1
G121SN01 V4
G121S1-L02
G121AGE-L03
G121X1-L04
M121GNX2 R1
EV121X0M-N10
TM121TDSG02-00
P1210XGF1MA00
TM121SDS01
G121STN02.0
〖Technical Support〗
We provide relevant CAD drawings and product specifications, as well as corresponding drivers for Android, Linux, and Windows systems. Additionally, we offer product structure design support and assist with debugging and optimizing touch screens.
