Product Description
| Panel Size | 12.1inch |
| Model Number | FB121NXV501-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 4:3 |
| Resolution | 1024x768 |
| Pixel Format | RGBStripe |
| Active Area | 245.76 (W) × 184.32(H) mm |
| Bezel Opening | 249（W) x 187.5 (H) mm |
| Outline Dimension | 256.18(W)×196.9(H) ×1.27(D) mm |
| Treatment | AG |
| View Angel | 85/85/85/85 |
| Support Color | 256K/16.7M |
| Luminance | 500cd/㎡ |
| Interface Type | LVDS |
| Operatation Temperature | -30℃ ~ 80℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 33V |
| Current for LED Backlight | 180mA |
| Application | Industrial, Medical, Comerical, Automotive, Security, Smart Home, Euipment, etc |
| Sample Leadtime | 7-10days |

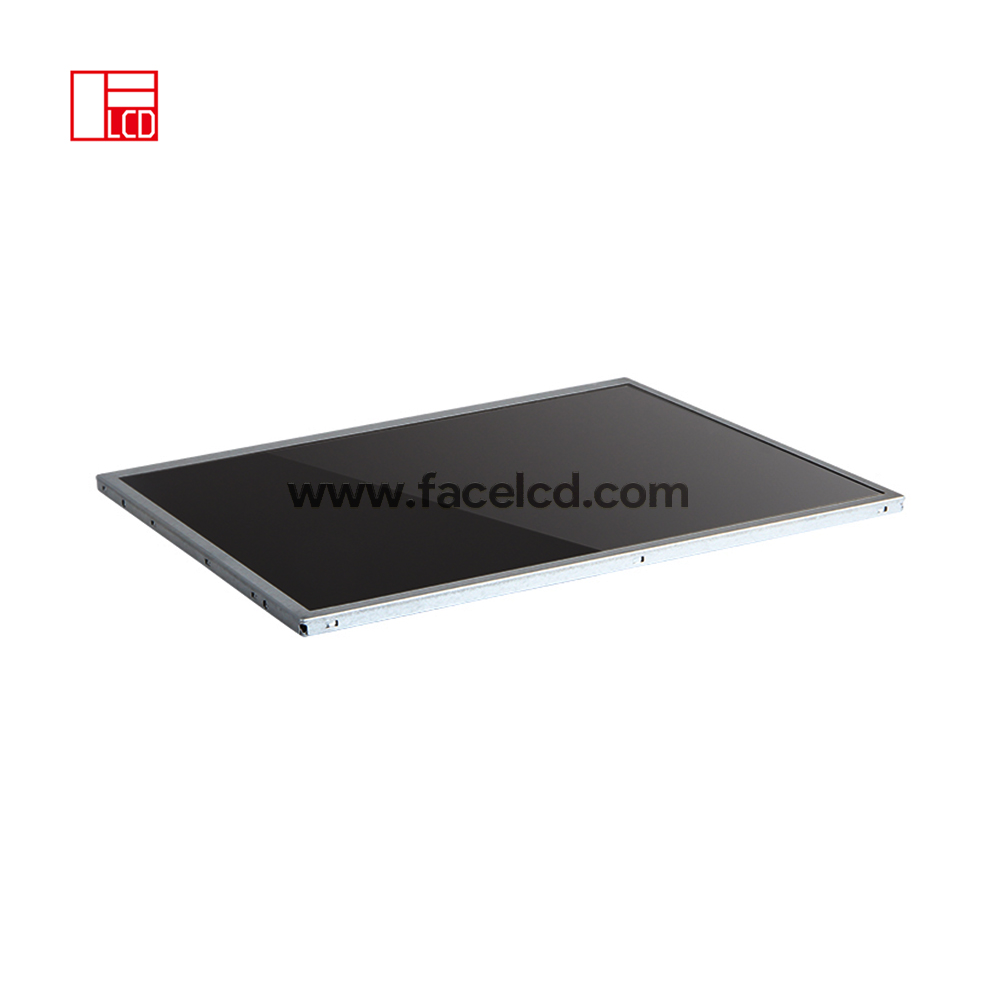

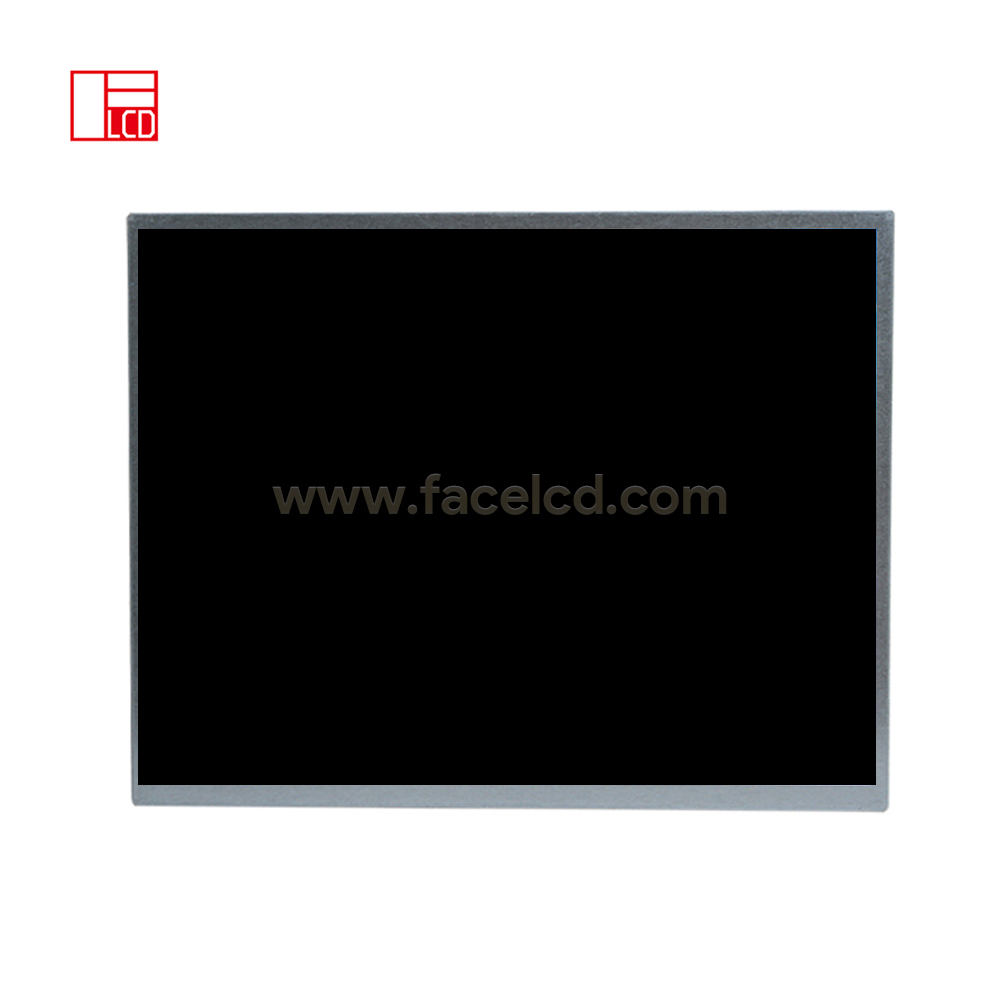

XGA IPS LCD For Industrial And Medical Equipment
12.1 inch IPS LCD projects usually focus on stable data reading, wide viewing angles, and reliable performance across changing working conditions. This display combines 1024 × 768 resolution, LVDS interface support, 500 cd/m² brightness, and a wide -30°C to 80°C temperature range. It suits equipment that needs a balanced screen shape for values, graphs, alarms, and control menus.
1024x768 Resolution For Data-Focused Screens
The XGA format provides more vertical display space than many wide-format LCDs. This helps medical monitors, test instruments, control panels, and industrial terminals show data lists, setup menus, measurement results, and status information in a clear structure.
Key product points include:
- 12.1-inch IPS TFT LCD display
- 1024 × 768 XGA resolution
- LVDS interface support
- 500 cd/m² brightness
- Wide -30°C to 80°C temperature range
- Industrial and medical display project fit
Wide-Temperature Design For Harsh Conditions
A display used in industrial or medical equipment may face heat, cold, long operating hours, and changing room conditions. The wide temperature range gives this panel a stronger role in systems that need stable operation beyond normal commercial use.

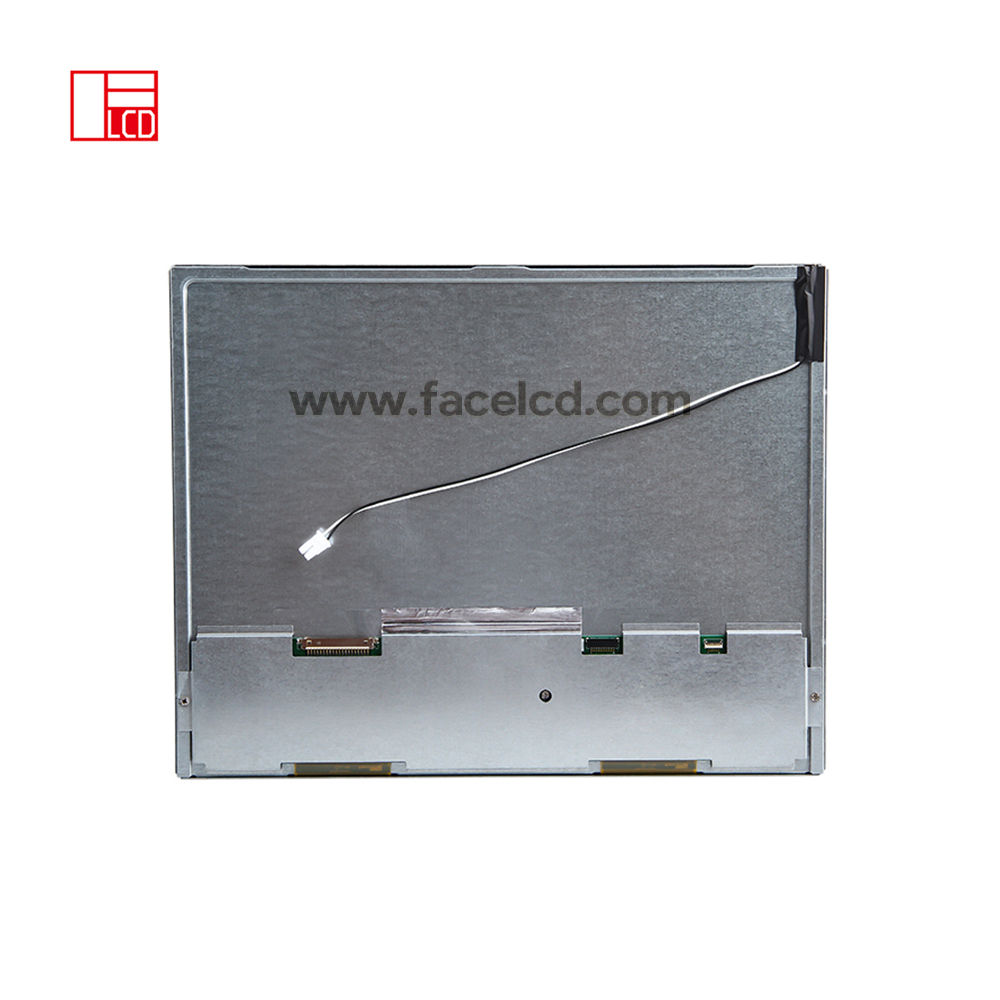

LVDS Interface And Brightness Planning
LVDS signal data, connector type, backlight power, mounting direction, and thermal space should be reviewed before sample confirmation. FaceLCD can help check the drawing, cable route, display data, and sample availability. The 12.1 inch IPS LCD can also be reviewed with touch panel or cover lens requirements when the product needs a complete screen assembly.
Download Document：
12.1inch 1024X768 IPS TFT LCD Display with LVDS
FAQ
What Resolution Does This 12.1-Inch IPS LCD Use?
It uses 1024 × 768 XGA resolution.
What Brightness Does It Offer?
The reference brightness is 500 cd/m².
What Interface Does It Support?
It supports LVDS interface.
Can It Work In Wide Temperature Conditions?
Yes. The reference temperature range is -30°C to 80°C.
Can FaceLCD Help With Touch Matching?
Yes. FaceLCD can review touch panel, cover glass, bonding, and housing fit.
Which Applications Fit This Display?
It can fit industrial panels, medical devices, test instruments, monitoring systems, and control terminals.
