Product Description
| Panel Size | 13.3inch |
| Model Number | FB133END205-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 16:10 |
| Resolution | 1920 × 1080 |
| Pixel Format | RGB Vertical stripe |
| Active Area | 293.76(W) ×165.24 (H)mm |
| Bezel Opening | 296.36(W) x 167.84(H) mm |
| Outline Dimension | 300.26(W) ×177.39(H)×2.4(D) mm |
| Treatment | Glare 3H |
| View Angel | 85/85/85/85 |
| Support Color | 262k(6bit) |
| Luminance | 200cd/m² |
| Interface Type | EDP |
| Operatation Temperature | -0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Power Supply Votage | 28V |
| Current for LED Backlight | 80mA |
| Application | Comerical, Security, Smart Home, Euipment, etc |
| Sample Leadtime | 7-10days |

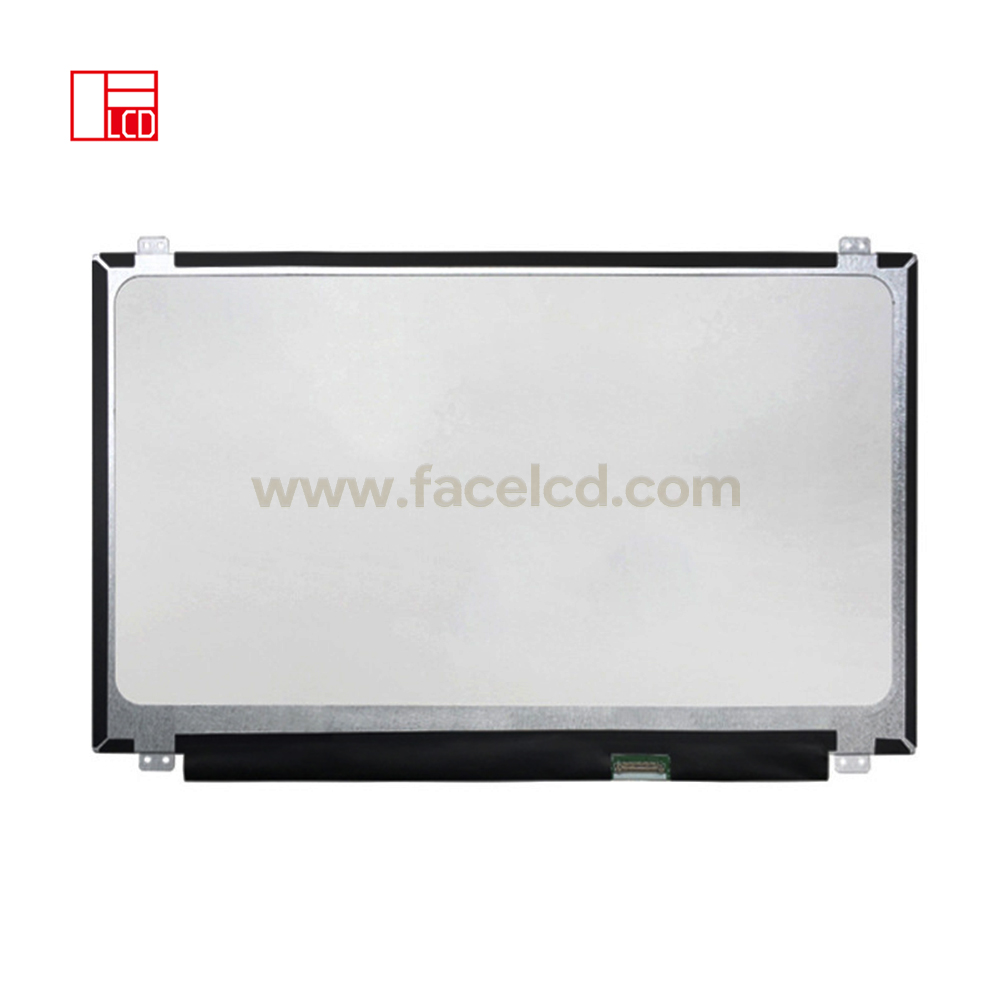

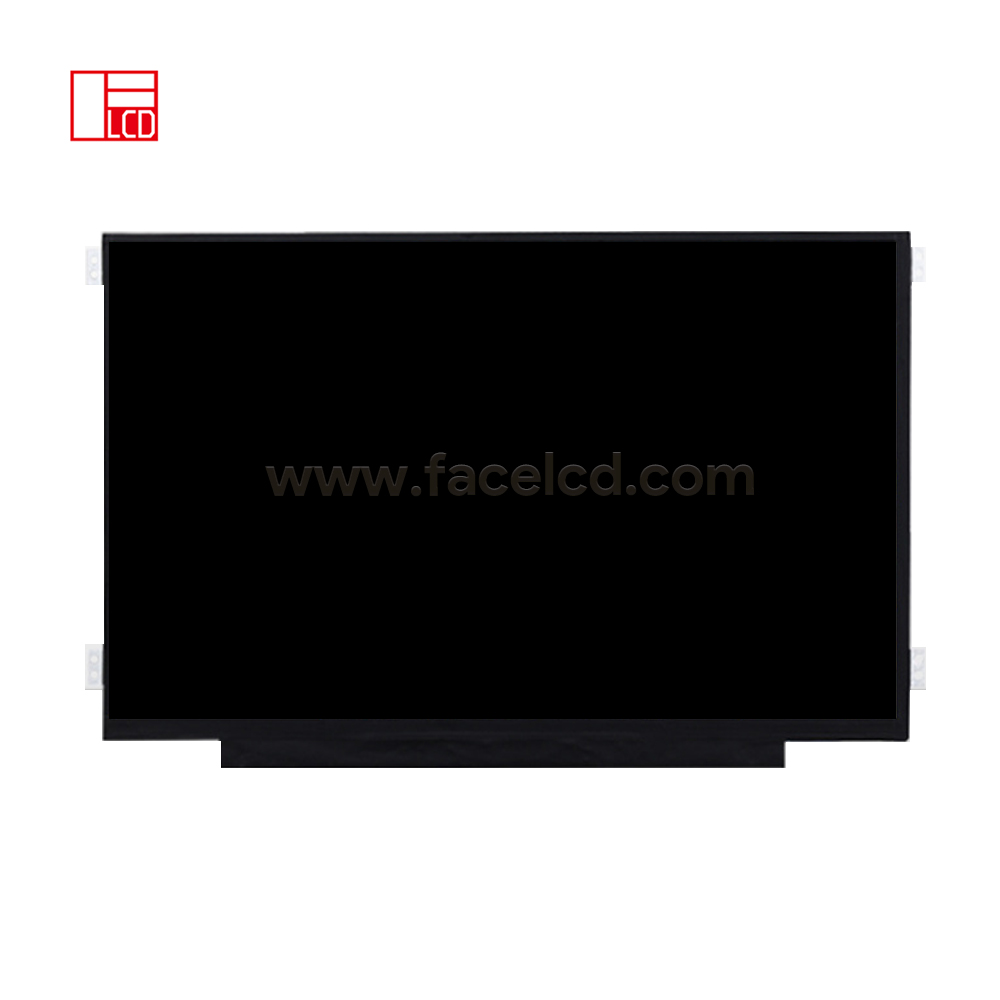

Compact Full HD TFT LCD For Embedded Display Products
13.3 inch TFT LCD projects often aim to deliver Full HD content in a smaller housing than 15.6-inch display products. This model combines 1920 × 1080 resolution, IPS panel technology, eDP interface support, and 200 nits brightness. It can support smart home screens, commercial display terminals, embedded systems, and compact equipment monitors.
Smaller Widescreen Format With FHD Detail
The 13.3-inch size keeps the screen compact while still offering Full HD detail. It works well when the product needs clear UI pages, image content, setup screens, or monitoring data, but the available front-panel space does not allow a larger display.
Key product points include:
- 13.3-inch IPS TFT LCD panel
- 1920 × 1080 Full HD resolution
- eDP interface support
- 200 nits brightness
- Compact widescreen format
- Suitable for smart home, commercial, and embedded devices
eDP Interface For Thin Product Architecture
The eDP interface helps product teams create thinner display assemblies with cleaner internal cabling. This matters for wall-mounted smart panels, slim commercial devices, and embedded monitor products where thickness and cable routing affect the full structure.
Project Fit And Brightness Review
The 200 nits brightness fits indoor products with controlled lighting. If the product will be used near strong ambient light, FaceLCD can help review other brightness options. The 13.3 inch TFT LCD can also be checked for eDP signal matching, cable length, connector direction, backlight power, and front cover fit.
Download Document：
13.3inch 1920X1080 IPS TFT LCD Display with EDP (1)
FAQ
What Resolution Does This 13.3-Inch Panel Use?
It uses 1920 × 1080 Full HD resolution.
Is This Panel Suitable For Slim Devices?
Yes. Its 13.3-inch size and eDP interface can support thinner embedded display designs.
What Brightness Does It Offer?
The reference brightness is 200 nits, which is more suitable for indoor use.
Can FaceLCD Help Find Higher Brightness Options?
Yes. FaceLCD can review higher-brightness alternatives if the project needs stronger visibility.
What Interface Does It Use?
It uses an eDP interface.
Which Products Can Use This Display?
It can fit smart home panels, commercial terminals, embedded monitors, compact control screens, and indoor display devices.
