Product Features

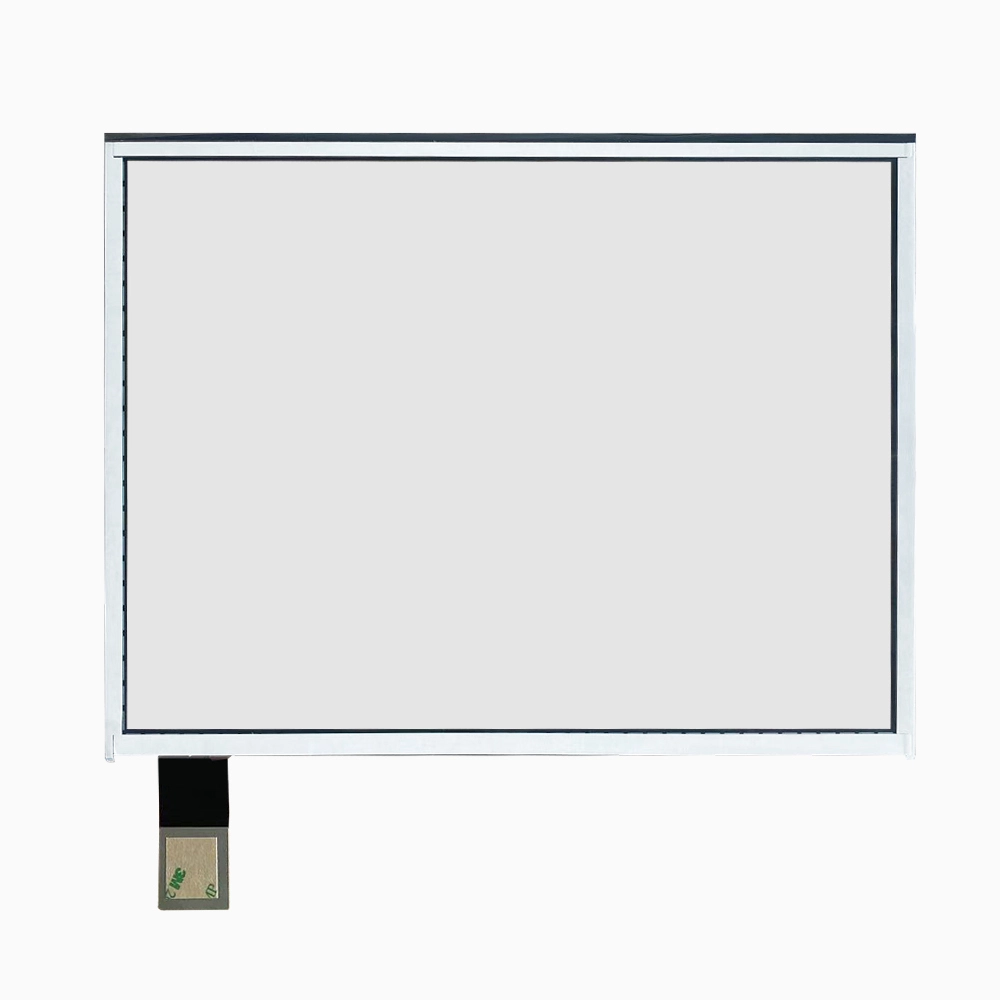

〖15.1 Inch Capacitive Touch Screen〗
This 15.1-Inch capacitive touch screen integrates a GOODIX touch chip and tempered glass cover, supporting I2C interface for wide OS and application compatibility. It delivers strong anti-interference performance and high cost-effectiveness
Touch Screen Specifications
| Parameter | Specification |
| Touch Model | STC-15191 |

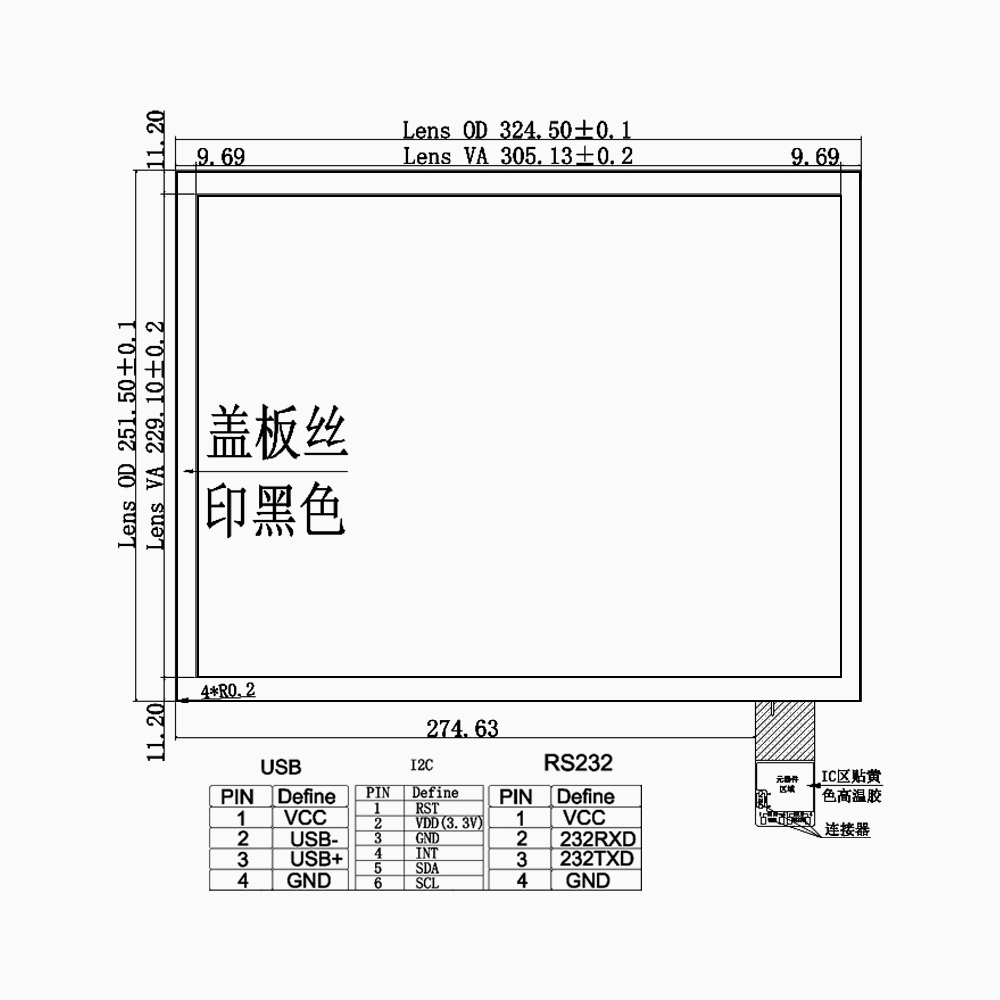

| Overall Dimensions | 324.5 × 251.5mm |
| Active Area | 305.13× 229.1 mm |
| Cover Glass Thickness | 1.1 mm |
| Total Thickness | 2.0 mm |
| Structure | G+G (Glass + Glass) |
| Surface Hardness | ≥7H |
| Touch IC Brand/Model | ILITEK/ ILI2511 |
| Interface | I²C+USB+R232(optional) |

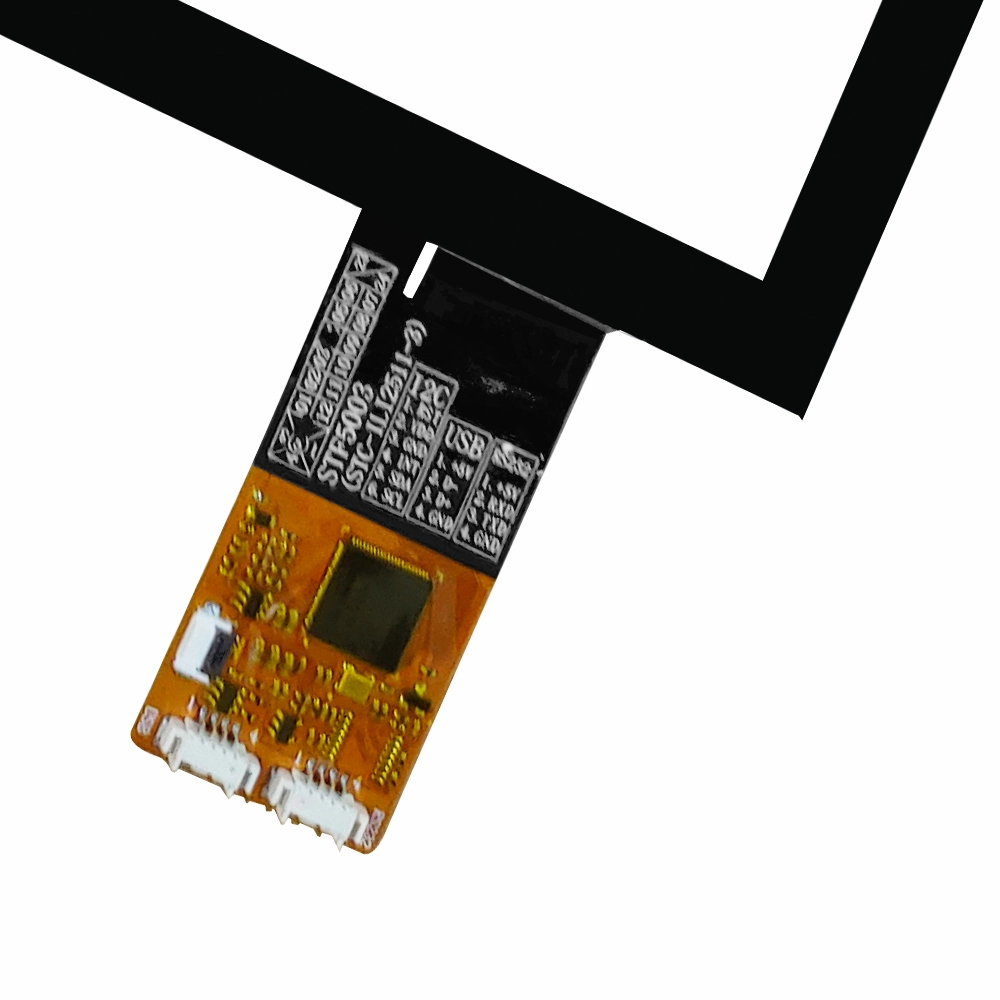

| FPC Model | STF5003 |
| Waterproof | Support |
| Glove Touch Support | Support |
| Anti-Interference | Good |
| Max Cover Glass Thickness | 10 mm (for touch operation) |
| Max Touch Points | 10 |
| Activation Force | 0g (Zero-force touch) |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -30°C to 85°C |
| Application | Light Industrial & Consumer Electronics |
| Compatible LCD Models | LC151X01-A3 G150XNE-L03 DV150X0M-N10
LQ150X1LX95 TM150TDSG70 G150XJE-E01 G150XTN06.4 HM150X01-N01 TM150TDSG71 G150XAN02.1 G150XAN02.0 G150XTN03.8 LQ150X1LG92 |
Technical Support & Resources
We provide comprehensive support for seamless integration, including:
- Design Files: CAD drawings (DWG/STEP) & detailed product specifications.
- Driver Support: Android, Linux, and Windows system drivers.
- IC Documentation: Complete datasheets and register configuration guidelines for the ILITEK/ ILI2511touch IC.
- Engineering Assistance: Remote debugging and collaborative product structure design optimization.
All resources are available upon request to accelerate your development process.
