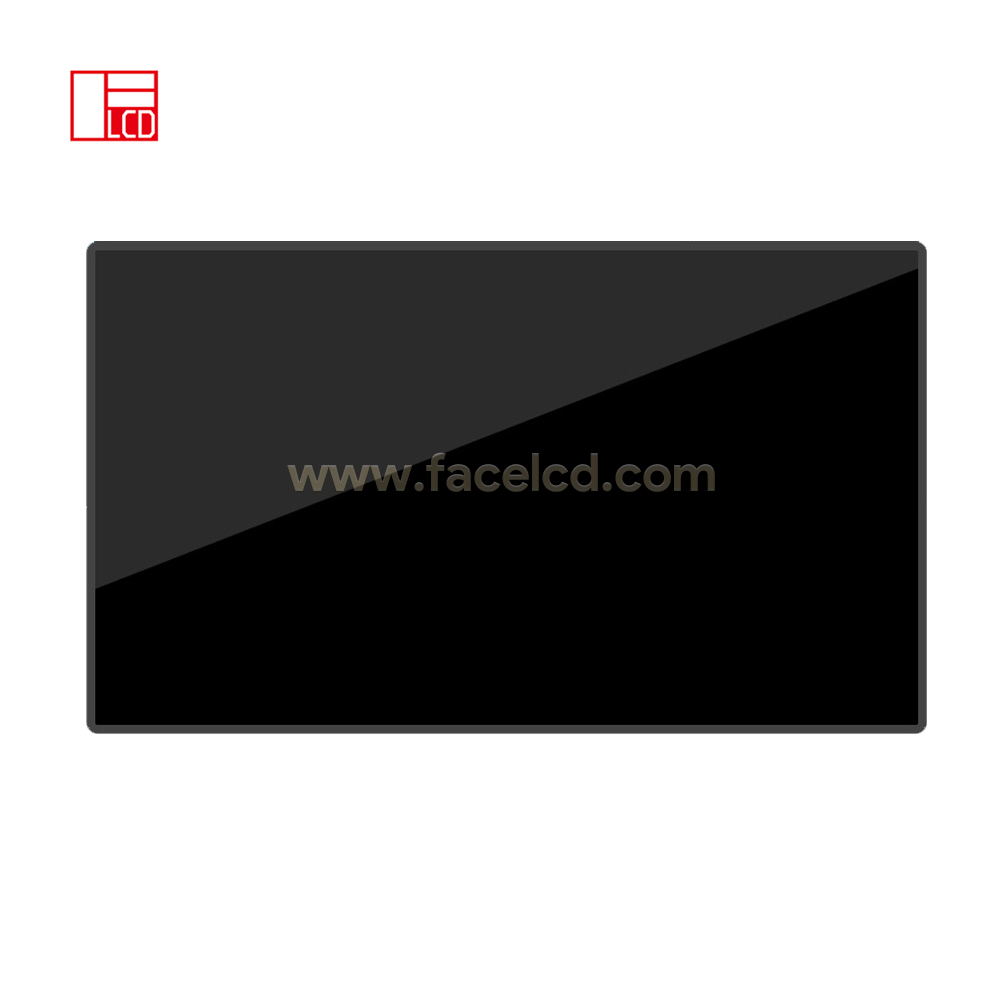

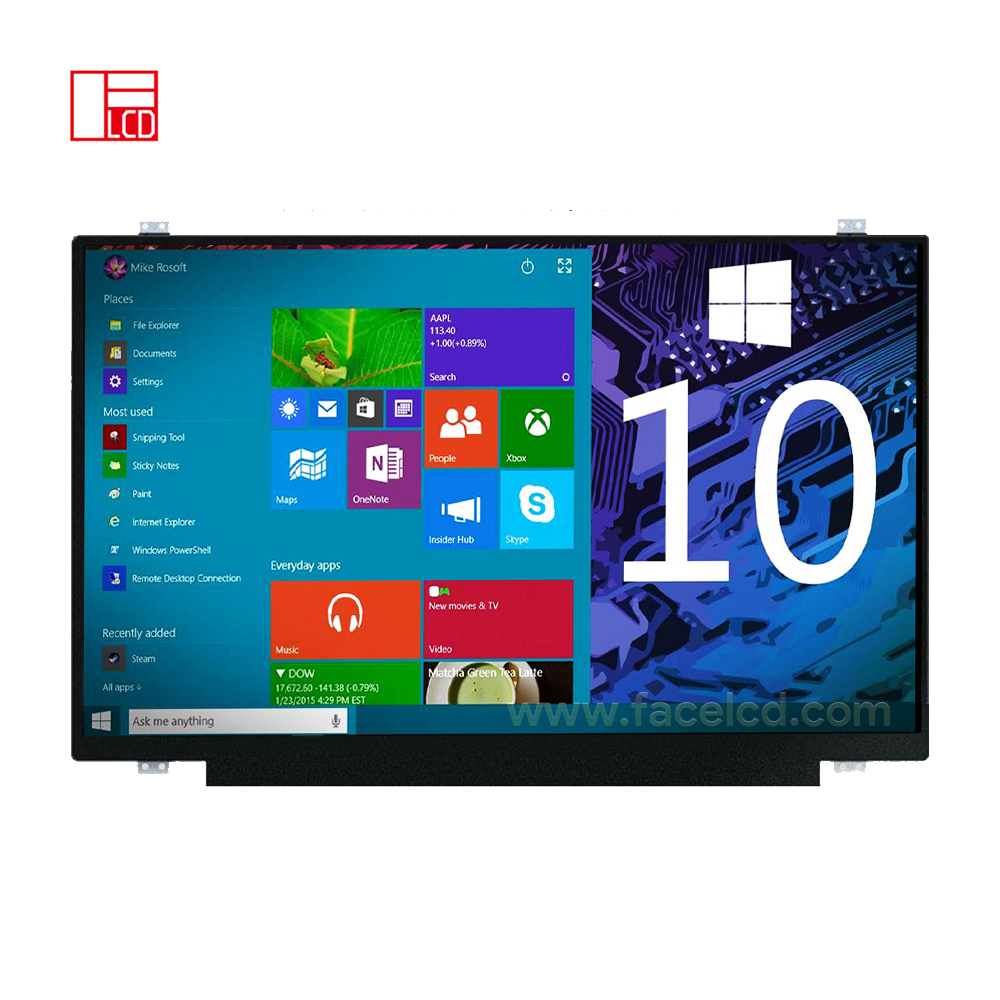

15.6inch 1920X1080 IPS TFT LCD Display with EDP
15.6inch 1920X1080 IPS TFT LCD Display with EDP
15.6inch 1920X1080 IPS TFT LCD Display with EDP

15.6inch 1920X1080 IPS TFT LCD Display with EDP

Quick info

  • Model Number:FB156TXD205-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:10
  • Resolution:1920 × 1080
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 15.6inch
 Model Number FB156TXD205-A
 Panel Type TFT-LCD
 Aspect Ratio 16:10
 Resolution 1920 ×1080
 Pixel Format RGB
 Active Area 344.16 (W)×193.59 (H)mm
 Bezel Opening 346.96 (W) × 196.89 (H)mm
 Outline Dimension 350.72(W) x 204.96 (H) x2.8(D) mm
 Treatment Anti-Glare
 View Angel 89/89/89/89
 Support Color 16.7M(6bit+FRC) NTSC 45%
 Luminance 250cd/m²
 Interface Type EDP
 Operatation Temperature -0℃ ~ 50℃
 Storage Temperature -20℃ ~ 60℃
 Power Supply Votage 25.2-29.7V
 Current for LED Backlight 120mA
 Application Comerical, Security, Smart Home, POS, Pad Terminal, Euipment, etc
 Sample Leadtime 7-10days
