Brand: HSD
Model Number: HSD156JUW2-A12
Resolution: 1920X1080
View angel: 85/85/85/85
Interface: LVDS
Brightness: 850nits
Application: Automotive, Industrial, Security, Medical

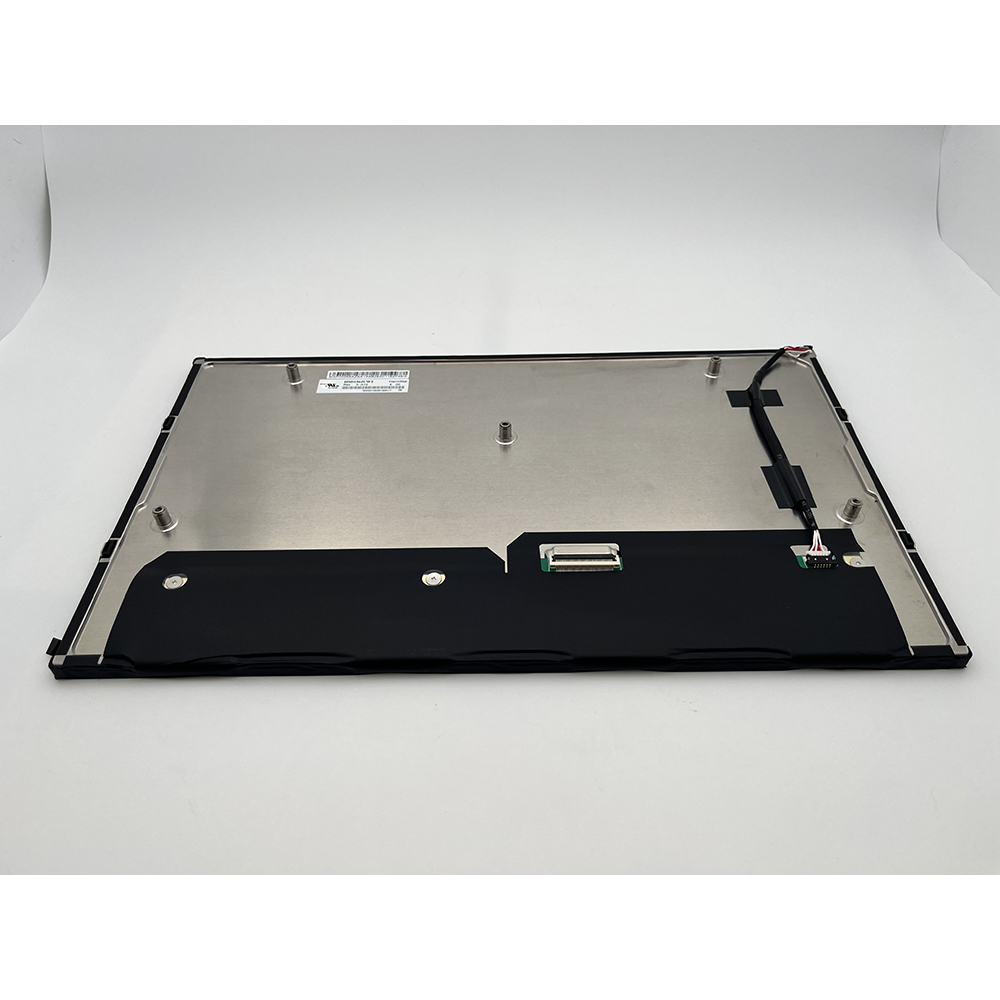

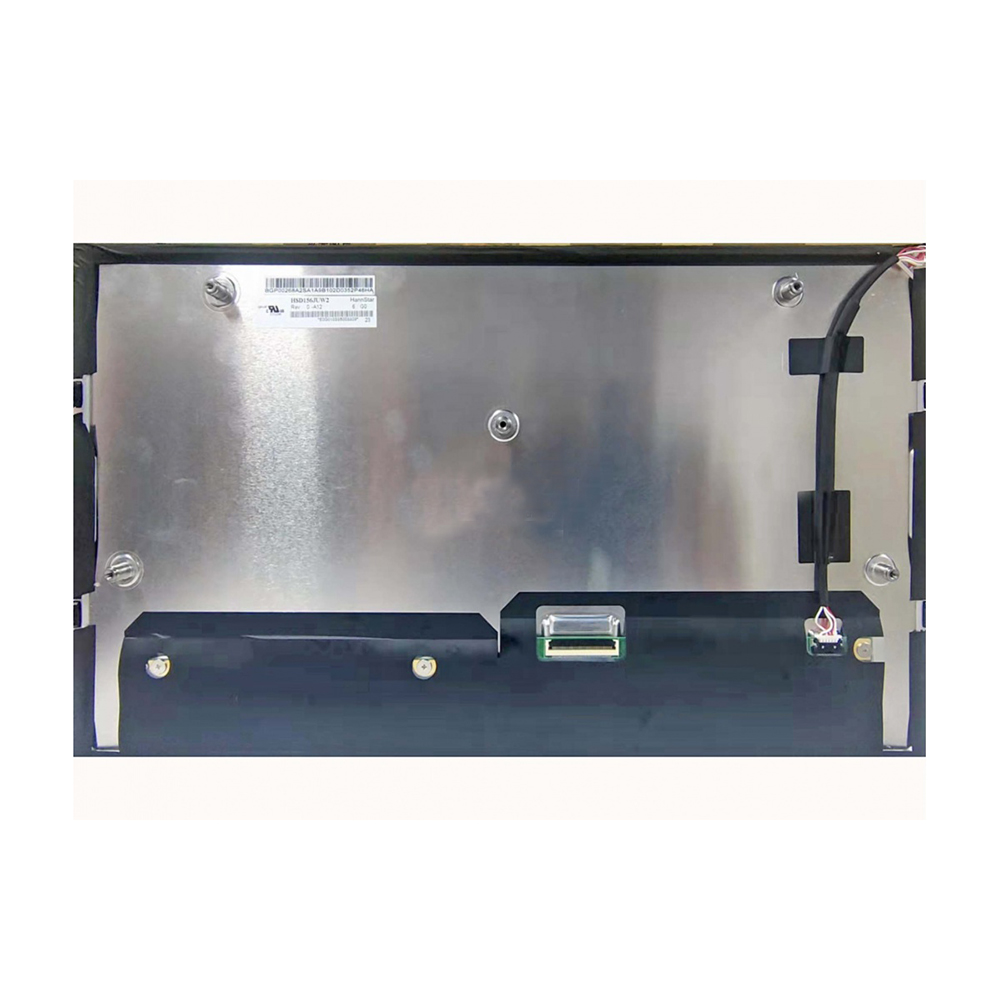

Meet the HSD156JUW2-A12, a reliable 15.6-inch LCD display module from HannStar Display. This original LCD module is built for tough conditions. It uses trusted a-Si TFT-LCD technology and a long-life WLED backlight for a great picture. For system builders, it’s the perfect, reliable core for a durable display solution.
Panelook link: https://www.panelook.cn/HSD156JUW2-A12_HannStar_15.6_LCM_overview_cn_47398.html
-
Product Overview: Designed for Durability and Clarity

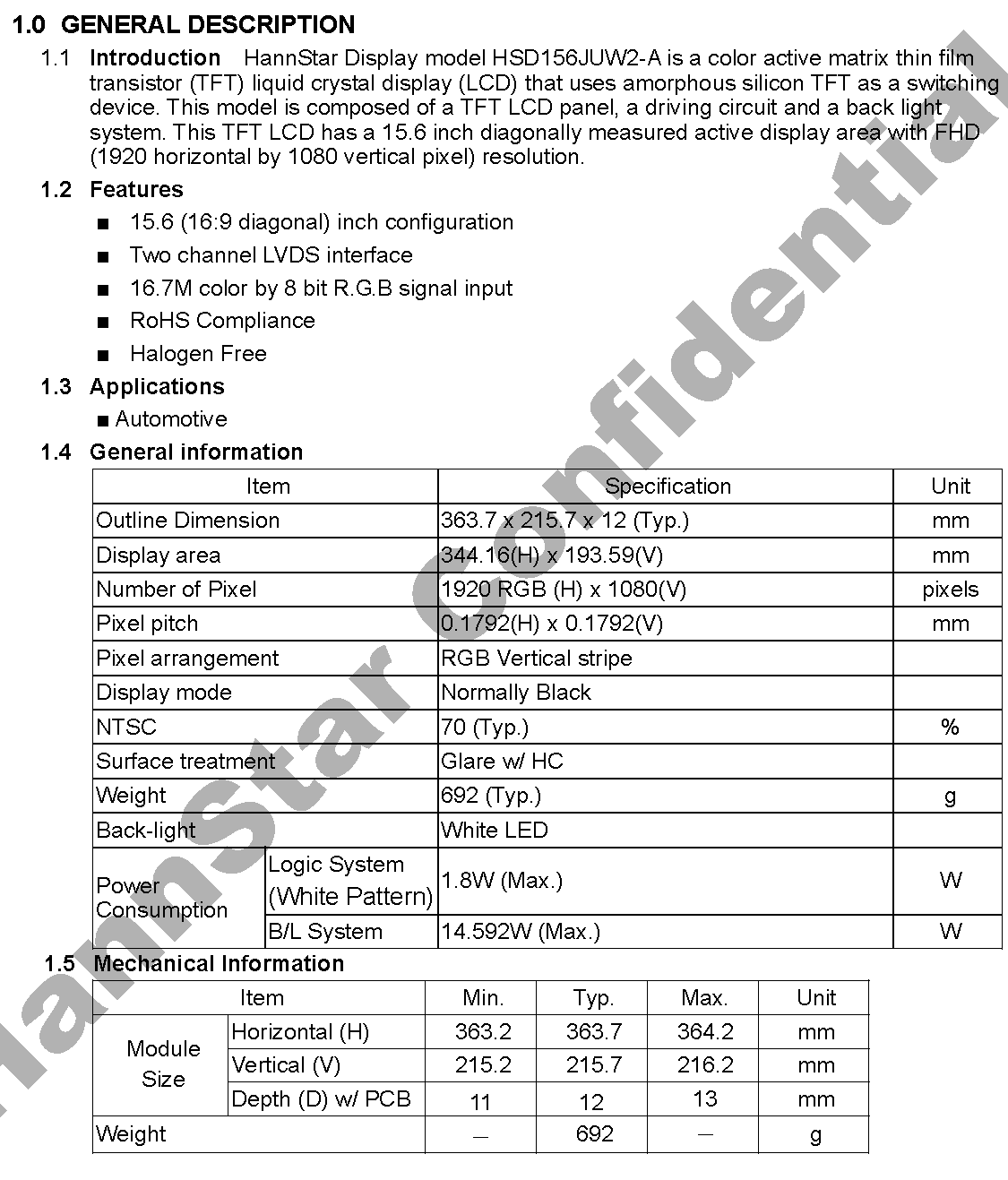

The HSD156JUW2-A12 is a 15.6-inch TFT LCD module engineered for reliability. Specifically, it combines Full HD visual clarity with a rugged physical build, making it an ideal choice for challenging industrial, automotive, and outdoor environments.
Key Performance Features
Crisp Full HD Visuals
This display delivers sharp imaging with 1920 × 1080 Full HD resolution. Additionally, its standard 16:9 aspect ratio and RGB subpixel layout ensure accurate color and clear graphics, which is essential for detailed data and interface display.
Compact and Protected Design
The module provides a 344.16 × 193.59 mm viewing area within a compact 363.7 × 215.7 × 15.6 mm frame. Moreover, its hard surface coating protects against scratches and impacts during installation and operation, thereby extending product life in demanding conditions.
Long-Life WLED Backlight
Equipped with a 4-string WLED backlight, it offers uniform brightness for up to 30,000 hours. Consequently, it ensures long-term display stability while significantly reducing the frequency and cost of maintenance.
Easy-to-Integrate LVDS Interface

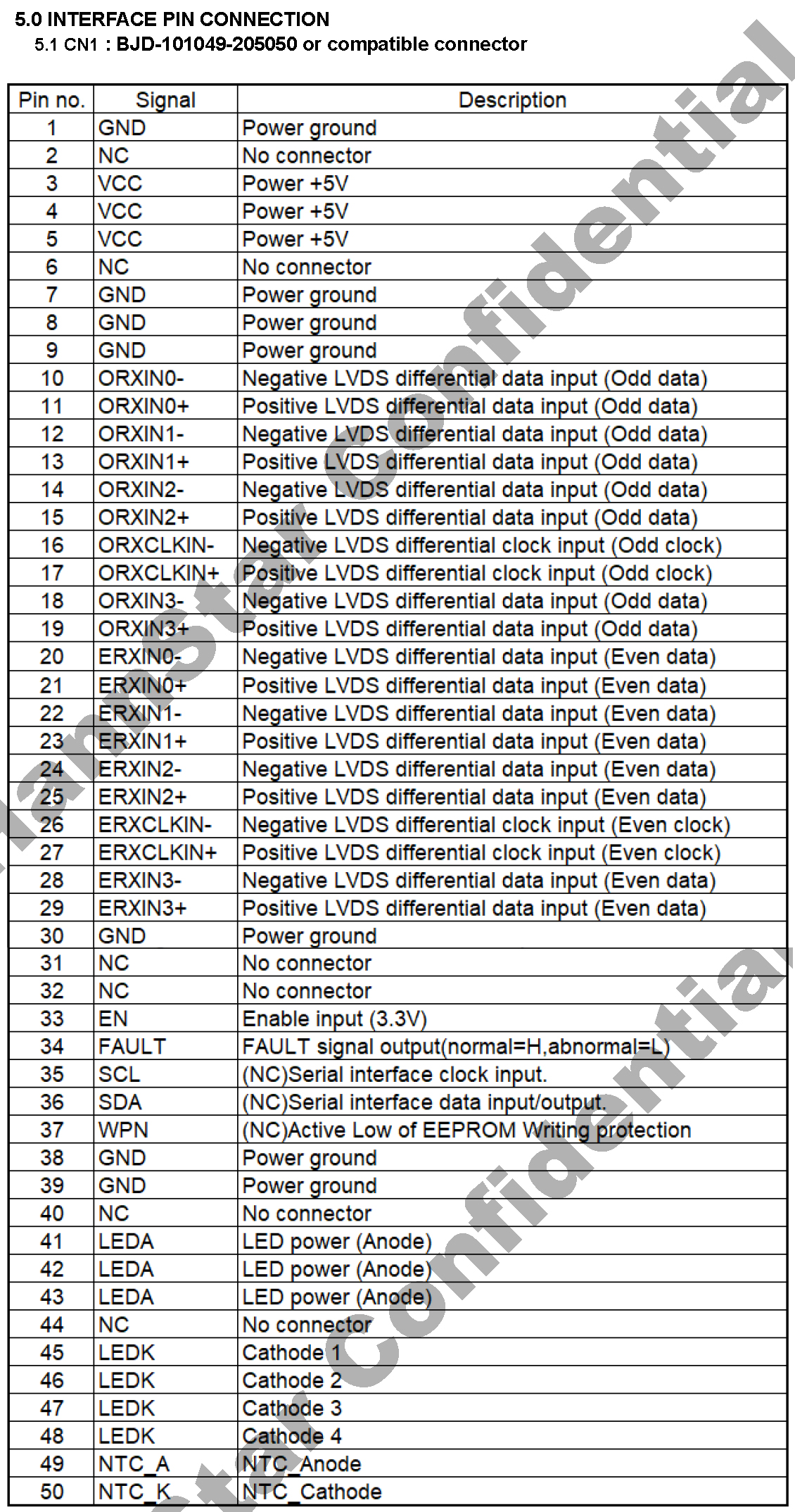

Featuring a standard LVDS interface and 50-pin connector, it supports 5.0V power and a 60Hz refresh rate. Therefore, it connects seamlessly to most common controller boards, resulting in faster and simpler system integration.
Rugged Environmental Specifications
Wide Operating Temperature Range
The display performs reliably from -30°C to 85°C and can be stored from -40°C to 90°C. Thus, it is suitable for use in extreme climates, whether in freezing cold or high-heat settings.
High Vibration Resistance
It withstands vibrations up to 3G, making it stable in high-motion applications such as vehicles and industrial machinery. As a result, it delivers consistent performance even under physically demanding conditions.
Ideal Application Areas
Automotive & Transportation Displays
Thanks to its wide temperature tolerance and vibration resistance, this display excels in automotive dashboards, center consoles, and navigation systems. In fact, it is built to meet the rigorous demands of modern vehicle electronics.
Outdoor & Industrial Equipment
With its high-brightness backlight and robust construction, it is well-suited for outdoor digital signage, industrial HMIs, and machinery operating in harsh environments. Furthermore, its durability ensures reliable performance where other displays might fail.
Specialized Rugged Monitors
Additionally, this module is a dependable choice for marine electronics, heavy transport displays, and field-deployed rugged computers. Overall, its versatility and toughness make it a preferred solution for specialized professional applications.
About HannStar: A Trusted Display Partner
HannStar Display Corporation is a leading global manufacturer of TFT-LCD panels. Since 1998, we have delivered high-quality display solutions from Taiwan, establishing a reputation as a reliable and innovative partner in the industry.
Our Commitment to Customers
We supply original LCD modules for automotive, industrial, medical, and professional uses. Moreover, we emphasize responsive customer support, tailored solutions, and strict quality control, ensuring every product meets the highest standards of performance and reliability.
Learn more about HannStar: http://www.hannstar.com
Why Choose Original LCD Modules?
Original LCD modules, such as those from HannStar, are fully assembled and sealed units—not just bare glass panels. Therefore, they provide certified optical performance, simplified integration, and direct manufacturer warranty support. Ultimately, this translates into greater reliability and lower project risk, which is especially critical for automotive, industrial, and medical applications where failure is not an option.
