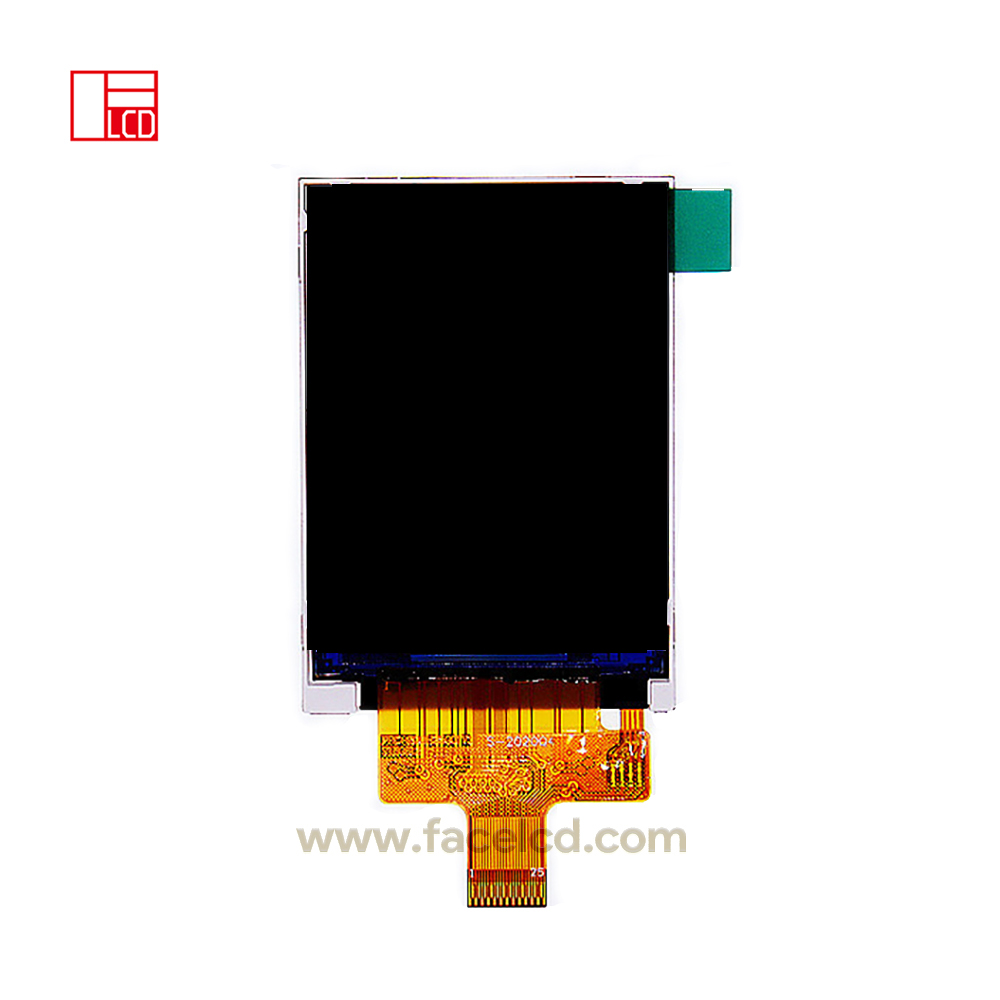

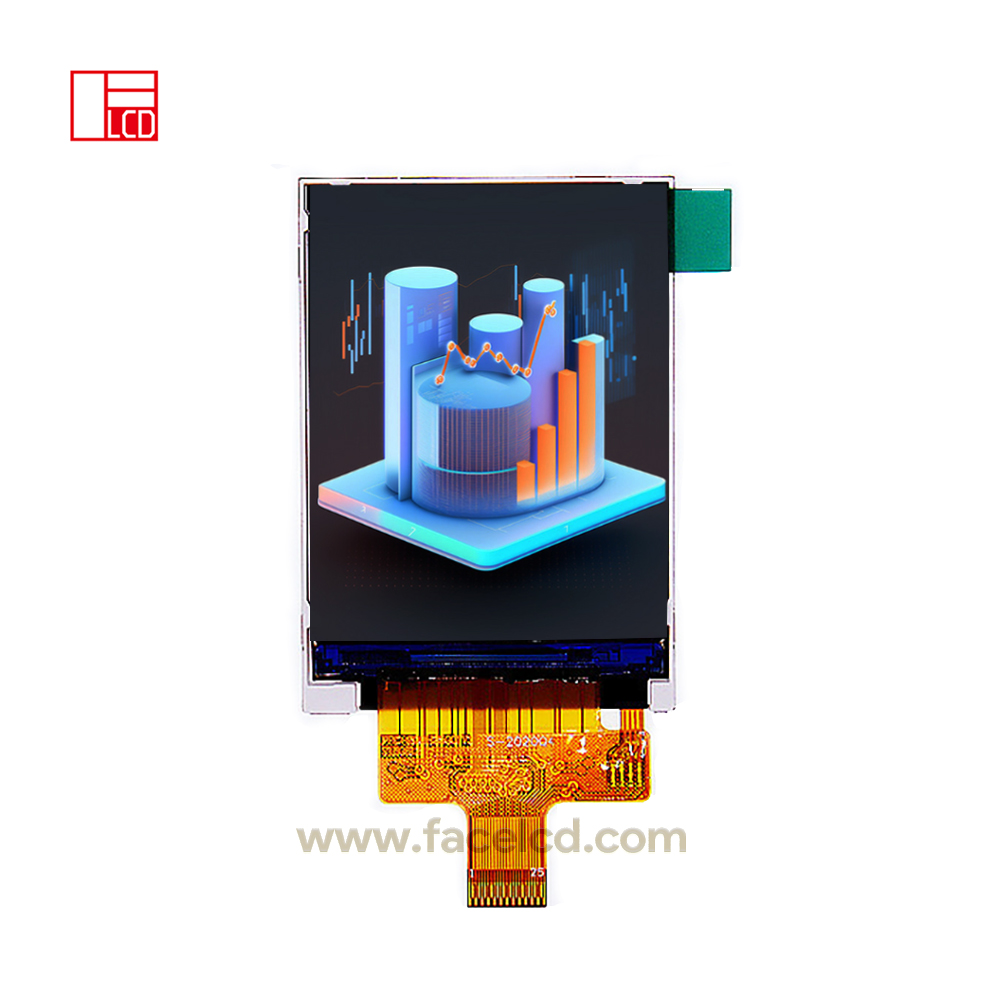

2.0inch 480×640 IPS TFT LCD Display with SPI RGB
2.0inch 480×640 IPS TFT LCD Display with SPI RGB
2.0inch 480×640 IPS TFT LCD Display with SPI RGB

2.0inch 480×640 IPS TFT LCD Display with SPI RGB

Quick info

  • Model Number:FB020ELS402-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:3:4
  • Resolution:176X220
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 2.0 inch
 Model Number FB020ELS402-A
 Panel Type TFT-LCD
 Aspect Ratio 3:4
 Resolution 176X220
 Pixel Format RGB Vertical Stripe
 Active Area 30.6(W)X40.8 (H) mm
 Bezel Opening 32.1（W) X43.62 (H) mm
 Outline Dimension 34.6(H)X47.8(V)X1.94(D)mm
 Treatment Antigare
 View Angel 80/80/80/80
 Support Color 262K
 Luminance 280 cd/㎡
 Interface Type SPI/RGB
 Operation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 3.1V
 Current for LED Backlight 60mA
 Application Smart wearable, handheld&PDA, Industrial, Healthcare
 Sample Leadtime 7-10days
