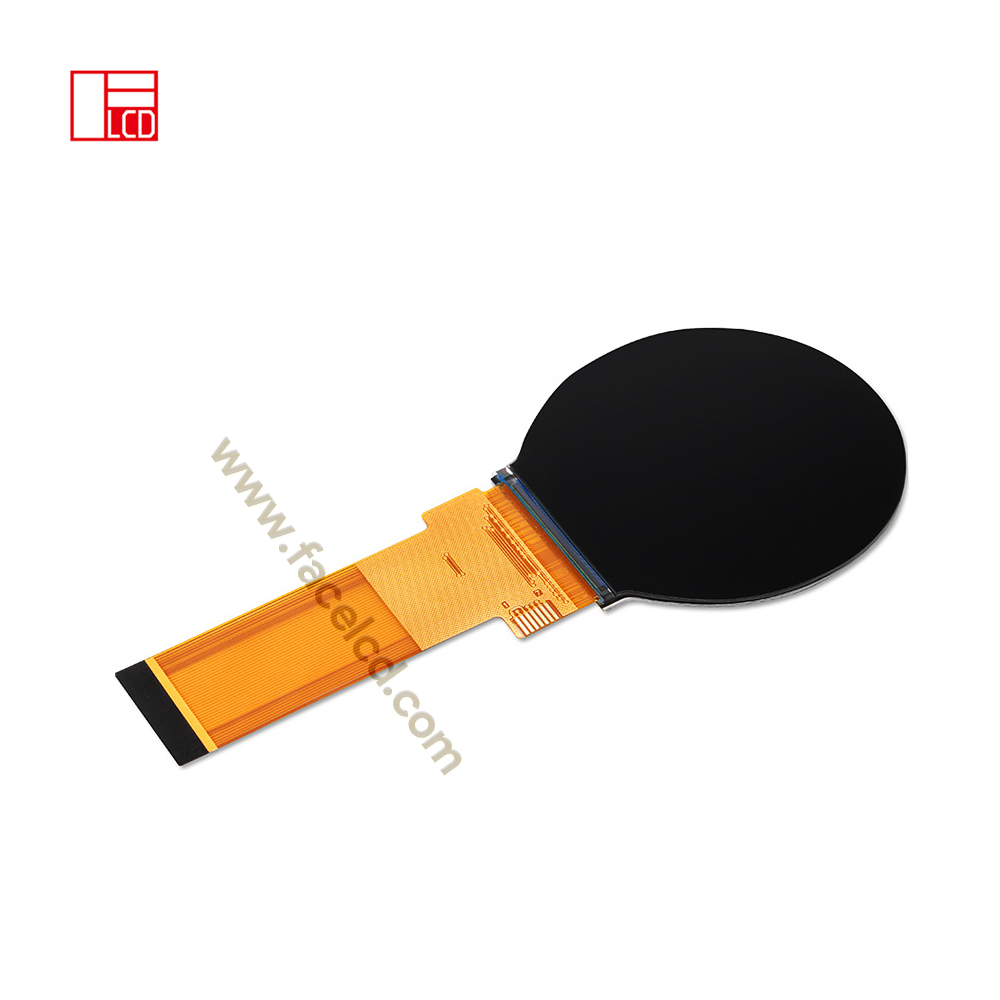

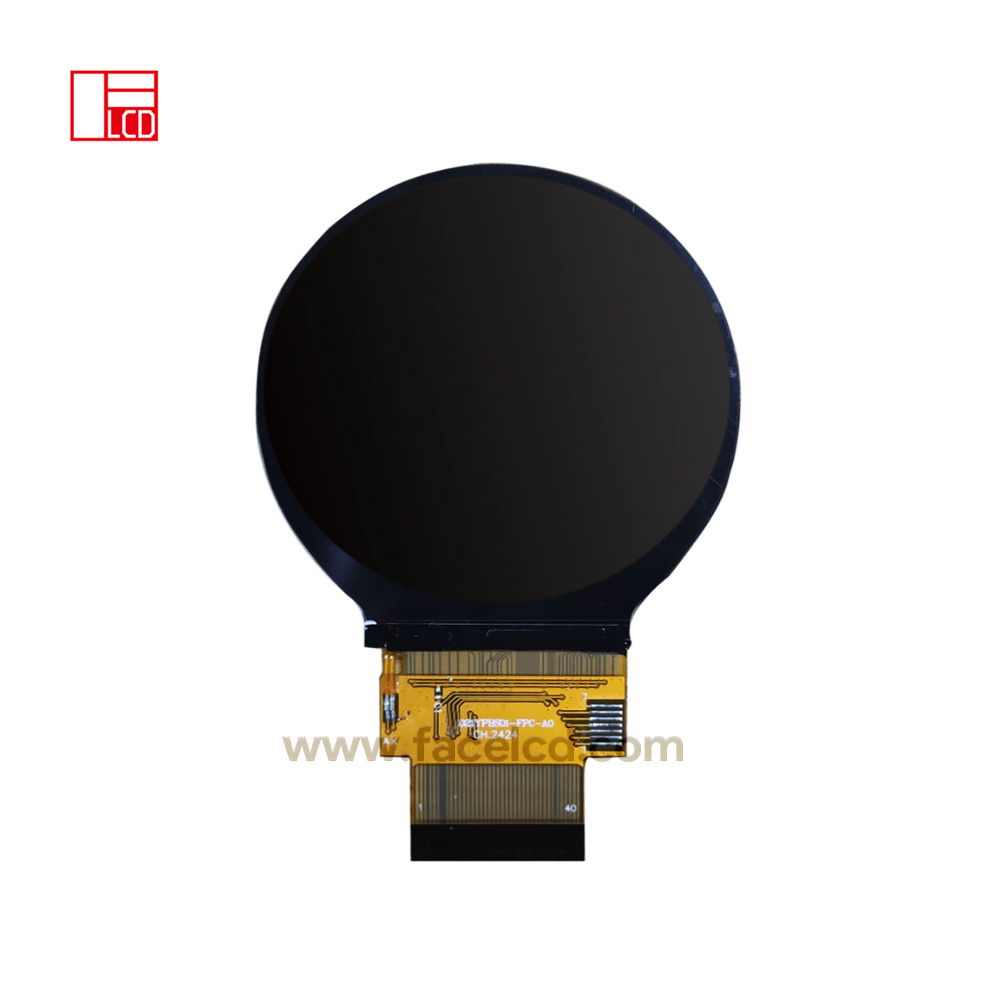

2.1inch 480×480 IPS Circle TFT LCD Display with RGB or MIPI
2.1inch 480×480 IPS Circle TFT LCD Display with RGB or MIPI
2.1inch 480×480 IPS Circle TFT LCD Display with RGB or MIPI

2.1inch 480×480 IPS Circle TFT LCD Display with RGB or MIPI

Quick info

  • Model Number:FB021ESG308-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:circle type
  • Resolution:480X480
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 2.1 inch
 Model Number FB021ESG308-A
 Panel Type TFT-LCD
 Aspect Ratio circle type
 Resolution 480X480
 Pixel Format RGB Vertical Stripe
 Active Area 53.28(W)X53.28 (H) mm
 Bezel Opening 53.88（W) X53.88 (H) mm
 Outline Dimension 56.18(H)X59.71(V)X2.3(D)mm
 Treatment Antigare
 View Angel 80/80/80/80
 Support Color 262K
 Luminance 300 cd/㎡
 Interface Type RGB/MIPI
 Operation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 3.2V
 Current for LED Backlight 80mA
 Application Smart wearable, Smart Home, Robot, Sound Equipment
 Sample Leadtime 7-10days
