| Product Description | |
| Panel Size | 2.86 |
| Model Number | FB028ESG313-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 47:120 |
| Resolution | 376x960 |
| Pixel Format | RGB Vertical stripe |
| Active Area | 26.51 (W) × 67.68 (H)mm |
| Bezel Opening | 19.25 (W) × 34.39 (H)mm |
| Outline Dimension | 28.81(W) x76 (H) x 2.84(D) mm |
| Treatment | Anti-Glare 3H |
| View Angel | 85/85/85/85 |
| Support Color | 16.7M（6bit+FRC） |
| Luminance | 380cd/m² |
| Interface Type | SPI3W+RGB18BIT |
| Operatation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 3.2V |
| Current for LED Backlight | 80mA |
| Application | Instrucment, household appliance, Comerical, Euipment, etc |
| Sample Leadtime | 7-10days |

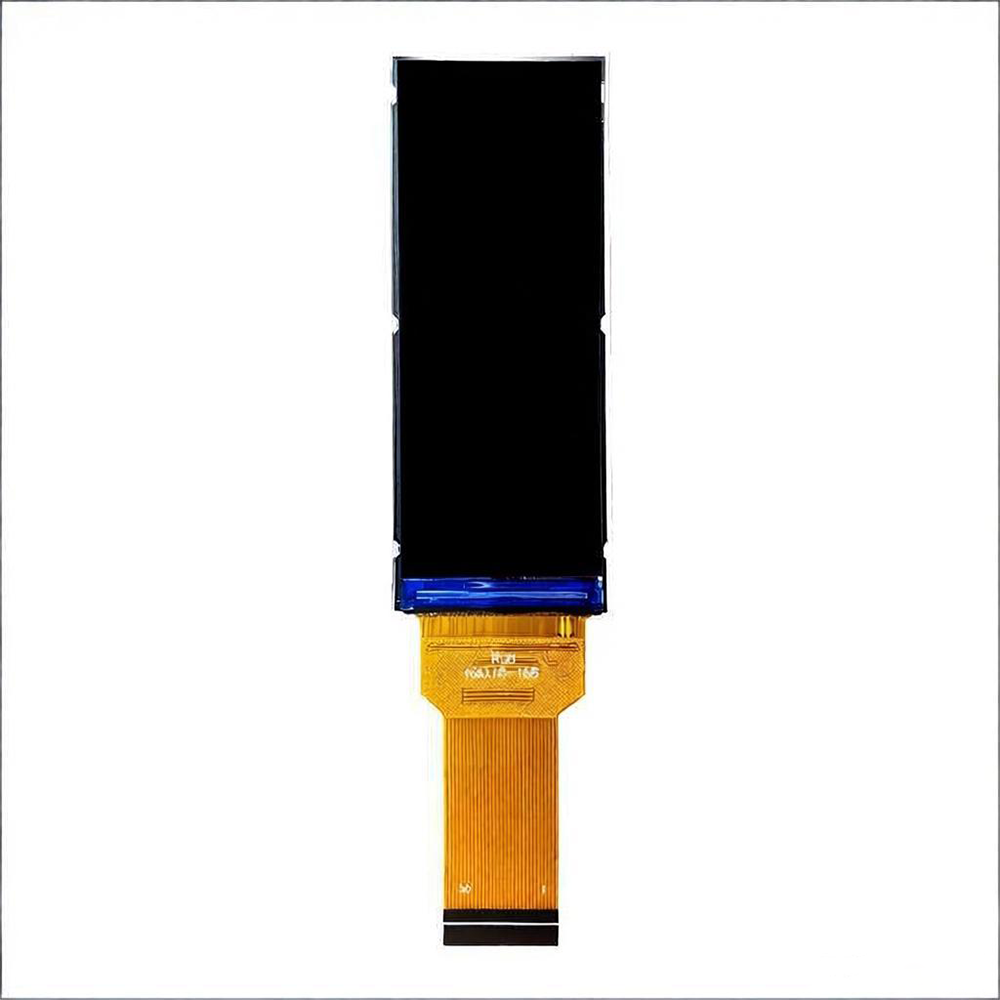

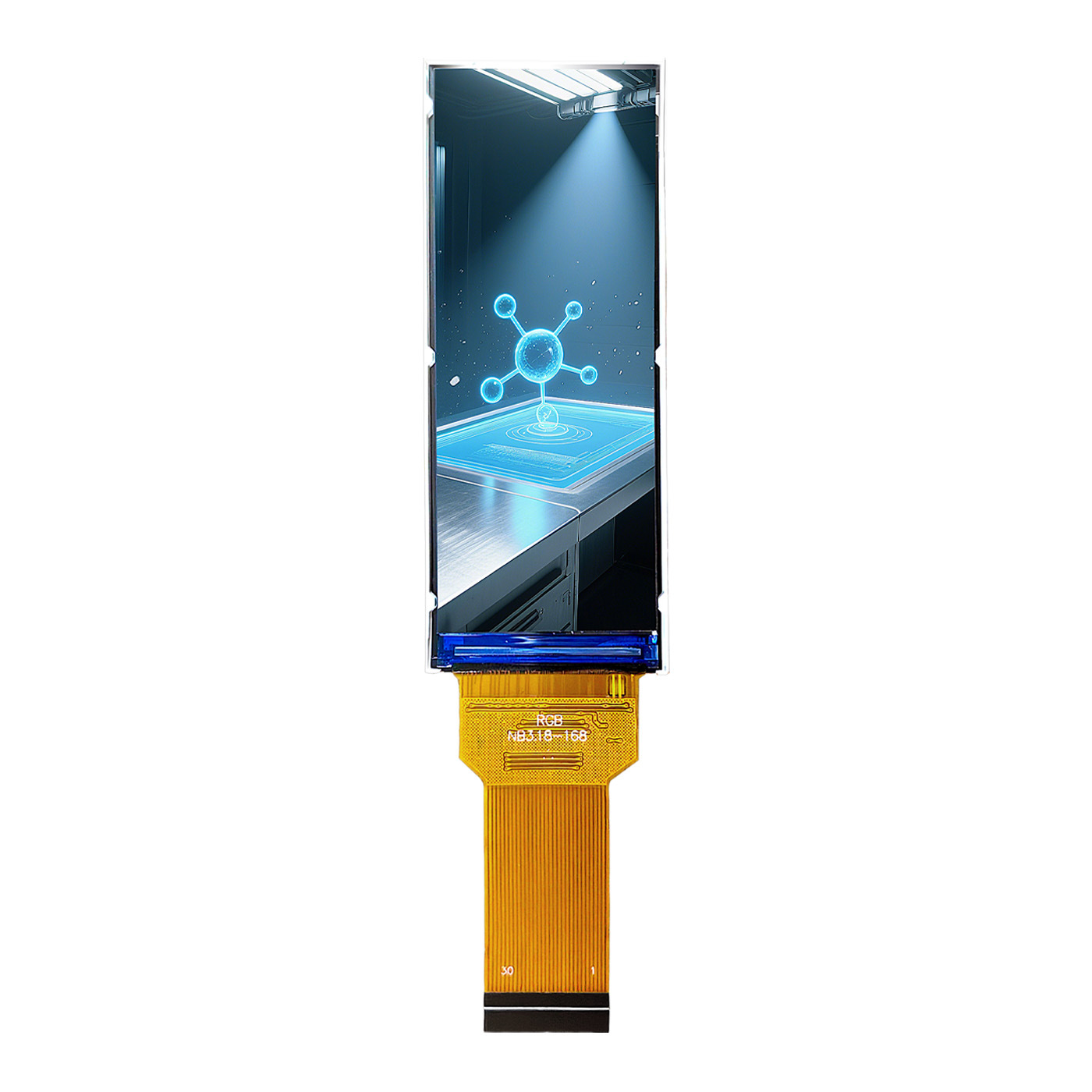

High Resolution in Compact Size
This 2.86 inch TFT LCD module offers a sharp 376x960 resolution. You see crisp text and clear graphics. The pixel density ensures detailed UI rendering. It works perfectly for data-heavy screens. Therefore, it suits professional instruments.
Flexible SPI3W+RGB18BIT Interface
We adopt a versatile SPI3W+RGB18BIT interface. This design reduces wiring complexity. It supports both control and fast image data. Consequently, you get smoother animations. The interface works with most MCUs. It saves your development effort significantly.
Adequate 380 Nits Brightness
This TFT module delivers 380 nits brightness. Users read displays indoors comfortably. It also works in shaded environments. The brightness balances visibility and power. Thus, you extend battery life effectively.
Ideal for Instrumentation Applications
First, consider laboratory measurement tools. Second, handheld testing devices benefit greatly. Third, this module fits industrial gauges. The high resolution shows complex waveforms. Moreover, it displays precise numerical data. Operators appreciate the clear readouts.
Perfect for Home Appliances
This display upgrades smart home appliances. Think of air conditioner panels. It works for washing machine interfaces too. Many kitchen devices use it. For instance, coffee makers and ovens. The screen shows cooking modes clearly. Thus, users interact with ease.
Great for Small-Scale Devices
Also, this module targets portable monitors. It fits medical handheld devices. Examples include thermometers or pulse oximeters. It works for small control units. Any compact device needs a sharp screen. This TFT module delivers reliable performance. Its 2.86 inch size saves panel space
