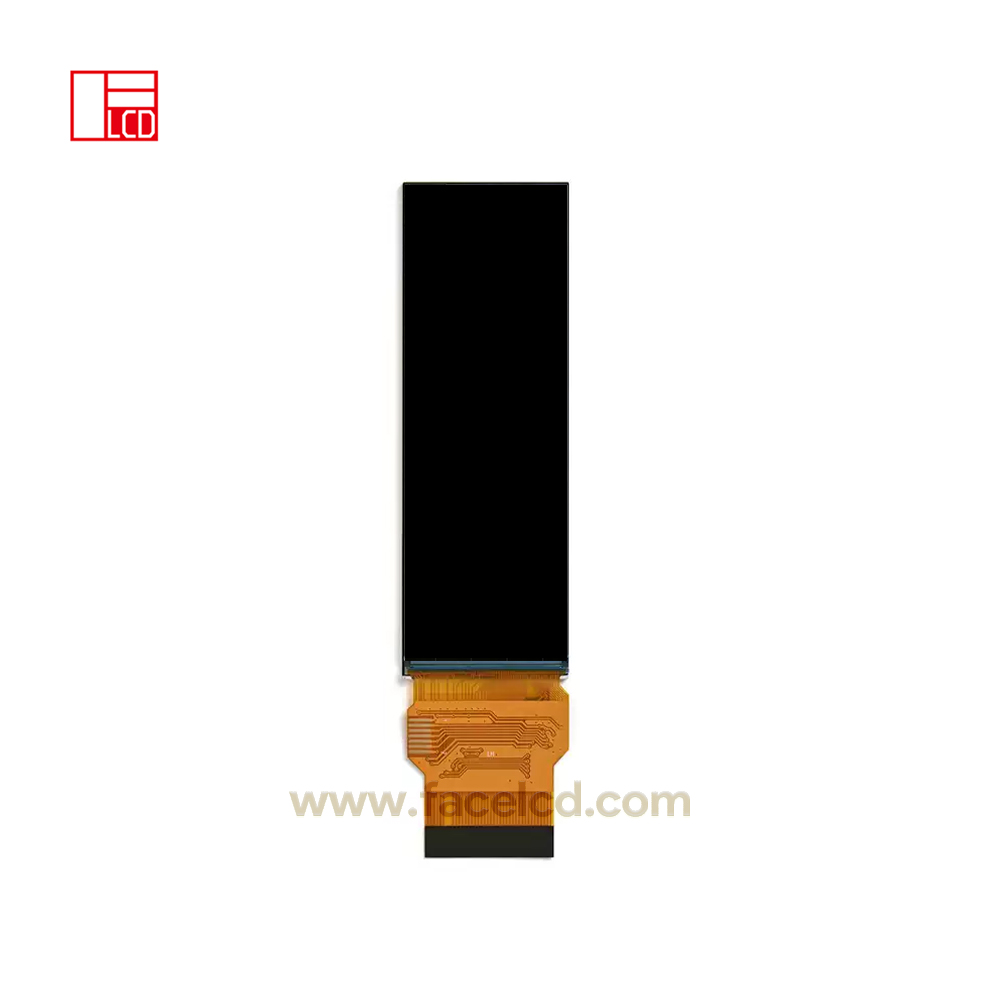

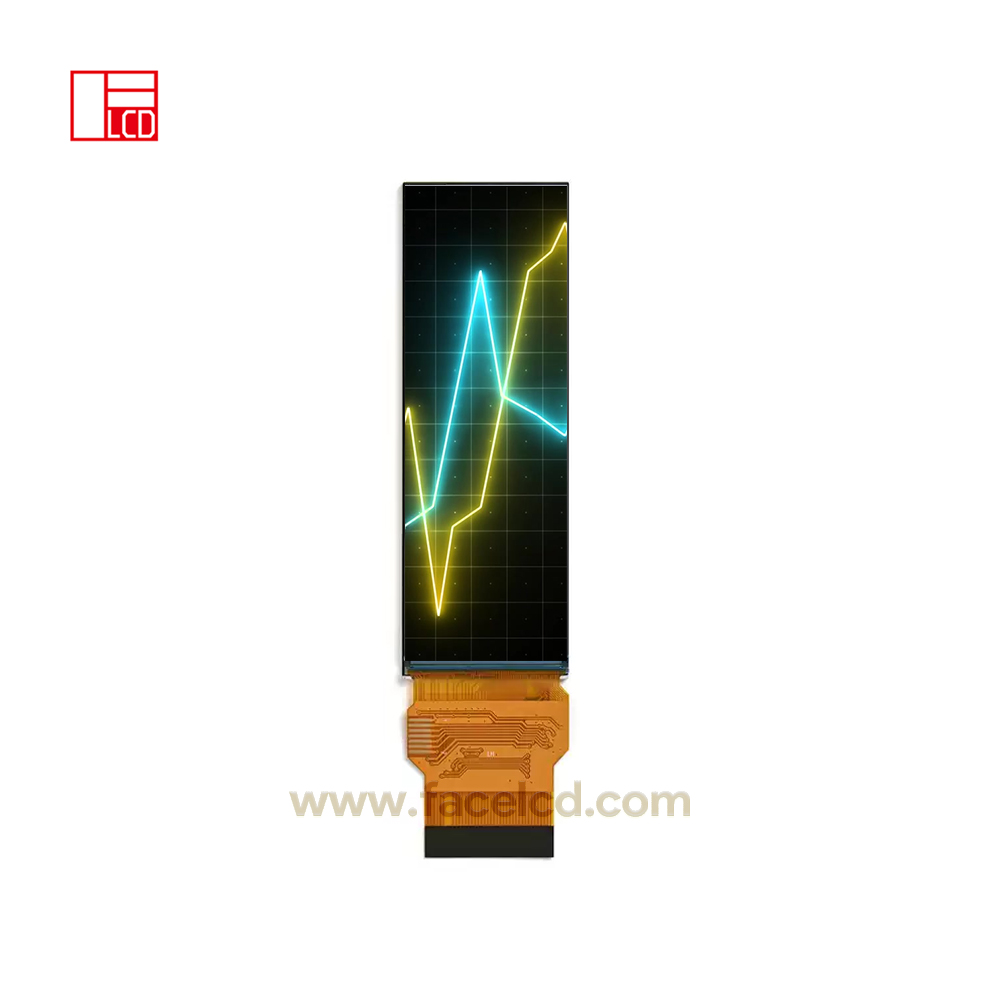

2.99inch 268X800 IPS TFT LCD Display with SPI or RGB

Quote Now

DetailsAdditional Information

Product Description

Panel Size	2.99 inch
Model Number	FB030ESS507-A
Panel Type	TFT-LCD
Aspect Ratio	1:3
Resolution	268×800
Pixel Format	RGB Vertical Stripe
Active Area	24.12(W)X72 (H) mm
Bezel Opening	26.12（W) X77.66 (H) mm
Outline Dimension	26.96(H)X80.08(V)X1.72(D)mm
Treatment	Antigare
View Angel	80/80/80/80
Support Color	262K
Luminance	510 cd/㎡
Interface Type	SPI/RGB
Operation Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Power Supply Votage	18V
Current for LED Backlight	20mA
Application	Black Box, Industrial, Healthcare Smart Home, Euipment, etc
Sample Leadtime	7-10days
