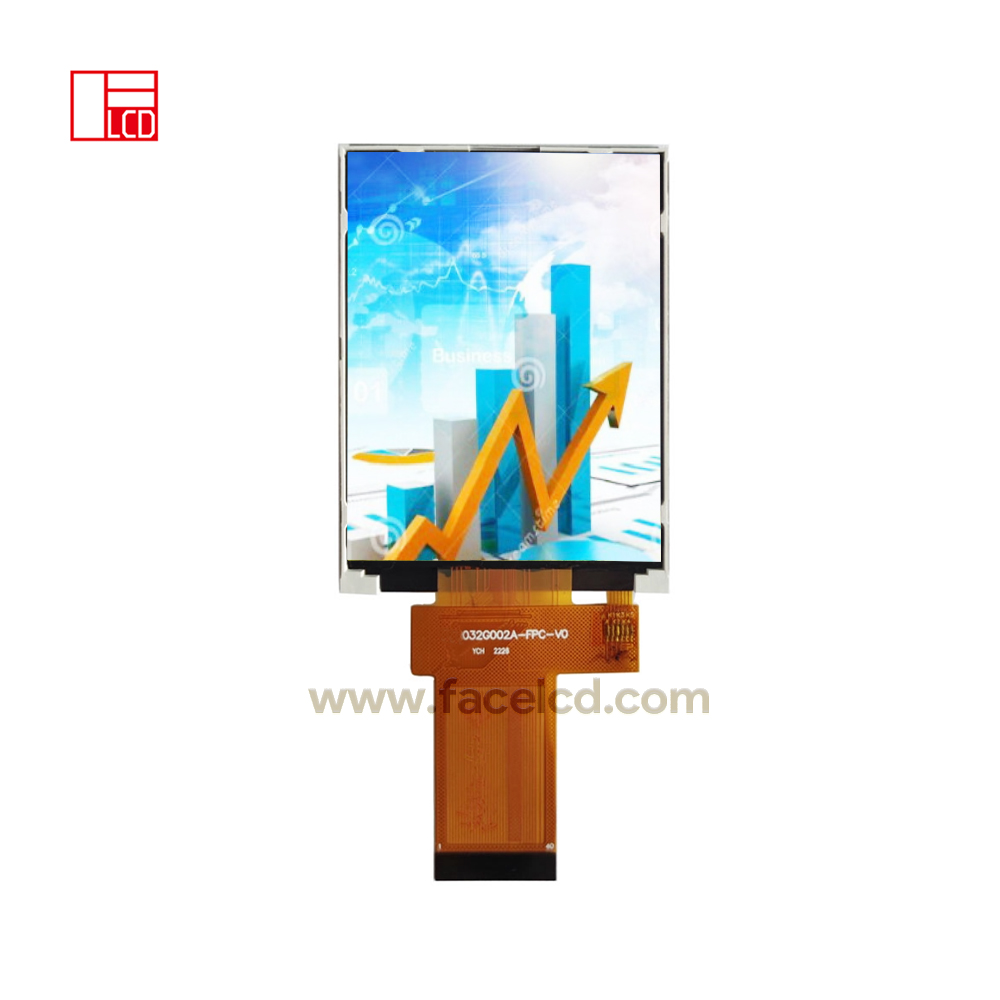

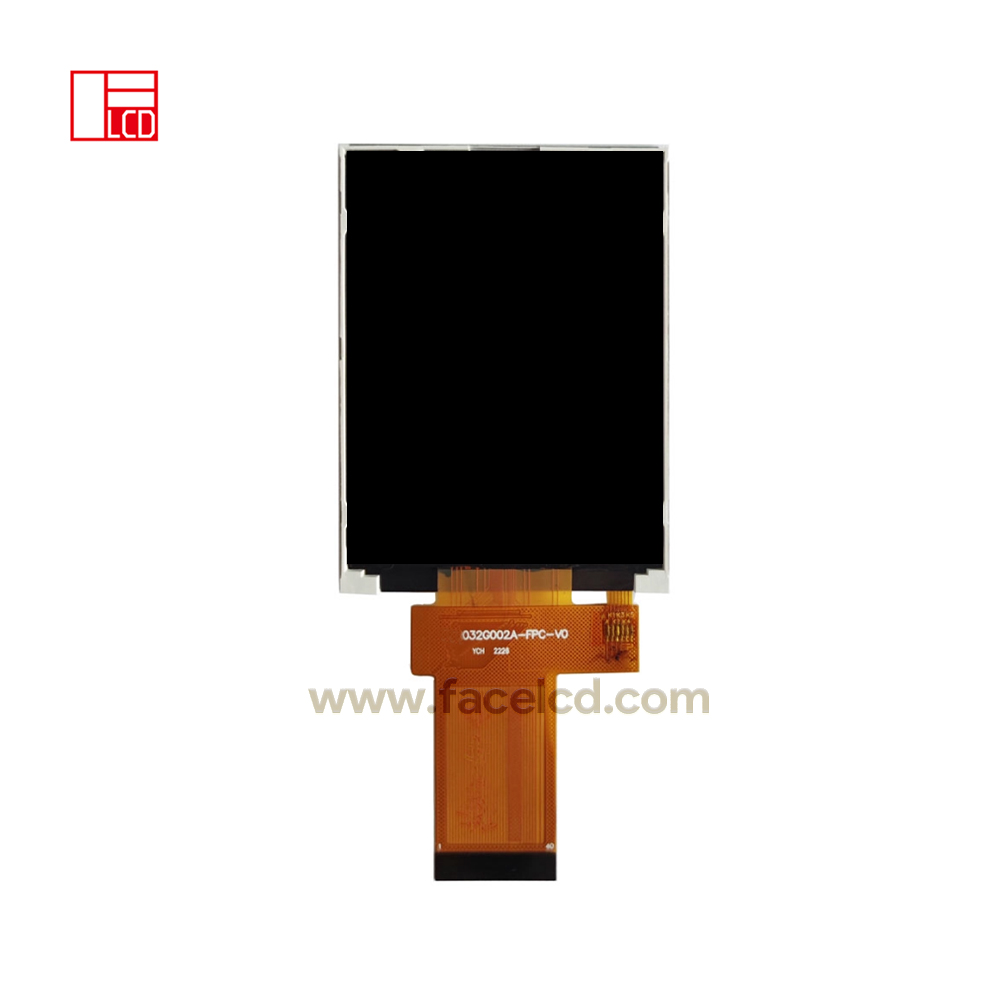

3.2inch 240X320 TN TFT LCD Display with SPI or MCU

Quote Now

DetailsAdditional Information

Product Description

Panel Size	3.2 inch
Model Number	FB032DSS302-A
Panel Type	TFT-LCD
Aspect Ratio	3:4
Resolution	240X320
Pixel Format	RGB Vertical Stripe
Active Area	48.6(W)X64.8(H) mm
Bezel Opening	51.6（W) X67.8 (H) mm
Outline Dimension	55.0(H)X77.4(V)X2.55(D)mm
Treatment	Antigare
View Angel	45/45/45/20
Support Color	262K
Luminance	350 cd/㎡
Interface Type	SPI/MCU
Operation Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Power Supply Votage	3.2V
Current for LED Backlight	120mA
Application	Black Box, Industrial, Healthcare Smart Home, Euipment, etc
Sample Leadtime	7-10days
