Product Description
| Panel Size | 3.5 inch |
| Model Number | FB035DLS302-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 3:4 |
| Resolution | 320X480 |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 48.96(W)X73.44(H) mm |
| Bezel Opening | 50.3（W) X74.32 (H) mm |
| Outline Dimension | 54(H)X84.32(V)X2.4(D)mm |
| Treatment | Antigare |
| View Angel | 80/80/80/80 |
| Support Color | 262K |
| Luminance | 350 cd/㎡ |
| Interface Type | SPI/MCU/MIPI |
| Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 3.2V |
| Current for LED Backlight | 120mA |
| Application | Industrial, Medical, PDA, Healthcare Smart Home, Euipment, etc |
| Sample Leadtime | 7-10days |

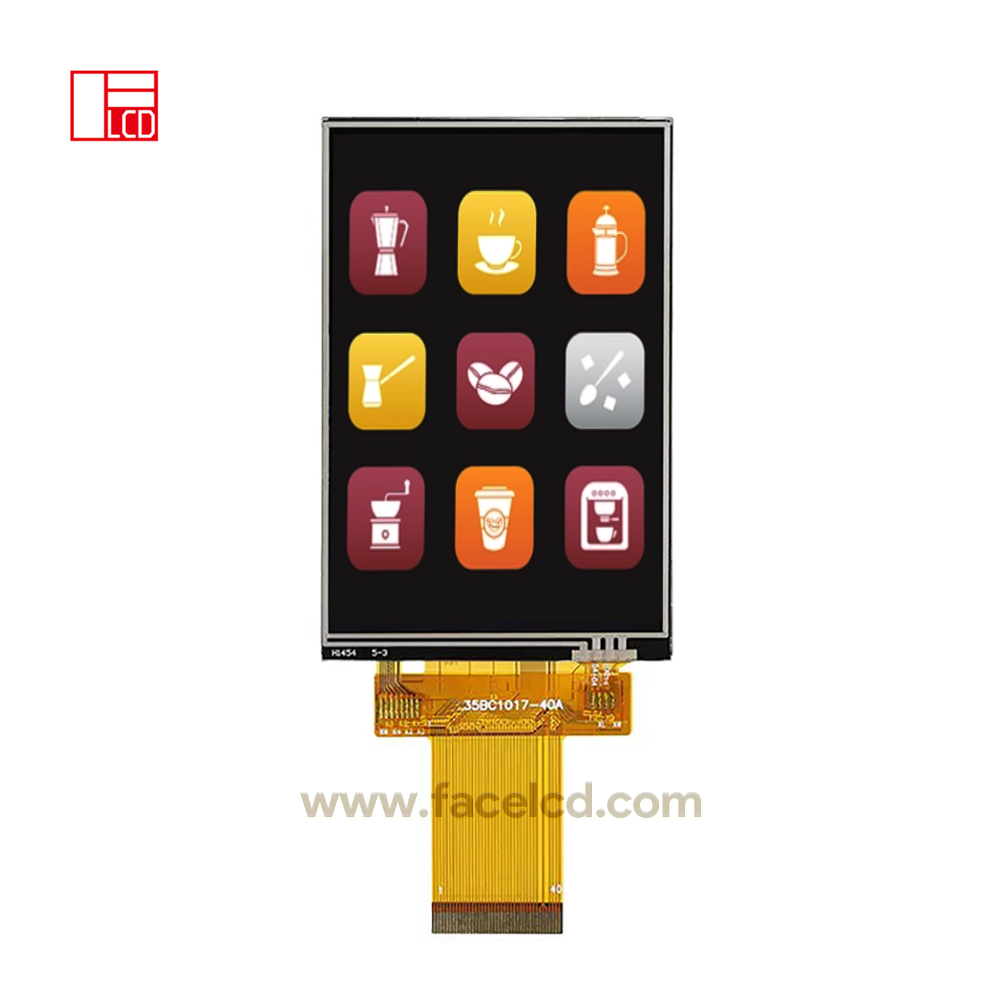

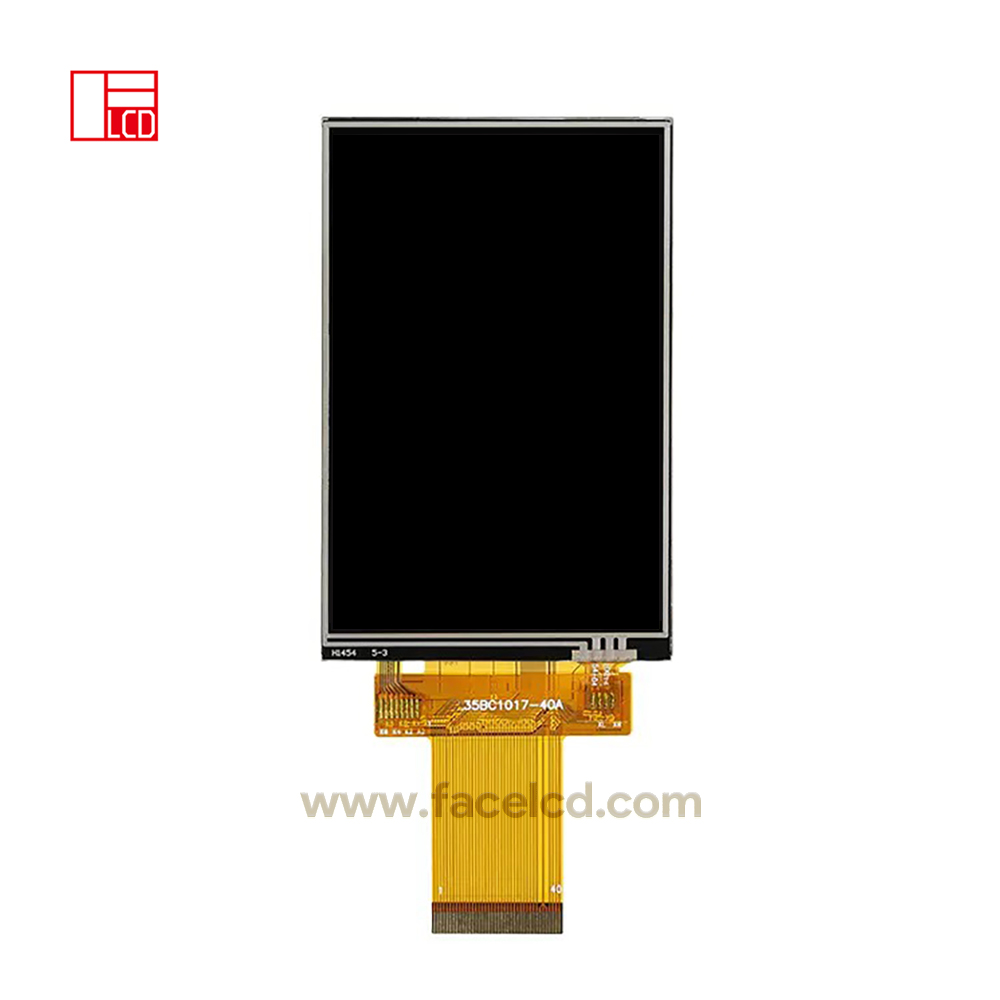

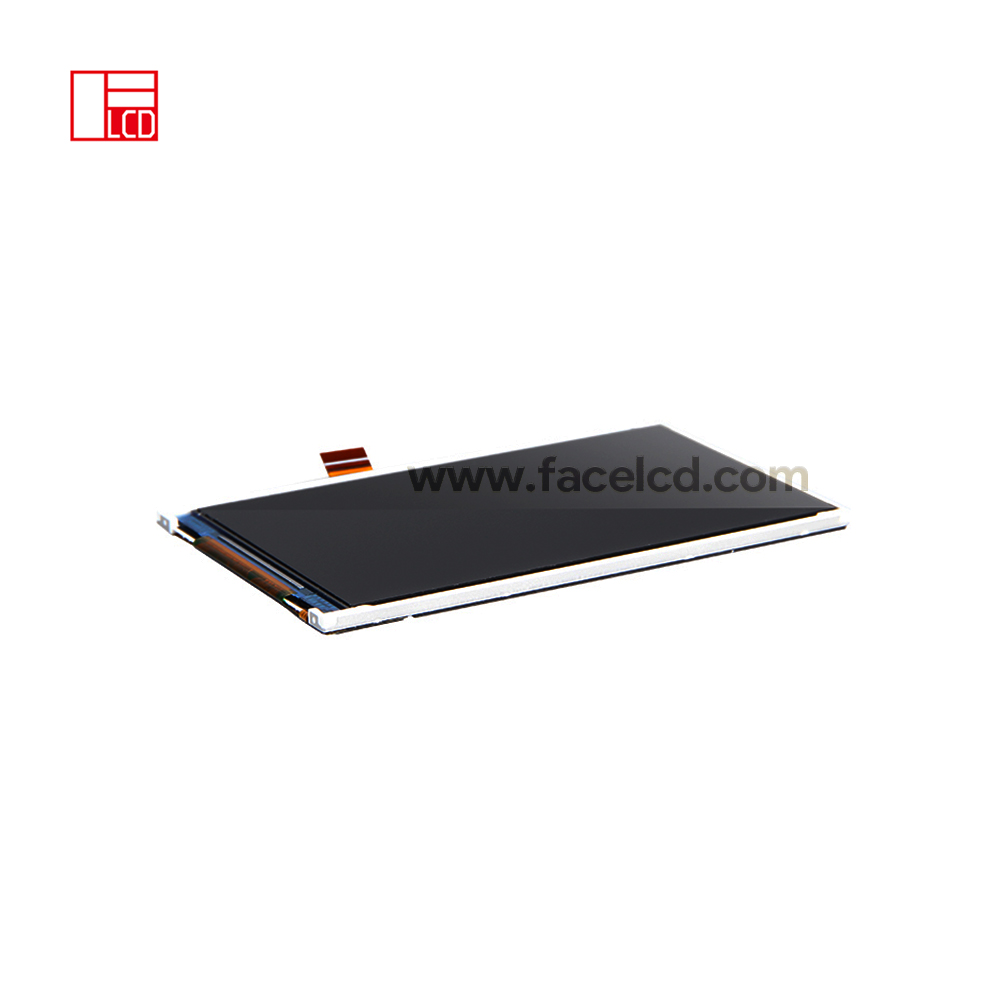

Multi-Interface IPS LCD For Compact Device Design
3.5 inch MIPI LCD display selection often depends on the mainboard interface rather than screen size alone. This IPS TFT LCD supports 320 × 480 resolution and can be reviewed with RGB, SPI, MCU, or MIPI interface options. With 350 nits brightness and 262K color support, it suits industrial devices, medical equipment, handheld controls, and small smart terminals.
320x480 Resolution For Portrait UI Pages
The 320 × 480 format gives compact products a vertical display layout for icons, short menus, parameter values, and status pages. It is useful when the device front panel is narrow but still needs a clear visual area.
Key product points include:
- 3.5-inch IPS TFT LCD panel
- 320 × 480 resolution
- RGB, SPI, MCU, or MIPI interface options
- 350 nits brightness
- 262K color support
- Fit for industrial and medical devices
Interface Choice Based On Board Design
Different products use different control systems. SPI and MCU can suit simpler embedded devices, RGB can support direct display output, and MIPI can fit more modern compact boards. FaceLCD can help compare signal needs, connector data, initialization settings, and software support before sampling.
Display Assembly Review

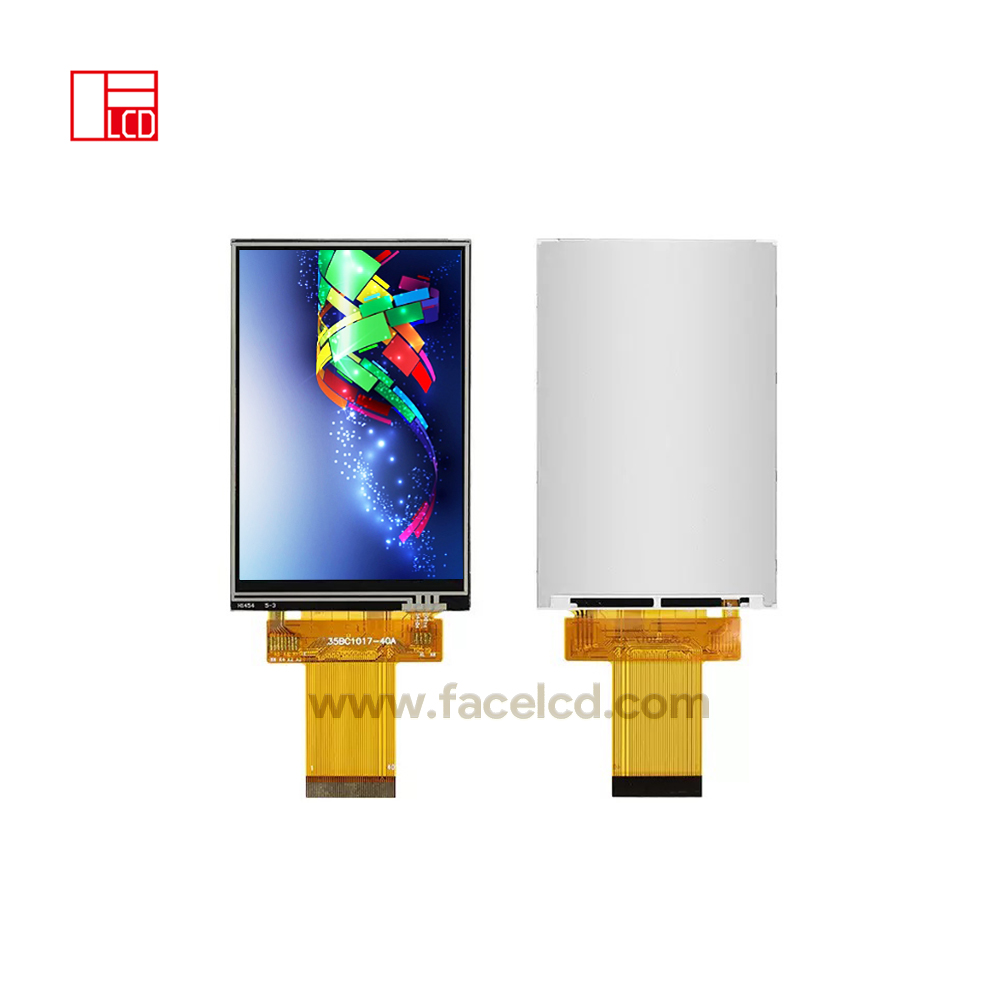

The 3.5 inch MIPI LCD display can be checked with touch panel, cover glass, FPC direction, and housing space. Early review helps reduce issues such as display orientation mismatch, limited cable room, or touch coordinate offset.
Download Document：
3.5inch 320X480 IPS TFT LCD Display with RGB ( MCU or MIPI)
FAQ
What Resolution Does This Display Use?
It uses 320 × 480 resolution.
Which Interfaces Can Be Reviewed?
RGB, SPI, MCU, and MIPI interface options can be reviewed based on project requirements.
Does It Use IPS Technology?
Yes. It uses IPS TFT LCD technology.
How Many Colors Does It Support?
The reference product supports 262K colors.
Can FaceLCD Help Choose The Right Interface?
Yes. FaceLCD can review the mainboard output, connector type, signal timing, and driver needs.
Which Products Can Use This LCD?
It can fit industrial devices, medical equipment, handheld terminals, smart controls, and compact embedded systems.
