3.95inch 480X480 IPS Square LCD Display

Product Description

Practical Square LCD Module For Compact Device Panels

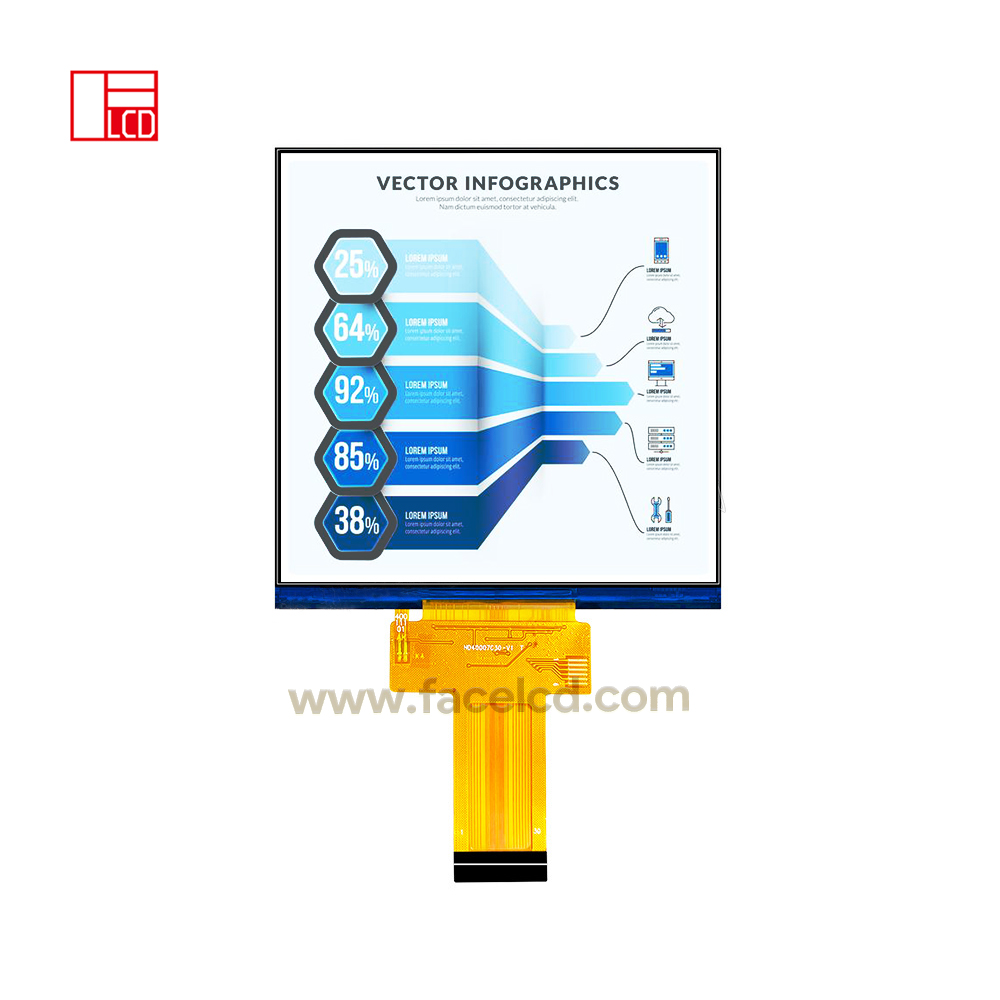

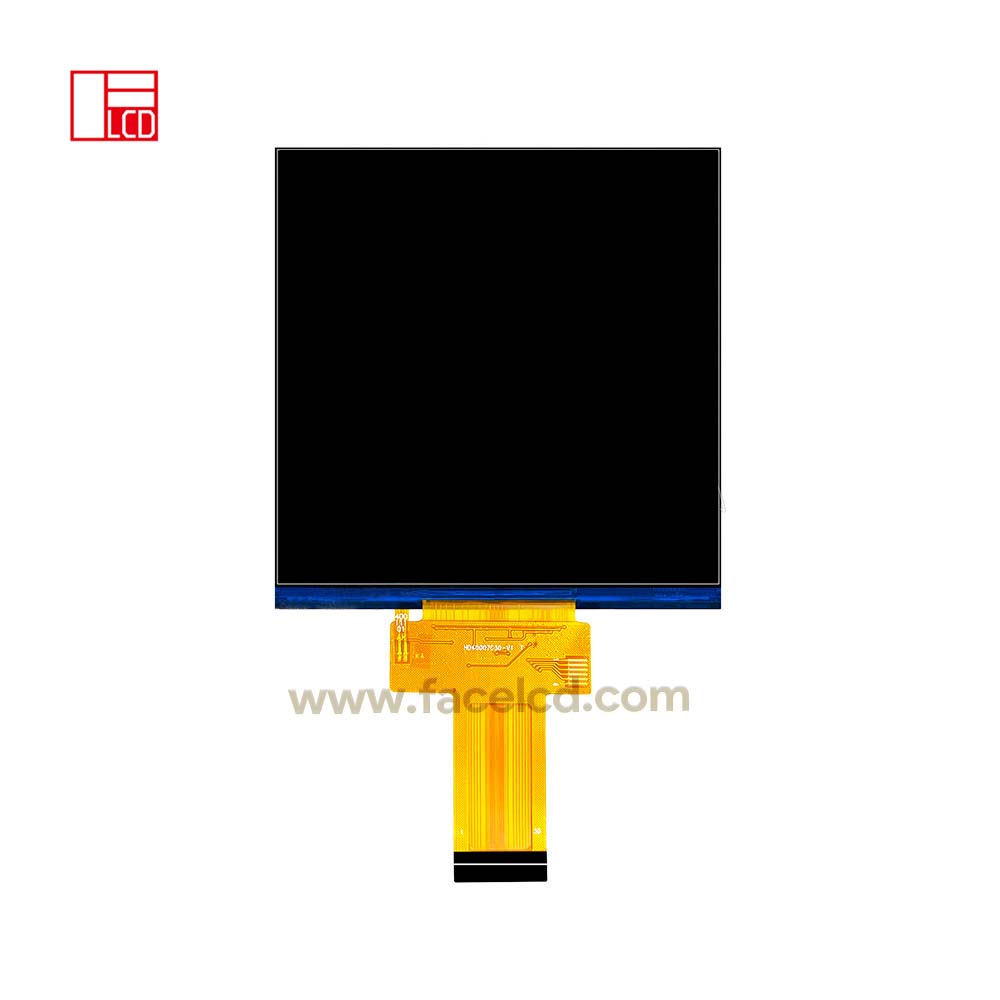

3.95 inch square LCD module selection works well when a product needs a simple, balanced screen shape without using a wide rectangular panel. This IPS LCD module uses 480 × 480 resolution, RGB-SPI interface support, and 250 nits brightness. It is suitable for smart meters, medical devices, test instruments, and small control panels that need a clean front display area.

480x480 Resolution For Simple UI Pages

The 480 × 480 format supports icons, short menus, numeric values, operating modes, and basic status graphics. It can reduce graphics load compared with higher-resolution square panels while still giving the interface a modern centered layout.

Key product points include:

• 3.95-inch square IPS LCD module
• 480 × 480 resolution
• RGB-SPI interface support
• 250 nits brightness
• Balanced square screen shape
• Suitable for smart meters, medical, and test devices

Square Format For Smaller Enclosures

The square structure can help when the product shell does not suit a wide display. It also works well for centered button-style interfaces, dial-like graphics, and compact menus. For small equipment, this layout can make the display area look neat and easy to read.

Interface And Structure Review

FaceLCD can review RGB-SPI timing, connector direction, cover glass size, touch panel matching, and backlight needs before sample work. The 3.95 inch square LCD module can also be checked with the product housing to confirm active area alignment and visible window design.
