0.96“~4“Bar LCD

You are here: Home > Products > TFT-LCD Display > 0.96“~4“ > 3.9inch 480X128 TN Bar LCD Display with RGB

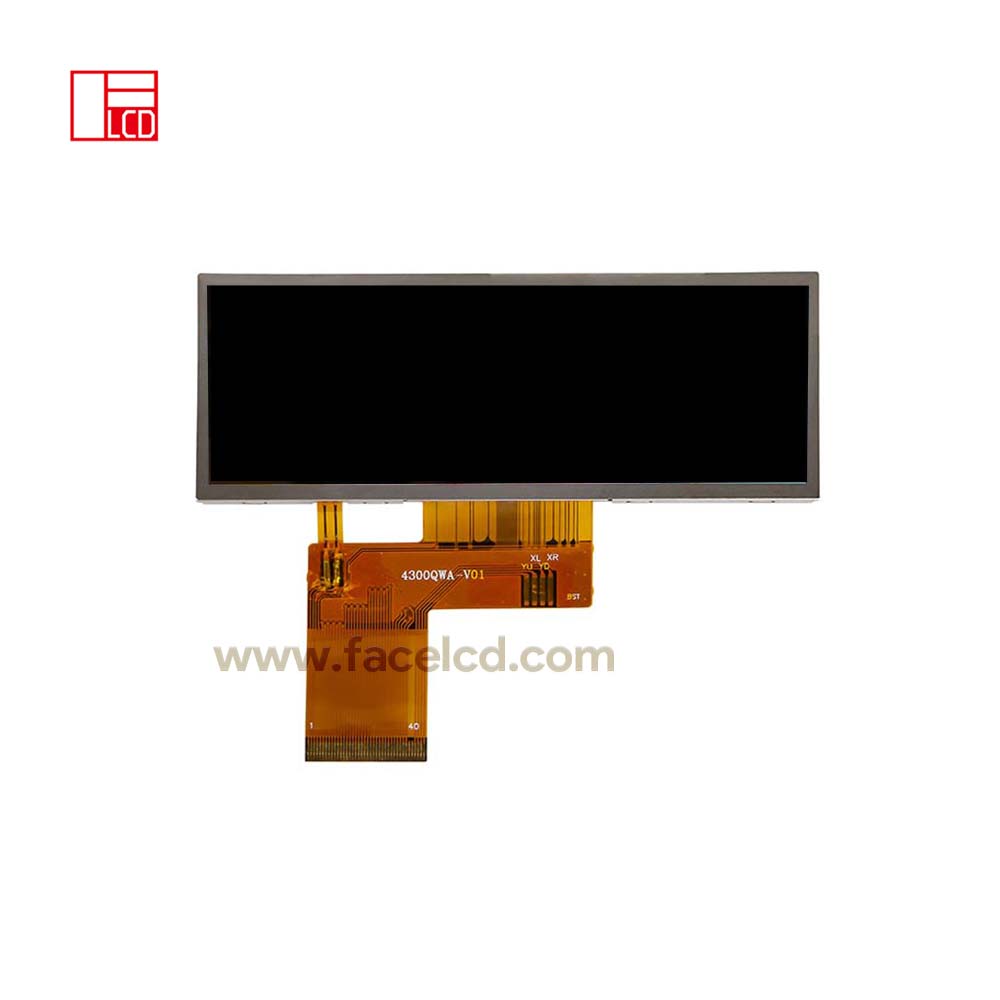

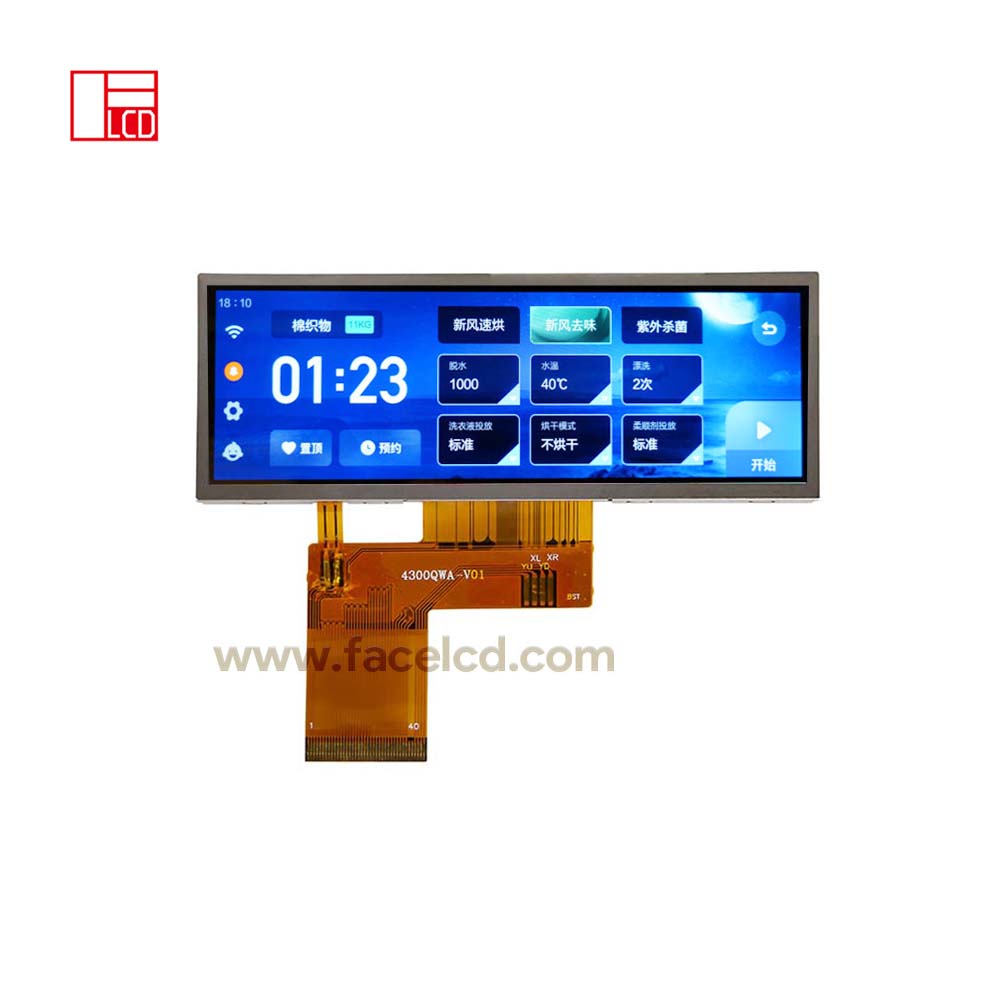

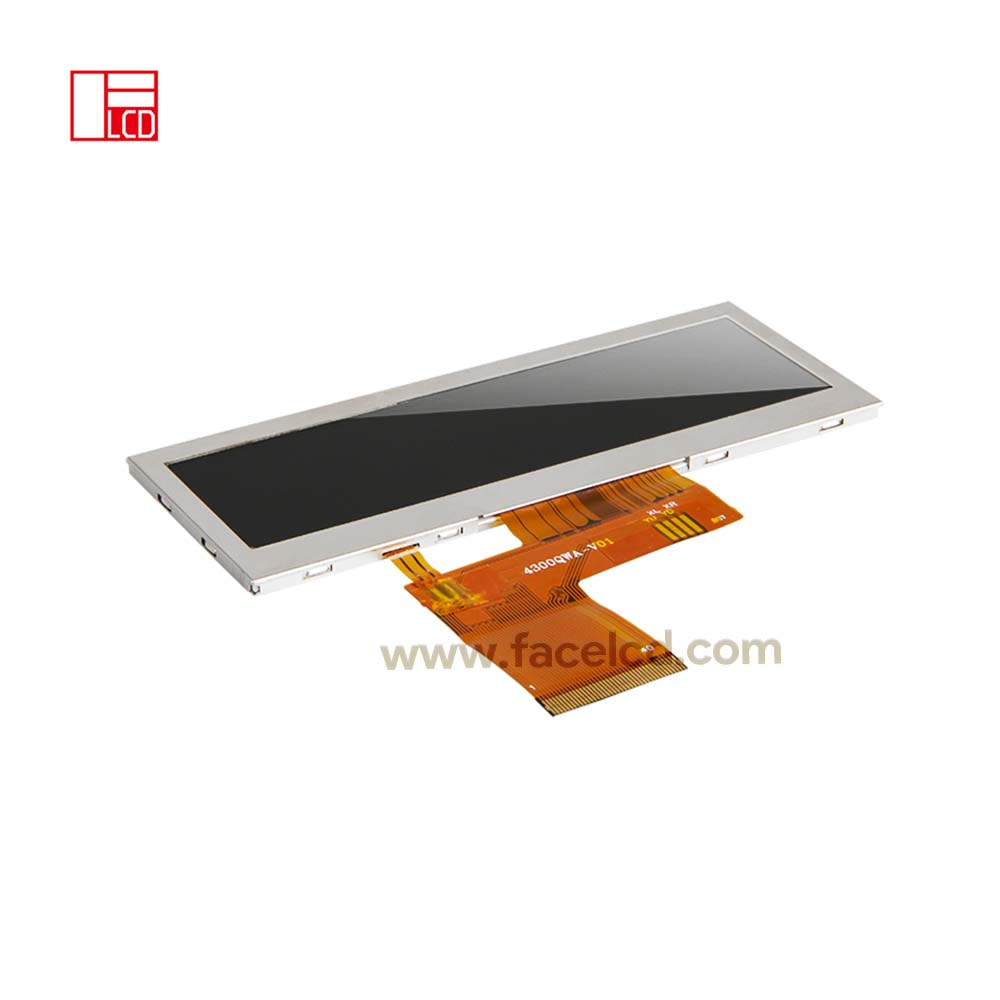

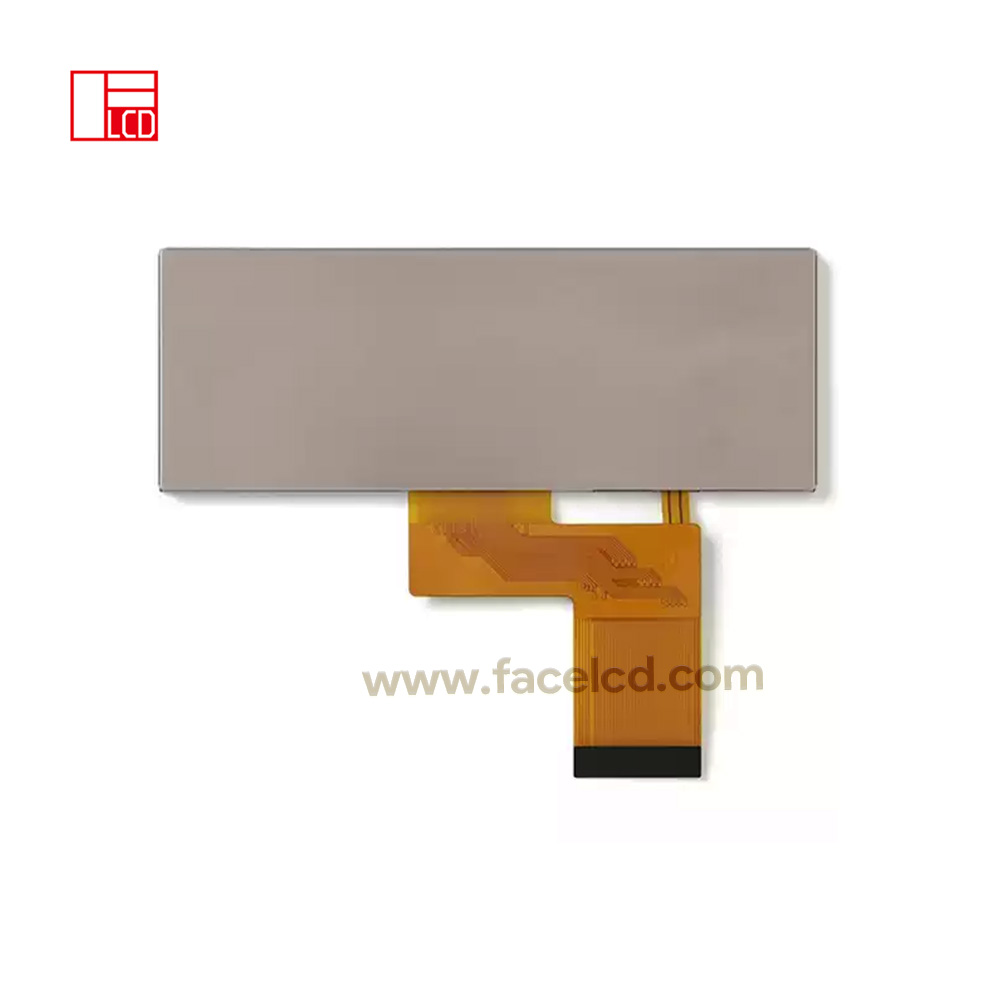

3.9inch 480X128 TN Bar LCD Display with RGB
3.9inch 480X128 TN Bar LCD Display with RGB
3.9inch 480X128 TN Bar LCD Display with RGB
3.9inch 480X128 TN Bar LCD Display with RGB
3.9inch 480X128 TN Bar LCD Display with RGB

3.9inch 480X128 TN Bar LCD Display with RGB

Quick info

  • Model Number:FB039XSG504-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:15:4
  • Resolution:480X128
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 3.9 inch
 Model Number FB039XSG504-A
 Panel Type TFT-LCD
 Aspect Ratio 15:4
 Resolution 480X128
 Pixel Format RGB Vertical Stripe
 Active Area 95.04(W)X25.34(H) mm
 Bezel Opening 98.04（W) X28.34 (H) mm
 Outline Dimension 105.5(H)X40.64(V)X2.95(D)mm
 Treatment Antigare
 View Angel 50/70/70/70
 Support Color 16.7M
 Luminance 500 cd/㎡
 Interface Type RGB
 Operation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 16V
 Current for LED Backlight 40mA
 Application Industrial, Medical, Healthcare Smart Home, Sound system, Euipment, smart meter, etc
 Sample Leadtime 7-10days
