Product Description
| Panel Size | 4.6inch |
| Model Number | FB046NLG404-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 16:4 |
| Resolution | 800X320 |
| Pixel Format | RGB-Stripe |
| Active Area | 108(W)X44.5(H) mm |
| Bezel Opening | 110.55(W)X47.15(H) mm |
| Outline Dimension | 120.7(W) X56.25(H) X2.9(D) mm |
| Treatment | Anti-glare |
| View Angel | 50/70/70/70 |
| Support Color | 16.7M |
| Luminance | 400 cd/㎡ |
| Interface Type | TTL/RGB 40pin |
| Operatation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 19.2V |
| Current for LED Backlight | 40mA |
| Application | Industrial, Medical, Healthcare, smart home, Euipment, etc |
| Sample Leadtime | 7-10 days |
Bar TFT LCD

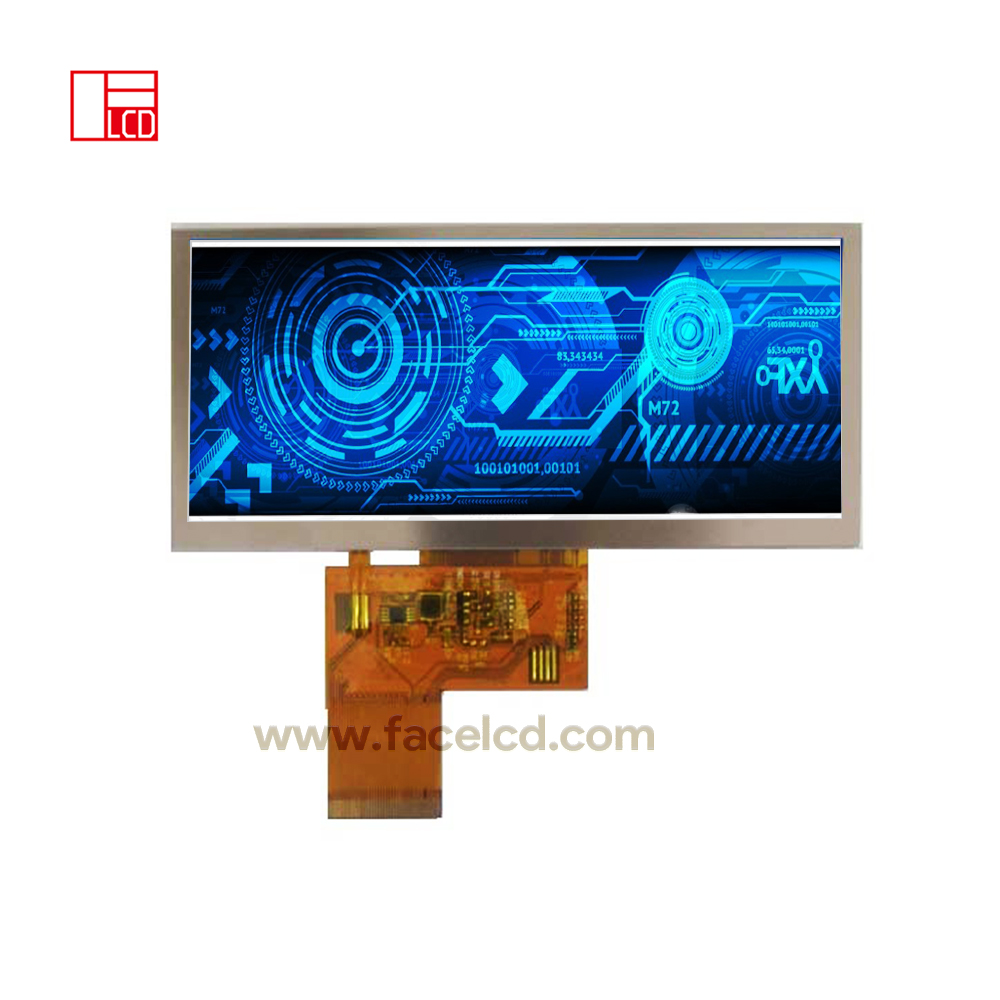

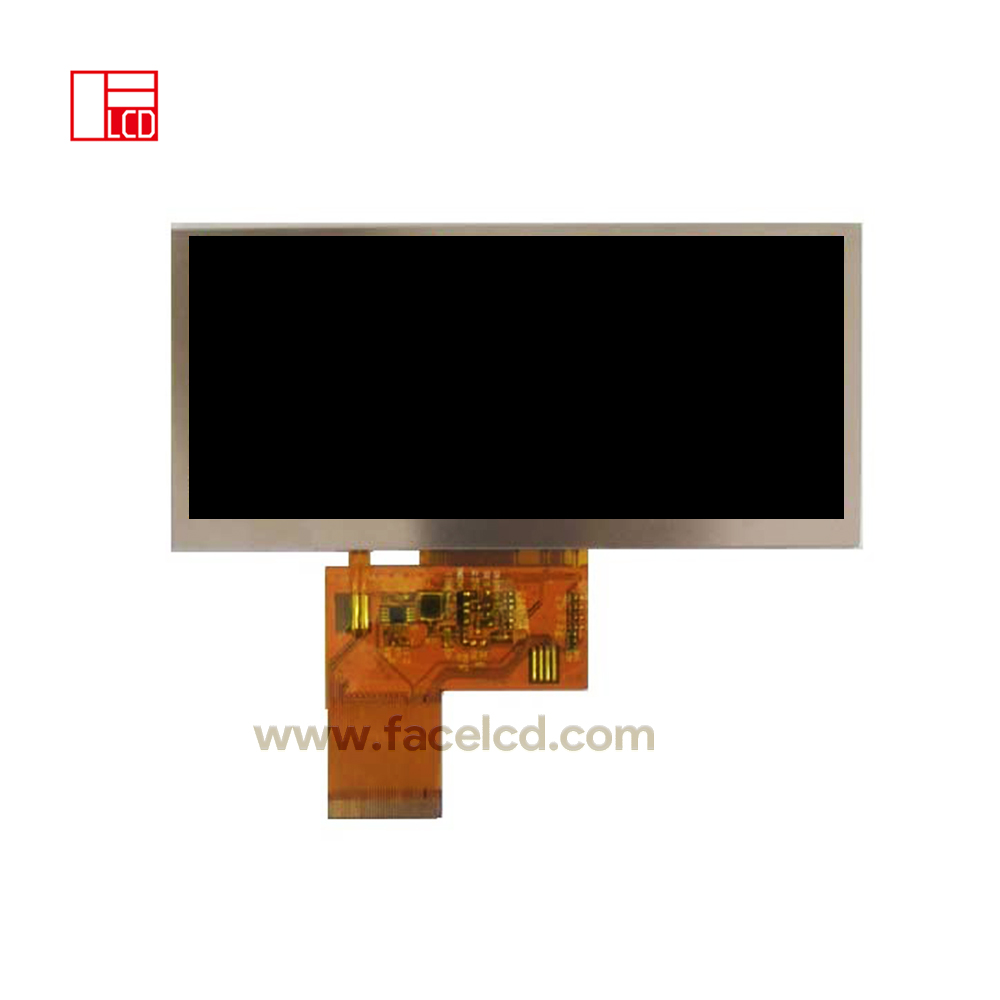

Wide 4.6-Inch TN TFT LCD For Narrow Interface Layouts
4.6 inch TN TFT LCD panels with 800 × 320 resolution offer a different screen shape from common 4:3 or 16:9 displays. The wider layout is useful for products that need horizontal information, status bars, control strips, or compact menu screens. With RGB 40Pin interface support, 400 cd/m² brightness, and anti-glare surface treatment, this panel suits small equipment with limited height.
800x320 Resolution For Horizontal Content
The 800 × 320 format gives product designers more width for icons, labels, short value groups, and system prompts. It can work well in medical devices, industrial controllers, smart home products, and compact terminals where a tall display would not fit the housing.
Key product points include:
- 4.6-inch TN TFT LCD panel
- 800 × 320 wide resolution
- RGB 40Pin interface
- 400 cd/m² brightness
- Anti-glare surface
- Fit for medical, industrial, and smart home use
RGB Interface For Direct Embedded Control
RGB 40Pin interface support gives engineers a direct display connection method for embedded boards. Before sampling, it is important to check RGB timing, connector direction, FPC route, backlight voltage, and available PCB space.
Mechanical Review For Small Housings
Small wide displays need careful fit checks because the active area, bezel, cover window, and cable direction can affect the full product layout. FaceLCD can help review the 4.6 inch TN TFT LCD with the product drawing, front cover, and possible touch structure.
