Product Features

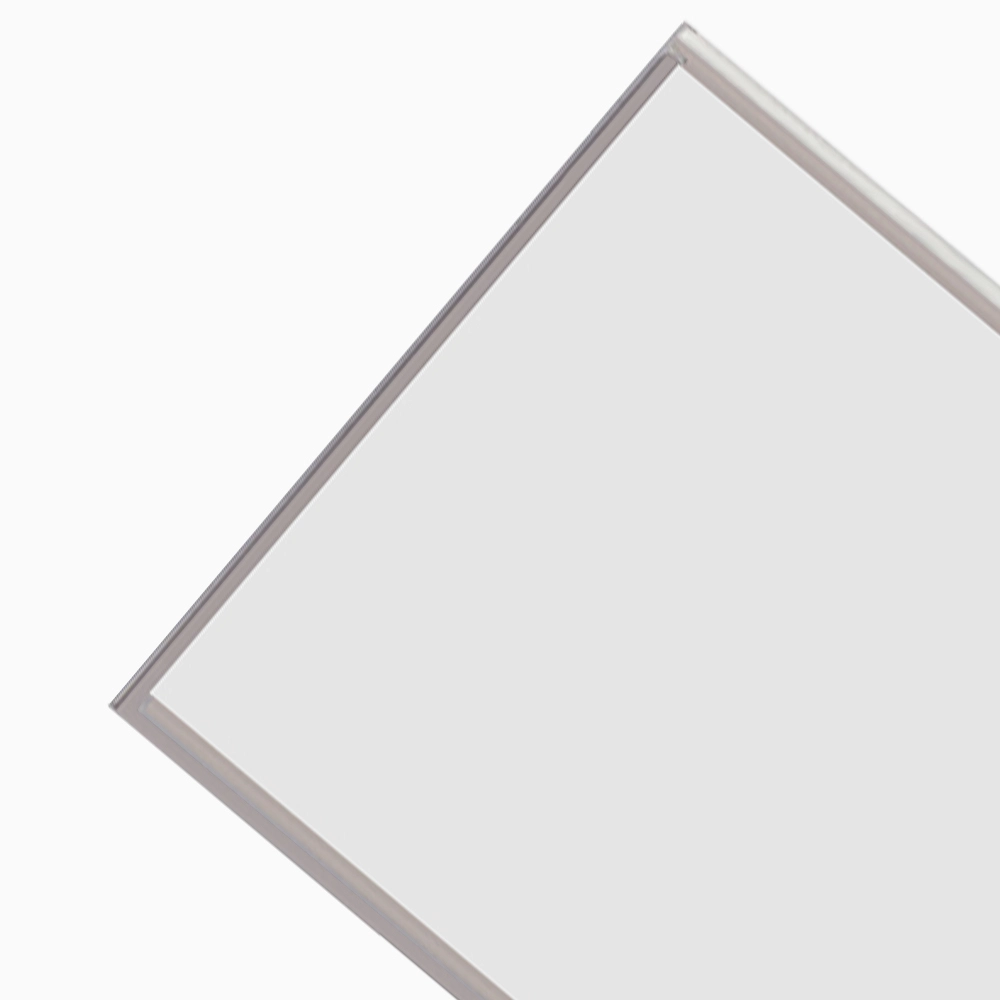

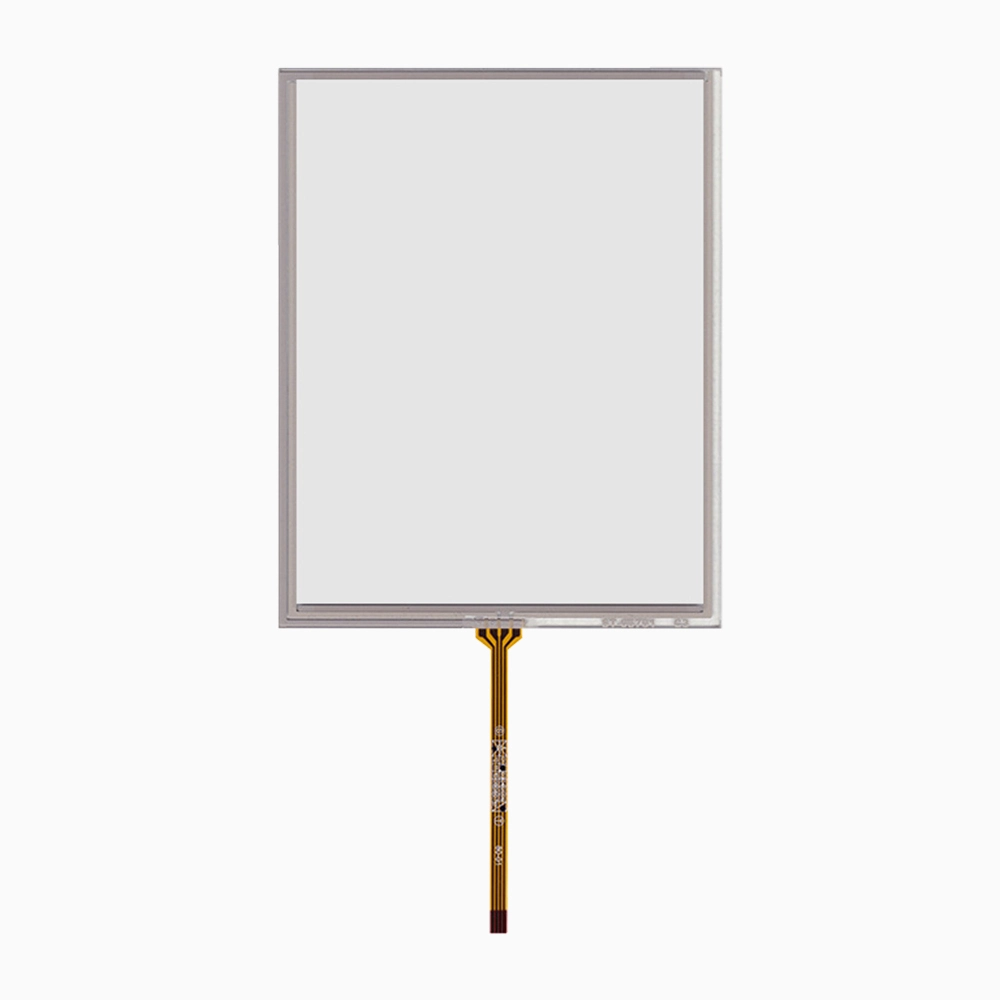

〖5.7″ Resistive Touch Screen〗: This 5.7-inch resistive touch screen uses industrial-grade touch materials. Pressing the screen causes the ITO film and ITO glass to create a short circuit, generating the coordinates. It can eliminate almost all interference and has anti-interference capabilities that capacitive touch screens cannot achieve. In industrial environments and complex electromagnetic interference settings, it remains the optimal choice.

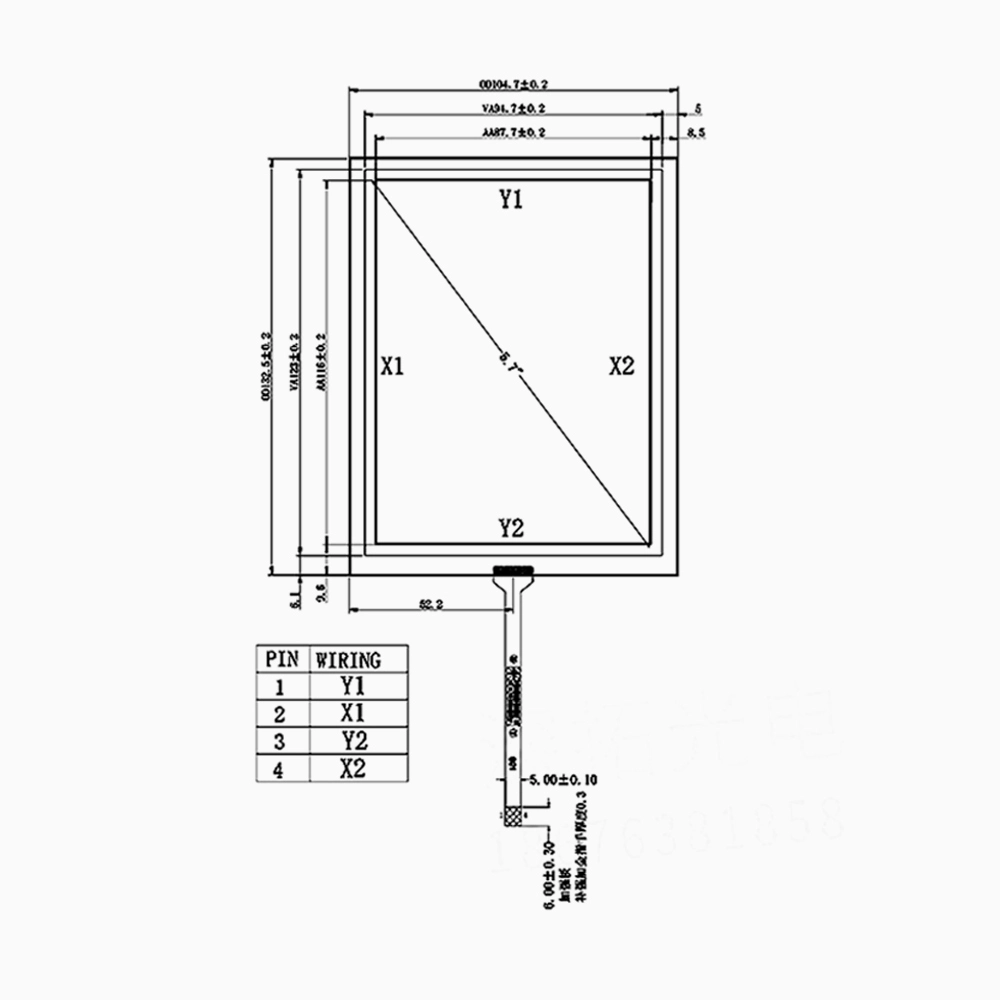

〖Parameters of Touchscreen〗
- Touch Model: ST-05701
- Outline Dim: 104.7mm * 132.5mm
- View Area: 94.7mm * 123mm
- Touch Function Dim: 87.78mm * 116mm
- Glass Thickness: 1.1mm
- Total Thickness: 1.45mm
- Product Structure: GLASS+FILM

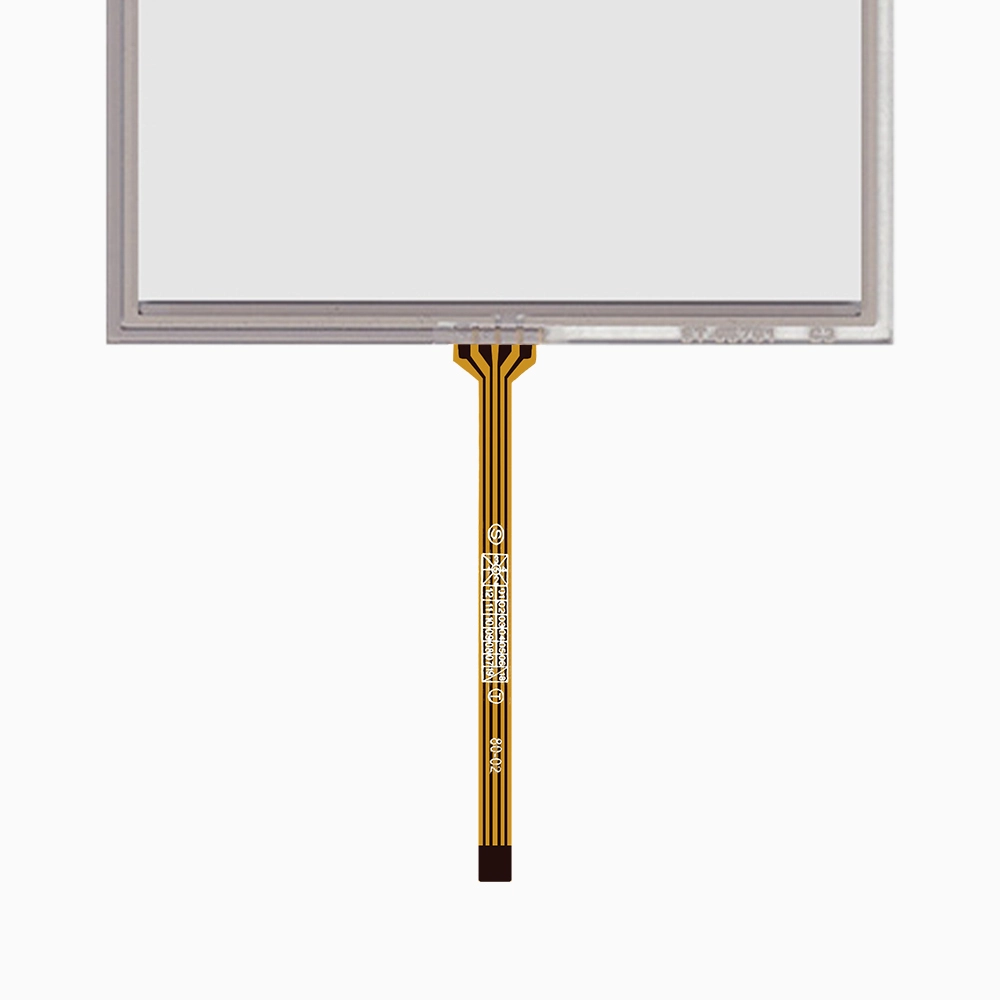

- Interface: 1mm * 4Pin
- FPC Model: 80-01
〖Touch Performance〗
- Waterproof Function: Supported
- Glove Function: Supported
- Anti-interference Ability: Excellent
- Touch Screen Transmittance: 80%±3
- Click Life: 1,000,000 hours
- Marking Test: 100,000 times
- Surface Hardness: 3H±0.5
- Touch Force: 20-80g
〖Environment & Application〗
- Operating temperature: -20~70 ℃
- Storage temperature: -30~80 ℃
- Application: Medical industry and industrial control
- Suitable for LCD Models:
G057QN01 V2
G057VN01 V2
G057VGE-T01
G057QTN01.0
LQ057Q3DC03
TM057KDH01-00
TM057QDH01-41
NL6448BC18-07
G057AGE-T01
G057QTN01.4
NL6448AC18-08D
G057VCE-TH1
TM057QDH01-00
LQ057Q3DC12
TCG057VGLCS-H50
G057VN01 V220
TCG057QVLGA-G00
〖Technical Support〗

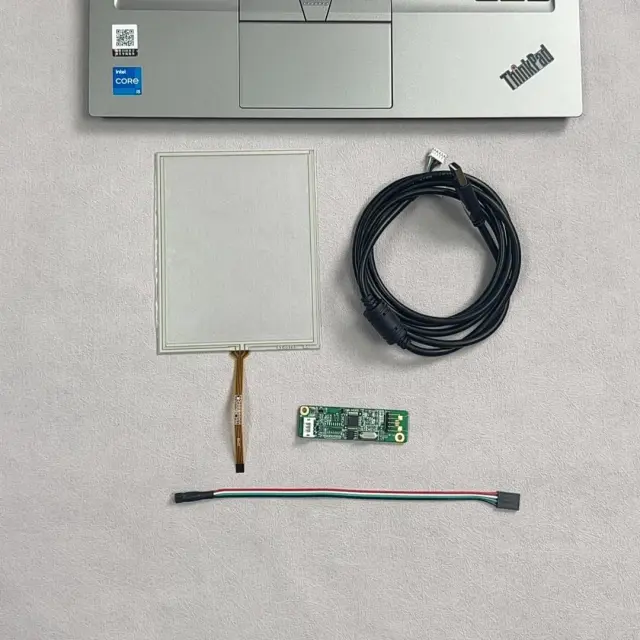

We provide relevant CAD drawings and product specifications, as well as corresponding drivers for Android, Linux, and Windows systems. Additionally, we offer product structure design support and assist with debugging and optimizing touch screens.
