| Product Description | |
| Panel Size | 5.08inch |
| Model Number | FB050EFP413-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 1:1 |
| Resolution | 720X720 |
| Pixel Format | RGB Vertical stripe |
| Active Area | 91.37 (W) × 91.37 (H)mm |
| Bezel Opening | 93.37(W) x 96.06 (H) |
| Outline Dimension | 93.67(W) x 96.87 (H) x 2.15(D) mm |
| Treatment | Anti-Glare 3H |
| View Angel | 85/85/85/85 |
| Support Color | 16.7M |
| Luminance | 450cd/m² |
| Interface Type | MIPI/DSI (display), I2C (touch) |
| Operatation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 14-17V |
| Current for LED Backlight | 80mA |
| Touch Solution | In cell or on cell |
| Driver IC | JD 9365 |
| Application | Smart thermostats,smart mirrors,audio players,control knobs,streaming device touchpads,Retail scanner,Smart vending,facial recognition,biometric scanners, espresso machines,digital information tiles |
| Sample Leadtime | 7-10days |
🔹 High-Performance Display Core
Featuring a genuine 5-inch square LCD with 720×720 resolution and rounded corner design, this display delivers sharp, symmetrical visuals ideal for compact GUI applications. The in-cell touch integration reduces panel thickness while improving light transmittance and touch responsiveness.
🔹 Advanced Interface & Control
Equipped with both MIPI DSI (for high-speed video transmission) and I2C interface (for touch or peripheral control), this display ensures seamless compatibility with modern embedded processors, including Raspberry Pi, STM32, and Renesas platforms.
🔹 Optimized for Embedded & Industrial Use
The square aspect ratio and rounded corners make it particularly suitable for smart home panels, industrial HMIs, automotive clusters, and portable instrumentation. Low power consumption and wide viewing angles further enhance reliability in 24/7 operation.
🔹 Easy Integration & Developer Support
Comprehensive support includes mechanical drawings, register maps, and initialization code. The I2C interface allows dynamic backlight or touch parameter adjustment, while standard MIPI commands reduce software development effort.

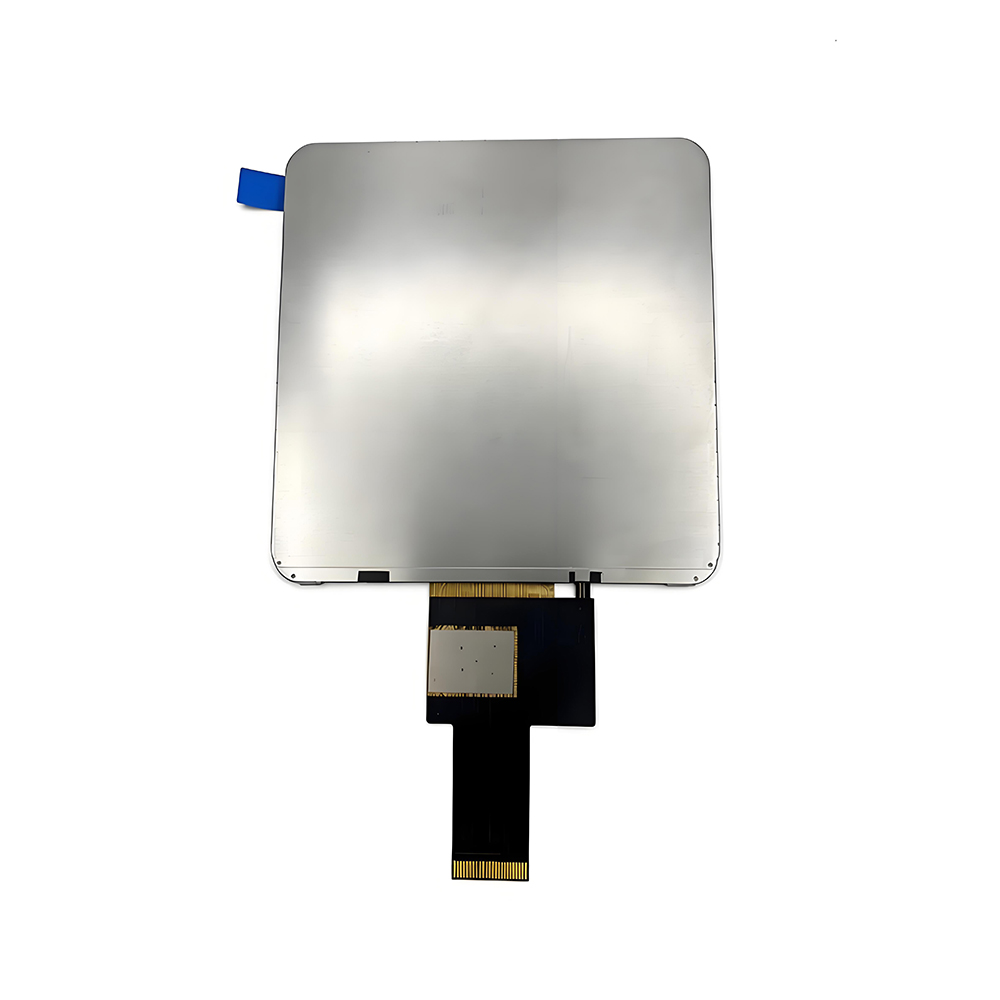

5inch square TFT LCD
