Product Features

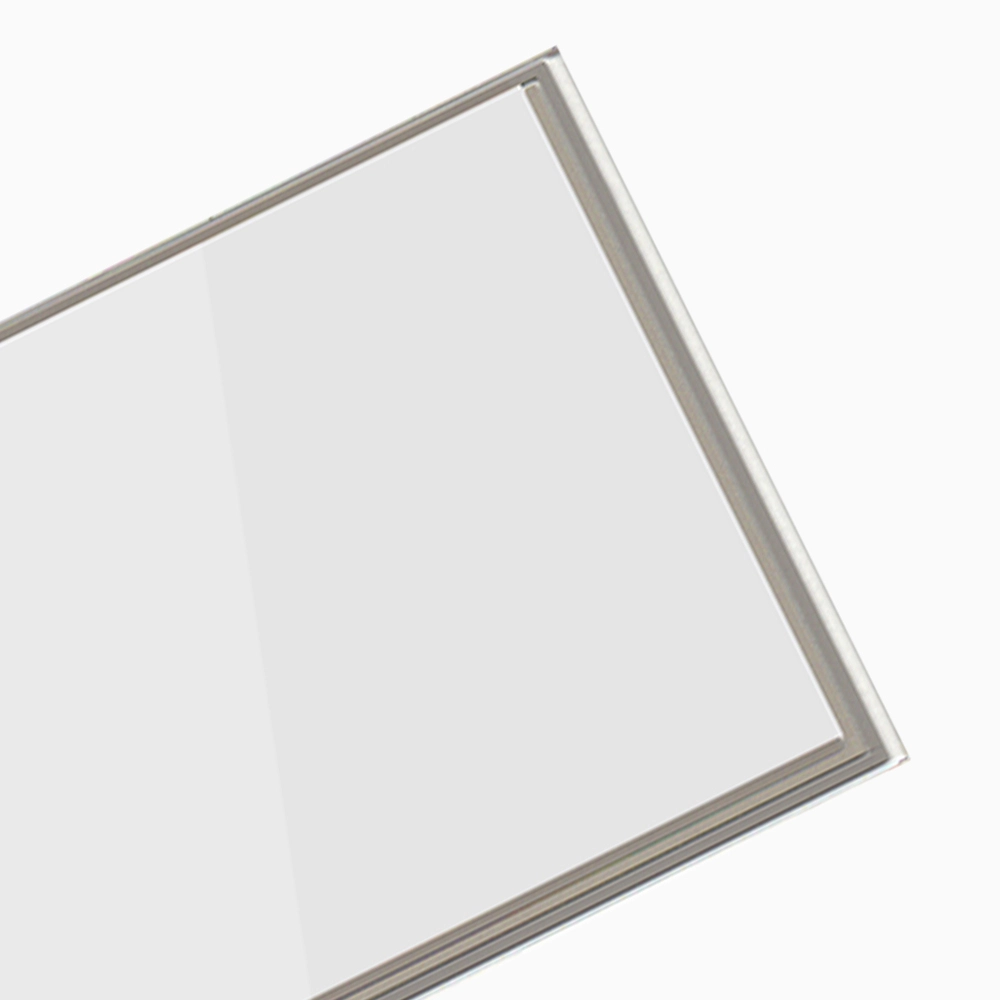

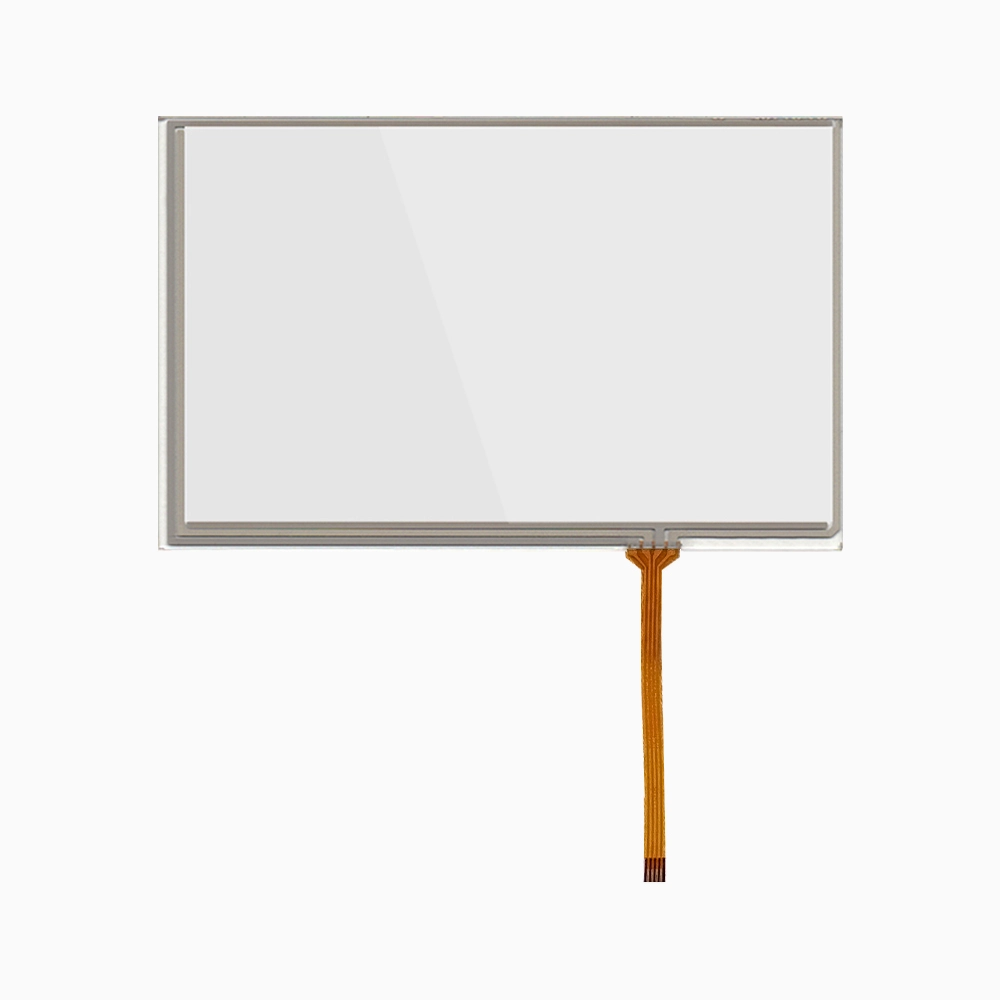

〖7″ Resistive Touch Screen〗
This 7-inch resistive touch screen uses industrial-grade touch materials. Pressing the screen causes the ITO film and ITO glass to create a short circuit, generating the coordinates. It can eliminate almost all interference and has anti-interference capabilities that capacitive touch screens cannot achieve. In industrial environments and complex electromagnetic interference settings, it remains the optimal choice.
〖Parameters of Touchscreen〗

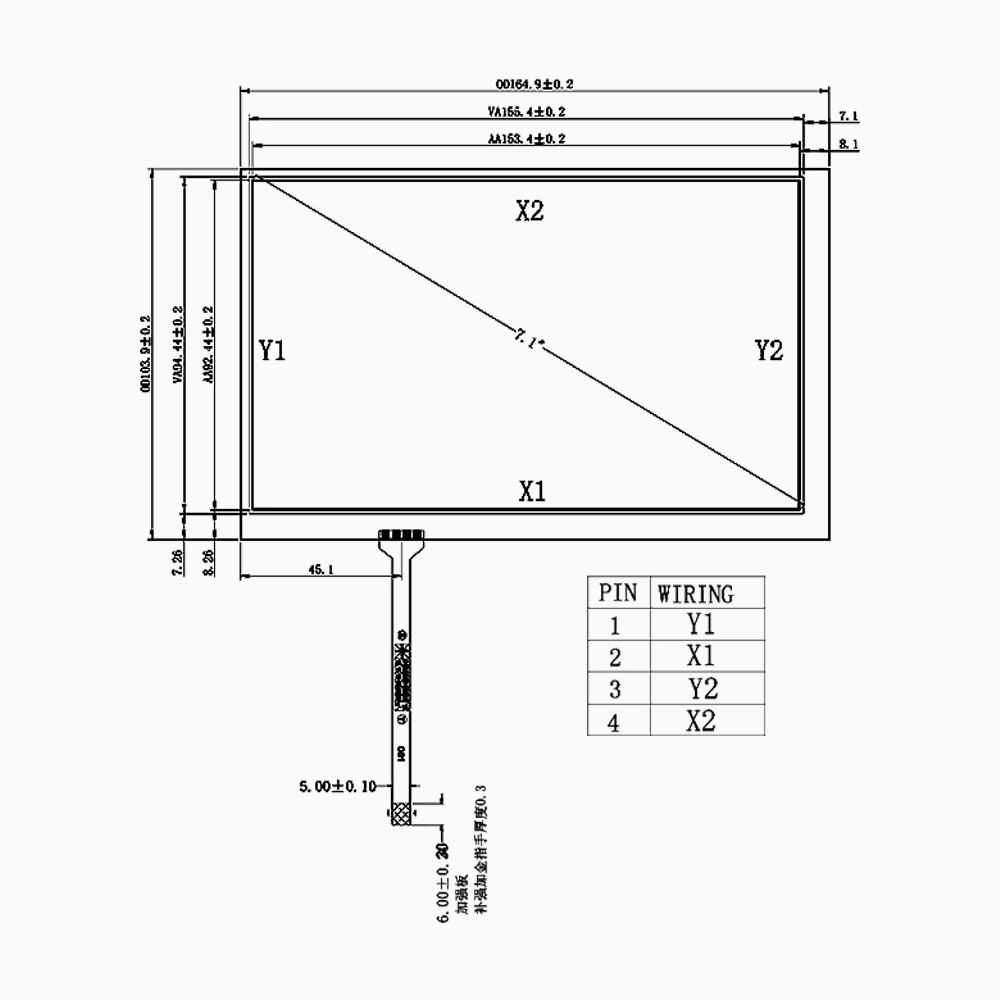

- Touch Model：ST-07102
- Outline Dim：164.9mm * 103.9mm
- View Area：155.4mm * 94.4mm
- Touch Function Dim：153.4mm * 92.4mm
- Glass Thickness：1.1mm
- Total thickness: 1.45mm
- Product Structure：GLASS+FILM

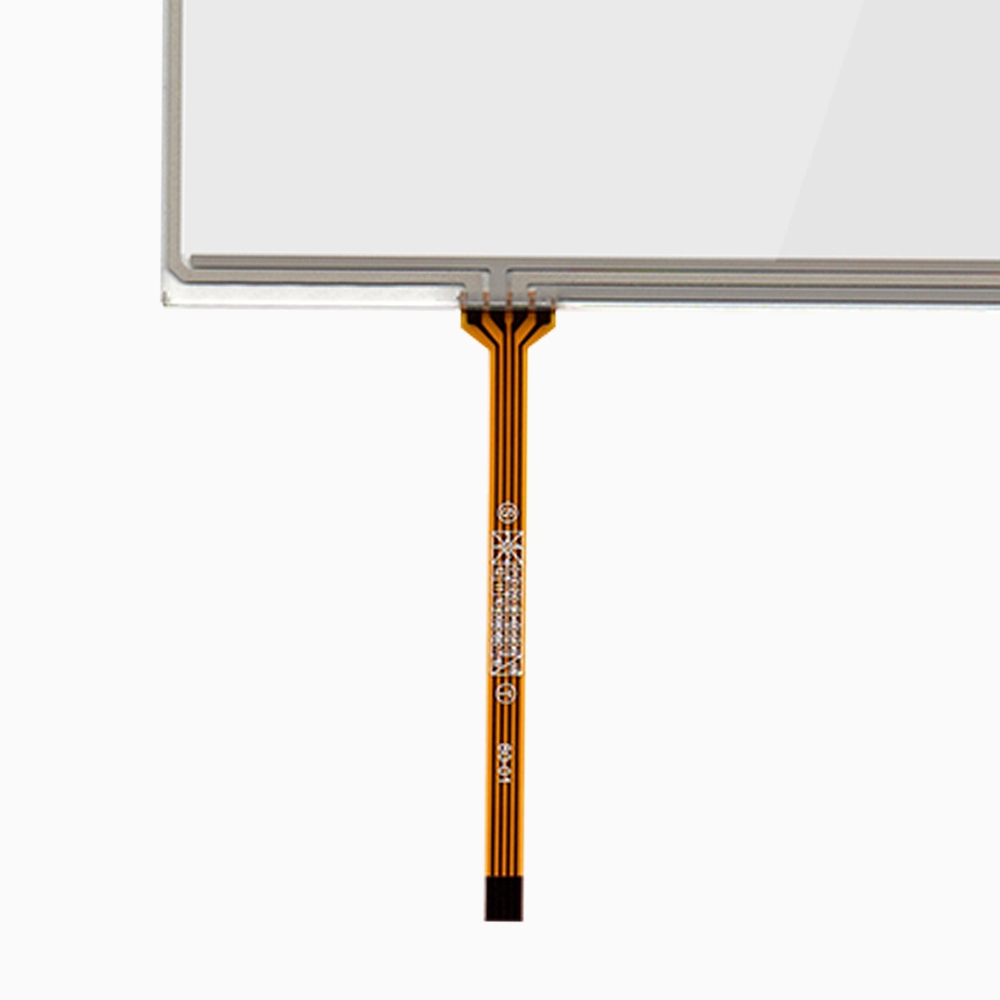

- Interface：1mm * 4Pin
- FPC Model：60-01
〖Touch Performance〗
- Waterproof Function: Supported
- Glove Function: Supported
- Anti-interference Ability: Excellent
- Touch Screen Transmittance: 80%±3
- Click Life: 1,000,000 hours
- Marking Test: 100,000 times
- Surface Hardness: 3H±0.5
- Touch Force: 20-80g
〖Environment & Application〗
- Operating temperature: -20~70 ℃
- Storage temperature: -30~80 ℃
- Application: Medical industry and industrial control
- Suitable for LCD Models:
AT070TN83 V.1
G070VW01 V0
G070ACE-L01
G070Y2-L01
G070VTN01.0
TM070DDHG03-40
TM070RDHG34-00
G070VAN01.0
G070VTT01.0
LQ070Y3LW01
G070ACE-LH1
A070VW08 V2
G070ACE-LH3
P0700WVF1MA10
P0700WVF1MA00
LW700AT9309
TM070RDSG12-00
TCG070WVLQGPNN-AN40
TCG070WVLQEPNN-AN20
HJ070NA-13A
G070VW01 V012
〖Technical Support〗

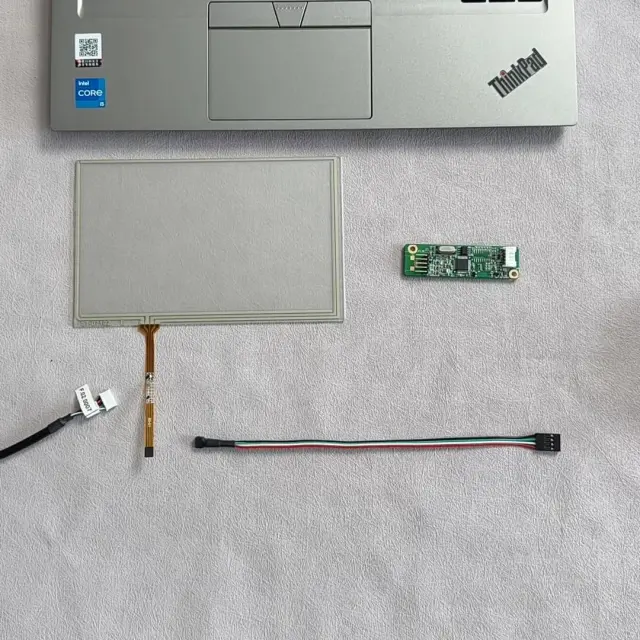

We provide relevant CAD drawings and product specifications, as well as corresponding drivers for Android, Linux, and Windows systems. Additionally, we offer product structure design support and assist with debugging and optimizing touch screens.
