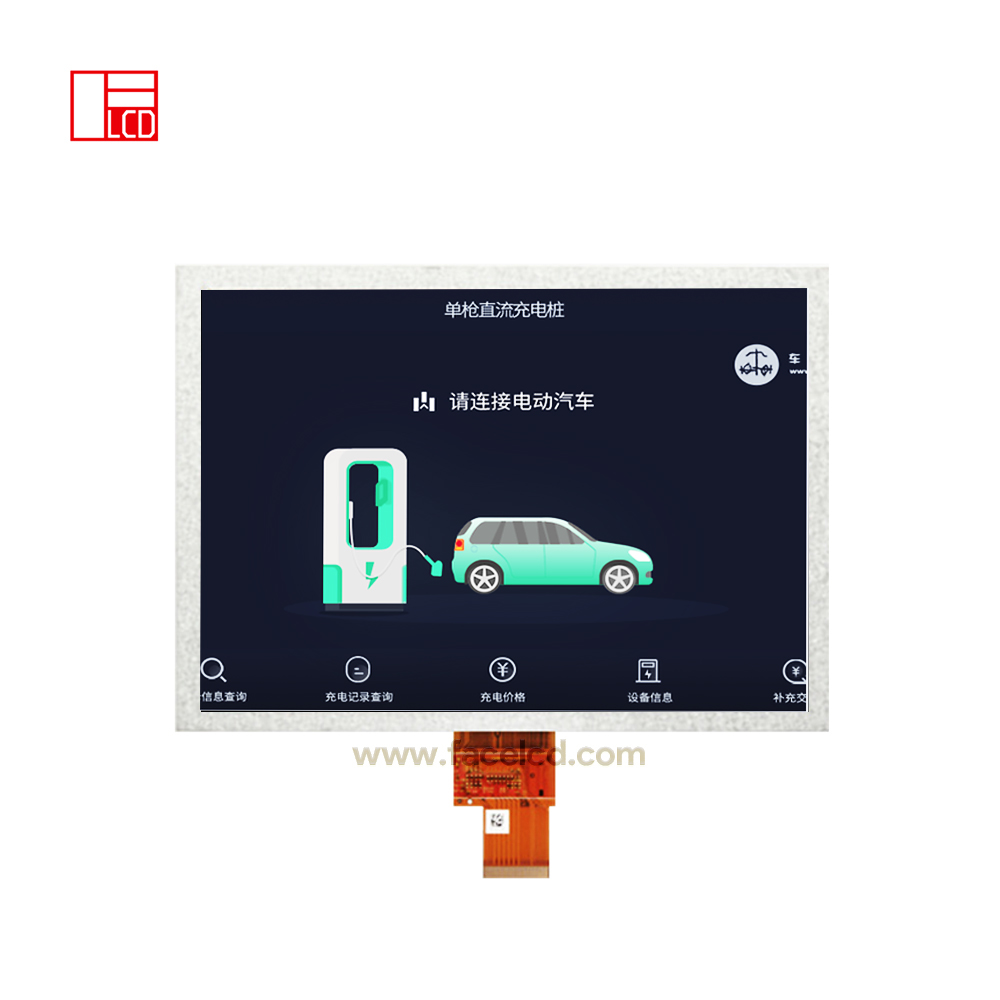

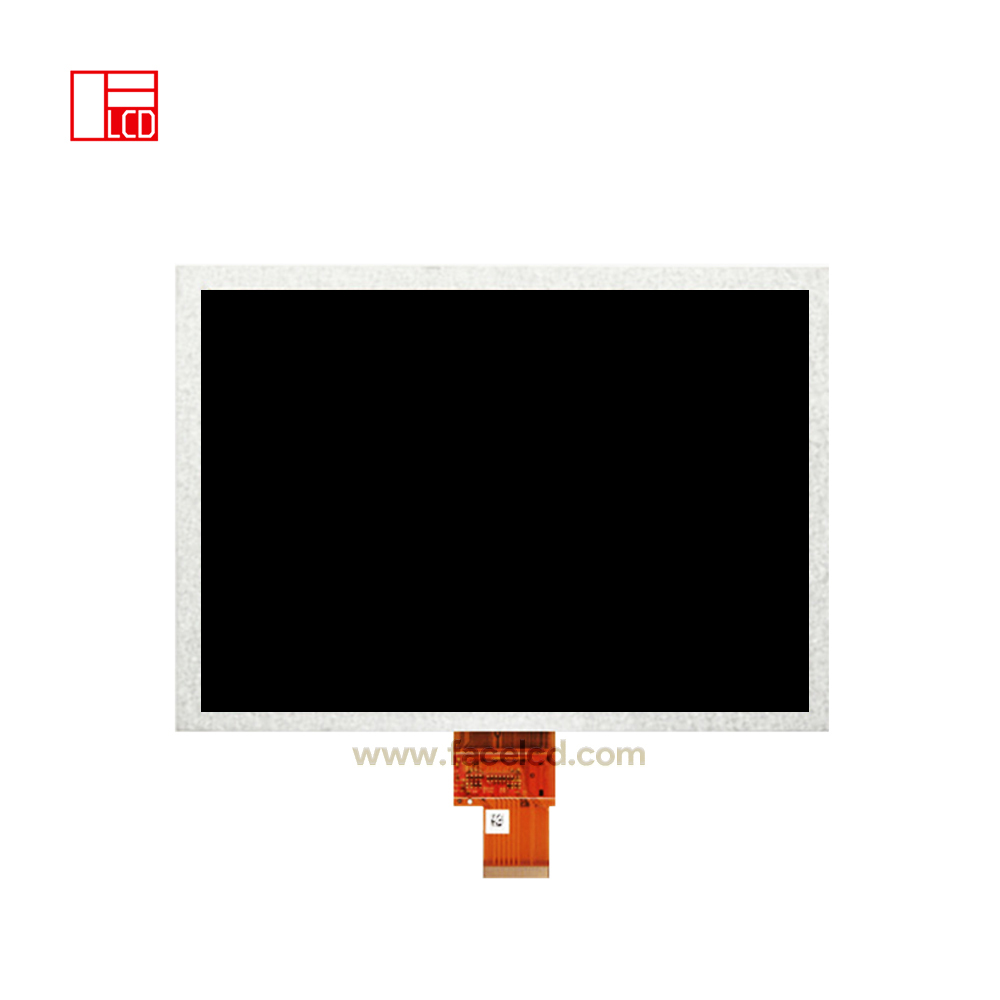

7inch 1024X768 IPS TFT LCD Display with LVDS
7inch 1024X768 IPS TFT LCD Display with LVDS
7inch 1024X768 IPS TFT LCD Display with LVDS

7inch 1024X768 IPS TFT LCD Display with LVDS

Quick info

  • Model Number:FB080NXV504-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:4:3
  • Resolution:1024 × 768
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 8 inch
 Model Number FB080NXV504-A
 Panel Type TFT-LCD
 Aspect Ratio 4:3
 Resolution 1024 × 768
 Pixel Format RGB-stripe
 Active Area 162.05(W) × 121.54(H) mm
 Bezel Opening 164.9(W)  ×124.3(H) mm
 Outline Dimension 183.00 (W) ×141.00(H) ×5.6(D) mm
 Treatment Hard Coating
 View Angel 85/85/85/85
 Support Color 16.7M, 50%NTSC
 Luminance 500 cd/㎡
 Interface Type LVDS
 Operatation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 9.6V
 Current for LED Backlight 250mA
 Application Industrial, Medical, Automotive, Security, Smart Home, Euipment, etc
 Sample Leadtime 7-10days
