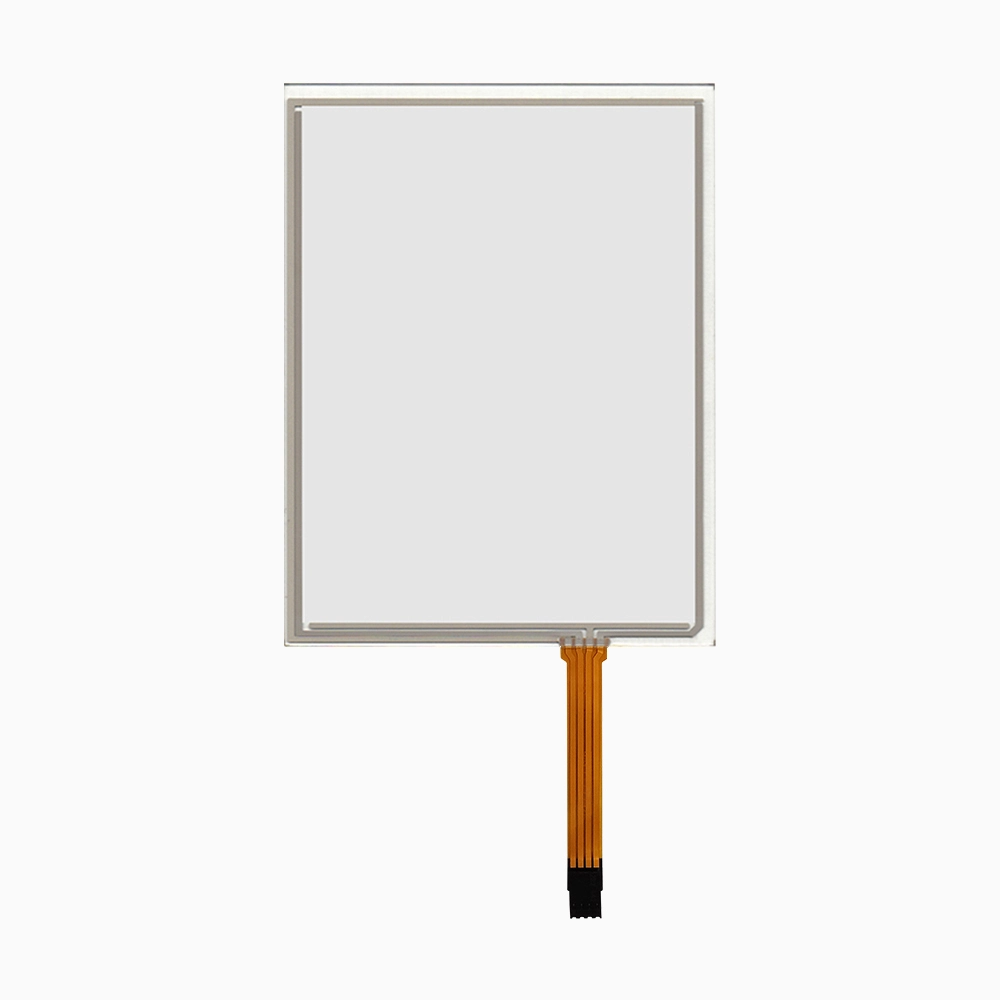

8 inch 4-wire Resistive Touch Screen

4-Wire Touch Panel For 8-Inch Industrial Screens

8 inch 4-wire resistive touch screen ST-08004 is designed for equipment that needs stable pressure input in industrial, medical, or high-interference environments. Its GLASS+FILM structure works through contact between ITO film and ITO glass, generating coordinates when the user presses the screen. This touch method supports operation with gloves, stylus input, and firm press control where capacitive touch may be affected by water, dust, or electrical noise.

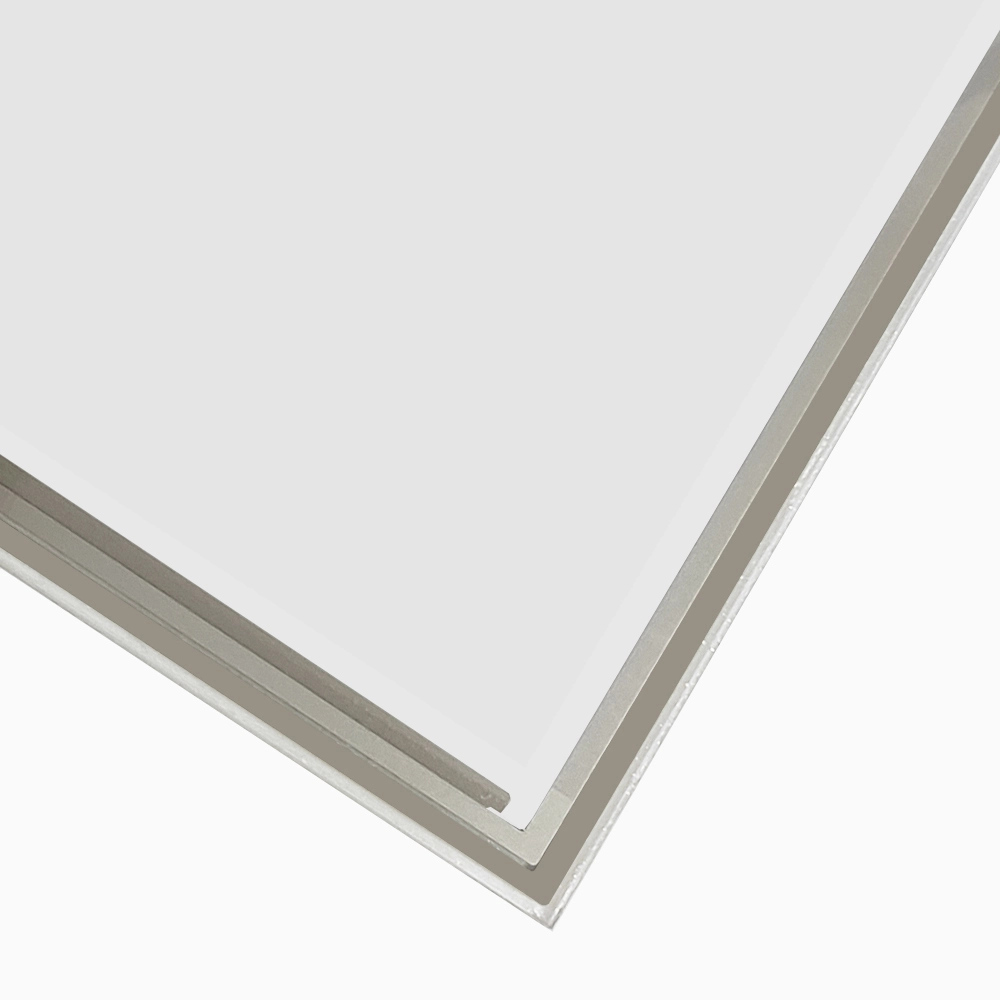

GLASS+FILM Structure With 1.45 mm Total Thickness

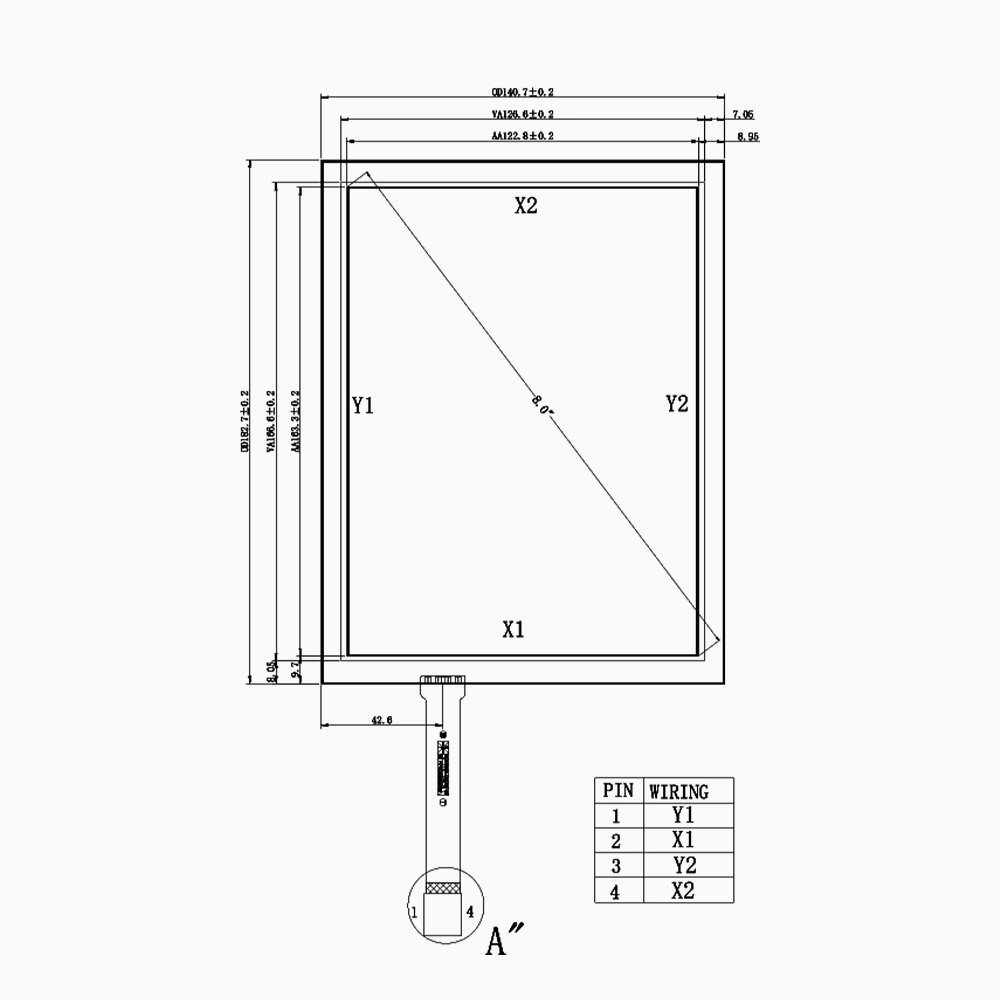

The touch screen uses 1.1 mm glass and has a total thickness of 1.45 mm. Its outline dimension is 140.7 × 182.7 mm, with a 126.6 × 166.6 mm view area and a 122.8 × 163.3 mm touch function area. These dimensions help engineers compare the touch panel with LCD active area, bezel design, and front housing space.

Key product points include:

• Touch model: ST-08004
• 8-inch 4-wire resistive touch structure
• Product structure: GLASS+FILM

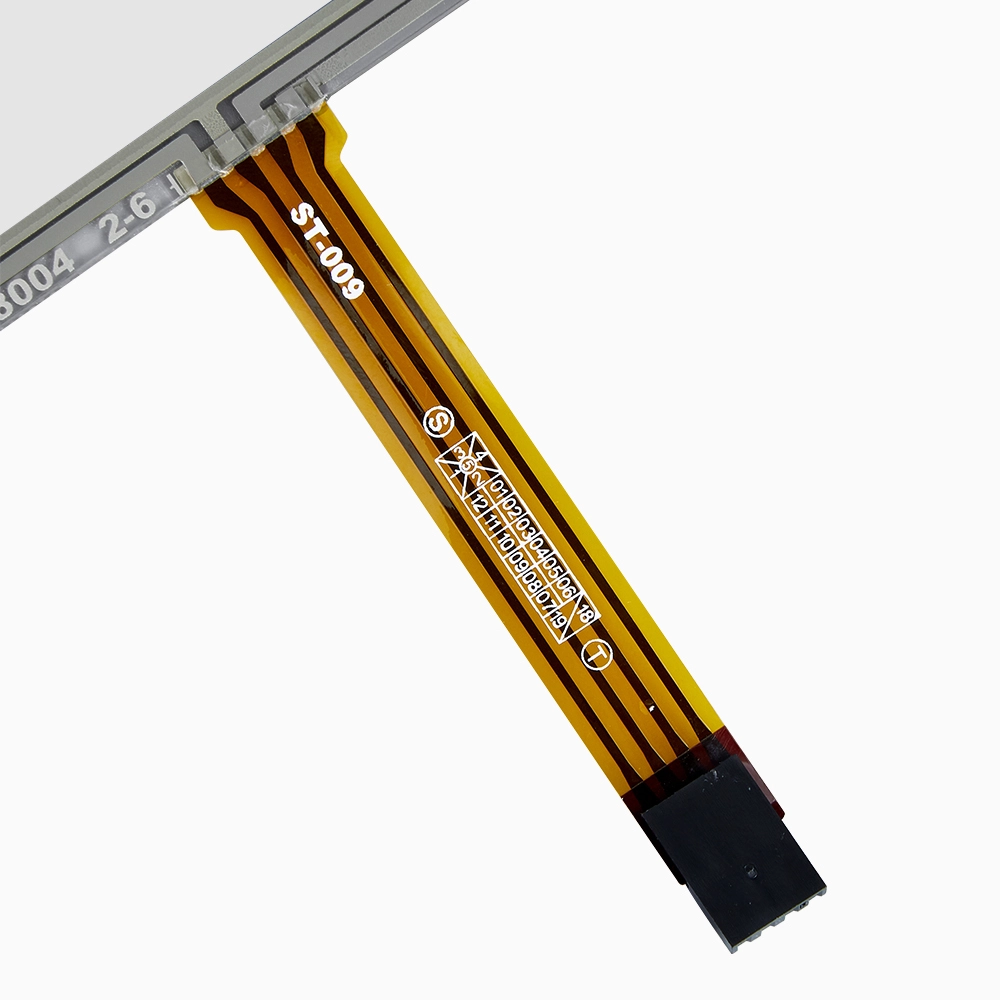

• Interface: 2.54 mm × 4Pin
• FPC model: 009
• Surface hardness: 3H±0.5

Waterproof And Glove-Friendly Touch Operation

Waterproof function, glove support, and strong anti-interference ability make this panel suitable for medical and industrial control products. The touch force is 20-80g, transmittance is 80%±3, click life reaches 1,000,000 times, and the marking test reaches 100,000 times. It also supports -20℃ to 70℃ operation and -30℃ to 80℃ storage.

LCD Model Matching And Technical Support

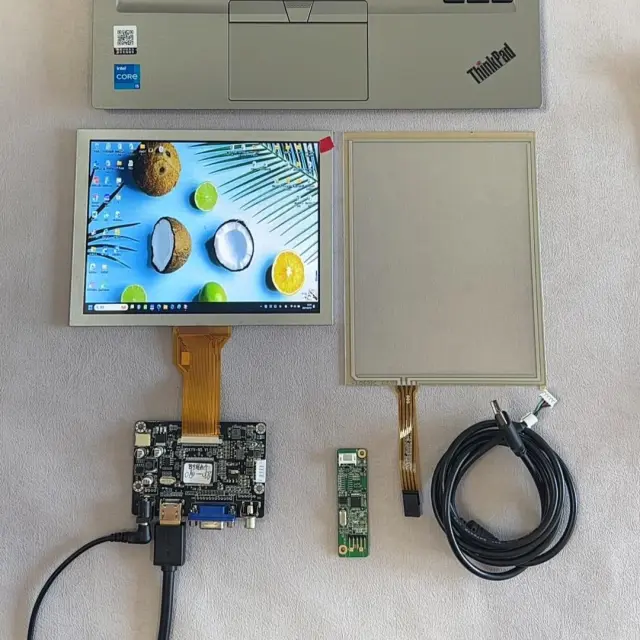

This 8 inch 4-wire resistive touch screen can match LCD models such as EJ080NA-05B, AT080TN52 V.1, EJ080NA-04B, EJ080NA-05A, TM080TDH01, TM080SDH01-41, PD080SL3, HJ080IA-01E, and related 8-inch panels. FaceLCD can provide CAD drawings, specifications, Android/Linux/Windows driver support, structure design review, and touch debugging.
