Product Description
| Panel Size | 8 inch |
| Model Number | FB080CHV401-A |
| Panel Type | TFT-LCD |
| Aspect Ratio | 16:9 |
| Resolution | 1024 x 600 |
| Pixel Format | RGB-stripe |
| Active Area | 176.64(W) x 99.36(H)mm |
| Bezel Opening | 179.84(W) ×103.16(H) mm |
| Outline Dimension | 192.8(W) x 116.9(H) x 6.4(D)mm |
| Treatment | Anti-glare |
| View Angel | 75/75/70/75 |
| Support Color | 16.7MB |
| Luminance | 450 cd/㎡ |
| Interface Type | LVDS |
| Operatation Temperature | -30℃ ~ 80℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Power Supply Votage | 9.3V |
| Current for LED Backlight | 360mA |
| Application | Industrial, Medical, Automotive, Security, Smart Home, Euipment, etc |
| Sample Leadtime | 7-10 days |

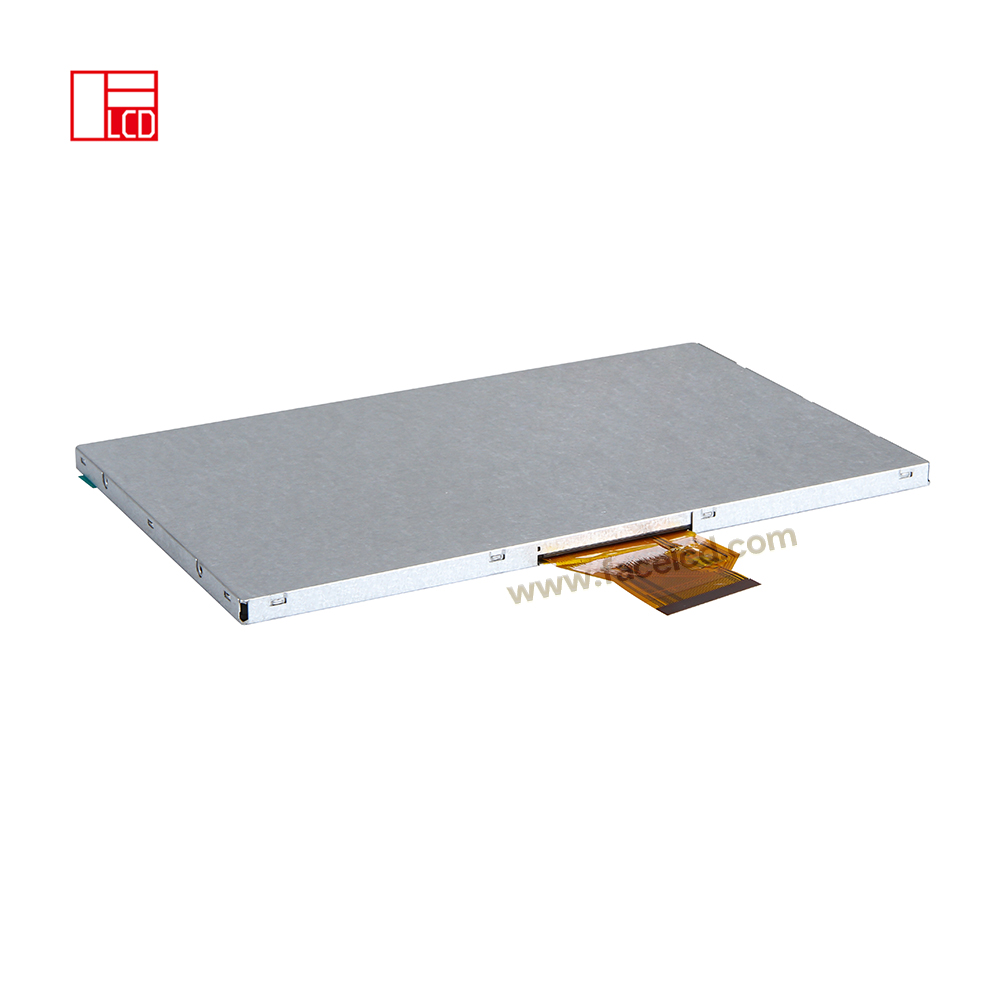

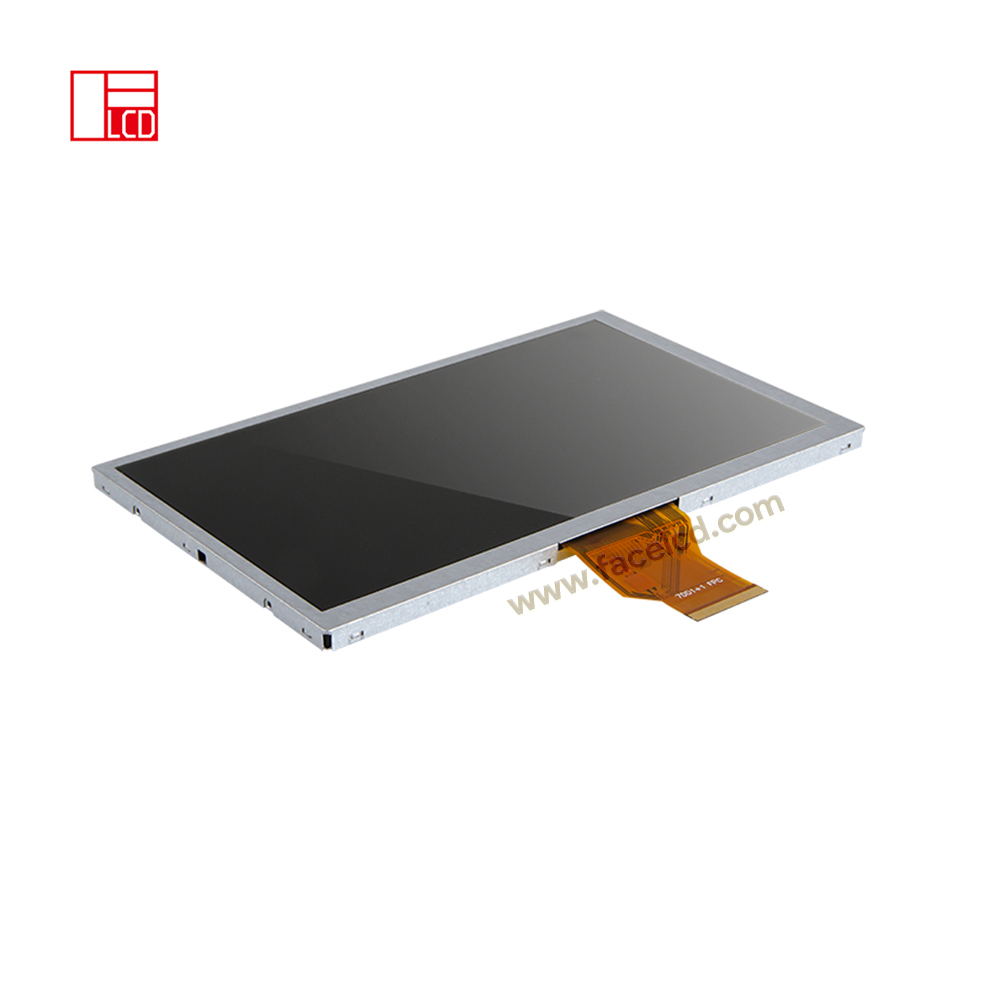

TN TFT LCD For Practical Industrial Display Builds
8 inch TN TFT LCD products can be a practical choice when the project focuses on cost control, stable display output, and a familiar 1024 × 600 screen format. This panel uses an LVDS interface, 450 cd/m² brightness, and wide-temperature design, making it suitable for industrial devices that need a reliable display without moving into higher-cost IPS configurations.
1024x600 Resolution For Standard Widescreen Layouts
The 1024 × 600 format gives more display space than 800 × 480 panels while keeping the controller load lower than higher-resolution screens. It can show basic dashboards, status pages, menu rows, and equipment data in a clear widescreen layout.
Key product points include:
- 8-inch TN TFT LCD panel
- 1024 × 600 resolution
- LVDS interface support
- 450 cd/m² brightness
- Wide temperature project fit
- Suitable for industrial display products
450 cd/m² Brightness For Equipment Panels
The 450 cd/m² brightness supports clear reading in many indoor industrial spaces and equipment panels with stronger ambient light. For products that do not require IPS viewing angles, this TN LCD can help balance display performance and project cost.
Replacement And System Compatibility Check
FaceLCD can help review outline size, active area, LVDS pin data, cable route, backlight power, and connector direction before sampling. The 8 inch TN TFT LCD can also be compared with existing LCD drawings when the project involves equipment replacement or model migration.
Download Document：
8inch 1024X600 TN TFT LCD Display with LVDS
FAQ
What Resolution Does This TN TFT LCD Use?
It uses 1024 × 600 resolution.
What Interface Does It Support?
It supports LVDS interface connection.
Is This Panel IPS Or TN?
It is a TN TFT LCD panel.
What Brightness Does It Offer?
The reference brightness is 450 cd/m².
Can FaceLCD Help With Replacement Checks?
Yes. FaceLCD can compare size, active area, LVDS data, backlight, and connector details.
Which Applications Can Use This LCD?
It can fit industrial equipment, embedded terminals, control panels, replacement screens, and automation devices.
