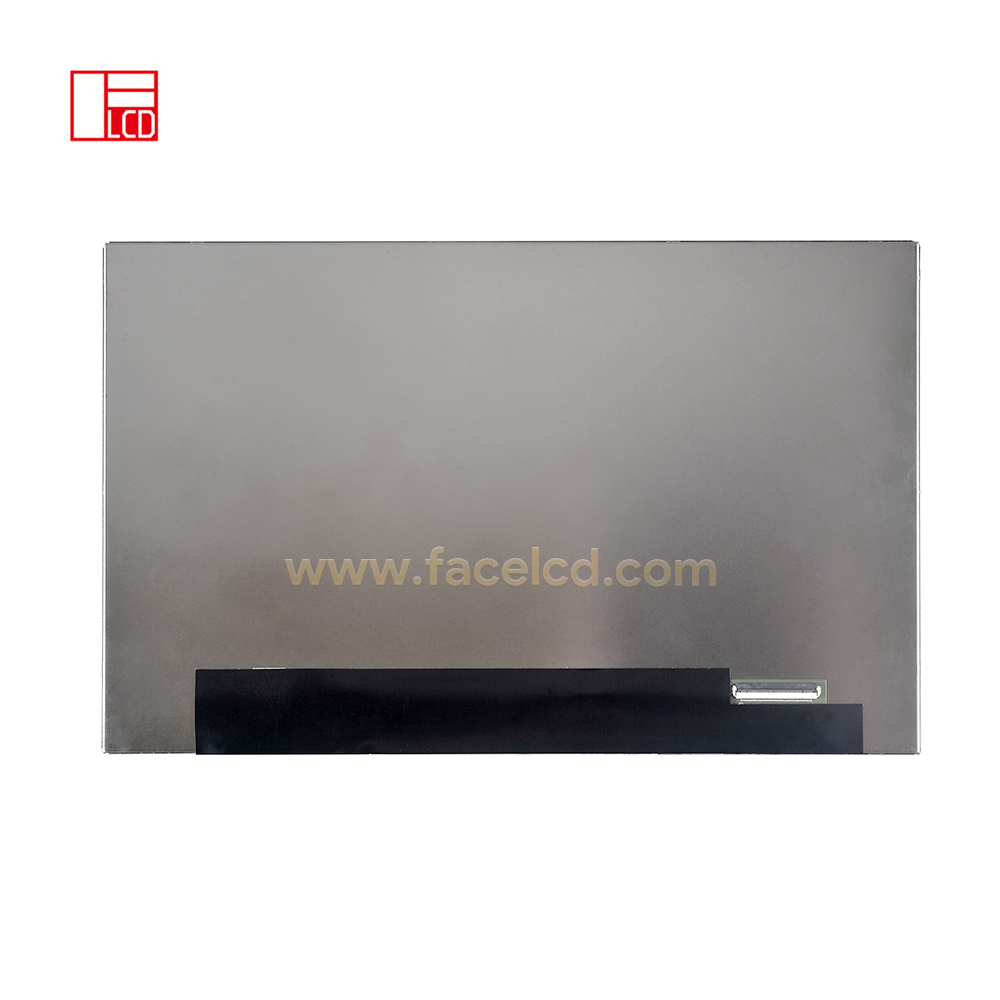

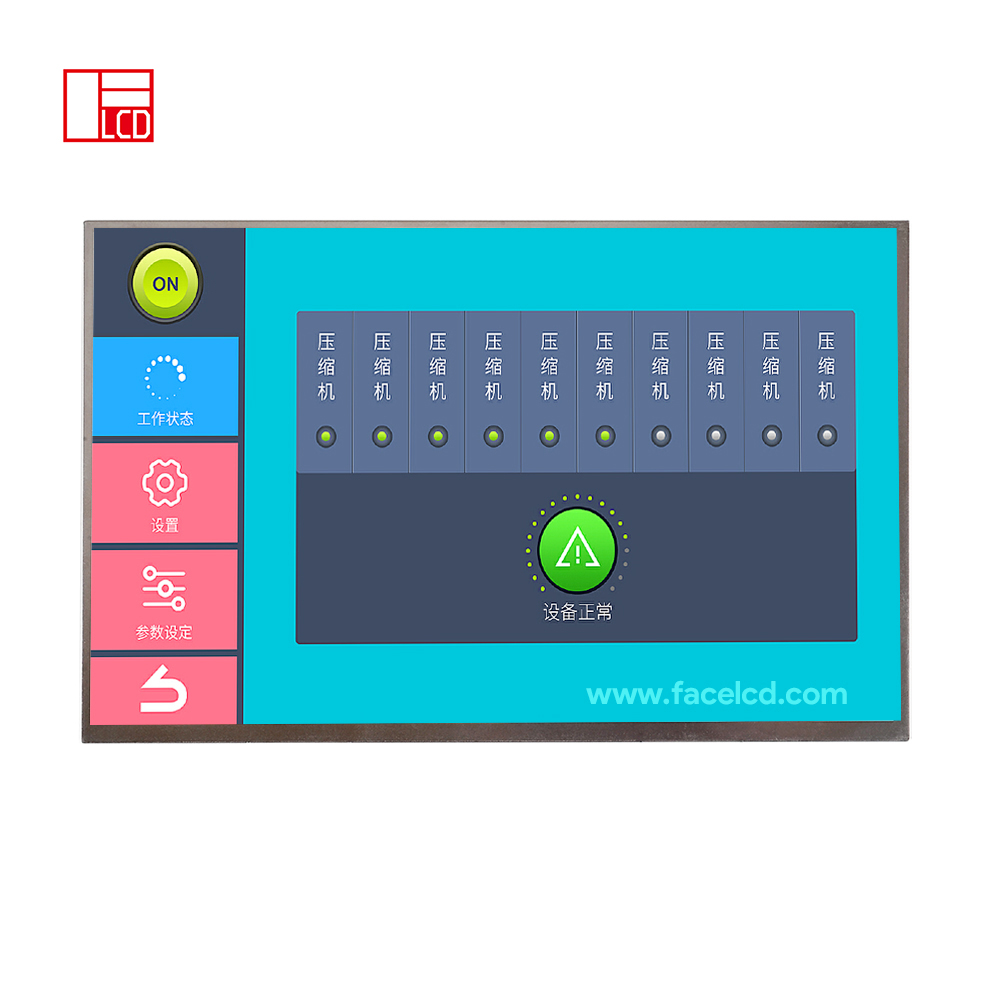

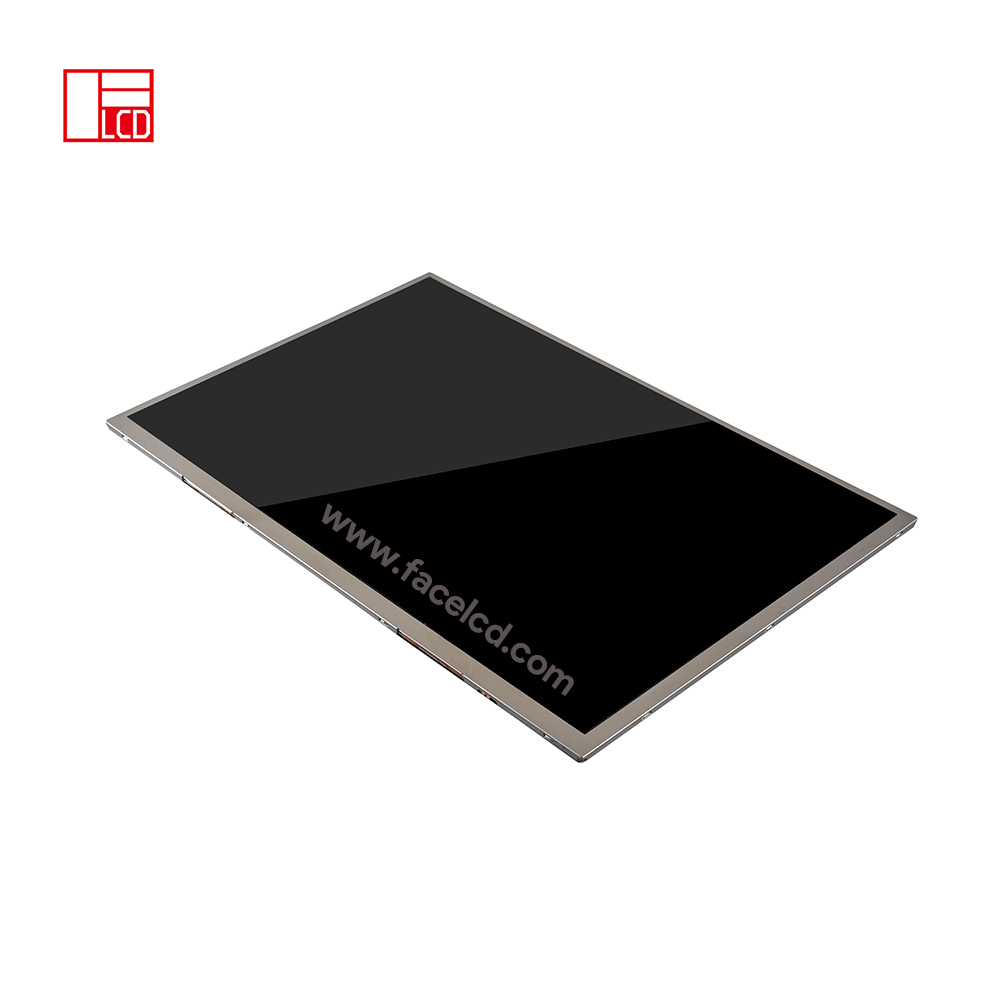

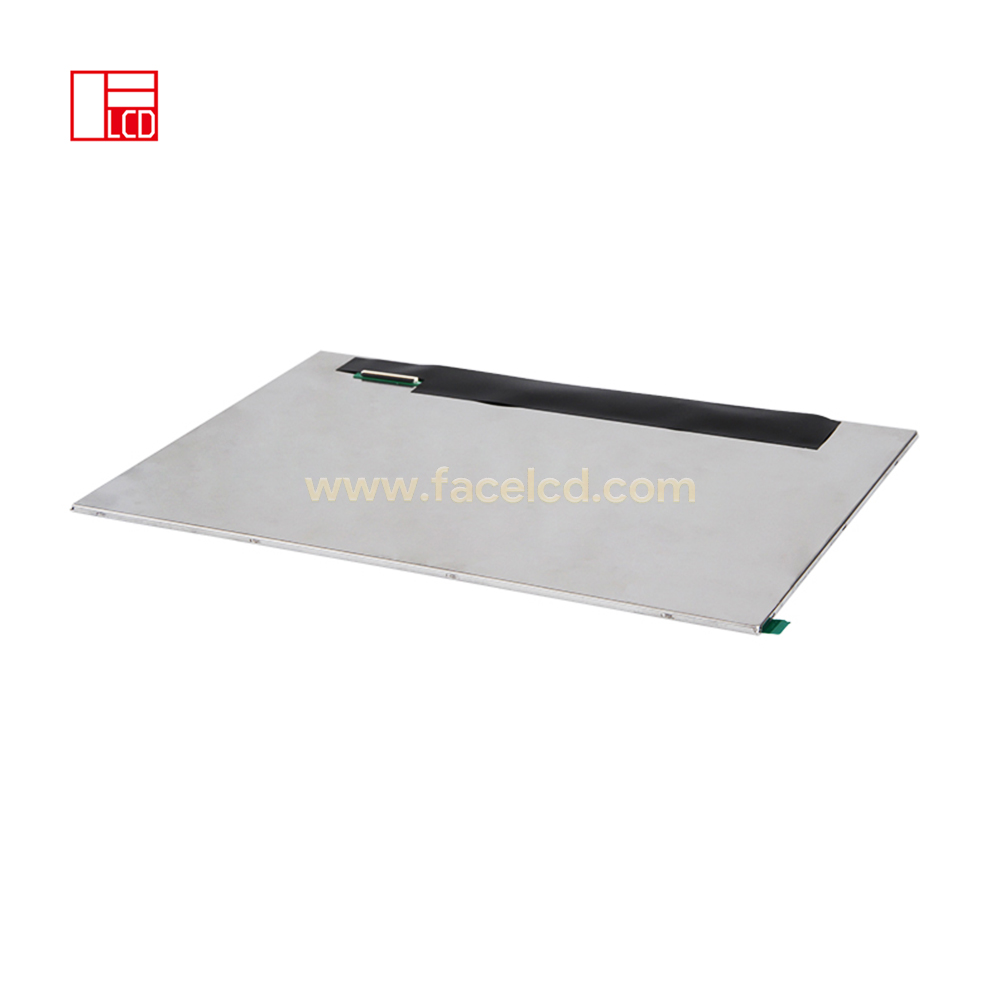

8inch 1280X800 IPS TFT LCD Display with LVDS
8inch 1280X800 IPS TFT LCD Display with LVDS
8inch 1280X800 IPS TFT LCD Display with LVDS
8inch 1280X800 IPS TFT LCD Display with LVDS
8inch 1280X800 IPS TFT LCD Display with LVDS

8inch 1280X800 IPS TFT LCD Display with LVDS

Quick info

  • Model Number:FB101NFV300-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:10
  • Resolution:1280 x  800
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 10.1inch
 Model Number FB101NFV300-A
 Panel Type TFT-LCD
 Aspect Ratio 16:10
 Resolution 1280 x  800
 Pixel Format LVDS
 Active Area 216.96(W) x135.60(H)
 Bezel Opening 220.06(W)  ×138.7(H) mm
 Outline Dimension 229.46( W) x 149.10(H) x2.5(D) mm
 Treatment HC
 View Angel 85/85/85/85
 Support Color 16.7M
 Luminance 320 cd/㎡
 Interface Type LVDS
 Operatation Temperature -10℃ ~ 50℃
 Storage Temperature -20℃ ~ 60℃
 Power Supply Votage 9.6V
 Current for LED Backlight 260mA
 Application Industrial, Medical, Comerical, Security, Euipment, etc
 Sample Leadtime 7-10days
