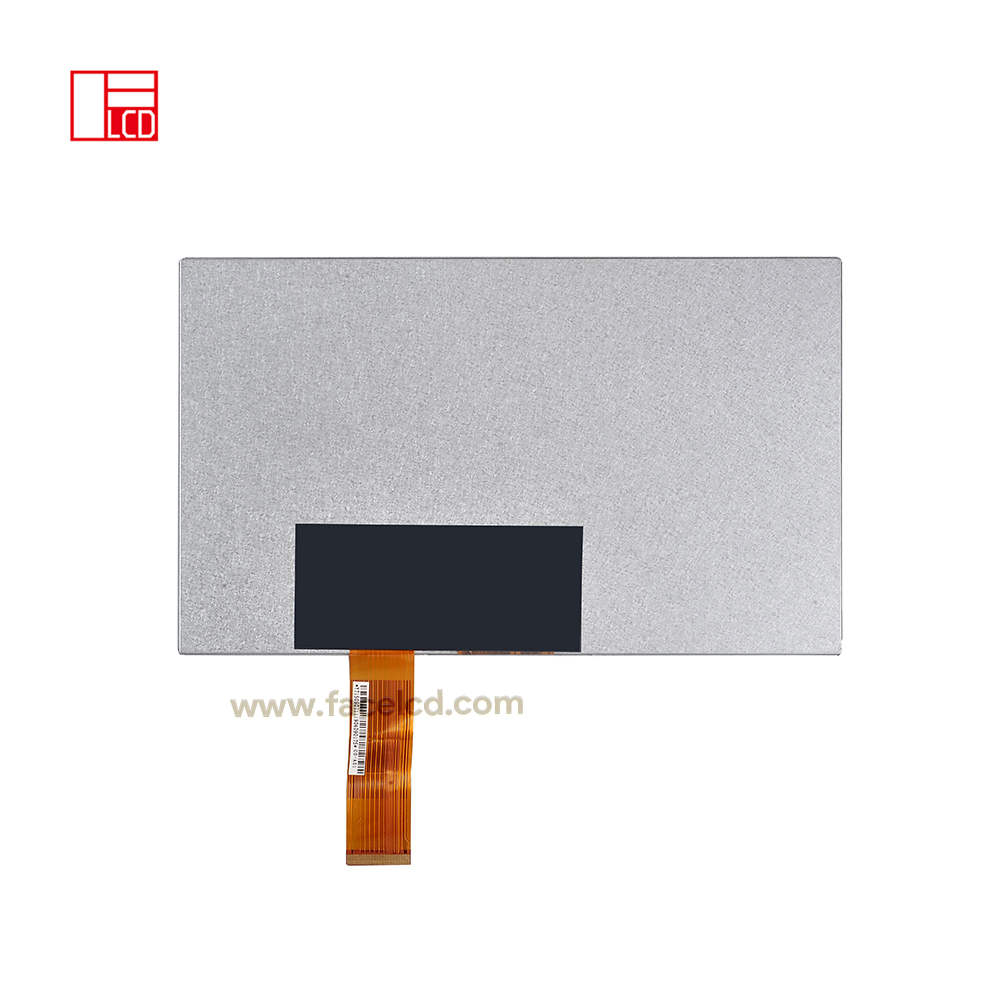

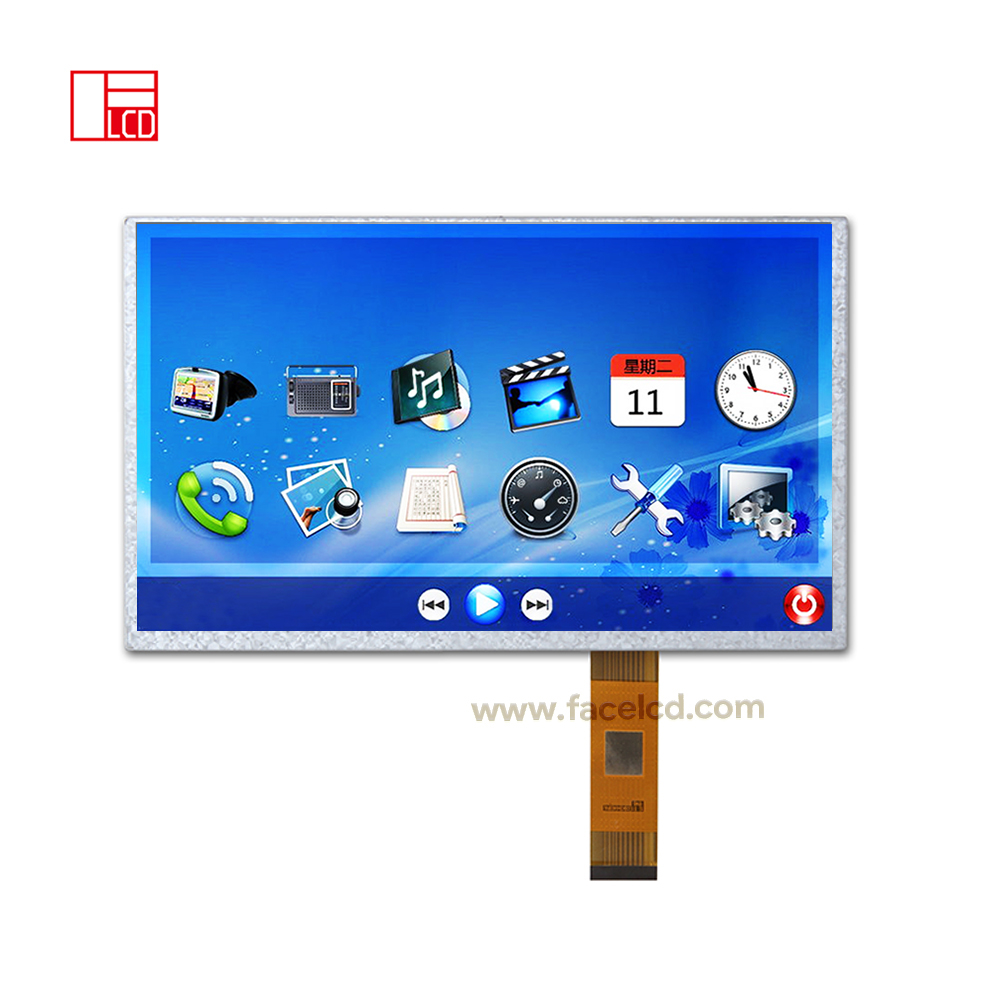

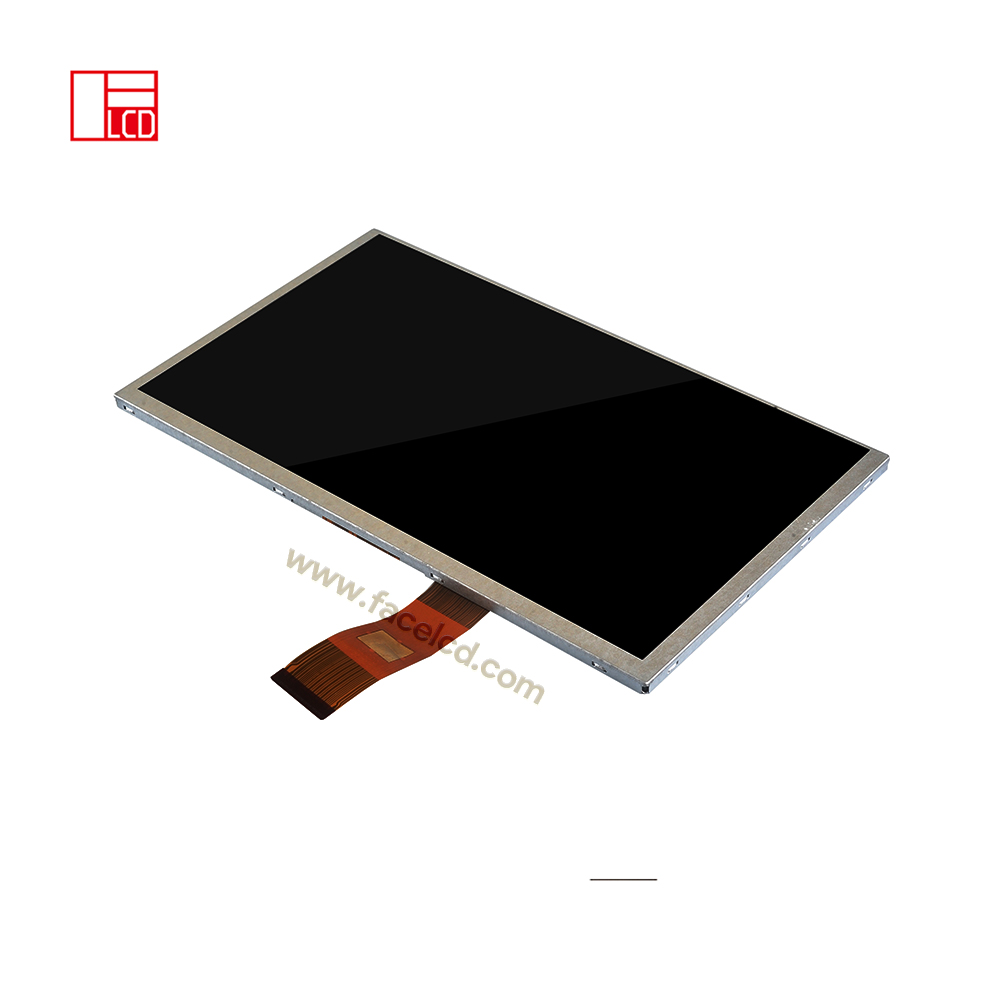

9inch 1024X600 IPS TFT LCD Display with LVDS

Quote Now

DetailsAdditional Information

Product Description

Panel Size	9inch
Model Number	FB090EHV503-A
Panel Type	TFT-LCD
Aspect Ratio	16:9
Resolution	1024X600
Pixel Format	RGB-stripe
Active Area	196.608(W) × 111.15(H) mm
Bezel Opening	199.6(W) ×117.2(H) mm
Outline Dimension	210.7(W) × 126.4(H) × 5.0(D) mm
Treatment	Anti-Glare
View Angel	80/80/80/80
Support Color	16.7M
Luminance	500 cd/㎡
Interface Type	LVDS
Operatation Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Power Supply Votage	18V
Current for LED Backlight	120mA
Application	Industrial, Medical, Automotive, Security, Smart Home, Euipment, etc
Sample Leadtime	7-10days
