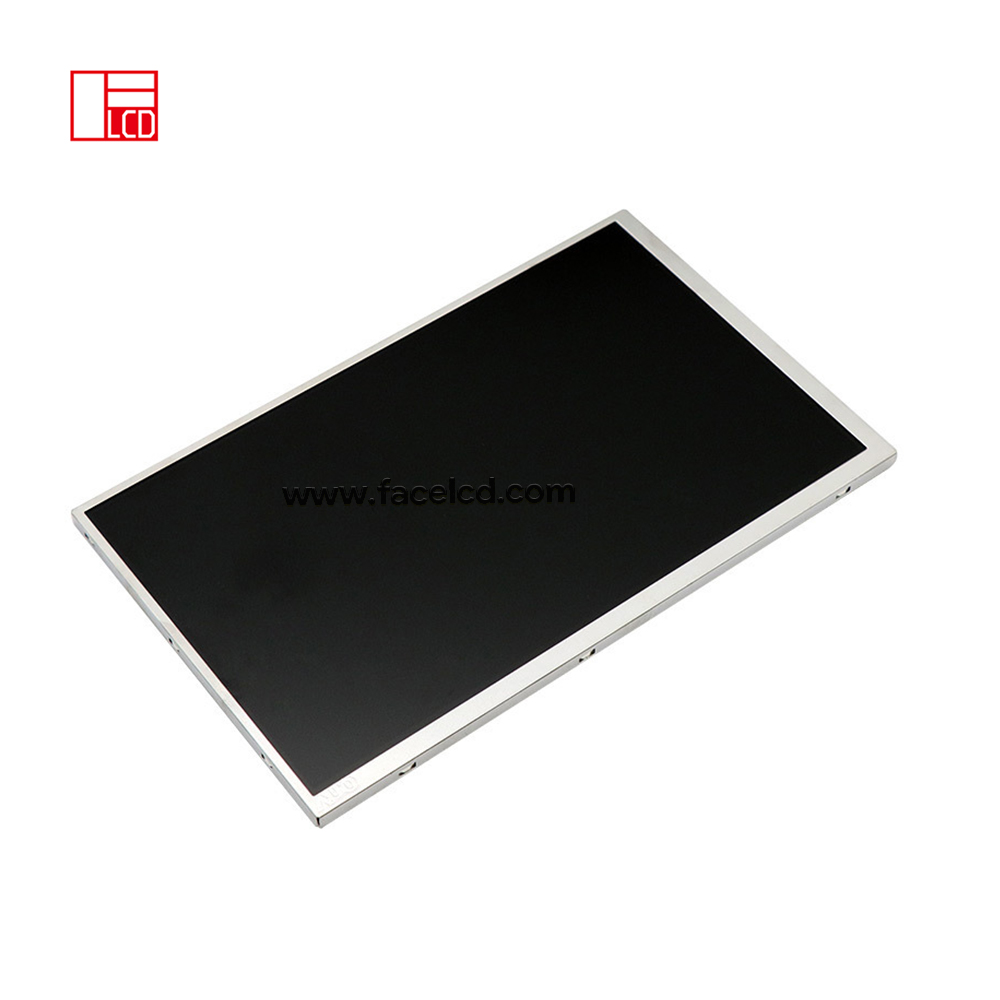

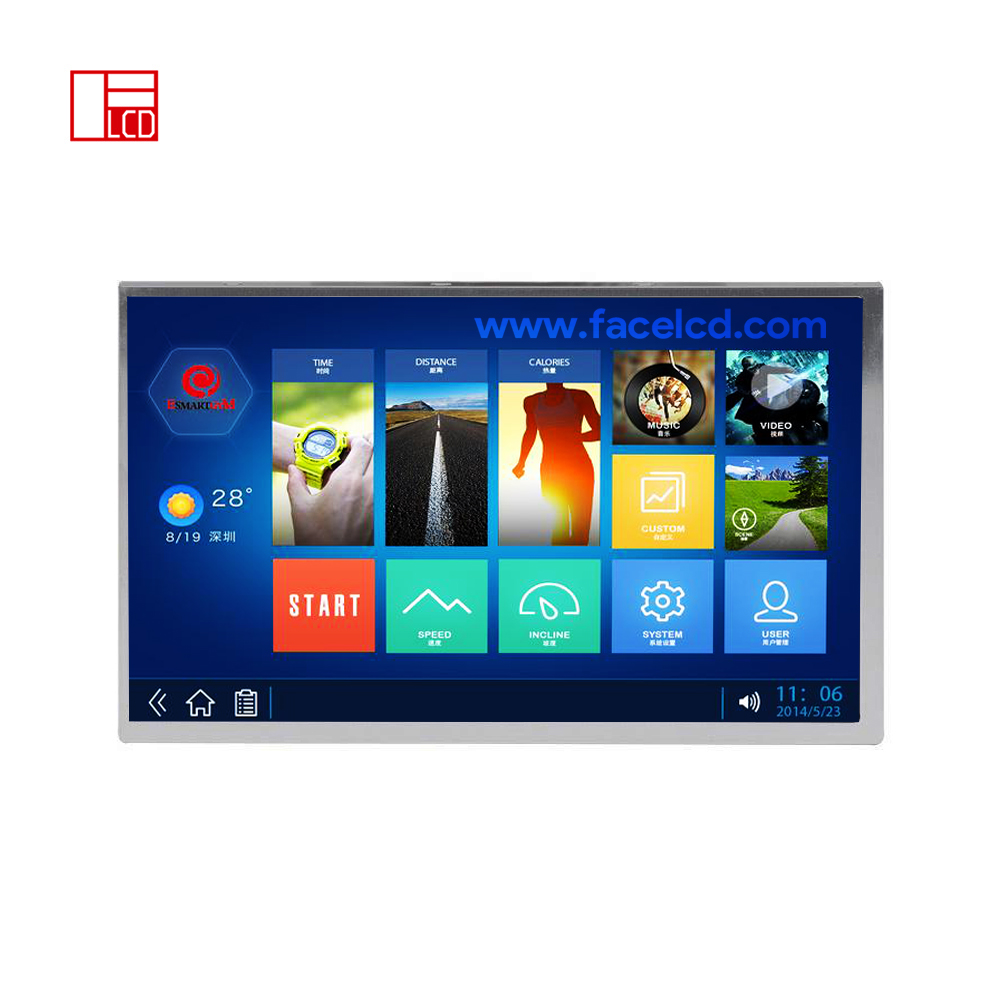

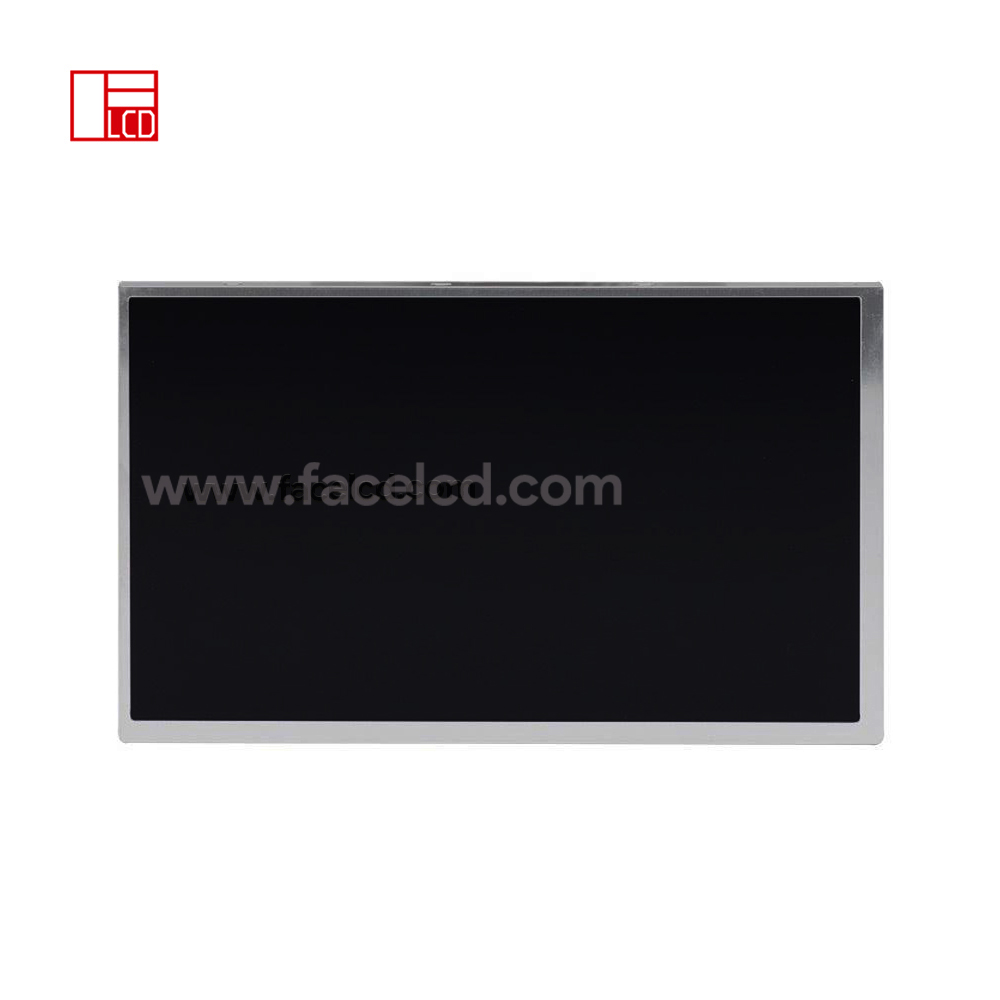

9inch 1280X720 IPS TFT LCD Display with LVDS
9inch 1280X720 IPS TFT LCD Display with LVDS
9inch 1280X720 IPS TFT LCD Display with LVDS
9inch 1280X720 IPS TFT LCD Display with LVDS

9inch 1280X720 IPS TFT LCD Display with LVDS

Quick info

  • Model Number:FB090MFV600-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:9
  • Resolution:1280X720
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 9inch
 Model Number FB090MFV600-A
 Panel Type TFT-LCD
 Aspect Ratio 16:9
 Resolution 1280X720
 Pixel Format RGB stripe
 Active Area 198.912(W) x111.888(H) mm
 Bezel Opening 202.11(W)  ×115.09(H) mm
 Outline Dimension 210.7 (W) ×126.5(H) ×4.9(D) mm
 Treatment Anti-glare
 View Angel 85/85/85/85
 Support Color 16.7M
 Luminance 550 cd/㎡
 Interface Type LVDS
 Operatation Temperature -30℃ ~ 80℃
 Storage Temperature -30℃ ~ 85℃
 Power Supply Votage 18V
 Current for LED Backlight 240mA
 Application Industrial, Medical, Automotive, Security, Smart Home, Euipment, etc
 Sample Leadtime 7-10days
