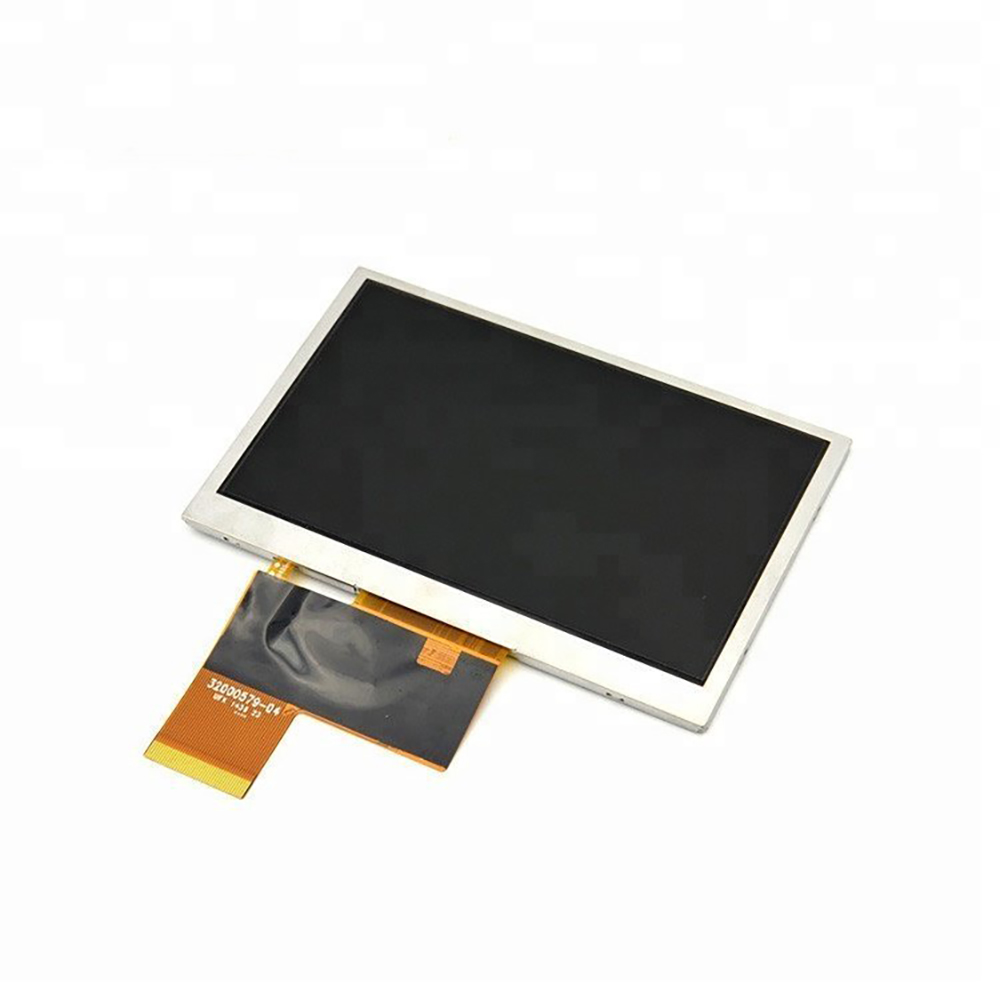

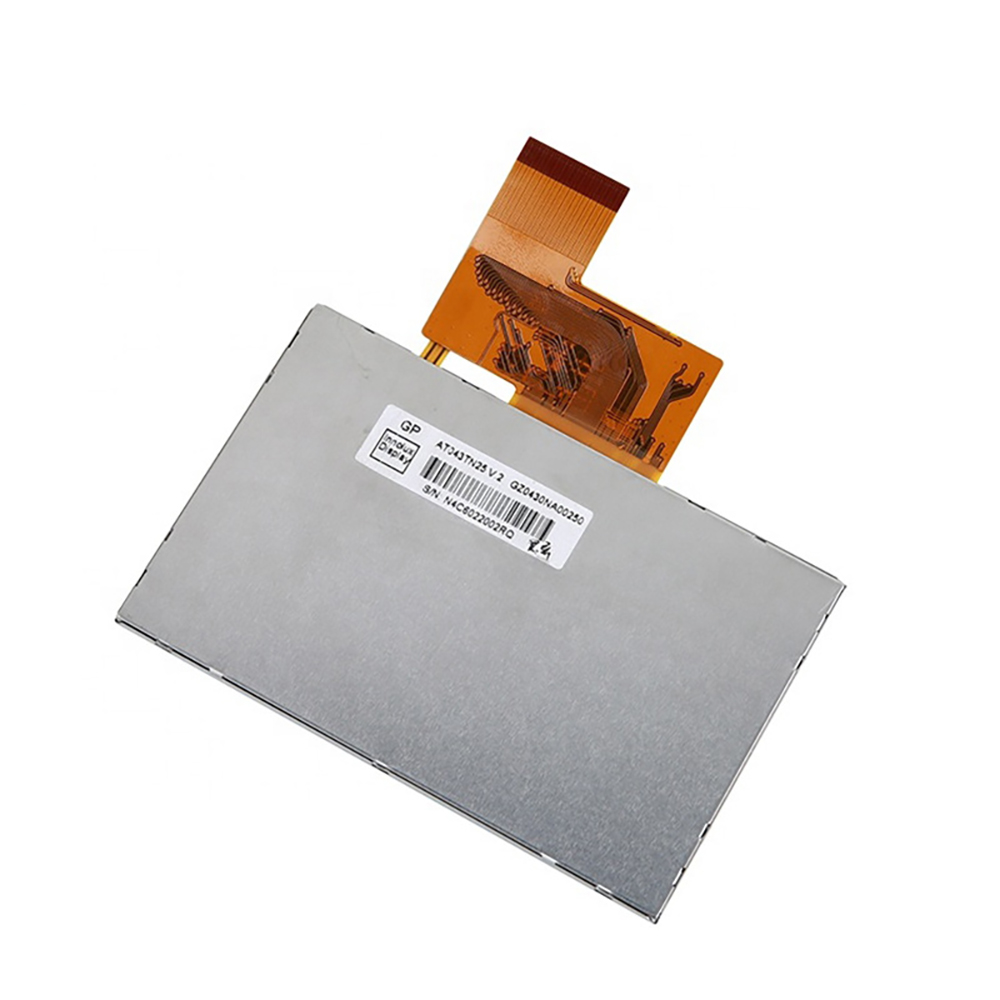

AT043TN25 V.2 Innolux 480X272 Industrial Original LCD Module

Meta Description:

Innolux AT043TN25 V.2 4.3″ TFT LCD Module | 480×272 resolution, 500 nit brightness, and WLED backlight. Ideal for automotive displays and industrial control.

Elevate Your System with the Innolux AT043TN25 V.2 LCD Display

We present the Innolux AT043TN25 V.2. This model is a reliable 4.3-inch TFT LCD display. It serves as a high-performance solution for various industries. Manufacturers choose this module for its proven durability and optical clarity. It features active matrix technology for sharp images.

Superior Optical Performance and Clarity

The AT043TN25 V.2 delivers a crisp 480×272 (WQVGA) resolution. It produces 16.7 million colors for true-to-life visuals. You get a brightness level of 500 cd/m² (Typ.) . This high brightness ensures excellent readability. It performs well even in bright ambient conditions. The display offers a contrast ratio of 500:1 (Typ.) . This ratio provides deep blacks and bright whites. It utilizes TN (Twisted Nematic) technology with a normally white mode. The wide viewing angles measure 70/70/50/70 (Typ.) .

Robust Mechanical Design and Interface

This model has a compact outline. It measures just 105.5 x 67.2 x 3.1 mm . The active area is 95.04 x 53.856 mm. This size fits perfectly into portable devices. It weighs only 45.0g (Typ.) . The surface features a matte, anti-glare treatment. It significantly reduces reflections from ambient light .

Furthermore, it integrates a standard Parallel RGB interface. It uses a 1 channel, 8-bit signal system. The connection is a reliable 40-pin FPC . This interface ensures easy integration. It connects seamlessly with main control boards.

Reliable Operation and Extended Longevity

Durability defines the AT043TN25 V.2 design. Engineers build it for tough environments. It operates smoothly in temperatures ranging from -20°C to +70°C . The storage temperature extends from -30°C to +80°C. It features a WLED backlight system without a driver . This backlight boasts an impressive lifespan of 20,000 hours . Therefore, it reduces the need for frequent maintenance.

Versatile Applications and Market Use

Designers widely adopt this LCD module. It is a prime choice for automotive displays. It fits perfectly in car dashboards and navigation systems. It excels in portable navigation devices and handheld GPS units . Industrial applications also benefit from its reliability. It functions effectively in industrial control panels and HMIs. Additionally, it supports multimedia applications like portable TVs .

In conclusion, this 4.3″ LCM is a versatile component. It combines high brightness with a rugged structure. It remains a top choice for OEMs worldwide. Upgrade your design with this quality Innolux display today.
