Brand: BOE
Model Number: COG-VLBJT038-01
Resolution: 1920×720
View angel: 88/88/88/88
Interface: LVDS
Brightness: 1000nits
Application: Automotive, Industrial, Security, Medical

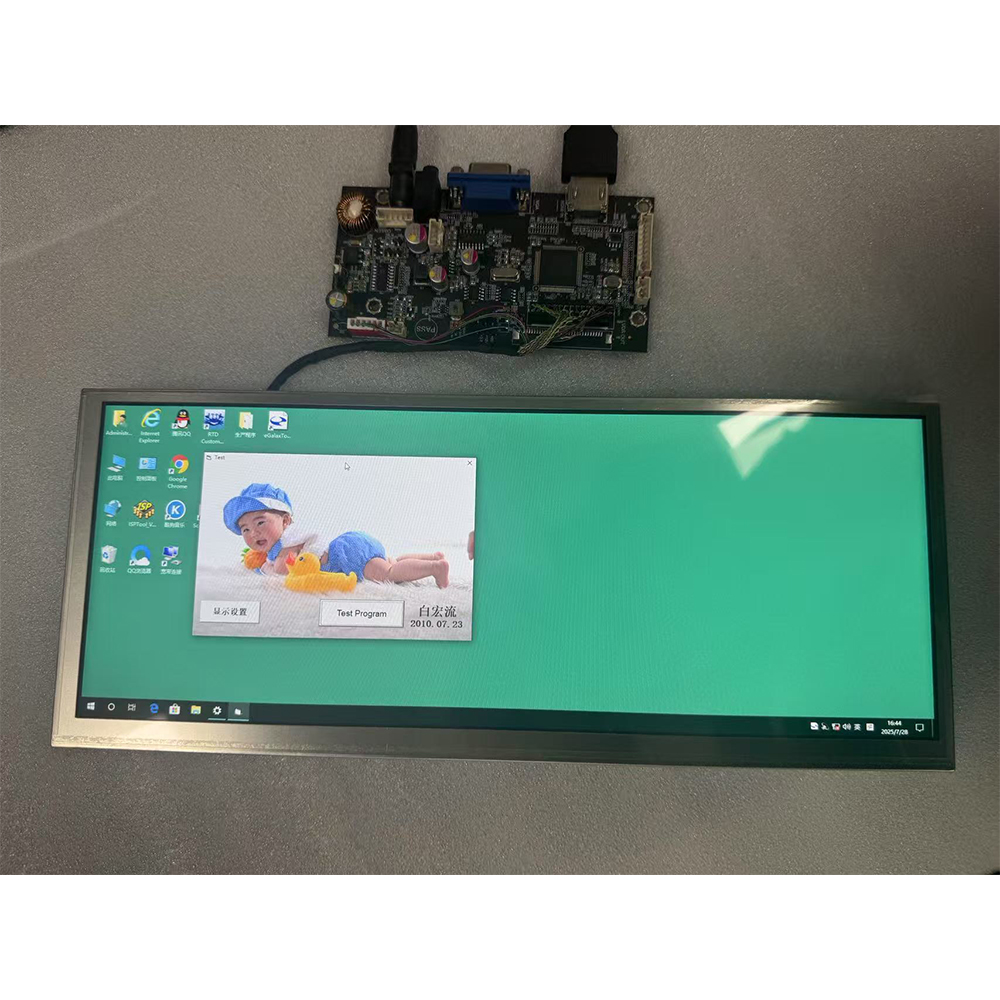

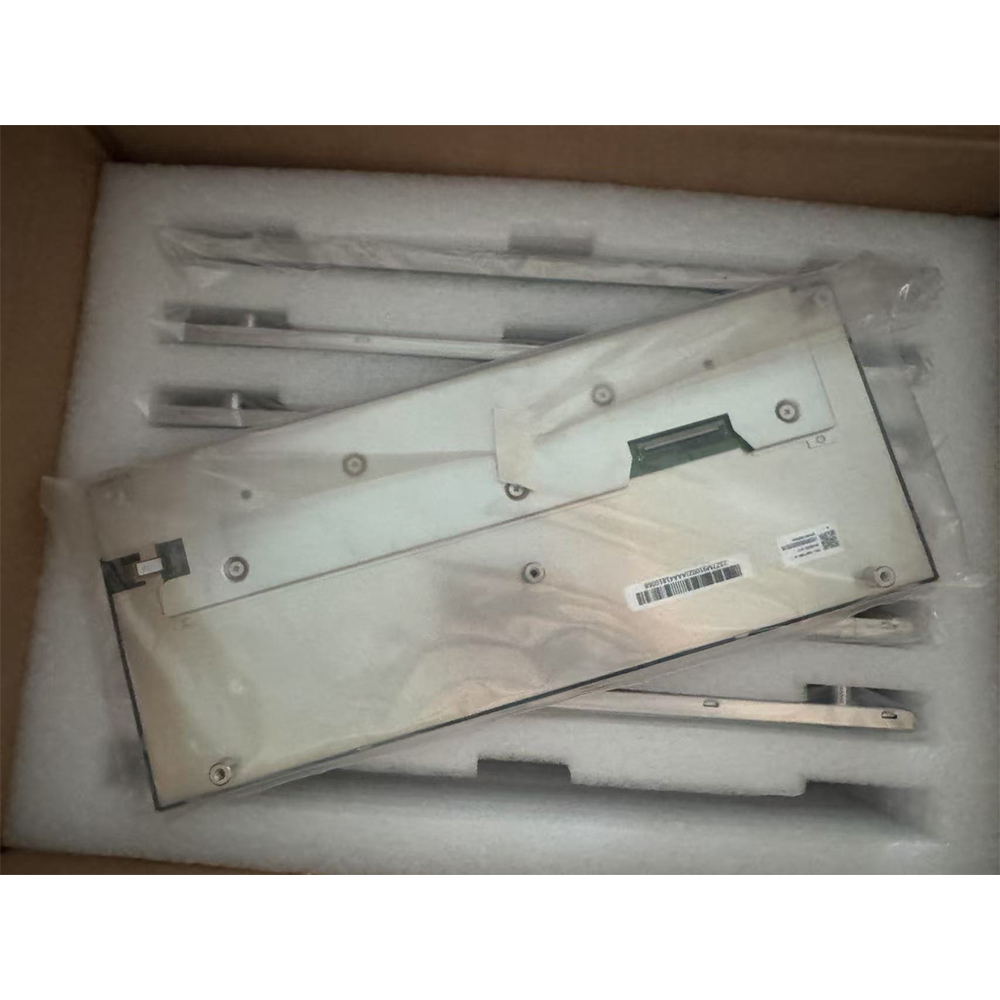

COG-VLBJT038-01 (Ref: AV123Z7M-N17) is a 12.3-inch TFT-LCD module that BOE Technology Group Co., Ltd. (BOE) has developed using a-Si TFT-LCD technology. This module incorporates a WLED backlight, but it does not include a backlight driver or touch functionality.

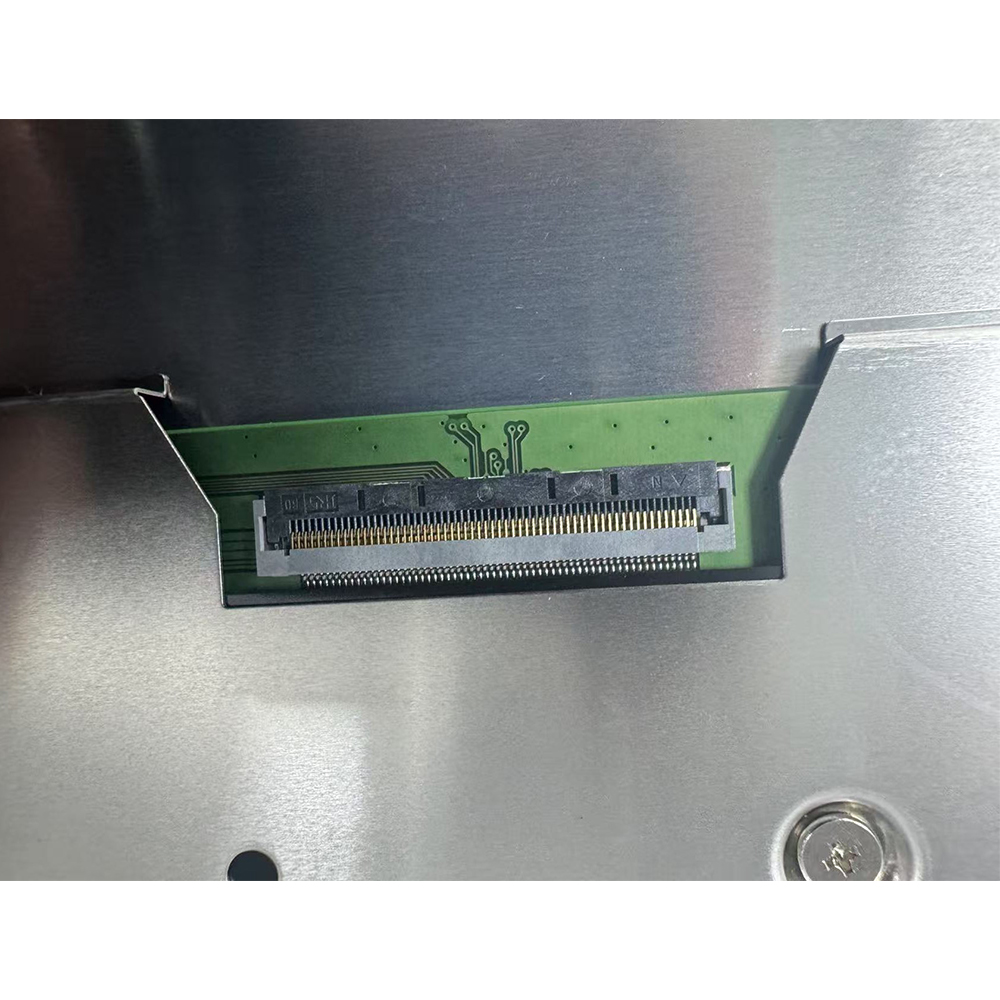

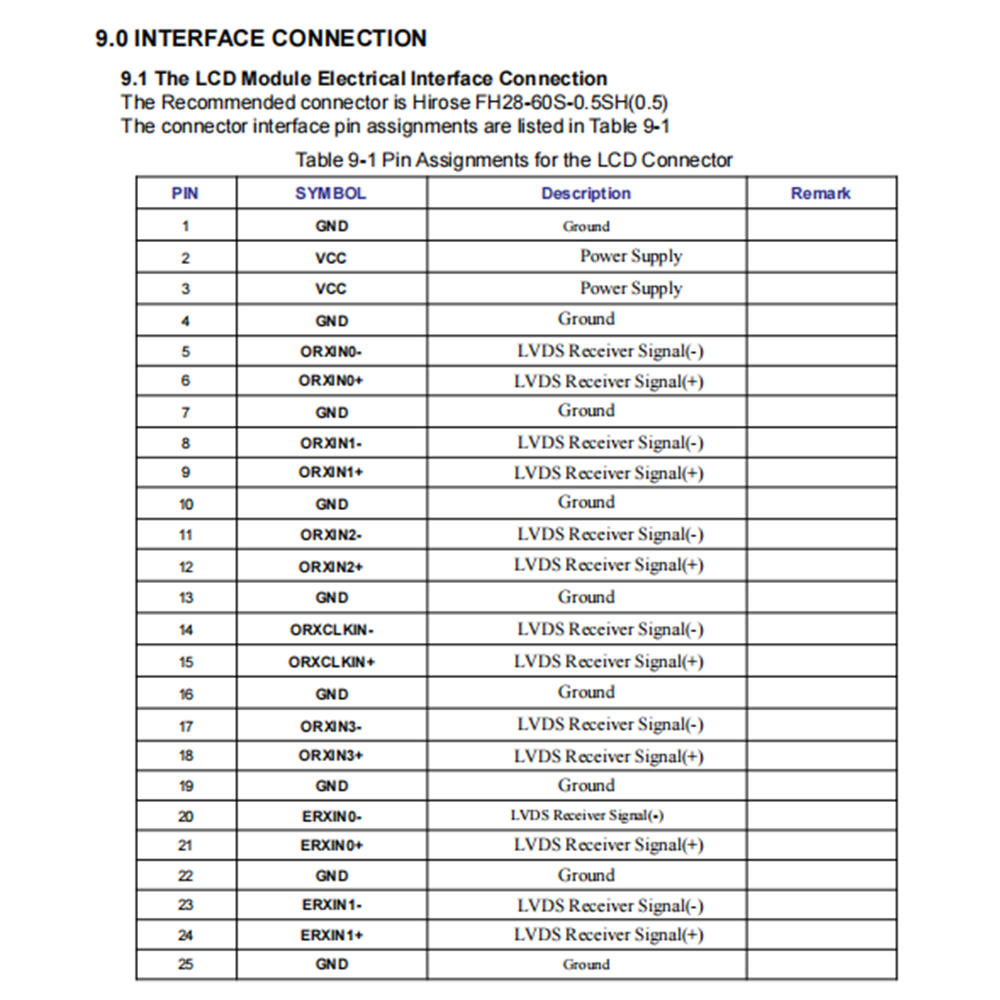

For its backlight unit, the product uses a side-edge type light source with 9S4P WLEDs, although it operates without a separate backlight driver. The module employs an LVDS (2 ch, 8-bit) signal interface with 60 pins and uses an FPC connector. It requires driving voltages of 3.5/18/-12.0V (Max.) for VCC/VGH/VGL, and its typical vertical refresh rate (Fv) is 60Hz.
If you are developing a new product and are considering using the COG-VLBJT038-01 LCD module, We recommends that you contact BOE or its authorized distributors to obtain the latest information on its production status and technical specifications.
Its operating temperature range is -30 ~ 85°C, and its storage temperature range is -40 ~ 90°C. Finally, due to its wide temperature tolerance, ultra-high brightness, WLED backlight, ultra-wide screen format, and inverted display capability, we recommend this model primarily for automotive display applications
About BOE: A Leader in Display Technology
BOE Technology Group Co., Ltd. is a global leader in the semiconductor display industry. As a premier manufacturer of LCD, OLED, and advanced display panels, BOE provides the essential screens that power everything from high-end smartphones to large-scale commercial televisions. Moreover, the company is dedicated to enriching user experiences through continuous innovation and cutting-edge visual technology.
What Is an Original LCD Brand Module?
In the context of LCD brands like IVO, LG, BOE, or Innolux, the term “Original Module” (or “Original LCD Module”) refers to the complete, factory-sealed core component that forms the display itself.
It is crucial to distinguish this from just a bare glass panel or a finished consumer product.
Key Components of an Original Module
An Original Module is an integrated unit that typically includes:
LCD Glass Panel (The Core):
This is the actual layer of liquid crystal cells that creates the image. It is manufactured in the brand’s own factory or by its certified partners.
Driver ICs and Control Board (The Brain):
A small printed circuit board (PCB) attached to the panel.
It contains the brand’s original driver chips that receive signals from the source and precisely control each pixel on the glass.
Backlight Unit (The Light Source):
A system of LEDs, light guides, and diffuser plates that provides uniform brightness across the entire screen.
In an original module, this is perfectly matched to the glass panel for optimal performance.
Metal Frame / Chassis:
A rigid frame that holds all the above components together in perfect alignment and provides structural integrity.
Additionally, the original brand manufacturer (e.g., BOE) assembles, calibrates, and quality-tests all these parts and sells them as a single, certified unit.
Why Choose an Original Module?
✅ Guaranteed Quality and Performance
With an original module, you get the exact brightness, color gamut, contrast, and response time that the brand designed and certified.
✅ Perfect Compatibility
The manufacturer specifically designs the driver board and ICs for that exact glass panel, ensuring flawless communication and eliminating issues like flickering or dead pixels.
✅ Reliability and Longevity
The brand builds original modules to its own quality standards, ensuring a longer lifespan and stable operation—especially critical for commercial and industrial use.
✅ Warranty and Support
