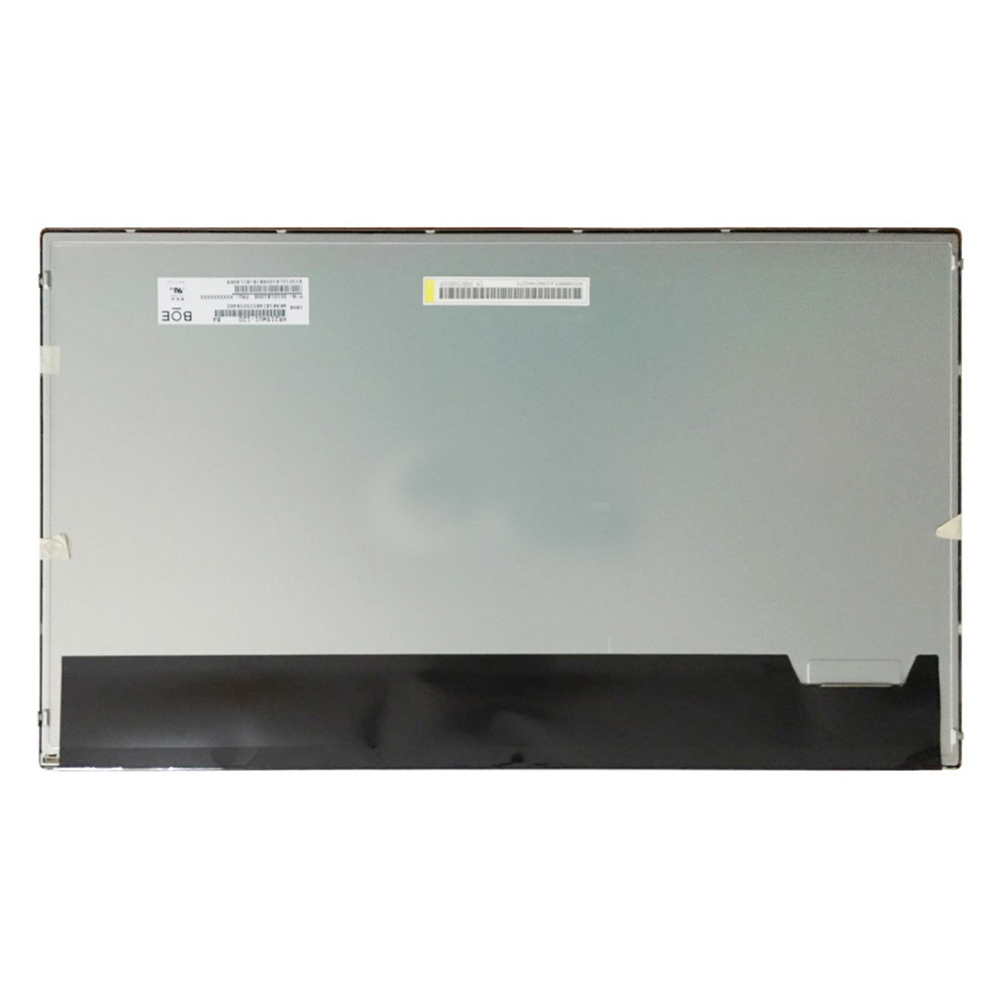

The BOE HR215WU1-120 is a 21.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., primarily designed for desktop monitor applications. Below are its complete technical specifications, features, and current market availability.
About BOE: A Leader in Display Technology
BOE Technology Group Co., Ltd. is a global leader in the semiconductor display industry. As a premier manufacturer of LCD, OLED, and advanced display panels, BOE provides the essential screens that power everything from high-end smartphones to large-scale commercial televisions. Moreover, the company is dedicated to enriching user experiences through continuous innovation and cutting-edge visual technology.

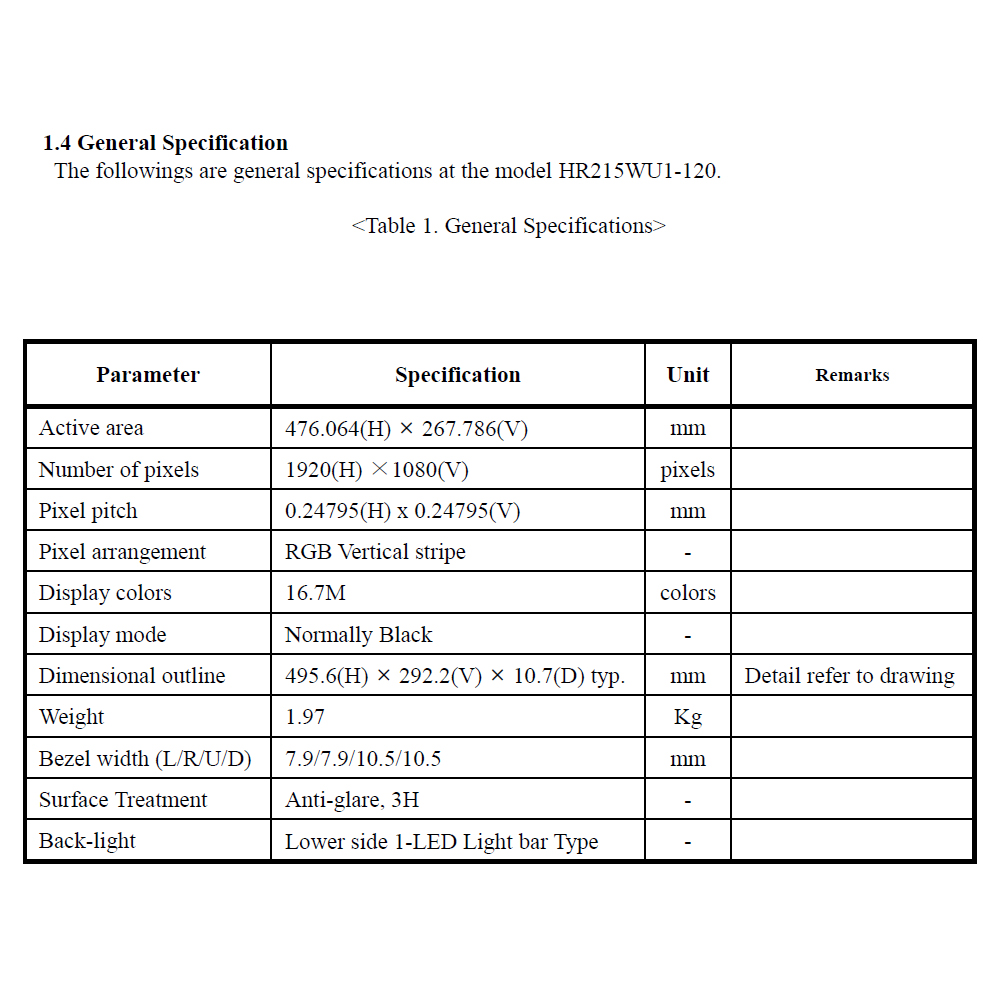

Key Features & Technical Specifications
Panel Model: BOE HR215WU1-120
Screen Size: 21.5-inch
Technology: a-Si TFT-LCD
Backlight Unit: WLED backlight system (without driver)
Touchscreen: No
Surface: Matte (Anti-Glare)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60°C
Max Vibration Level: 1.5G (14.7 m/s²)
Compliance: ES 8.0, TCO 8.0
Production Status & Market Availability
Mass Production Start: Q1 2013
Final Shipment: Q2 2024
Current Status: Discontinued
Recommended Applications
Based on its feature set—including its matte finish and compliance certifications—this BOE LCD panel is recommended for use in desktop monitors.
First Entry Date: November 12, 2013
What Is an Original LCD Brand Module?
In the context of LCD brands like IVO, LG, BOE, or Innolux, the term “Original Module” (or “Original LCD Module”) refers to the complete, factory-sealed core component that forms the display itself.
It is crucial to distinguish this from just a bare glass panel or a finished consumer product.
Key Components of an Original Module
An Original Module is an integrated unit that typically includes:
LCD Glass Panel (The Core):
This is the actual layer of liquid crystal cells that creates the image. It is manufactured in the brand’s own factory or by its certified partners.
Driver ICs and Control Board (The Brain):
A small printed circuit board (PCB) attached to the panel. It contains the brand’s original driver chips that receive signals from the source and precisely control each pixel on the glass.
Backlight Unit (The Light Source):
A system of LEDs, light guides, and diffuser plates that provides uniform brightness across the entire screen. In an original module, this is perfectly matched to the glass panel for optimal performance.
Metal Frame / Chassis:
A rigid frame that holds all the above components together in perfect alignment and provides structural integrity.
Additionally, the original brand manufacturer (e.g., BOE) assembles, calibrates, and quality-tests all these parts and sells them as a single, certified unit.
Why Choose an Original Module?
✅ Guaranteed Quality and Performance
With an original module, you get the exact brightness, color gamut, contrast, and response time that the brand designed and certified.
✅ Perfect Compatibility
The manufacturer specifically designs the driver board and ICs for that exact glass panel, ensuring flawless communication and eliminating issues like flickering or dead pixels.
✅ Reliability and Longevity
The brand builds original modules to its own quality standards, ensuring a longer lifespan and stable operation—especially critical for commercial and industrial use.
✅ Warranty and Support
It also comes with a direct warranty and technical support from the manufacturer or its authorized distributors.
“Original Module” vs. Other Common Terms
🔄 vs. “Bare Glass Panel”
The “bare glass” is only the raw liquid crystal layer without the driver board, backlight, or frame. Therefore, it is useless by itself for most applications.
🔄 vs. “Compatible” or “Refurbished” Modules
In contrast, third-party companies often source salvaged or non-original parts to assemble these modules. As a result, their quality, performance, and lifespan are unpredictable and usually inferior to an original module.
Conclusion: The Value of Authenticity
In summary, an “Original LCD Module” is the authentic, brand-certified heart of a display. For system integrators and businesses—the primary customers of brands like BOE—using an original module is the only way to ensure the final product will be reliable, high-performing, and built exactly as the engineer intended.
