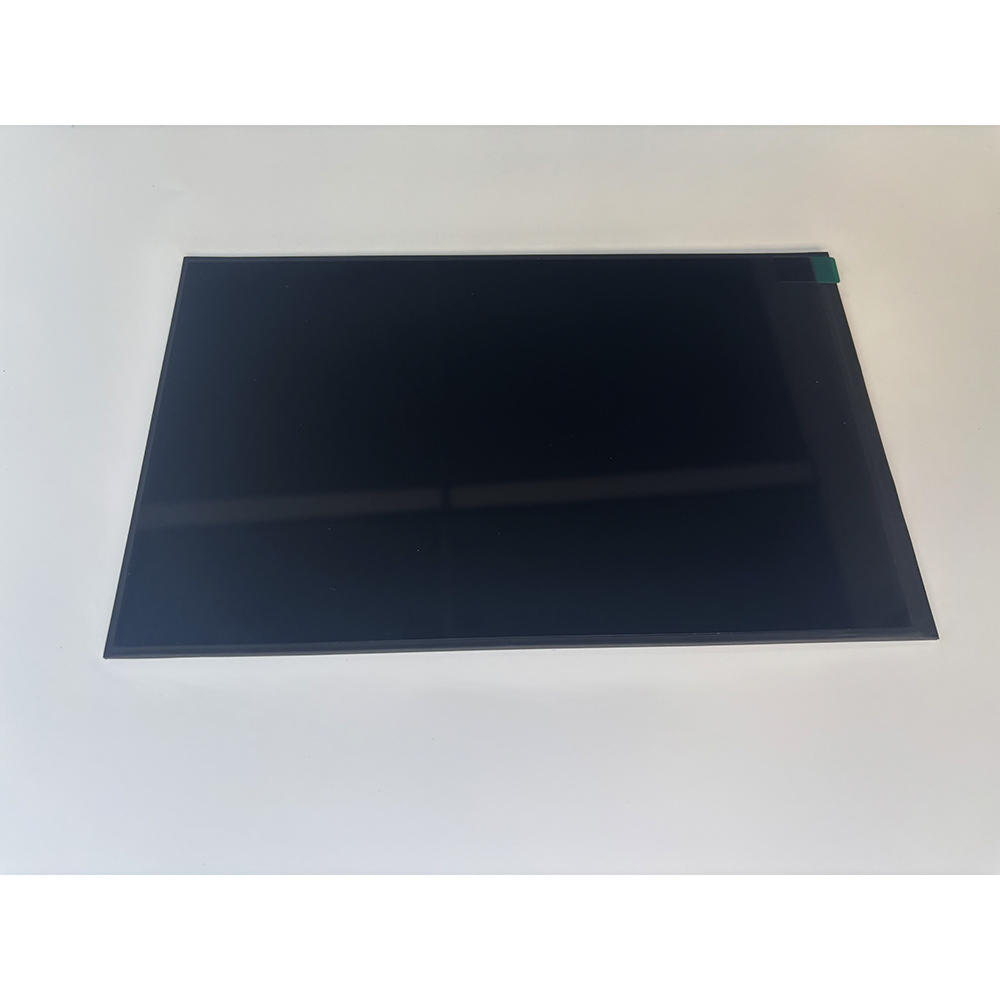

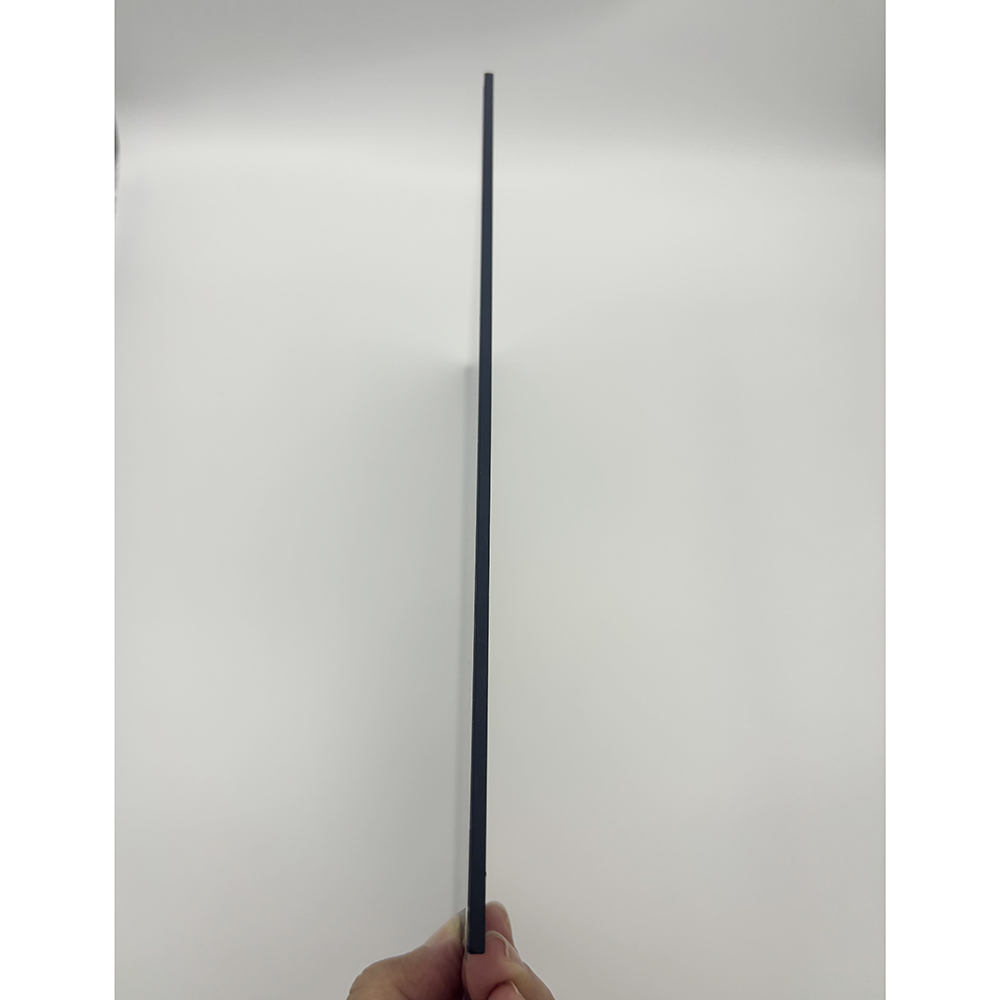

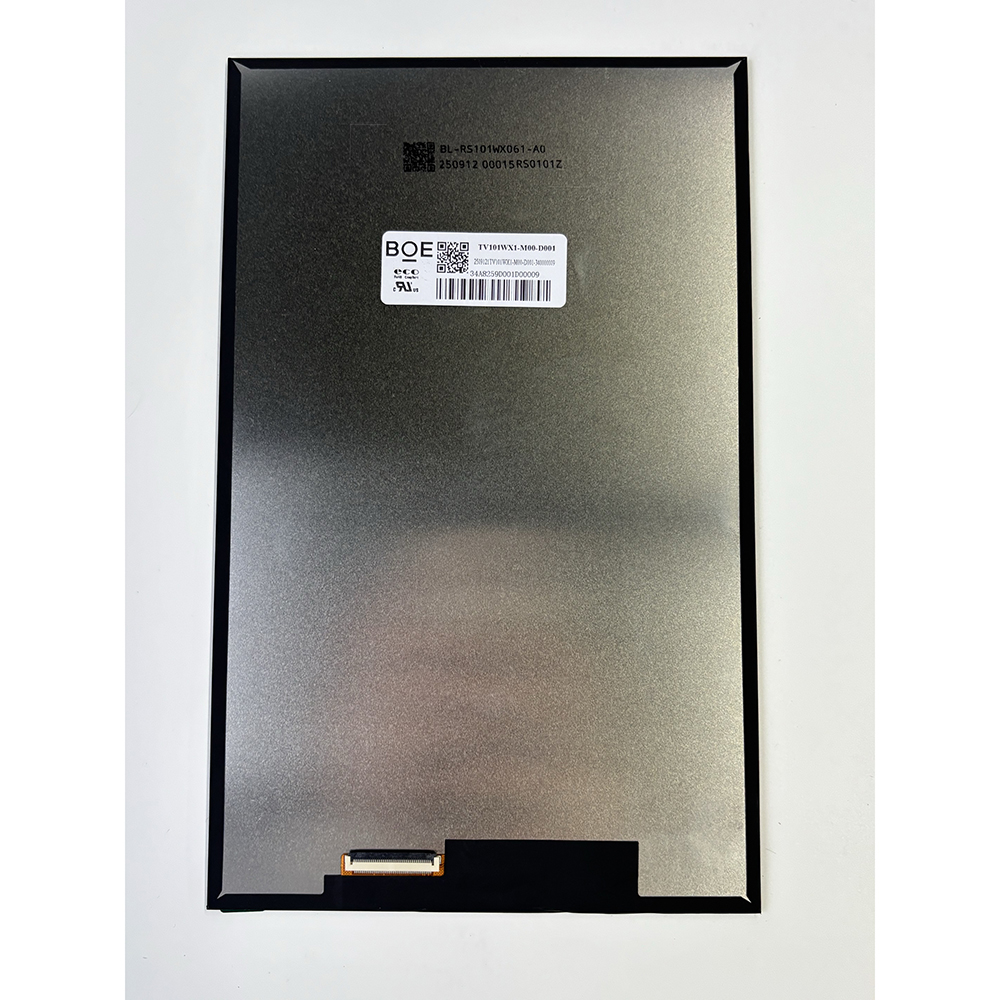

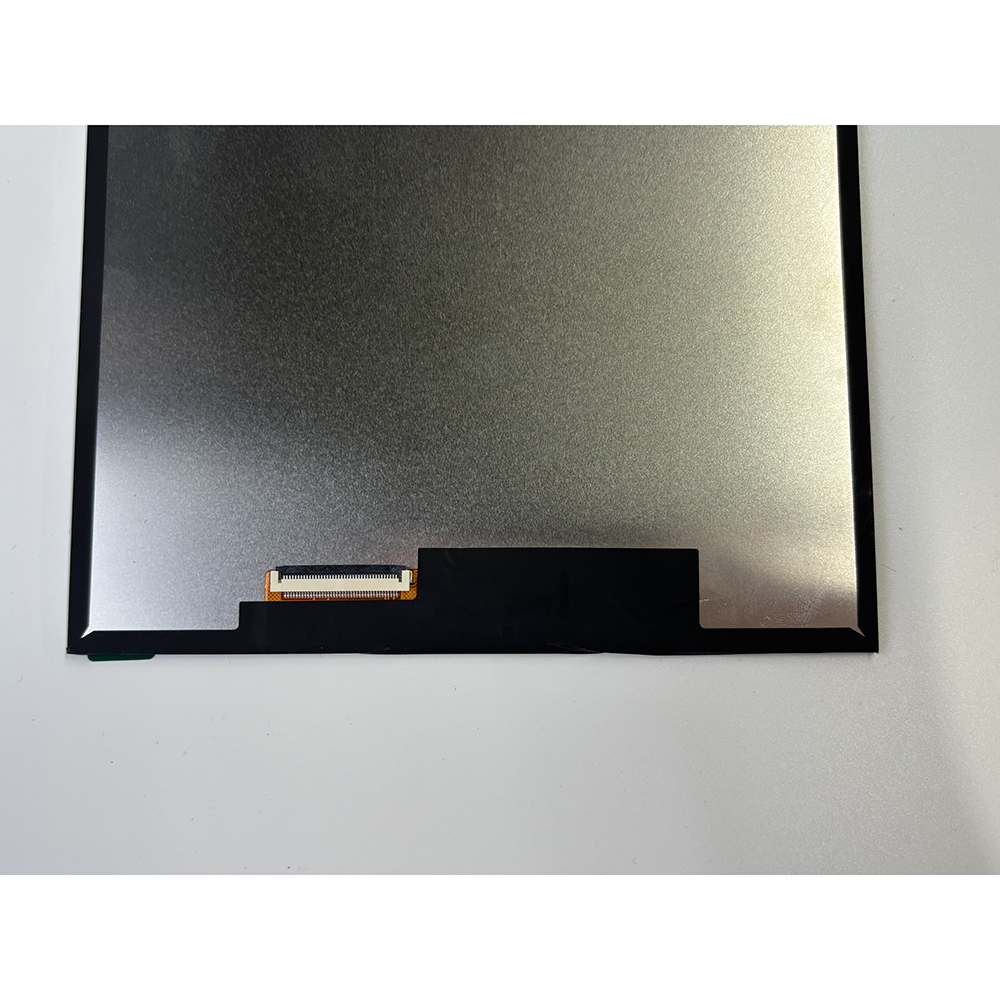

BOE TV101WX1-M00-D001: 10.1-Inch a-Si TFT-LCD Display Panel for Pad & Tablet Applications
Introducing the BOE TV101WX1-M00-D001 – a high-performance 10.1-inch diagonal a-Si TFT-LCD panel designed to power next-generation portable devices. Specifically, this model integrates a WLED backlight system for bright, efficient illumination and is additionally available without a backlight driver or touch screen to offer flexible integration options.

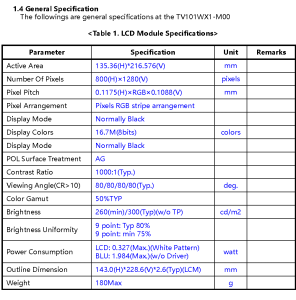

Key Features & Specifications
- First of all, regarding the display type:It is a 10.1″ a-Si TFT-LCD in a portrait orientation.
- Moving on to illumination:The panel features an integrated WLED backlight with a matte surface finish to reduce glare.
- Furthermore, it offers robust temperature ranges:
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -20°C to 60°C
- Consequently, based on these features,the recommended application includes Pads, Tablets, and similar compact electronic devices.
Production, Availability & Data Status
- Regarding production status:This model is currently in mass production, which began in Q4 2025.
- Now, addressing data accuracy:The first entered this model’s specifications on September 28, 2025, with the latest update made on November 3, 2025. However, please note the following important disclaimers:
- While all specifications are compiled from the manufacturer’s datasheet, we cannot fully guarantee the absolute accuracy of every listed parameter.
In summary, proactively verifying all technical and commercial details with the manufacturer is a crucial step. This ensures your product design is based on the latest and most accurate data, ultimately supporting a smoother development process.
About BOE: A Leader in Display Technology
BOE Technology Group Co., Ltd. is a global leader in the semiconductor display industry. As a premier manufacturer of LCD, OLED, and advanced display panels, BOE provides the essential screens that power everything from high-end smartphones to large-scale commercial televisions. Moreover, the company is dedicated to enriching user experiences through continuous innovation and cutting-edge visual technology.
Understanding “Original LCD Module”
An “Original Module” from a brand like BOE represents the complete, factory-sealed core display component. Crucially, it is essential to distinguish this from a bare glass panel or a third-party assembly.
Core Components of an Original Module
This integrated unit typically consists of four key parts:
- LCD Glass Panel: This is the core layer that generates the image.
- Driver ICs and Control Board: Acting as the “brain,” it receives signals and precisely controls each pixel on the glass.
- Backlight Unit: This system provides uniform brightness across the entire screen.
- Metal Frame / Chassis: This rigid structure holds all components in precise alignment.
Ultimately, the original manufacturer assembles and calibrates all these parts into a single certified unit.
Advantages of Choosing an Original Module
Selecting an original module guarantees several key benefits. First, it ensures the display meets the brand’s certified performance and quality standards. Second, it provides perfect compatibility between the panel and its drivers, thereby eliminating issues such as flickering or dead pixels. Third, it offers greater reliability and a longer lifespan for commercial applications. Finally, it comes with direct warranty coverage and technical support from the manufacturer.
Clarifying Terminology: Original Modules vs. Other Types
An “Original Module” differs significantly from other options available on the market. For example, a “Bare Glass Panel” lacks the essential driver board and backlight system, thus rendering it incomplete for most applications. In contrast, “Compatible” or “Refurbished” modules are typically assembled by third parties using non-original components; as a result, their quality and longevity are often unpredictable and generally inferior. In summary, choosing an original module is a key decision for ensuring both display performance and system-level reliability.
