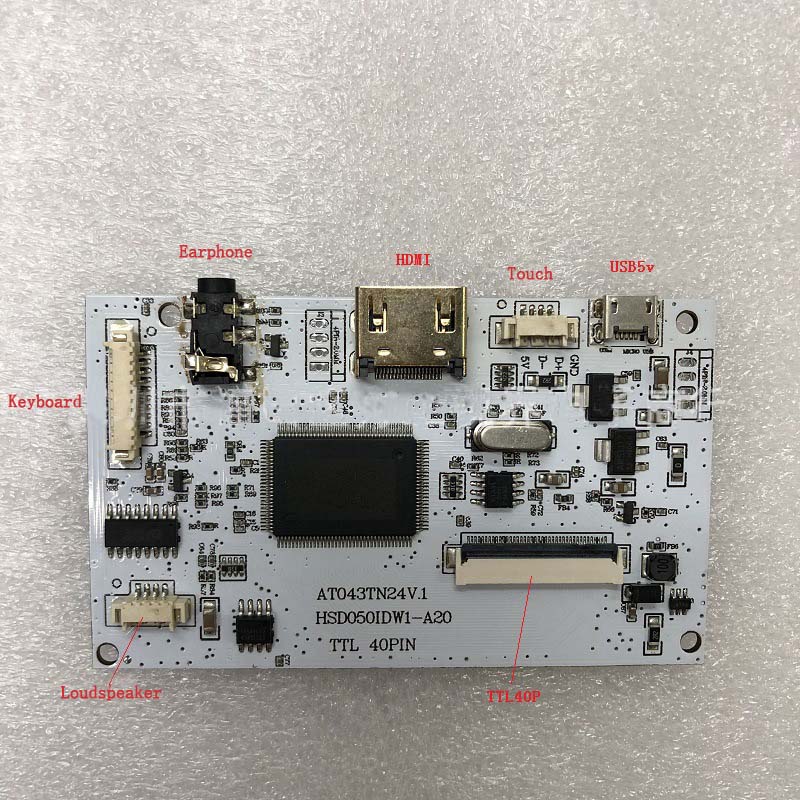

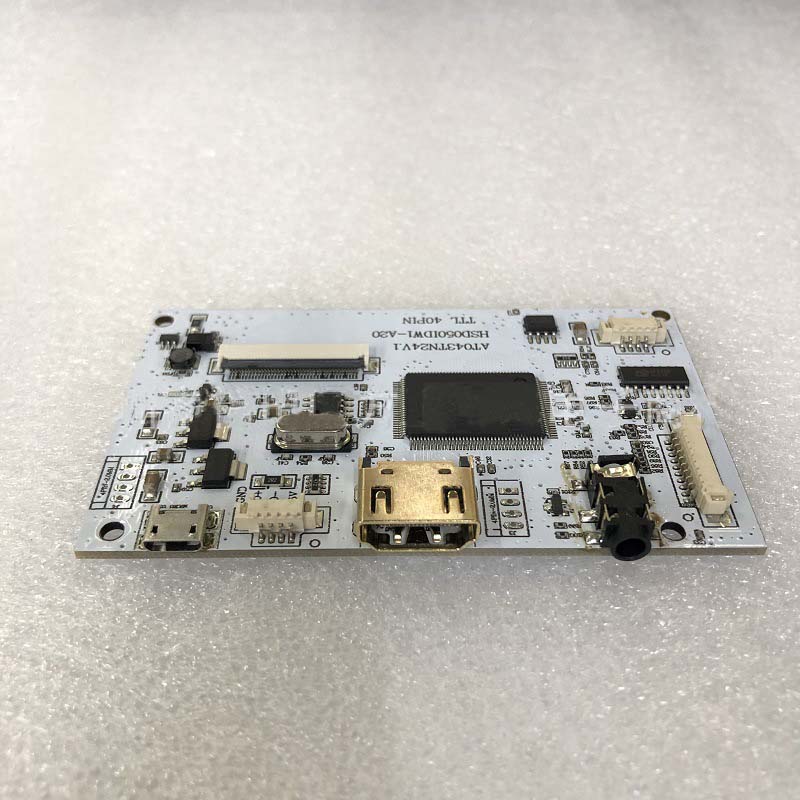

You are here: Home > Products > LCD Driver Board > Driver Board > HDMI Driver Small board for 4.3inch/5inch RGB/TTL 40pin interface

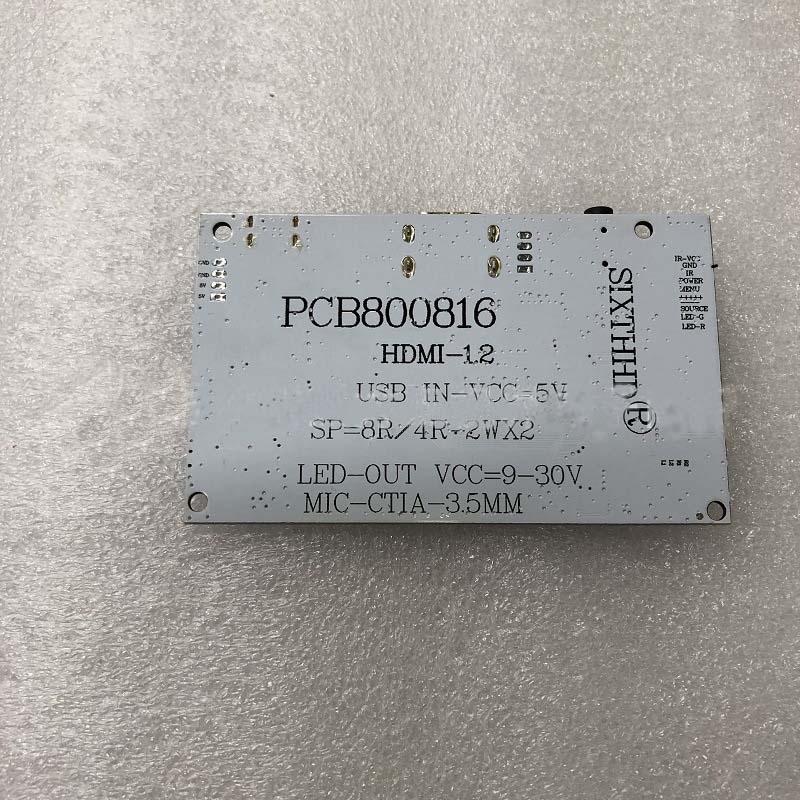

Part number: PCB800816
Resolution: 480×272, 800×480
LCD Size: 4.3inch, 5inch
Driver IC: RTD2556
Power Supply: micro USB 5V, Can use power bank, computer USB
Interface for Display: TTL/RGB
Interface for input signal: HDMI
Outline Dimension: 89.5X47.5X5mm
Suitable for TFT-LCD Model:
AT043TN24.1, HSD050IDW1 and other 4.3inch/5inch with the same interface of TTL/RGB50PIN TFT-LCD module.
