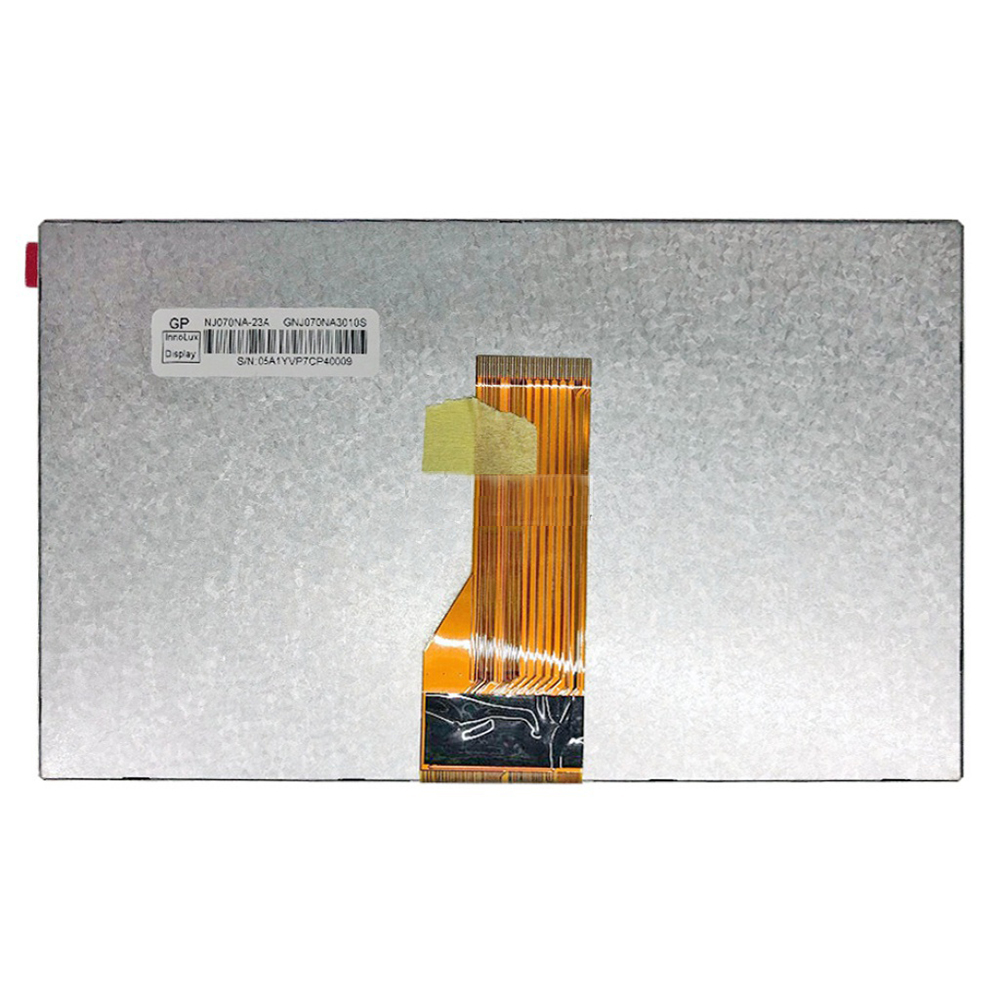

Industrial 7-inch LCD Display Module | Innolux NJ070NA-23A | 1024×600 Original TFT Panel

Brand: Innolux

Model Number: NJ070NA-23A

Resolution: 1024X600

View angel:  80/80/60/70

Interface: LVDS

Brightness: 500nits

Application: Automotive, Industrial, Security, Medical

Innolux NJ070NA-23A: A High-Performance 7.0-inch TFT-LCD for Automotive Displays & Industrial Applications

Innolux Corporation produces the NJ070NA-23A, a 7.0-inch diagonal a-Si TFT-LCD display panel. This panel integrates a WLED backlight system and operates without a separate backlight driver or touch screen. It features a wide operating temperature range of -20 ~ 70°C, a storage temperature range of -30 ~ 80°C, and can withstand a maximal vibration level of 1.5G (14.7 m/s²).

Key features of this display include a WLED backlight, U/D and L/R reverse functionality, and 6/8-bit color depth. Due to its robust feature set, this model is ideally suited for applications like automotive displays. The panel also incorporates built-in EK79001AX + EK73215BCGA driver ICs. According to production records, Innolux started mass production of this model in Q2 2017, and it remains in active production today.

Innolux is a leading display panel manufacturer from Taiwan, specializing in TFT-LCD (Thin-Film-Transistor Liquid-Crystal Display) panels. You find their thin, flat panels in many everyday electronic devices, including:

• Televisions (TVs)

• Computer Monitors

• Laptops

• Tablets

• Smartphones

• Screens for cars and other vehicles

What Is an Original LCD Brand Module?

In the context of LCD brands like IVO, LG, BOE, or Innolux, the term “Original Module” (or “Original LCD Module”) refers to the complete, factory-sealed core component that forms the display itself.

It is crucial to distinguish this from just a bare glass panel or a finished consumer product.

Key Components of an Original Module

An Original Module is an integrated unit that typically includes:

LCD Glass Panel (The Core):
This is the actual layer of liquid crystal cells that creates the image. It is manufactured in the brand’s own factory or by its certified partners.

Driver ICs and Control Board (The Brain):
A small printed circuit board (PCB) attached to the panel.
It contains the brand’s original driver chips that receive signals from the source and precisely control each pixel on the glass.

Backlight Unit (The Light Source):
A system of LEDs, light guides, and diffuser plates that provides uniform brightness across the entire screen.
In an original module, this is perfectly matched to the glass panel for optimal performance.

Metal Frame / Chassis:
A rigid frame that holds all the above components together in perfect alignment and provides structural integrity.

Additionally, the original brand manufacturer (e.g., BOE) assembles, calibrates, and quality-tests all these parts and sells them as a single, certified unit.

Why Choose an Original Module?

✅ Guaranteed Quality and Performance

With an original module, you get the exact brightness, color gamut, contrast, and response time that the brand designed and certified.

✅ Perfect Compatibility

The manufacturer specifically designs the driver board and ICs for that exact glass panel, ensuring flawless communication and eliminating issues like flickering or dead pixels.

✅ Reliability and Longevity

The brand builds original modules to its own quality standards, ensuring a longer lifespan and stable operation—especially critical for commercial and industrial use.

✅ Warranty and Support

It also comes with a direct warranty and technical support from the manufacturer or its authorized distributors.

“Original Module” vs. Other Common Terms

🔄 vs. “Bare Glass Panel”

The “bare glass” is only the raw liquid crystal layer without the driver board, backlight, or frame. Therefore, it is useless by itself for most applications.

🔄 vs. “Compatible” or “Refurbished” Modules

In contrast, third-party companies often source salvaged or non-original parts to assemble these modules.
As a result, their quality, performance, and lifespan are unpredictable and usually inferior to an original module.

Conclusion: The Value of Authenticity

In summary, an “Original LCD Module” is the authentic, brand-certified heart of a display. For system integrators and businesses—the primary customers of brands like INNOLUX—using an original module is the only way to ensure the final product will be reliable, high-performing, and built exactly as the engineer intended.
