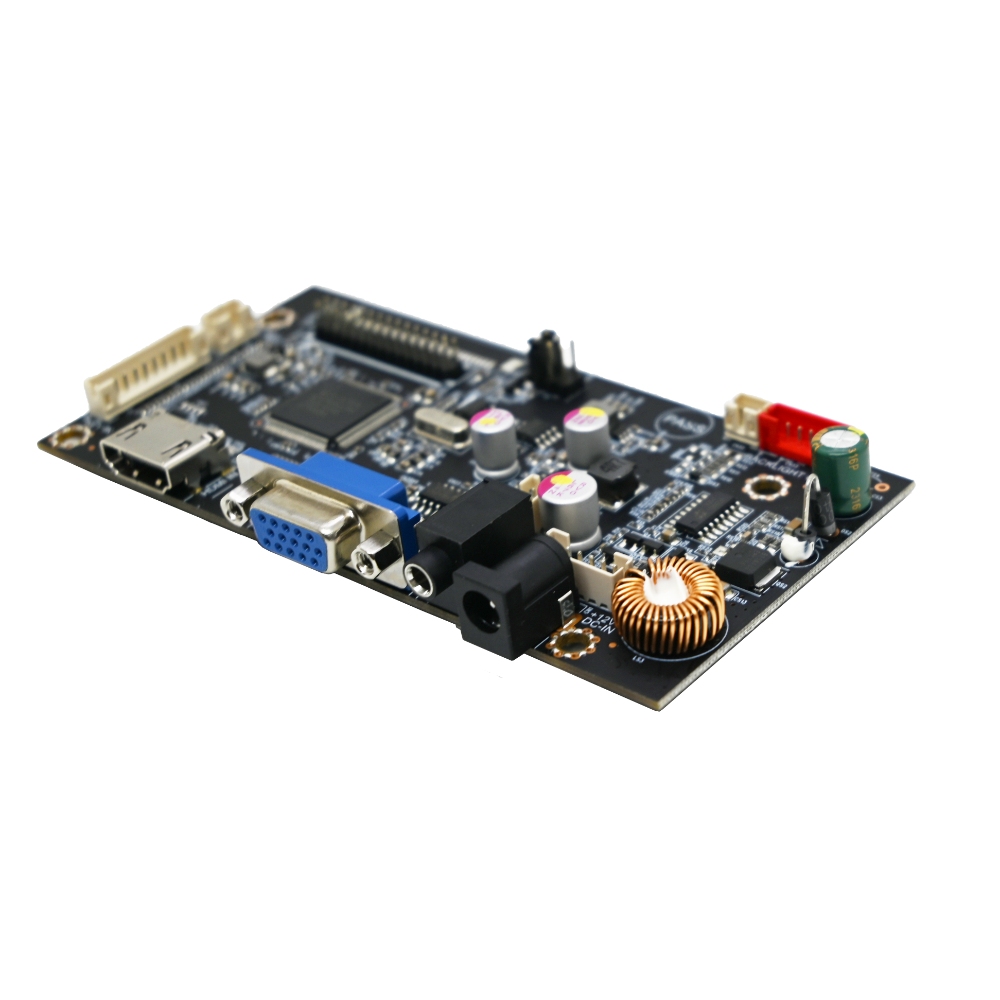

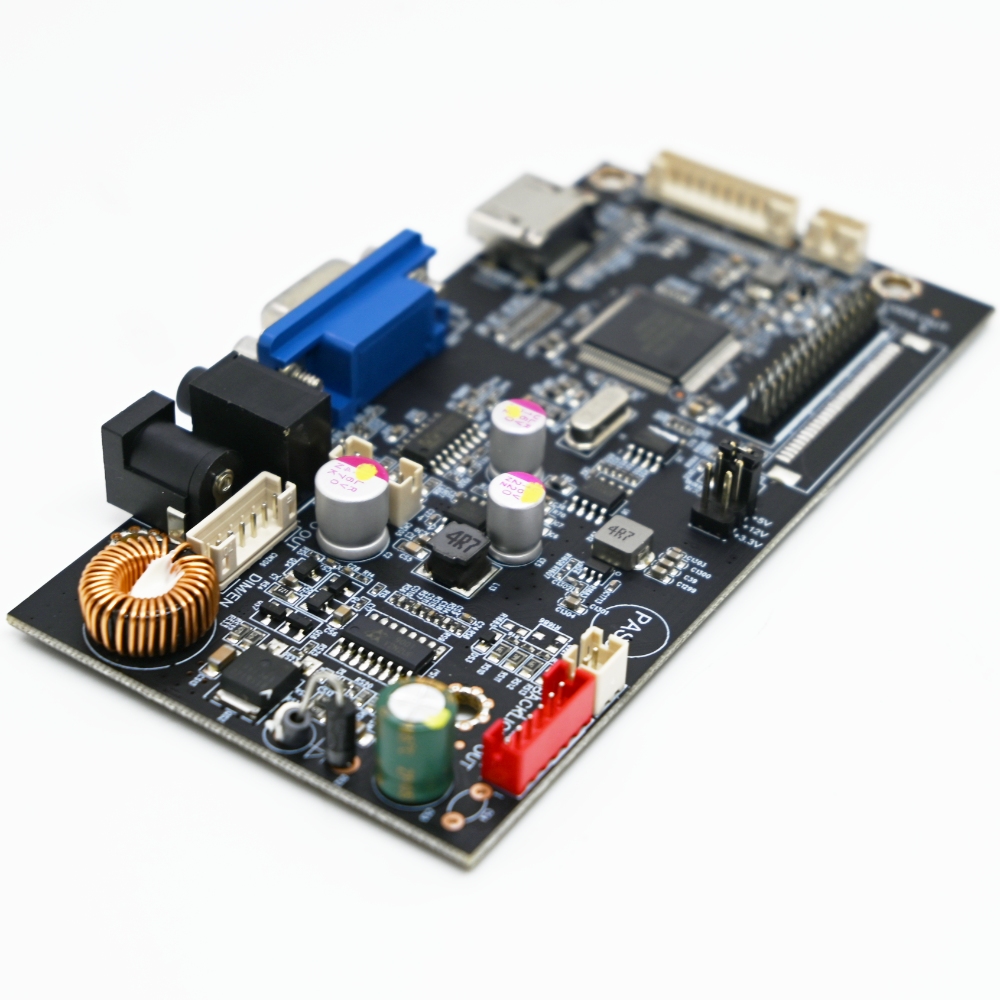

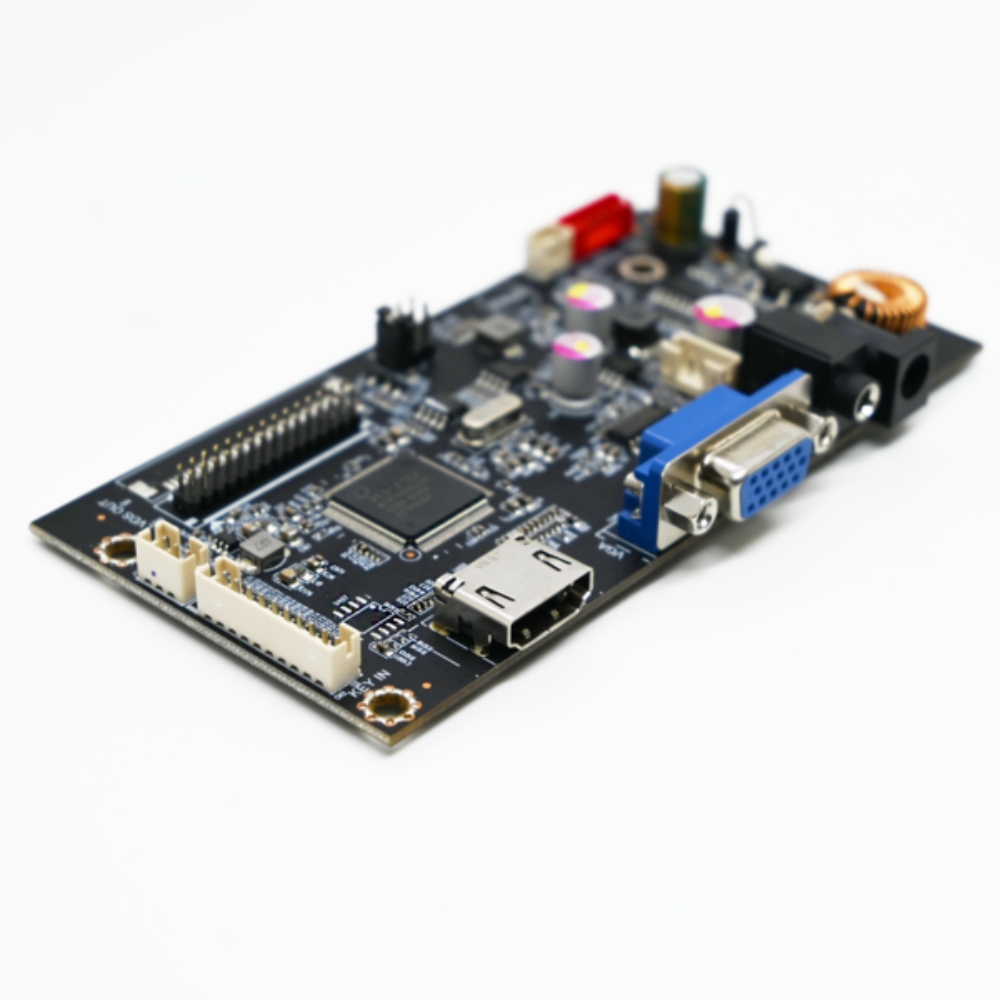

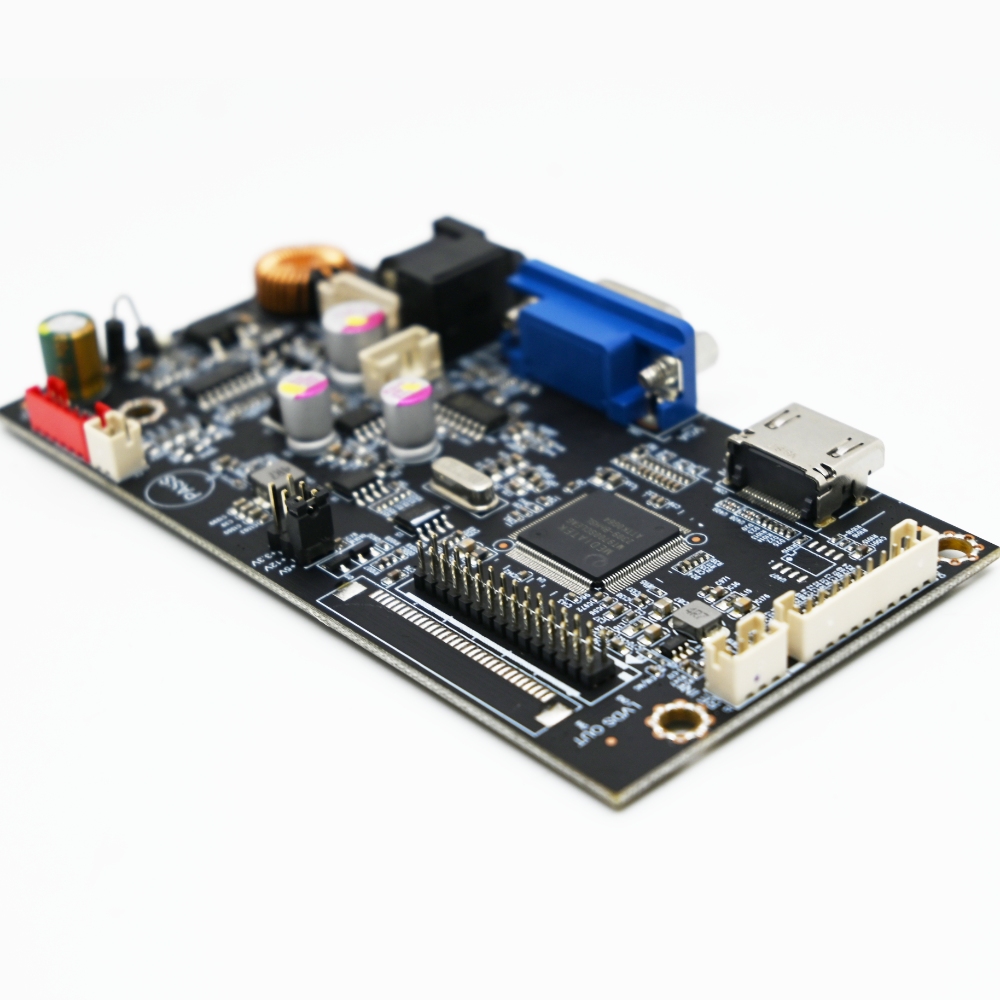

Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage
Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage
Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage
Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage
Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage
Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage

Industrial LCD driver board HDMI+VGA 1920×1200 Wide Temp/High Voltage

Quick info

  • Part number: F58FB
  • Resolution: Max 1920x1080, FHD LCD /LED Display
  • Driver IC: Mstar
  • Touch function size: 226mm * 3
Quote Now
DetailsAdditional Information
  • Part number: F58FB
  • Resolution:  Max 1920×1080, FHD LCD /LED Display
  • Driver IC: Mstar  (system is mature and stable)
  • Power Supply:  DC 12V (Display Voltage 3.3V/5V/12V)
  • Standby power:  >  0.3W
  • Refresh rate: 60-75Hz
  • Color: 32BIT
  • Interface for Display: LVDS
  • Interface for input signal: HDMI /VGA /DC
  • Outline Dimension: 121X61mm
  • Operation Temperature: -20 ～75 ℃
  • Storage Temperature: -20 ～80 ℃

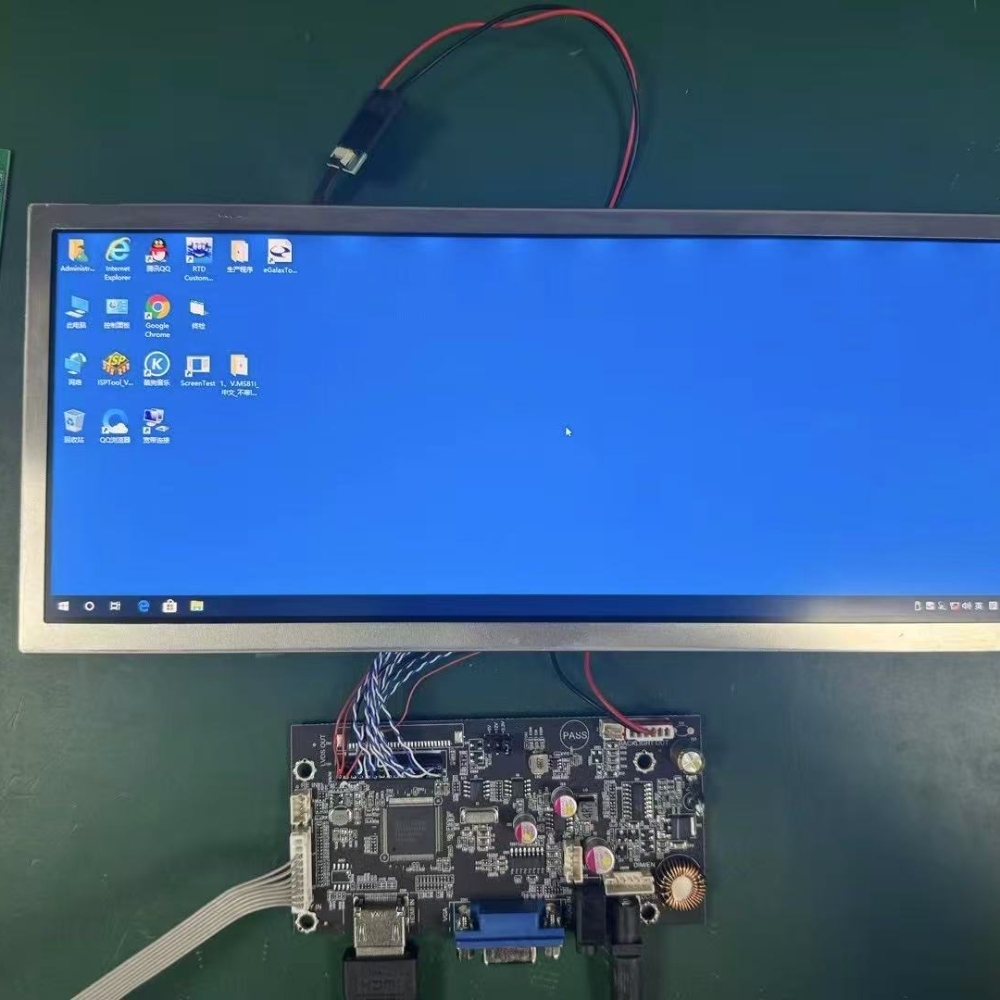

Suitable for TFT-LCD Model: All of LCD module interface is LVDS can be use with match cable.
