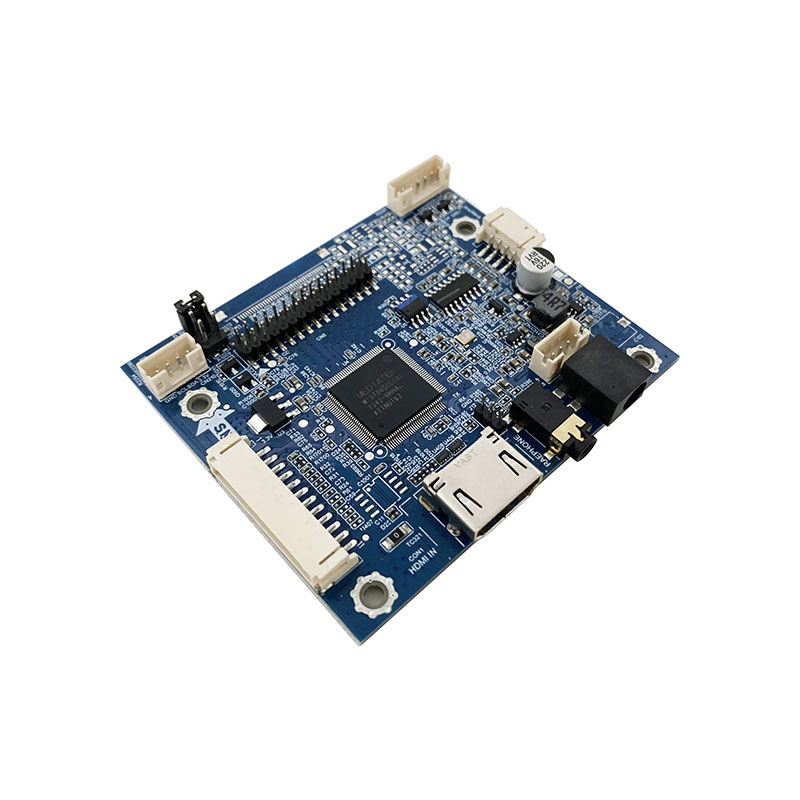

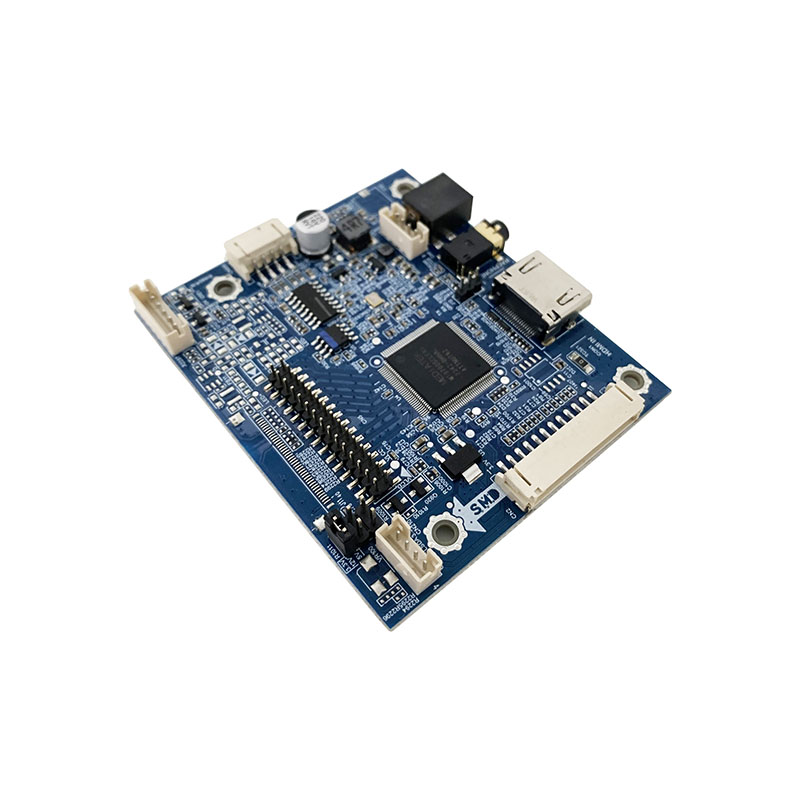

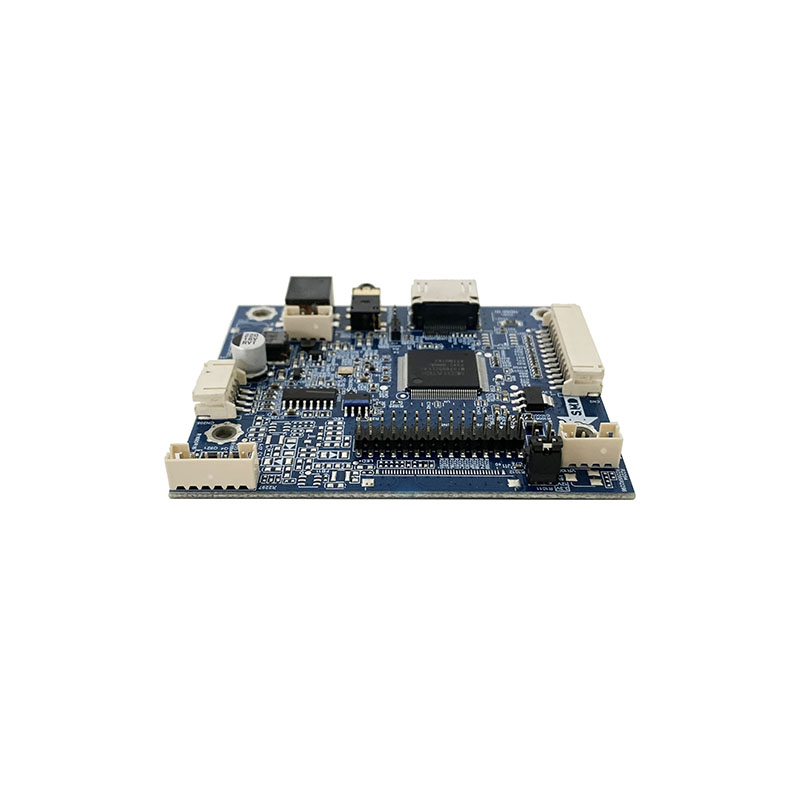

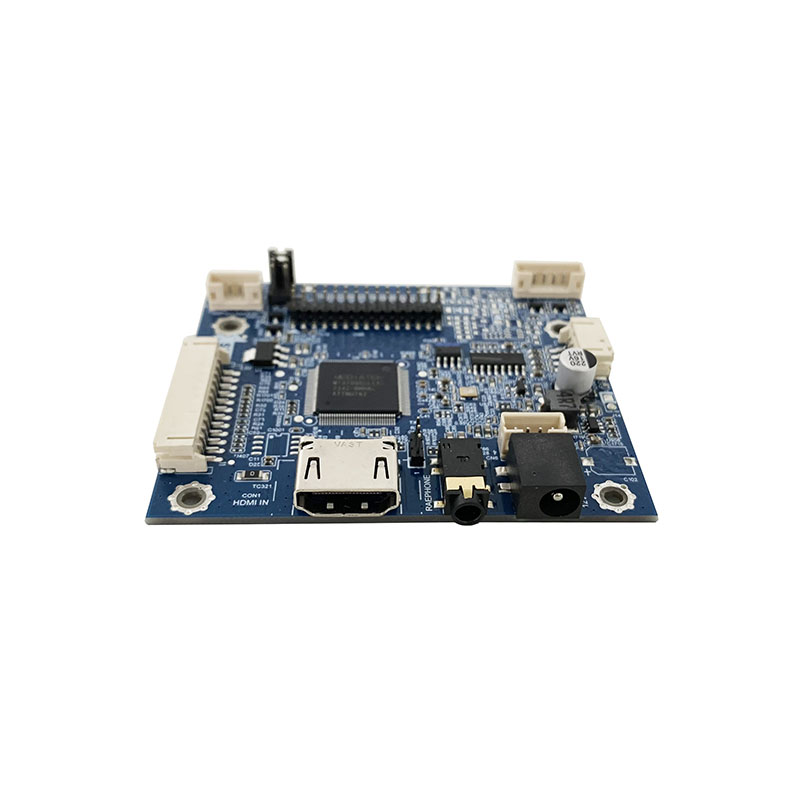

Industrial Wide Temp/High Voltage LCD driver board to HDMI 1920×1080

Part number: FB73

Resolution:  Max 1920×1080, FHD LCD /LED Display

Driver IC: Mstar  (system is mature and stable)

Power Supply:  DC 12V (Display Voltage 3.3V/5V/12V)

Refresh rate: 60Hz

Interface for Display: LVDS

Interface for input signal: HDMI1.4 +4P/2.0 DC input +FFC-40PIN-0.5MM/JAE output

Outline Dimension: 76X70X16mm

Operation Temperature: -20 ～70 ℃

Storage Temperature: -0 ～60 ℃

Suitable for TFT-LCD Model: All of LCD module interface is LVDS can be use with match cable.
