Product Overview

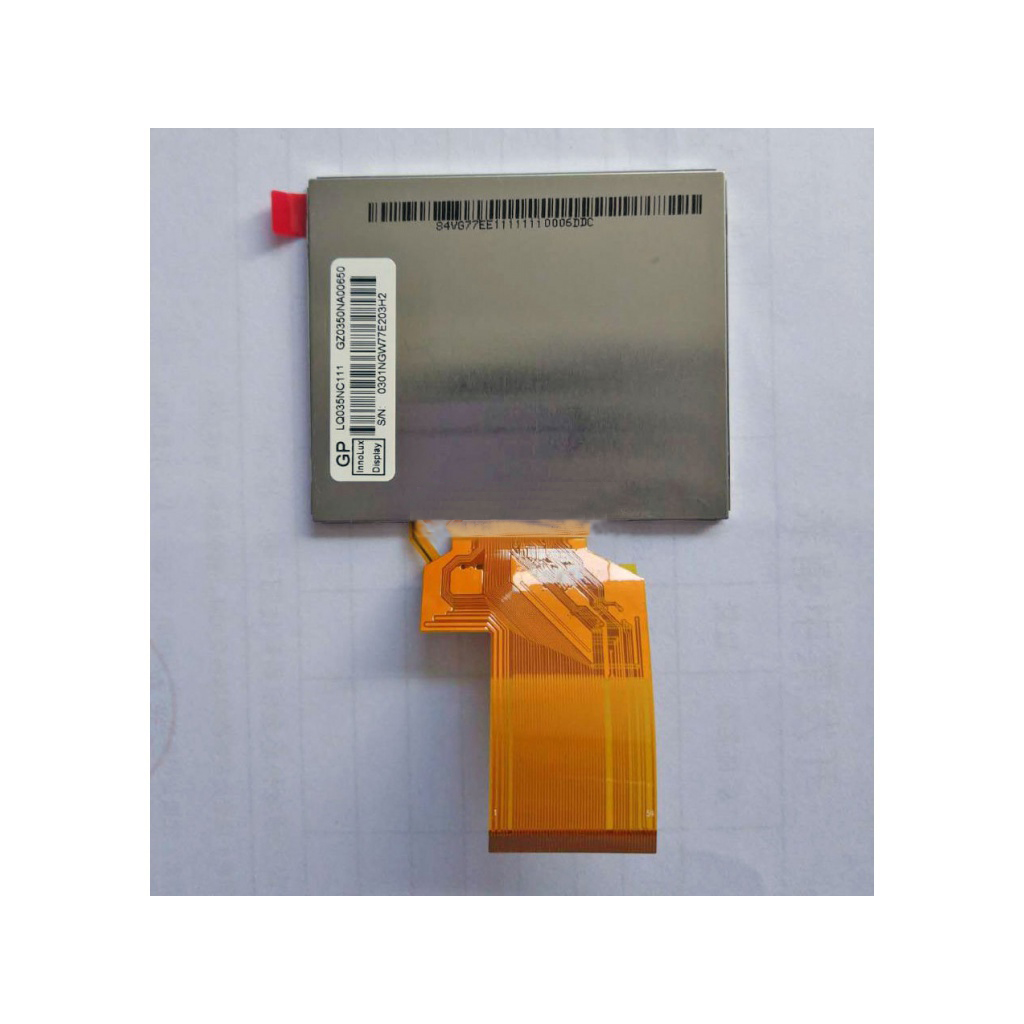

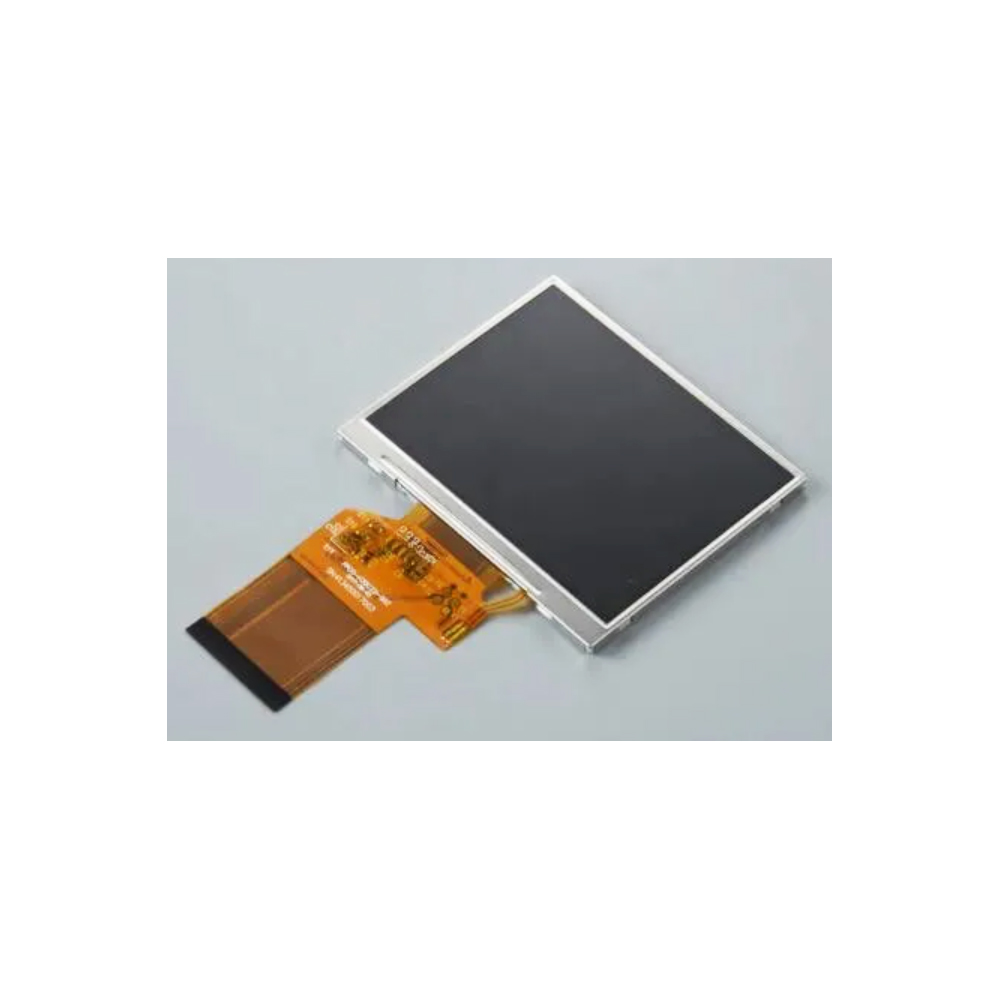

Innolux Corporation manufactures this display panel. It carries the model number LQ035NC111. This unit uses a-Si TFT-LCD technology. Its diagonal measures 3.5 inches.
Backlight and Interface
An integral WLED backlight system powers the screen. However, it does not include a backlight driver. Additionally, it lacks a touch screen.
Environmental Durability
The panel operates from -20 to 70°C. It also withstands storage from -30 to 80°C. Moreover, it endures vibration up to 1.5G. That equals 14.7 m/s².
Key Features and Applications
We summarizes its general features. These include WLED backlight and a matte surface. Therefore, this model suits several portable devices. For instance, it fits handhelds and PDAs. Likewise, it works for portable navigation systems. It also serves digital still cameras. Finally, it supports digital video cameras.
Driver IC and Status
A built-in HX8238-D driver IC controls the display. Mass production began in Q1 2008. Last shipments occurred in Q3 2025. Consequently, this model is now discontinued.
Versatile Integration Options
This portable equipment screen offers flexible connectivity. It supports standard RGB interfaces. Moreover, its compact mechanical outline simplifies installation. You reduce design complexity significantly. The embedded display module also saves valuable development time.
Reliable Supply Chain Solution
Manufacturers value consistent component availability. This automotive-grade LCD meets strict quality standards. It withstands vibration and shock effectively. Additionally, it provides long-term product longevity. You secure your production schedule with this choice.
LQ035NC111
