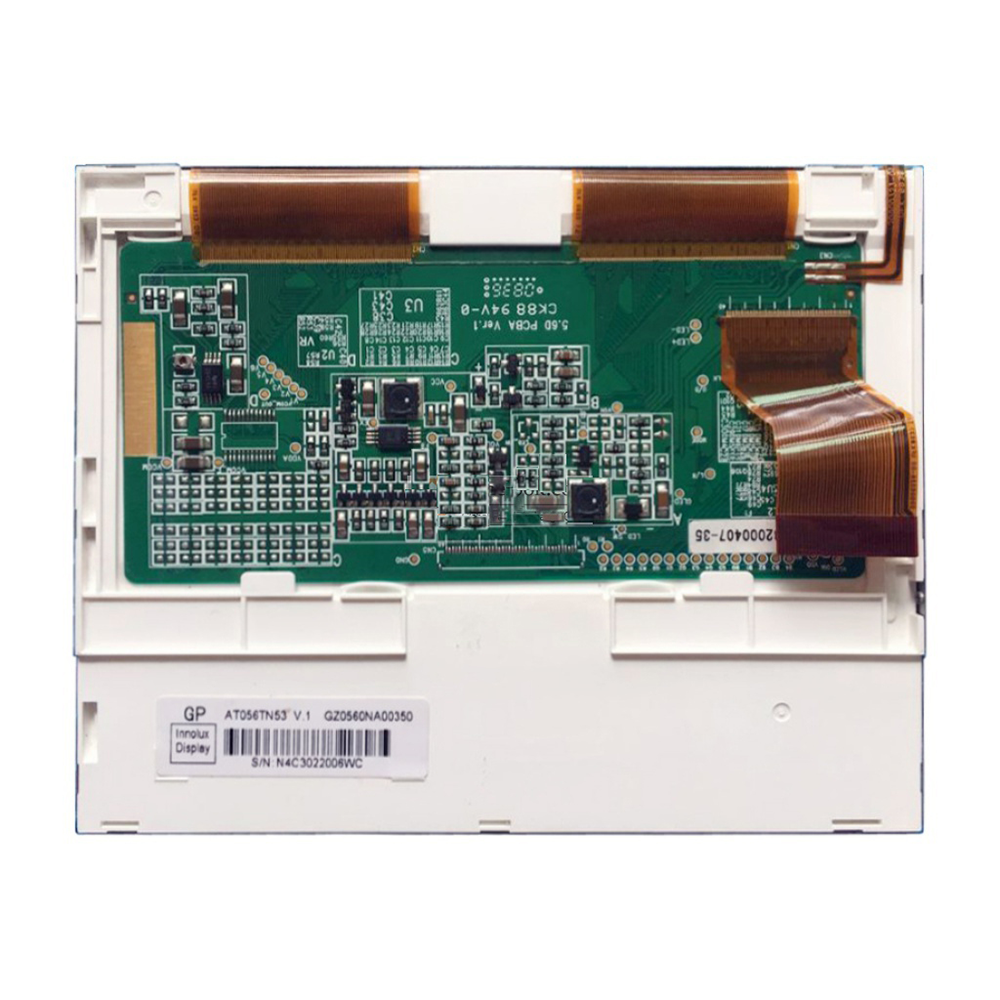

TFT LCD Display AT056TN53 V.1
Brand: INNLOUX
Model Number: AT056TN53 V.1
Resolution: 640 x 480
View angel: 70/70/50/70
Interface: RGB
Brightness: 500nits
Application: Automotive, Industrial, Security, Medical
This high-performance 5.6-inch TFT LCD display AT056TN53 V.1 offers exceptional clarity and reliability. Featuring a 640×RGB×480 high resolution, it delivers sharp and detailed images. The display utilizes an a-Si TFT active matrix and normally white transmissive mode. Furthermore, its surface incorporates anti-glare treatment to minimize reflections. Consequently, readability remains excellent even in bright environments.

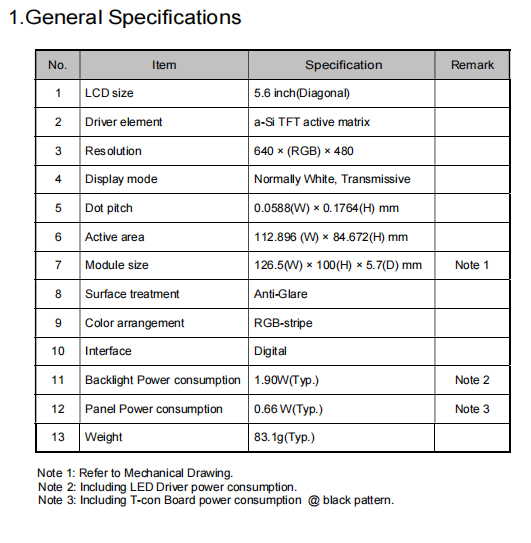

Key Specifications:

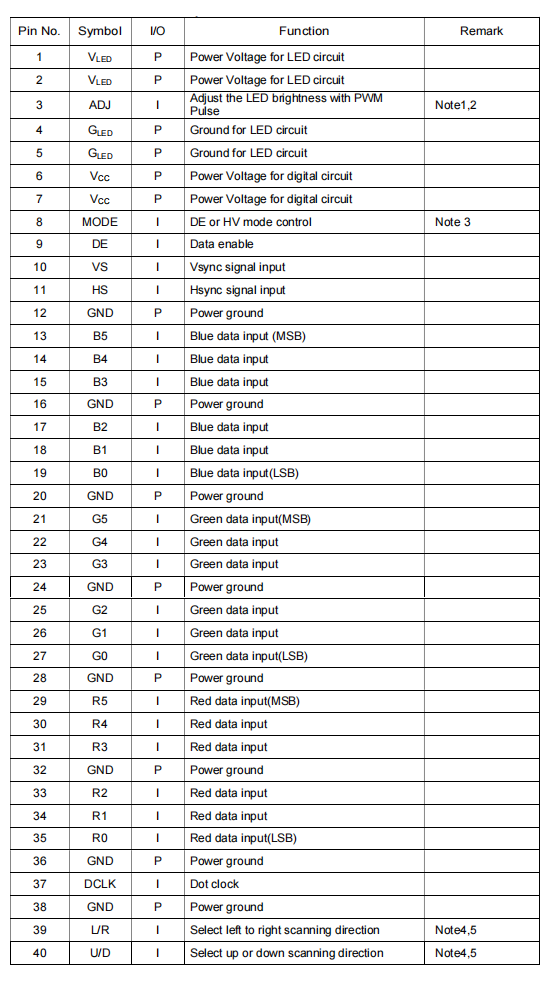

TFT LCD display AT056TN53 V.1 with a 5.6-inch diagonal measurement, this display provides an active viewing area of 112.896mm × 84.672mm. It supports a versatile digital interface and is compatible with both DE and HV synchronization modes. Additionally, the module includes a 40-pin FPC connector (recommended model FH19-40S-0.5SH) for reliable connectivity. Moreover, it features an integrated PWM dimming pin (ADJ), allowing adjustable brightness from 2% to 100% duty cycle within 100Hz–20KHz frequency range. Therefore, users can achieve optimal viewing under various lighting conditions.
Optical Performance:
The display boasts a typical brightness of 500 cd/m² and a contrast ratio of 800:1. Its response times are notably efficient, with Ton at 10ms and Toff at 15ms. Meanwhile, the wide viewing angles—typically 70° left/right and 50° up/down—ensure consistent image quality from different perspectives. Hence, this display performs exceptionally well in multi-viewer applications.
Power & Reliability:
Operating at 3.3V logic voltage and 5.0V backlight voltage, this module maintains low power consumption. Specifically, typical backlight consumption is 1.90W while panel consumption is only 0.66W. Importantly, it undergoes comprehensive reliability testing including thermal shock, vibration, and ESD protection. As a result, it guarantees stable performance even in demanding industrial environments.
Application Versatility:
This display is particularly suitable for industrial control systems and medical monitoring equipment. It also performs excellently in portable instruments and human-machine interfaces. Furthermore, its robust construction makes it ideal for transportation and embedded display applications. In essence, it provides a reliable visual solution across multiple professional fields.
