Brand: INNOLUX
Model Number: AT070TN94

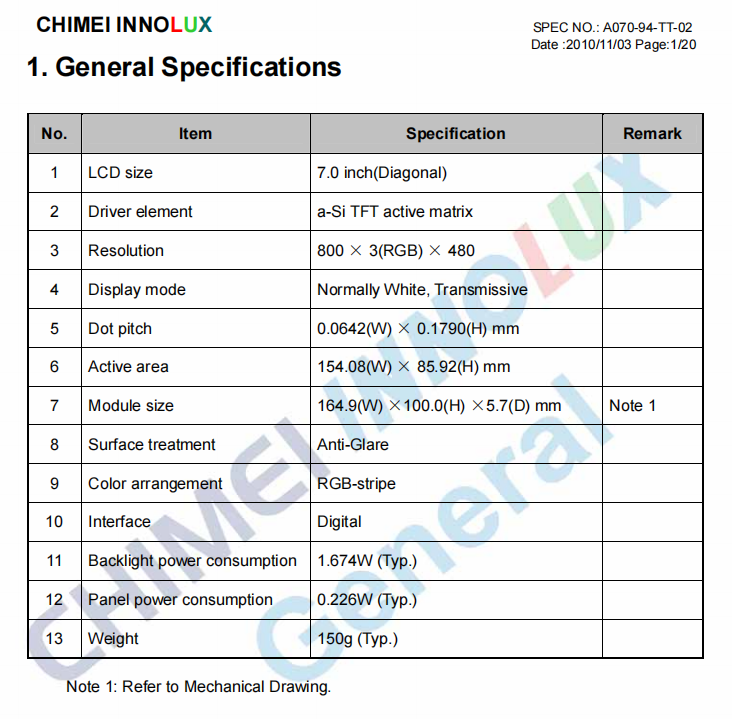

Resolution: 800 x 480
View angel: 70/70/50/70
Interface: RGB
Brightness: 400nits
Application: Automotive, Industrial, Security, Medical
Product Description:

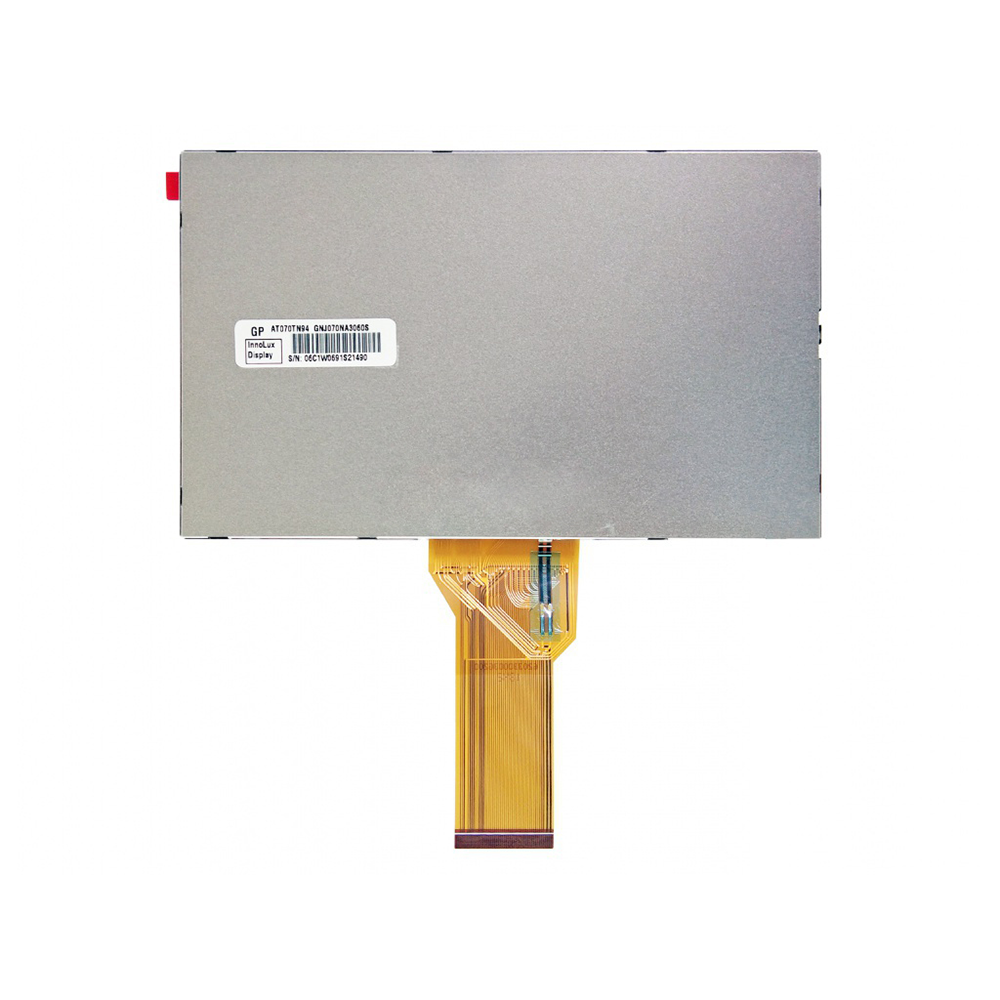

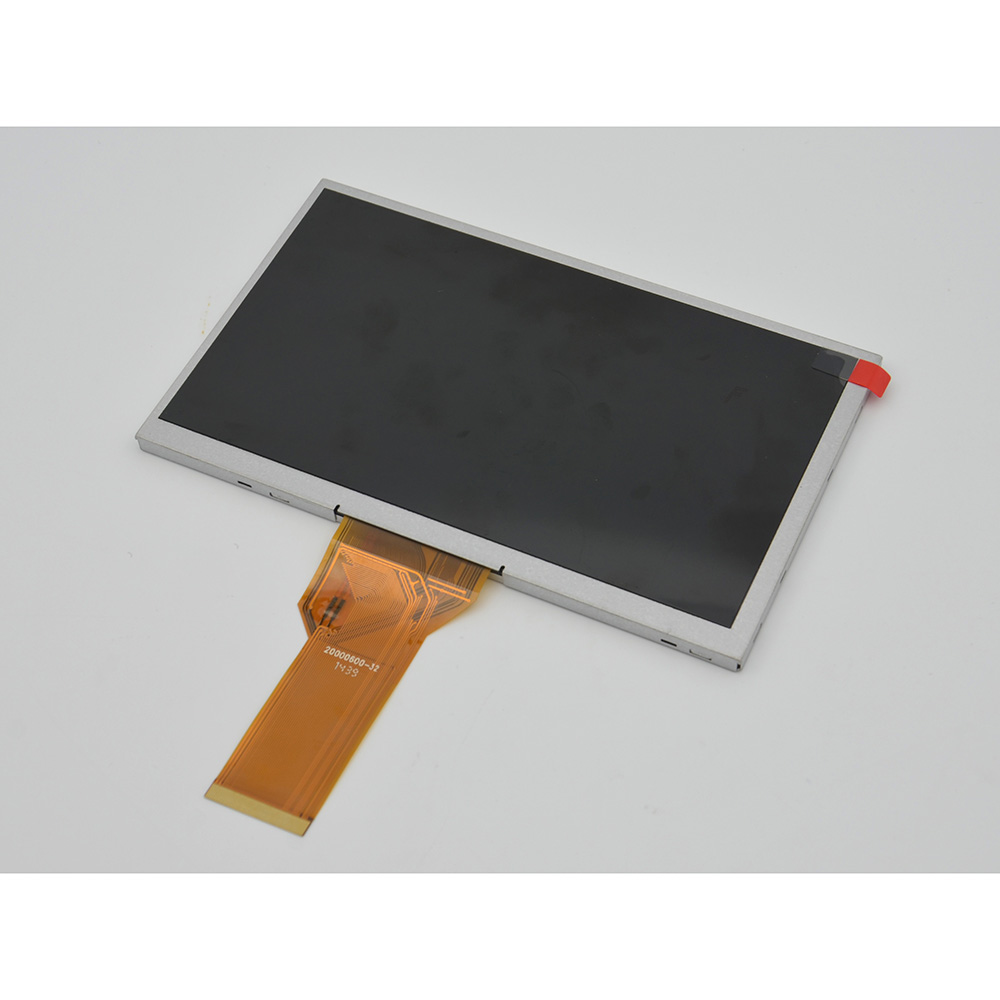

The InnoLux AT070TN94 is a high-performance 7-inch TFT LCD module designed for industrial control systems, embedded applications, medical devices, and consumer electronics. Featuring a-Si TFT active matrix technology and a resolution of 800 × RGB × 480, this digital interface module delivers bright, vivid colors and wide viewing angles, making it an ideal display solution for a variety of demanding applications.
Key Features:
-
High-Resolution Display: 800 × 480 pixels for sharp and clear imagery.
-
Wide Viewing Angles: 70° left/right and 50° up/down, suitable for multi-user viewing.
-
Low Power Consumption: Panel power as low as 0.226W and backlight power of 1.674W for energy-efficient operation.
-
Multiple Scan Modes: Supports configurable scanning directions (up/down, left/right) for flexible installation.
-
Rugged Design: Passes rigorous reliability tests including high/low temperature storage, vibration, and ESD protection, ensuring durability in harsh environments.
-

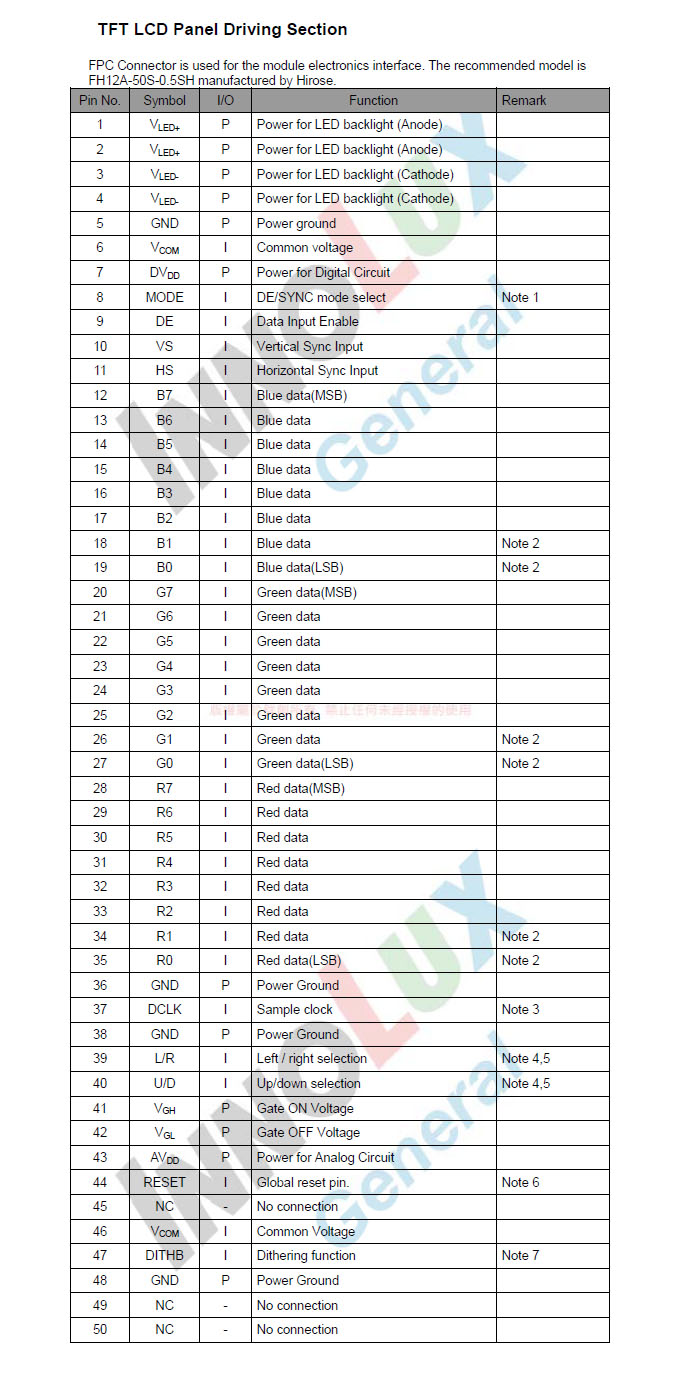

Easy Integration: 50-pin FPC connector supports 18-bit RGB data input and is compatible with both DE and SYNC modes.
Ideal For:
-
Industrial control panels
-
Portable medical equipment
-
Embedded control systems
-
Smart home display terminals
-
Automotive display units
Why Choose the AT070TN94?
The AT070TN94 7-inch TFT LCD module not only offers excellent optical performance but also provides complete power sequencing control, flexible scan mode settings, and multiple drive voltage options—reducing your development time significantly. Its high reliability and long-life backlight design ensure stable operation over extended periods.
If you are looking for a cost-effective 7-inch industrial display, the AT070TN94 is the perfect choice.
