Brand: INNOLUX
Model Number: EJ050NA-01G
Resolution: 800 x 480
View angel: 70/70/50/70
Interface: RGB
Brightness: 350nits
Application: Automotive, Industrial, Security, Medical

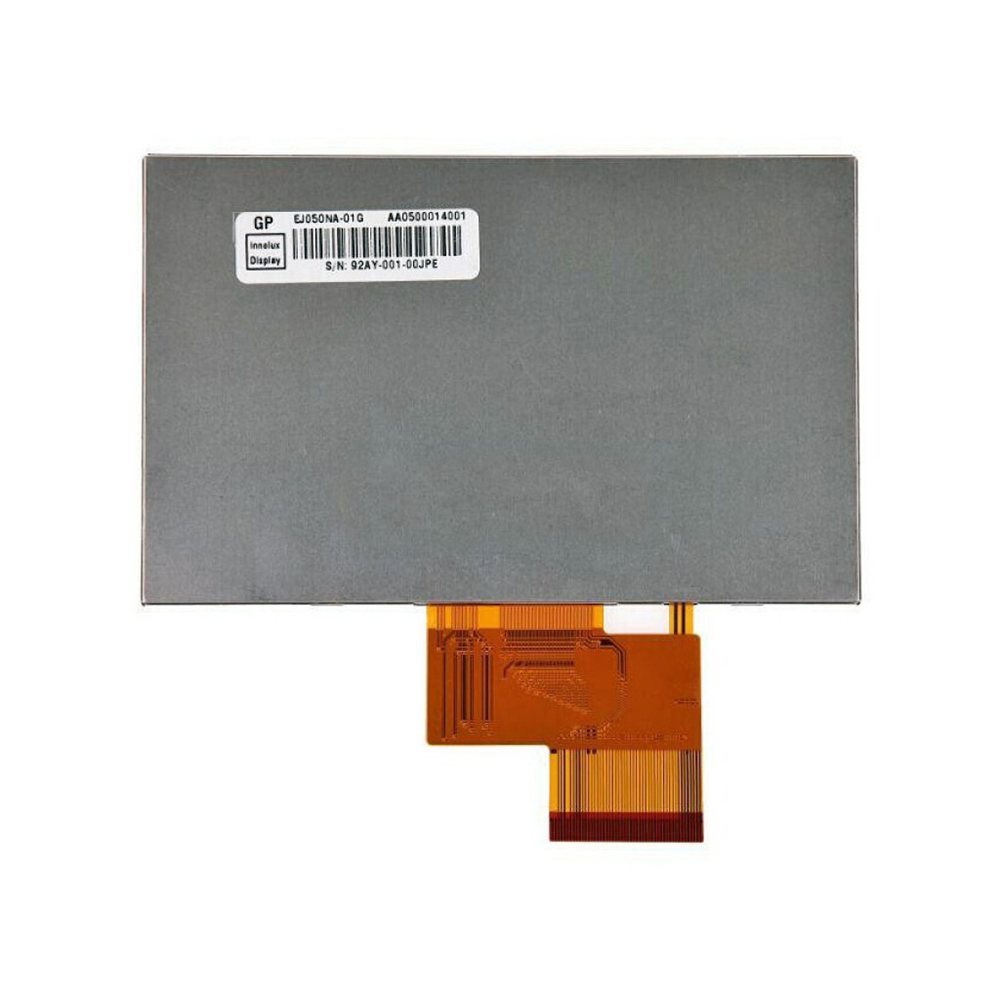

The EJ050NA-01G, developed by Chimei Innolux, is a high-performance 5.0-inch TFT LCD display module designed for industrial control, medical equipment, embedded systems, and smart terminal applications. Utilizing a-Si TFT active matrix technology with a resolution of 800 × 480 pixels and supporting an RGB digital interface, this module delivers exceptional display quality and reliable operation.
Key Features:
-

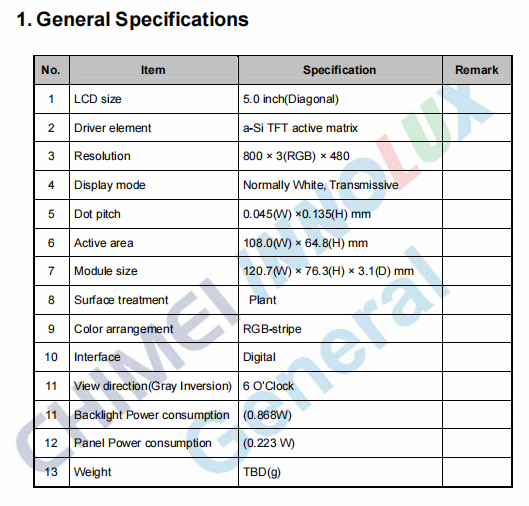

High-Clarity Display: 5.0-inch diagonal display area with a dot pitch of 0.045 × 0.135 mm and an active area of 108.0 × 64.8 mm. Features vivid colors and wide viewing angles (typical 70° horizontal/vertical).
-
Industrial-Grade Reliability: Tested under rigorous environmental conditions including high/low temperature storage (-30°C to 80°C), damp heat cycling, vibration, and mechanical shock—suitable for harsh operating environments.
-
Low Power Design: Panel power consumption as low as 0.223W, backlight power at 0.868W. Supports 3.3V digital and 10.4V analog power supplies for energy-efficient performance.
-

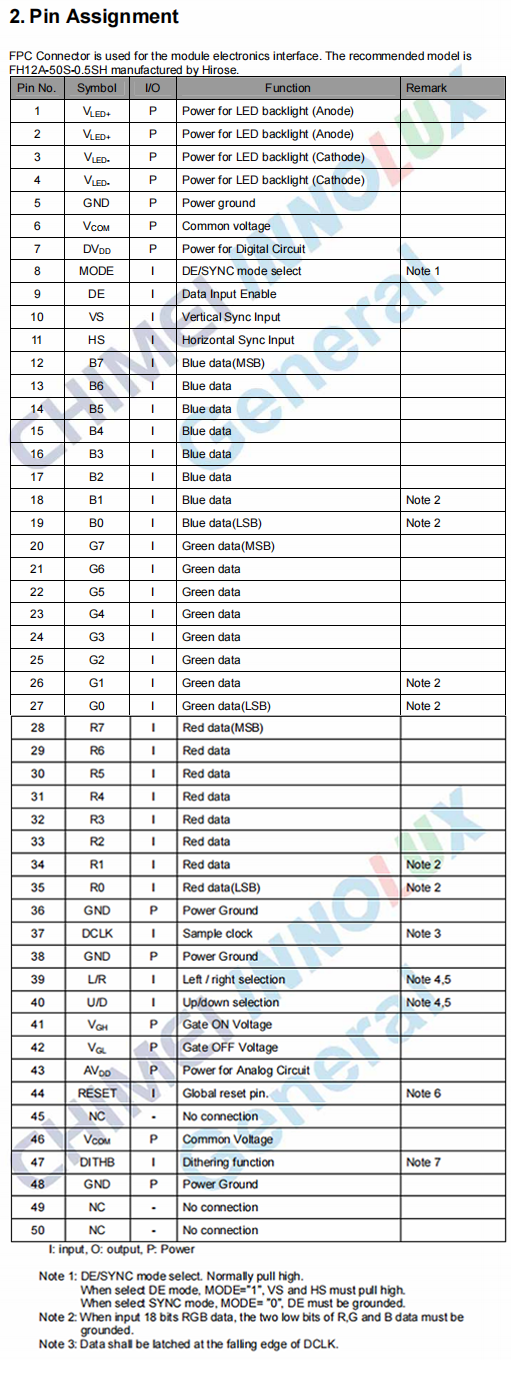

Flexible Interface Configuration: 50-pin FPC connector supports DE/SYNC dual timing modes, with built-in scan direction control and dithering functions for easy system integration.
-
Superior Optical Performance: Typical brightness of 350 cd/m², contrast ratio of 500:1, and fast response times (Ton 10 ms / Toff 15 ms)—ideal for dynamic image display.
Typical Applications:
-
Industrial Human-Machine Interface (HMI)
-
Medical Monitoring Devices
-
Automotive Display Systems
-
Smart Home Control Panels
-
Portable Test Instruments
Why Choose the EJ050NA-01G?
-
Built on mature TFT technology from Innolux, ensuring stable quality and reliability
-
Comprehensive documentation and technical support to accelerate your product development
-
Suitable for demanding environments across multiple industries, with long-term supply assurance
For more information on electrical connections, optical calibration, or bulk purchasing, please feel free to contact us. We offer customized display solutions and full-cycle technical support.
