- Part number: RTD2513V1.0

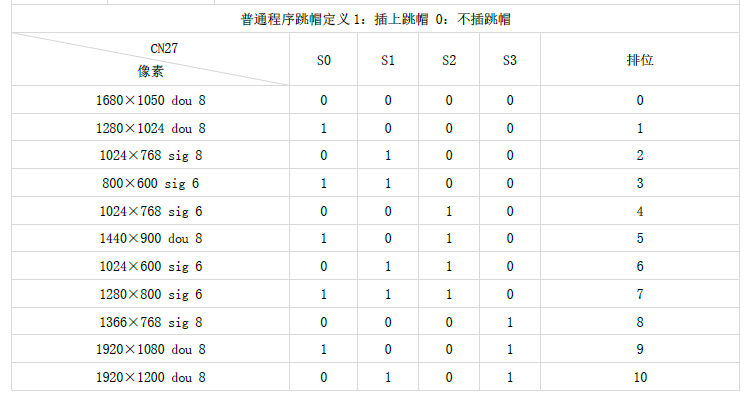

- Resolution: Min 800x600~Max 1920x1200, FHD LCD
- LCD Size: 8” ～65” (only LVDS)
- Driver IC: RTD2513A-CG
- Power Supply: DC 12V (Display Voltage 3.3V/5V/12V)
- Standby power: > 0.25W
- Refresh rate: 60Hz
- Color: 32BIT
- Interface for Display: LVDS

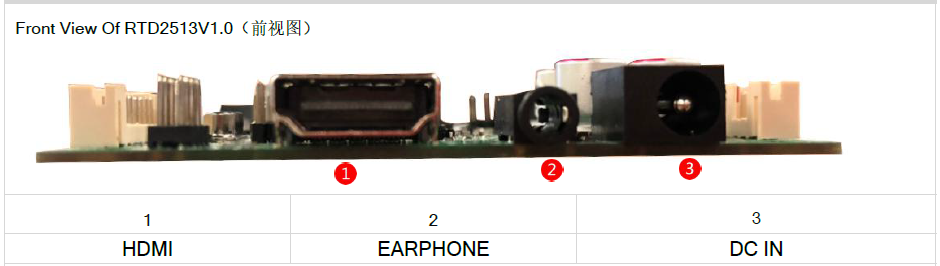

- Interface for input signal: HDMI /DC/Earphone

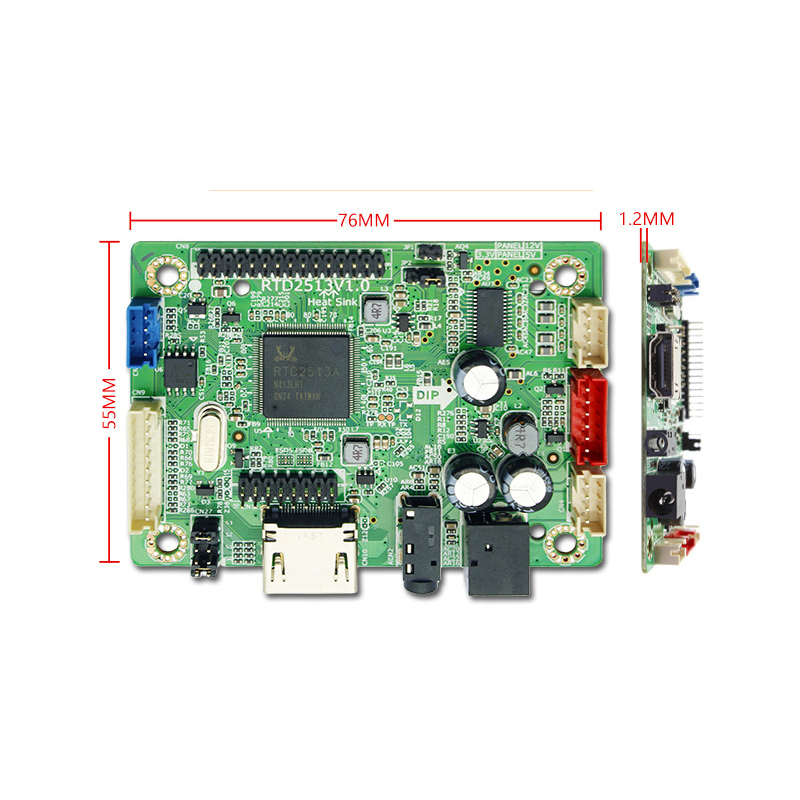

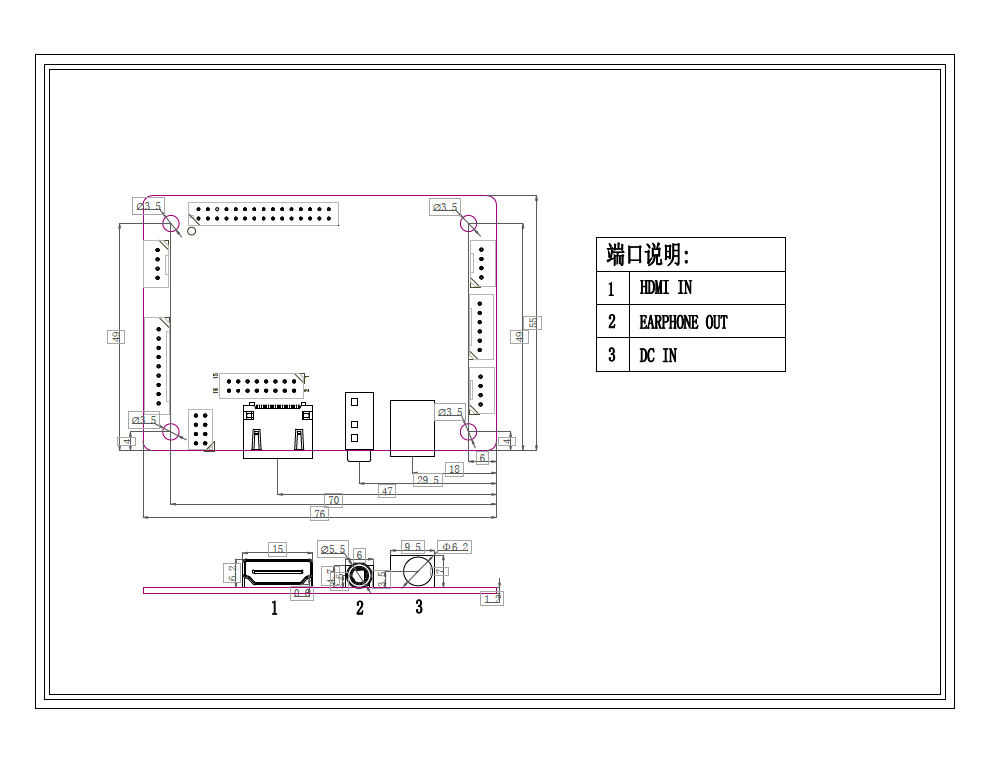

- Outline Dimension: 76X55mM
- OSD Language: English, Chinese, French, Spanish, Russian, German, Italian, Korea
- Operation Temperature: -30 ～80 ℃
- Storage Temperature: -10 ～60 ℃
Suitable for TFT-LCD Model: All of LCD module interface is LVDS can be use with match cable.
