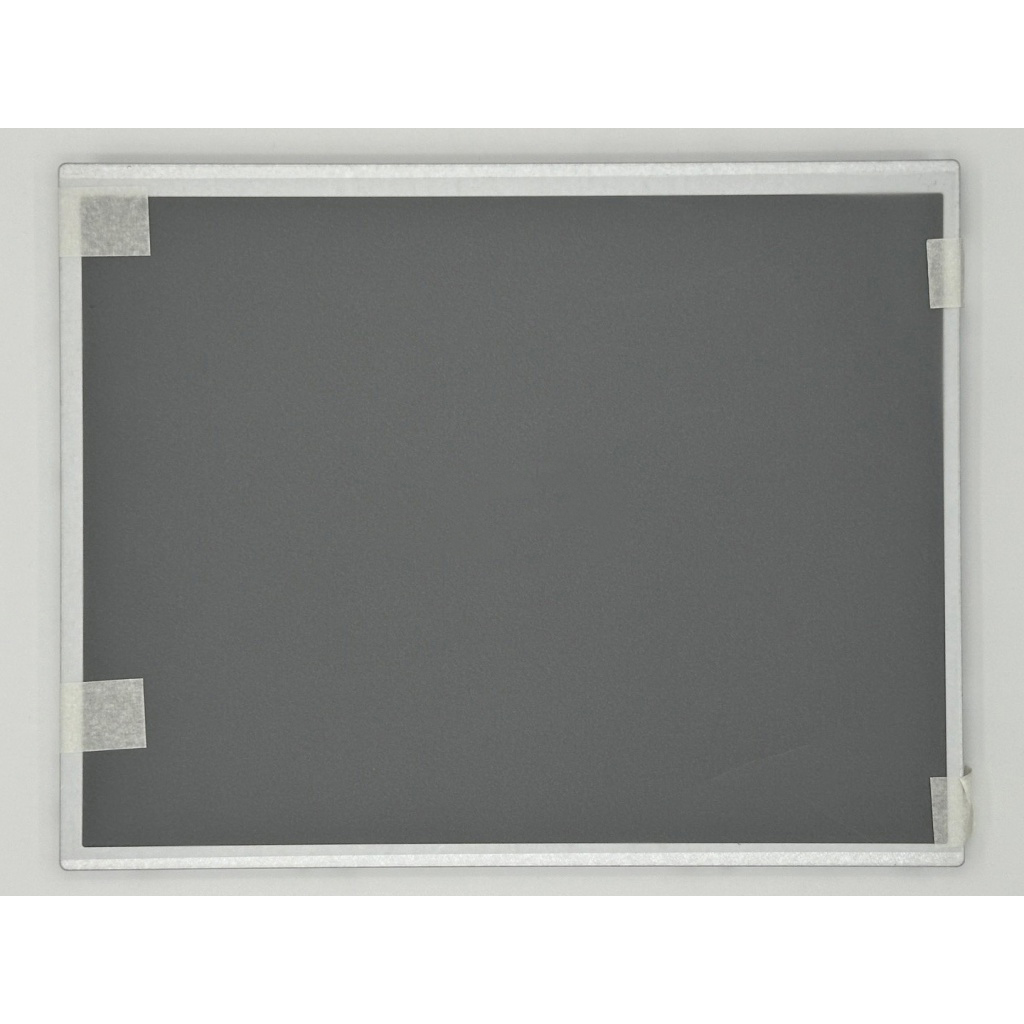

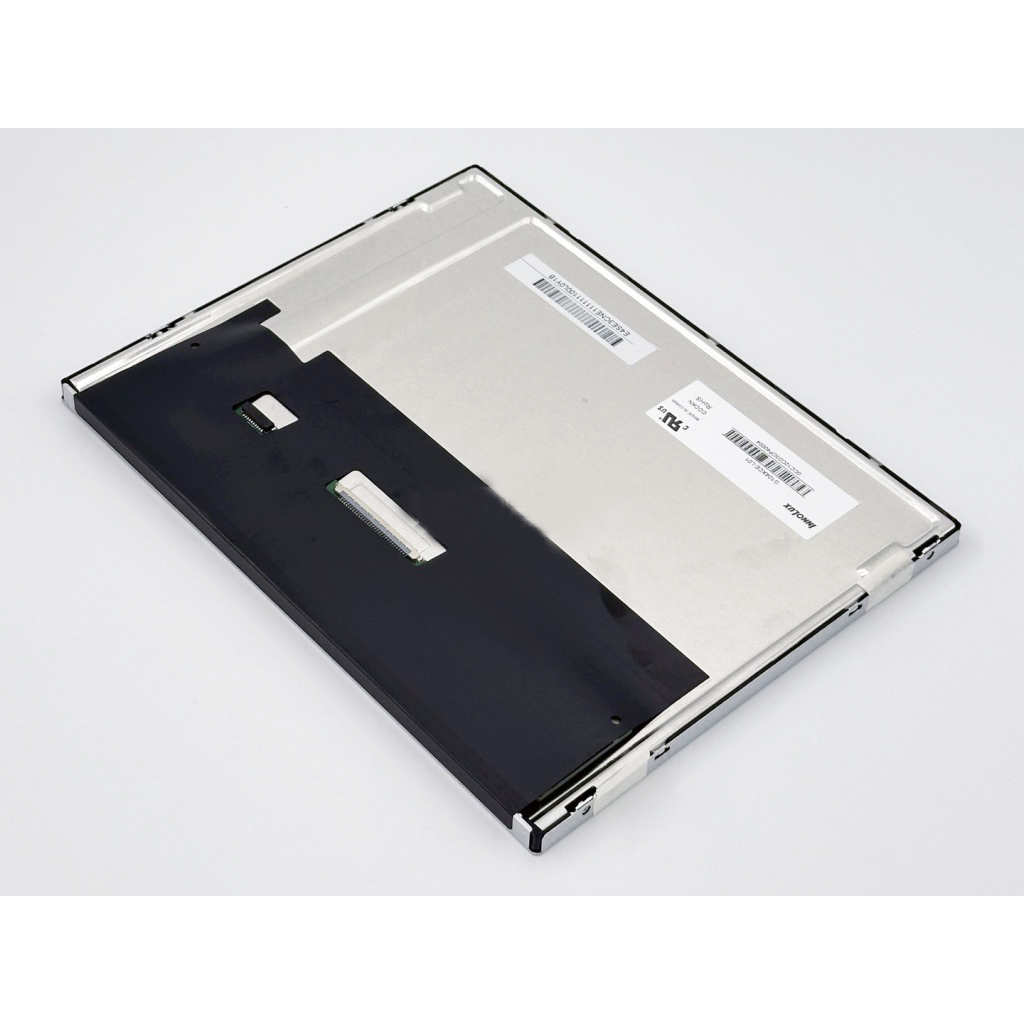

Innolux G104XCE-L01 Industrial LCD Module 1024×768 LVDS

The Innolux G104XCE-L01 is a robust 10.4-inch TFT LCD display module engineered for critical applications. It delivers high-performance visuals and reliable operation for industrial control systems, medical equipment, automotive displays, and embedded solutions.

Featuring a-Si TFT active matrix technology and a sharp 1024 × 768 (XGA) resolution, this module ensures exceptional image quality. Furthermore, its standard LVDS interface guarantees stable signal transmission and easy integration.

Key Features & Benefits

• High-Clarity Display: Offers a 10.4-inch active area (210.4 × 157.8 mm) with wide viewing angles (88°/88°/88°/88°). As a result, content remains vivid and clear from almost any direction.

• Industrial-Grade Reliability: Built to withstand harsh conditions. It is rigorously tested for temperature extremes (-30°C to 85°C), damp heat, vibration, and shock. Therefore, you can trust it for mission-critical environments.

• Low Power Consumption: Designed for efficiency, with typical panel power at just 5.0W and backlight power at 6.0W. This makes it ideal for power-sensitive applications.

• Easy System Integration: Comes with a 30-pin FPC connector supporting dual timing modes (DE/SYNC). Additionally, built-in scan direction control and dithering functions simplify the design-in process.

• Superior Optical Performance: Provides a bright 500 cd/m² display, a high 1000:1 contrast ratio, and a fast 25ms response time. Consequently, it excels at displaying both static data and dynamic graphics.

Typical Applications

This versatile module is perfect for:

• Industrial HMI (Human-Machine Interface) Panels

• Medical Monitoring and Diagnostic Devices

• Automotive Dashboard and Center Console Displays

• Smart Home Control Panels

• Portable Test and Measurement Instruments

Why Choose the G104XCE-L01?

• Proven Quality: Leverages Innolux’s mature TFT manufacturing technology for consistent performance and long-term reliability.

• Faster Time-to-Market: Supported by comprehensive documentation and expert technical support to accelerate your development cycle.

• Cross-Industry Solution: A trusted display for demanding applications across multiple sectors, backed by stable long-term supply.

Need detailed specifications, optical calibration data, or a volume quote?
Contact us today for customized display solutions and complete lifecycle technical suppor
