Brand: Tianma
Model Number: TM121TDSG02
Resolution: 1024X768
View angel: 80/80/80/80
Interface: LVDS
Brightness: 450nits
Application: Industrial, Medical, instrument

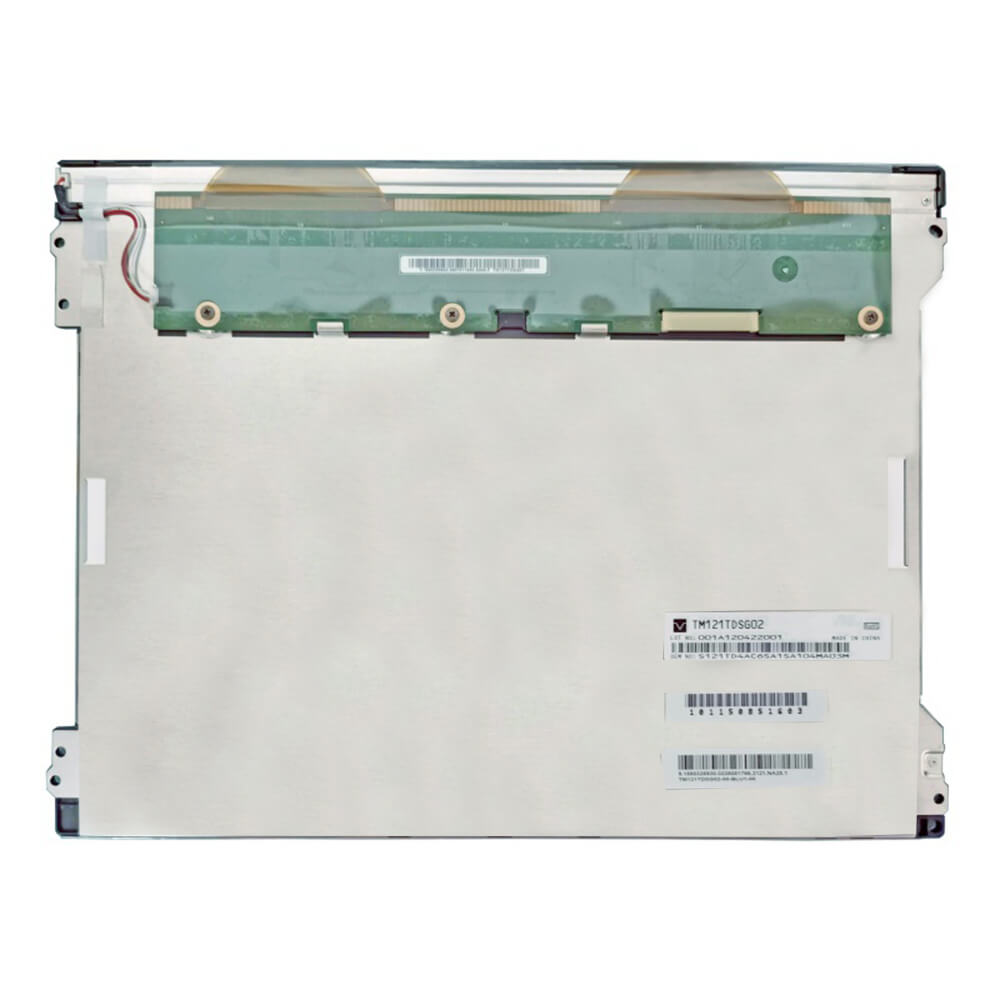

Introducing the Tianma TM121TDSG02-70
The original Tianma TM121TDSG02-70 LCD display module is a high-performance 12.1-inch TFT screen. It is engineered for demanding environments such as industrial, medical, and instrumentation systems. Moreover, with its 1024×768 resolution and 450 nits brightness, it delivers sharp and clear visuals. Furthermore, its wide operating temperature range (-20°C to 70°C) ensures reliable performance under tough conditions.

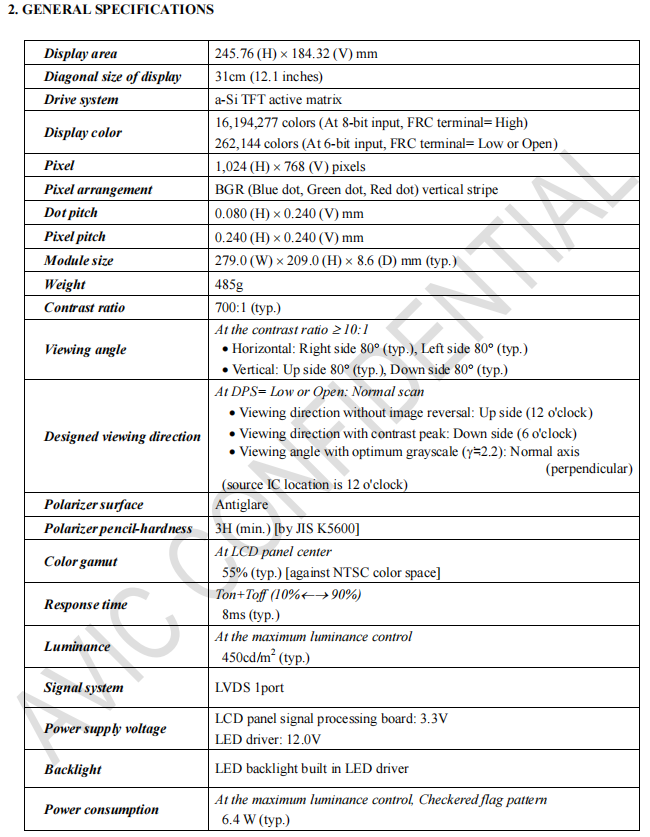

Key Product Specifications
This original LCD module features an LVDS interface and a long-life WLED backlight. Key specifications include:
-
Resolution: 1024×768
-
Brightness: 450 nits
-

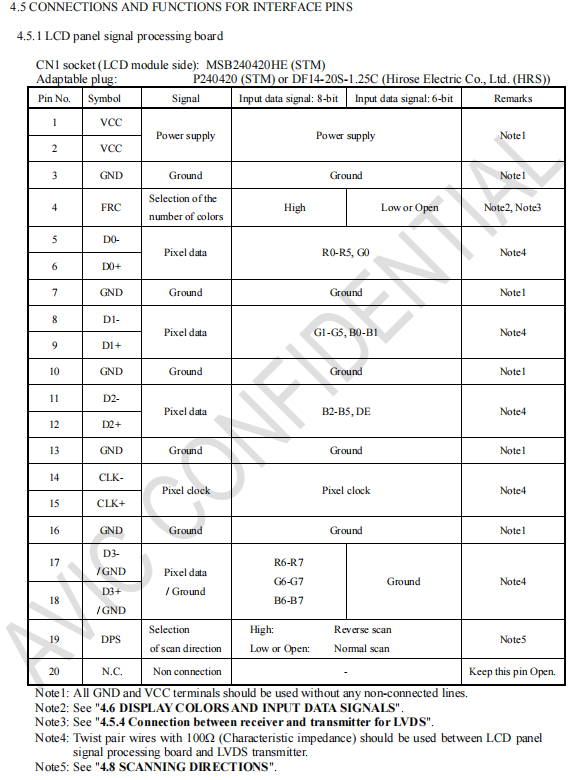

Interface: LVDS (1 ch, 6/8-bit)
-
Viewing Angle: 80/80/80/80
-
Operating Temperature: -20°C to 70°C
-
Backlight Life: >50,000 hours
-
Surface Treatment: Matte hard coating (3H)
Superior Design and Construction
As an original brand module, it integrates several core components. These include the LCD glass panel, original driver ICs, a matched WLED backlight unit, and a sturdy metal frame. Consequently, every part is calibrated and tested together. As a result, the module ensures perfect compatibility and optimal performance.
Benefits of Choosing an Original Module
Selecting an original Tianma display module provides clear advantages. Firstly, it guarantees certified quality and performance. Secondly, it ensures perfect compatibility between the driver and panel. Additionally, it offers extended reliability for long-term use. Finally, it comes with direct manufacturer warranty and support.
Original Module vs. Other Options
It is important to distinguish an original module from alternatives. For example, bare glass panels lack essential components. Similarly, refurbished modules often use non-original parts. Therefore, their performance can be unpredictable. In contrast, an original brand module provides assured quality and consistency.
Ideal Applications
This original display module is suitable for various uses. Common applications include:
-
Industrial control systems
-
Medical monitoring devices
-
Test and measurement instruments
-
Automotive and aviation dashboards
-
Professional HMIs and kiosks
