| Brand | Tianma |
| Model Number | TM070JDHG30-00 |
| Display Size | 7.0 inch |
| Display Technology | a-Si TFT-LCD |
| Resolution | 1280 × 800 WXGA |
| Pixel Density | 217 PPI |
| Brightness | 400 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angle | 88/88/88/88° (Typical) |
| Display Colors | 16.7M |
| Interface | LVDS |
| Backlight | WLED |
| Active Area | 149.76 × 93.60 mm |
| Module Size | Approx. 161 × 107 mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Applications | Industrial Control, HMI, Medical Equipment, Automation Systems, Monitoring Devices, Embedded Systems |

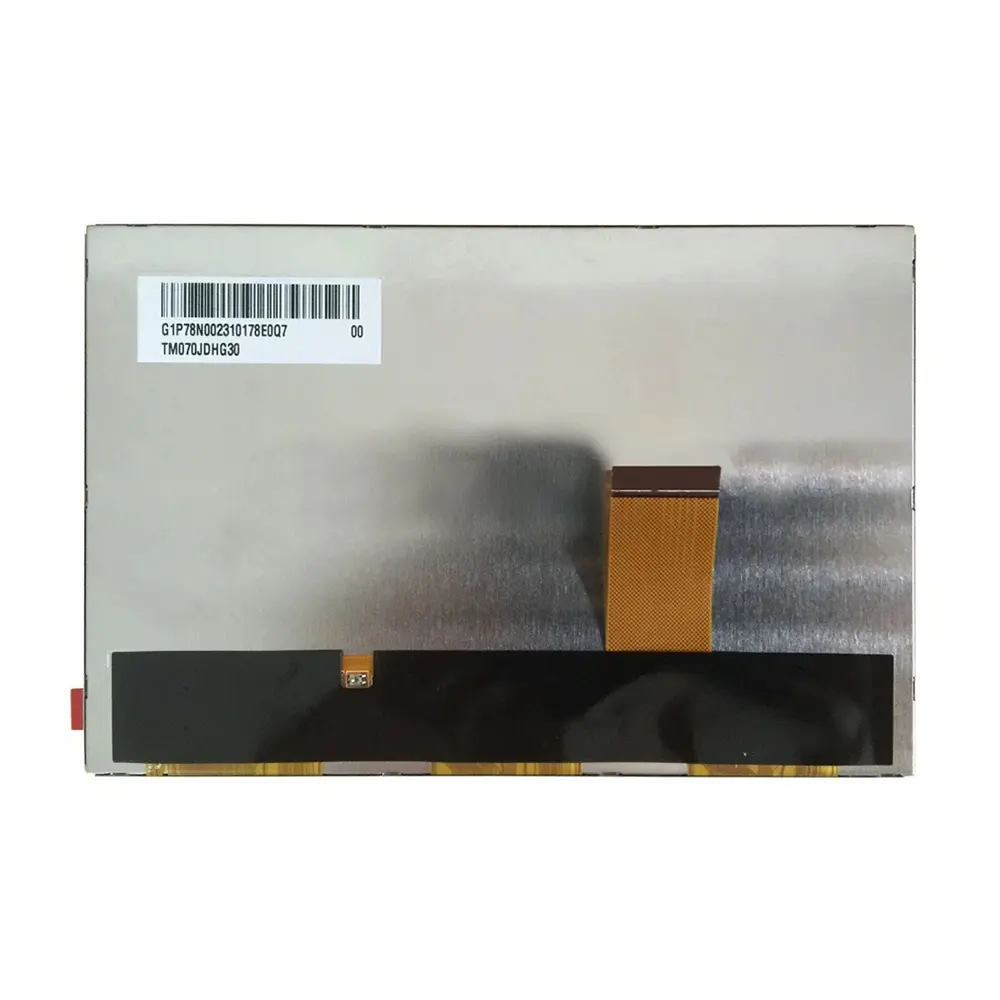

The TM070JDHG30-00 is a high-quality 7.0-inch industrial TFT LCD display module manufactured by Tianma, designed for industrial equipment, medical devices, embedded systems, control terminals, and other professional display applications. Featuring a 1280 × 800 WXGA resolution, this Tianma LCD panel delivers sharp images, clear text, and detailed graphical content, making it an excellent choice for applications that require a compact display with high visual clarity.
Built with a-Si TFT-LCD technology, the TM070JDHG30-00 provides a typical brightness of 400 cd/m² and a typical contrast ratio of 800:1. Its 7-inch screen supports 16.7 million colors, helping deliver natural color reproduction and a comfortable viewing experience for graphical user interfaces, industrial control information, monitoring data, and multimedia content.
One of the key advantages of the Tianma TM070JDHG30-00 LCD display is its wide viewing capability. With typical viewing angles of up to 88° from the left, right, top, and bottom, screen content remains clear and readable from different viewing positions. This feature is particularly useful for industrial HMI systems and equipment where operators may need to view the screen from different angles.
The TM070JDHG30-00 uses an LVDS interface for stable signal transmission and easy integration into compatible embedded and industrial display systems. The module incorporates a WLED backlight, providing consistent illumination while supporting the reliability requirements of professional display applications. Its active display area measures approximately 149.76 × 93.60 mm, while the module outline is approximately 161 × 107 mm, allowing it to be integrated into compact equipment designs.
Designed for demanding operating environments, the TM070JDHG30-00 industrial LCD panel supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. This makes the display suitable for applications where wider temperature tolerance and dependable operation are important.
Key Features
- Brand:Tianma
- Model:TM070JDHG30-00
- Display Size:0 inch
- Display Technology:a-Si TFT-LCD
- Resolution:1280 × 800 WXGA
- Pixel Density:217 PPI
- Brightness:400 cd/m² (Typical)
- Contrast Ratio:800:1 (Typical)
- Viewing Angle:88/88/88/88° (Typical)
- Display Colors:7M
- Interface:LVDS
- Backlight:WLED
- Active Area:76 × 93.60 mm
- Operating Temperature:-20°C to +70°C
- Storage Temperature:-30°C to +80°C
Applications
The Tianma TM070JDHG30-00 7-inch TFT LCD module is suitable for a wide range of professional applications, including industrial control equipment, HMI terminals, medical equipment, automation systems, monitoring devices, communication terminals, testing instruments, embedded computers, and other industrial electronic products.
For customers looking for a reliable TM070JDHG30-00 supplier, replacement LCD panel, or display solution for an existing industrial project, this 7-inch Tianma TFT LCD offers an excellent combination of high resolution, wide viewing angles, industrial temperature performance, and compact dimensions.
Contact us for TM070JDHG30-00 price, availability, datasheet, technical support, compatible touch panel solutions, or bulk order quotations.
