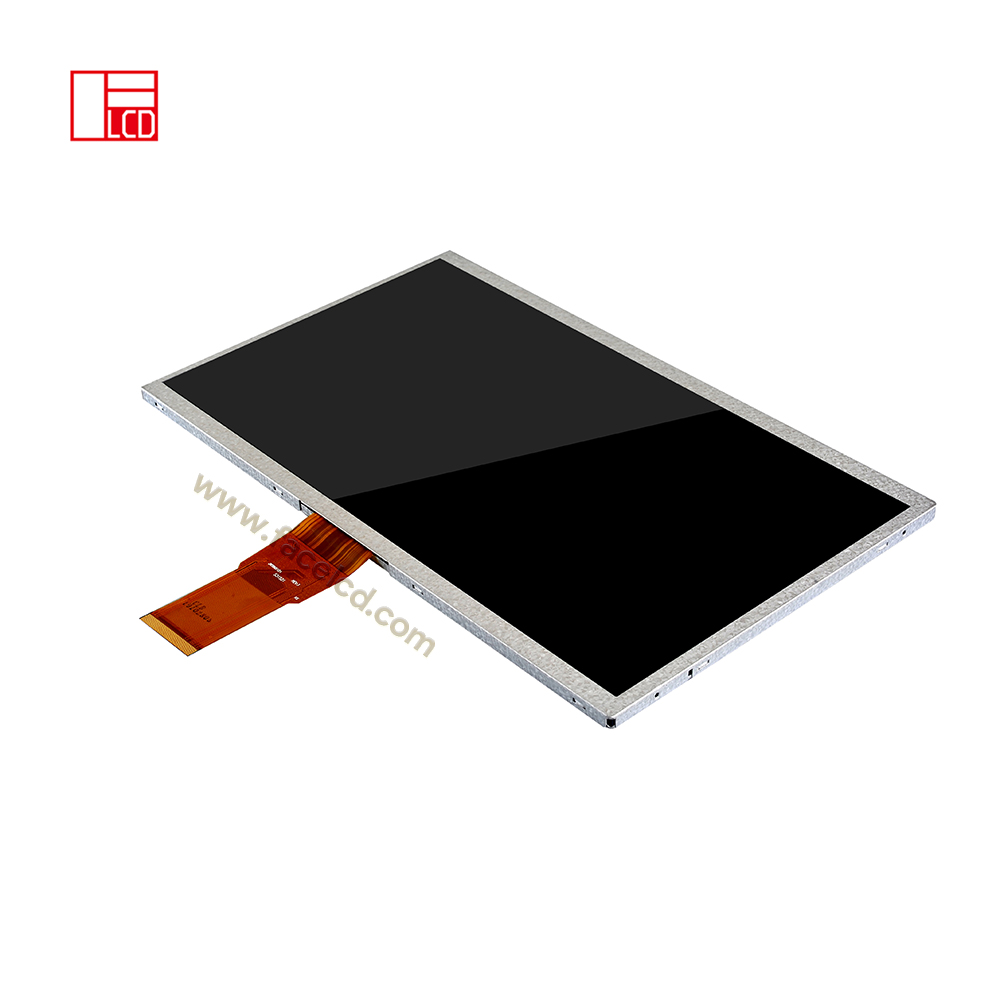

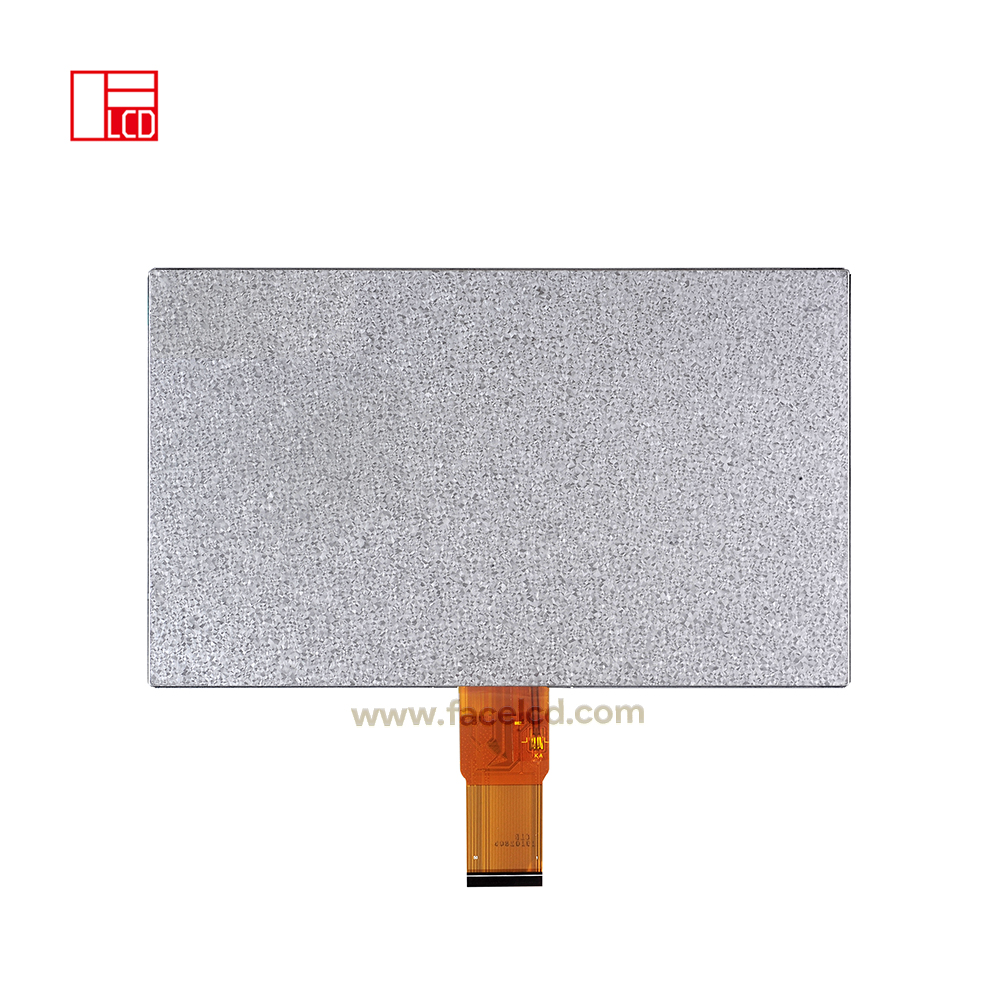

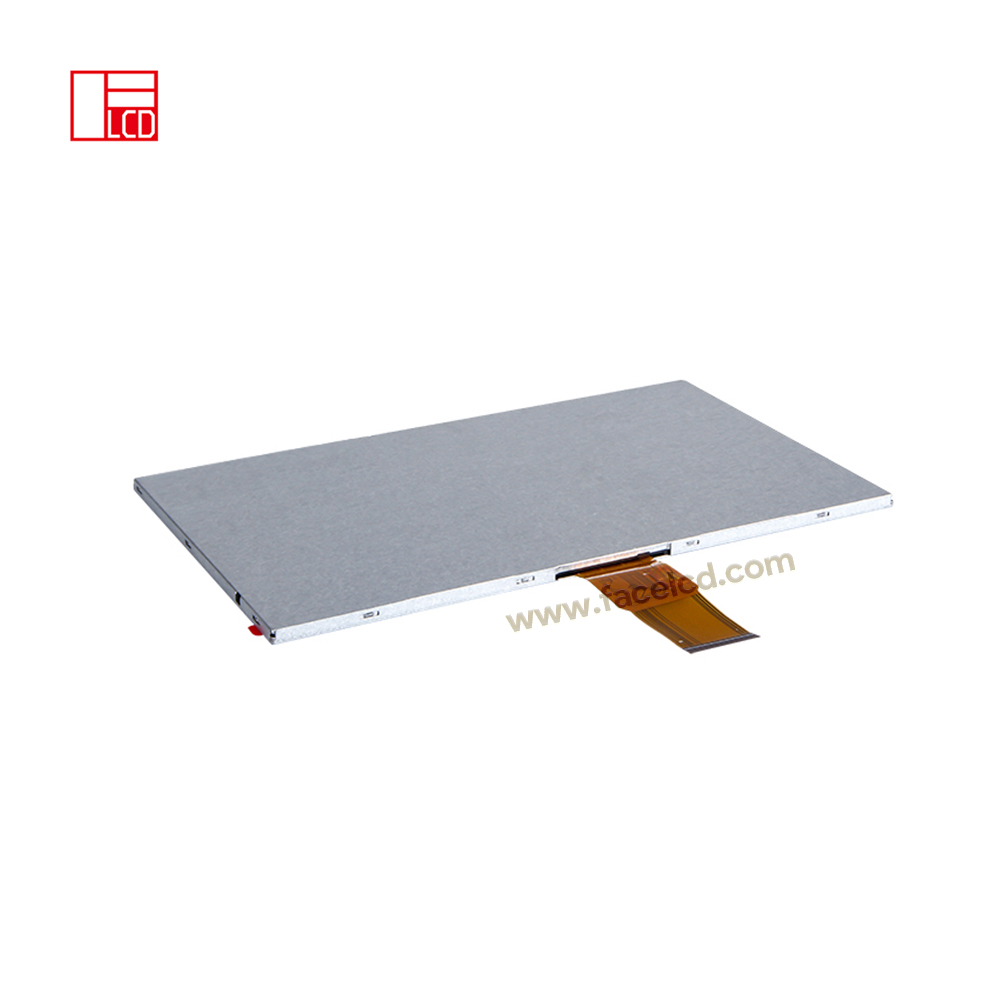

10.1inch 1024X600 IPS TFT LCD Display with RGB or LVDS
10.1inch 1024X600 IPS TFT LCD Display with RGB or LVDS
10.1inch 1024X600 IPS TFT LCD Display with RGB or LVDS
10.1inch 1024X600 IPS TFT LCD Display with RGB or LVDS

10.1inch 1024X600 IPS TFT LCD Display with RGB or LVDS

Quick info

  • Model Number:FB101EHV501-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:16:9
  • Resolution:1024 x  600
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 10.1inch
 Model Number FB101EHV501-A
 Panel Type TFT-LCD
 Aspect Ratio 16:9
 Resolution 1024 x  600
 Pixel Format RGB stripe
 Active Area 222.72(W)x 125.28(H)
 Bezel Opening 226.4(W)  ×128.7(H) mm
 Outline Dimension 229.66( W) x 133.88(H) x5.0(D) mm
 Treatment HC
 View Angel 80/80/80/80
 Support Color 16.7M  53% NTSC
 Luminance 350 cd/㎡
 Interface Type RGB/LVDS
 Operatation Temperature -20℃ ~ 70℃
 Storage Temperature -30℃ ~ 80℃
 Power Supply Votage 15.5V
 Current for LED Backlight 140mA
 Application Industrial, Medical, Comerical, Automotive, Security, Smart Home, Euipment, etc
 Sample Leadtime 7-10days
