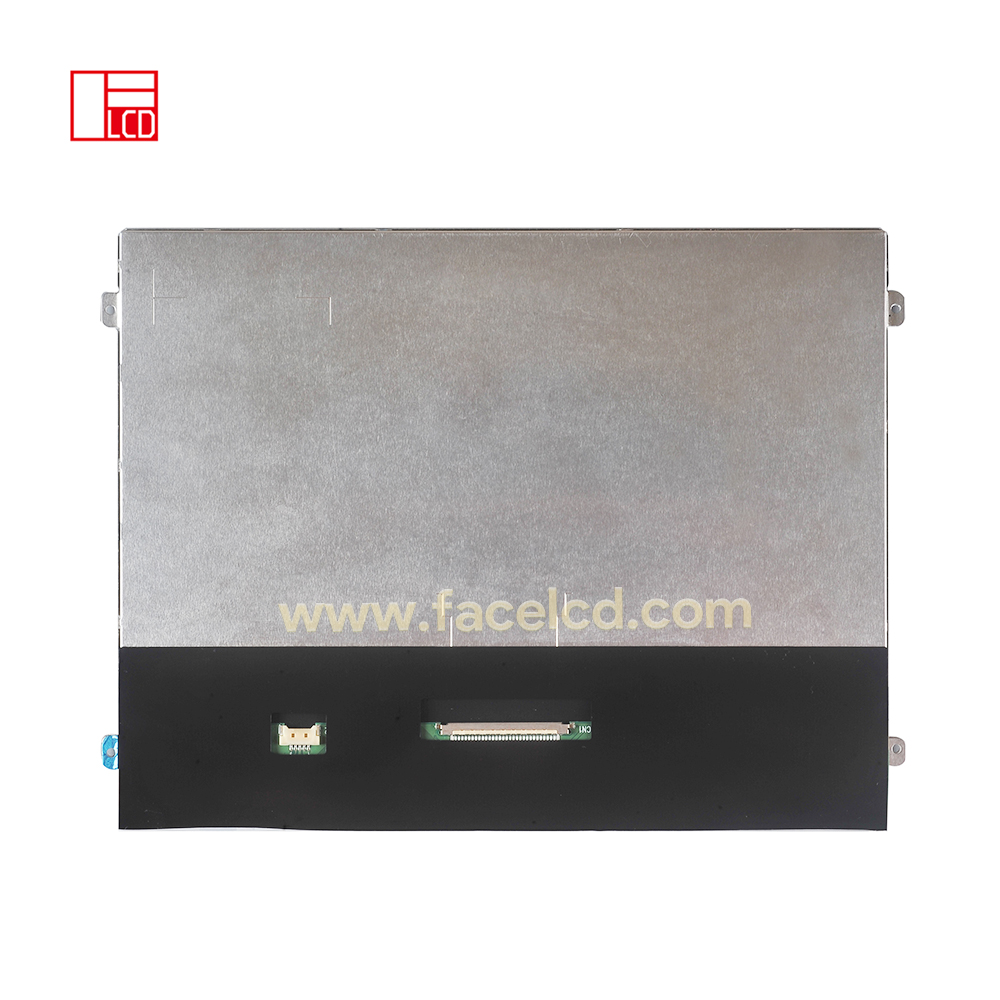

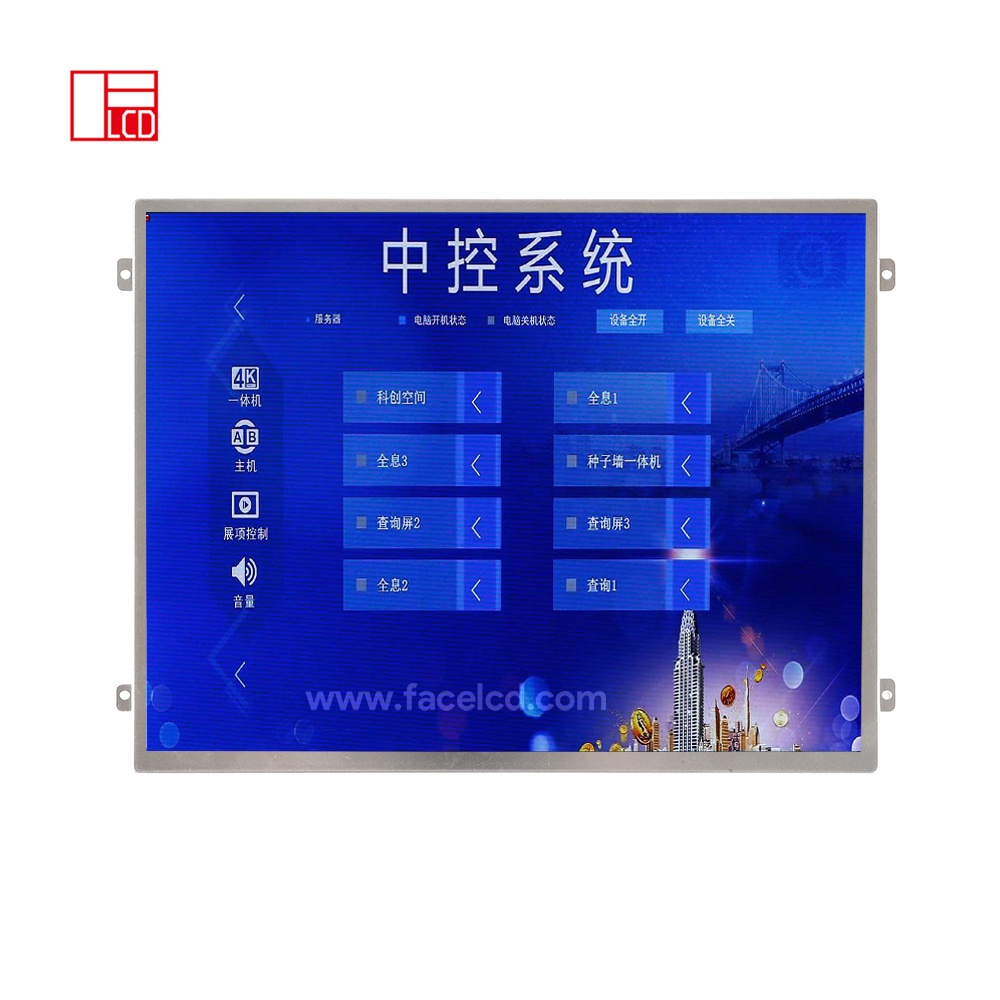

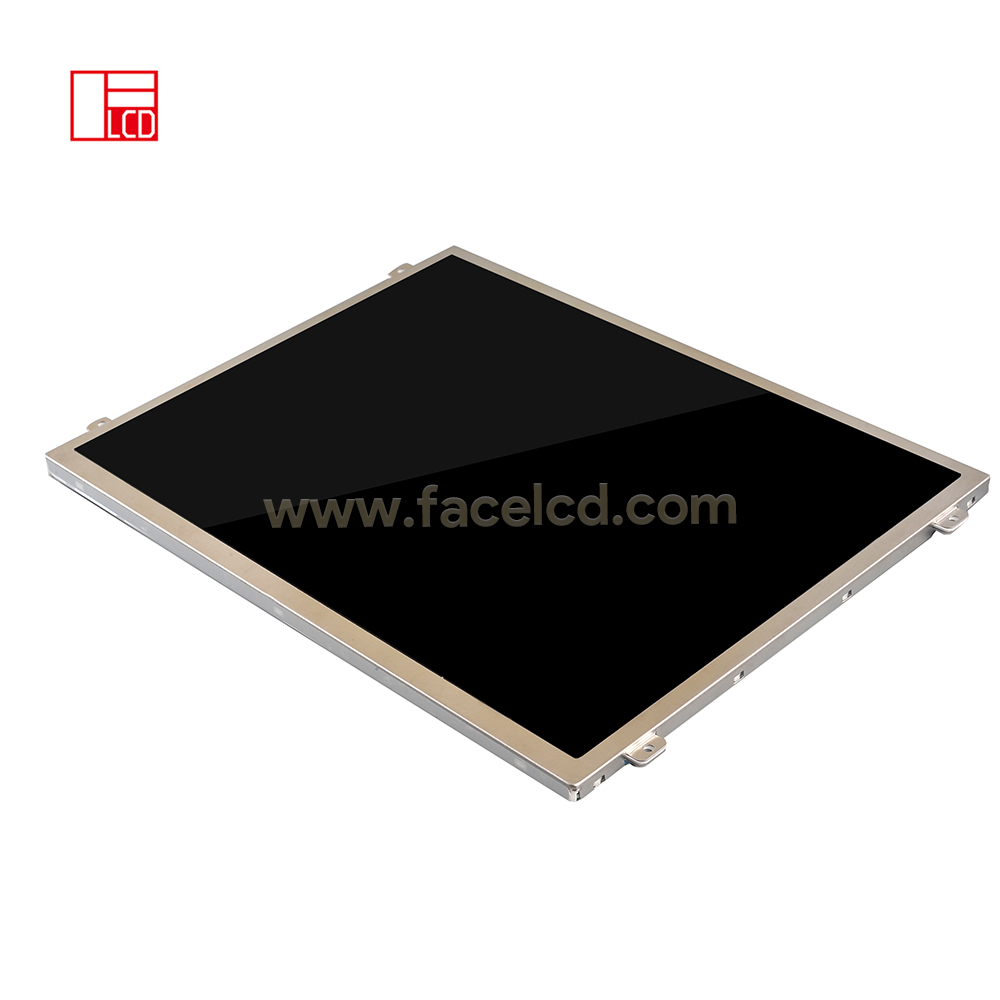

10.4inch 1024X768 IPS TFT LCD Display with LVDS
10.4inch 1024X768 IPS TFT LCD Display with LVDS
10.4inch 1024X768 IPS TFT LCD Display with LVDS
10.4inch 1024X768 IPS TFT LCD Display with LVDS

10.4inch 1024X768 IPS TFT LCD Display with LVDS

Quick info

  • Model Number:FB104PXV504-A
  • Panel Type:TFT-LCD
  • Aspect Ratio:4:3
  • Resolution:800*600
Quote Now
DetailsAdditional Information

Product Description

 Panel Size 10.4inch
 Model Number FB104NXV201-A
 Panel Type TFT-LCD
 Aspect Ratio 4:3
 Resolution 1024 x 768
 Pixel Format RGB Stripe
 Active Area 210.432 (W) x 157.824 (H) mm
 Bezel Opening 215.4 (W) x 161.80(H) mm
 Outline Dimension 238.6 (W) x 175.8 (H) x 6.5(D) mm
 Treatment HC
 View Angel 80/80/80/80
 Support Color 256K/16.7 M
 Luminance 600 cd/㎡
 Interface Type LVDS
 Operatation Temperature -30℃ ~ 85℃
 Storage Temperature -30℃ ~ 85℃
 Power Supply Votage 33V
 Current for LED Backlight 160mA
 Application Industrial, Medical, Comerical, Security, Euipment, etc
 Sample Leadtime 7-10days
